Ancel AS100 OBD2 Diagnostic Scan Tool

Name: Ancel AS100 OBD2 Diagnostic Scan Tool
Brand: Premium Diagnostic Equipment
SKU: ANC-DS-AS100
Price: 50.00 AUD
Availability: OutOfStock

$50.00 $60.00

Delivery and Shipping

Shipping Information

Orders placed before 12pm AEST Mon-Fri will be dispatched same day

Standard Shipping in Australia 2-9 business days - FREE

Express Shipping in Australia 1-3 business days - Shipped via Australia Post Express. In most cases you will get your order the next day if it was placed before 12pm but we can not guarantee this overnight service.

TNT Overnight Express - 1 business day if order is placed before 12pm.

To check freight costs enter your details and address at check out

Local Pick Up - Same day from Gold Coast warehouse providing we have stock on hand, please call us to confirm 07 3180 6771

Couriers we use - Most orders are shipped via Australia post. We may use TNT/FEDEX or Aramex depending on your location or preference.

Description

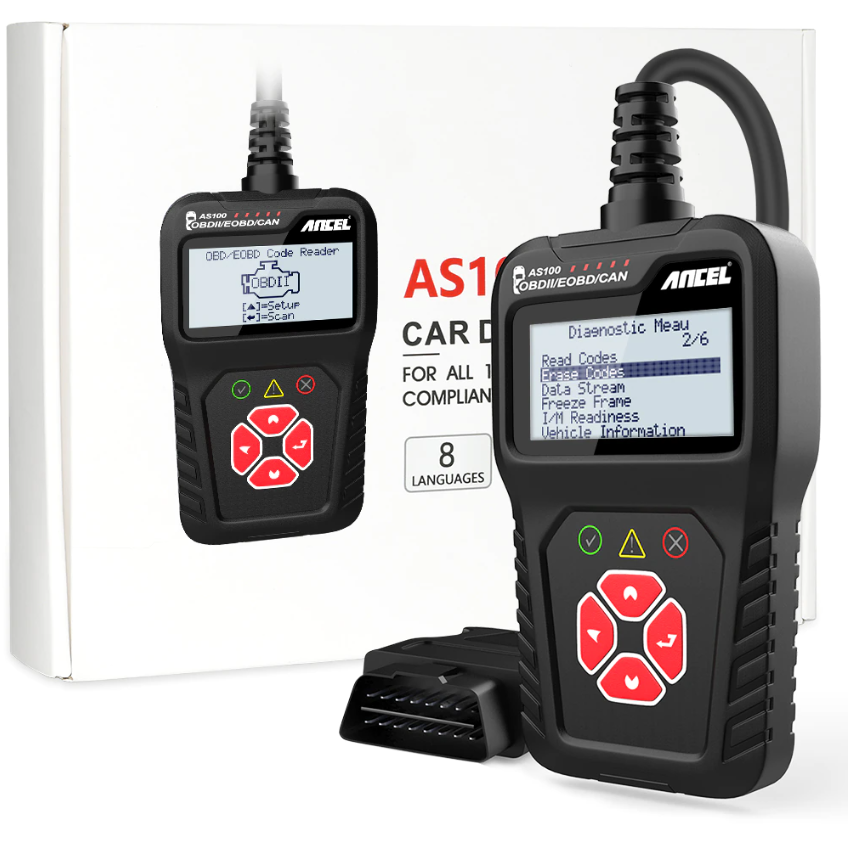

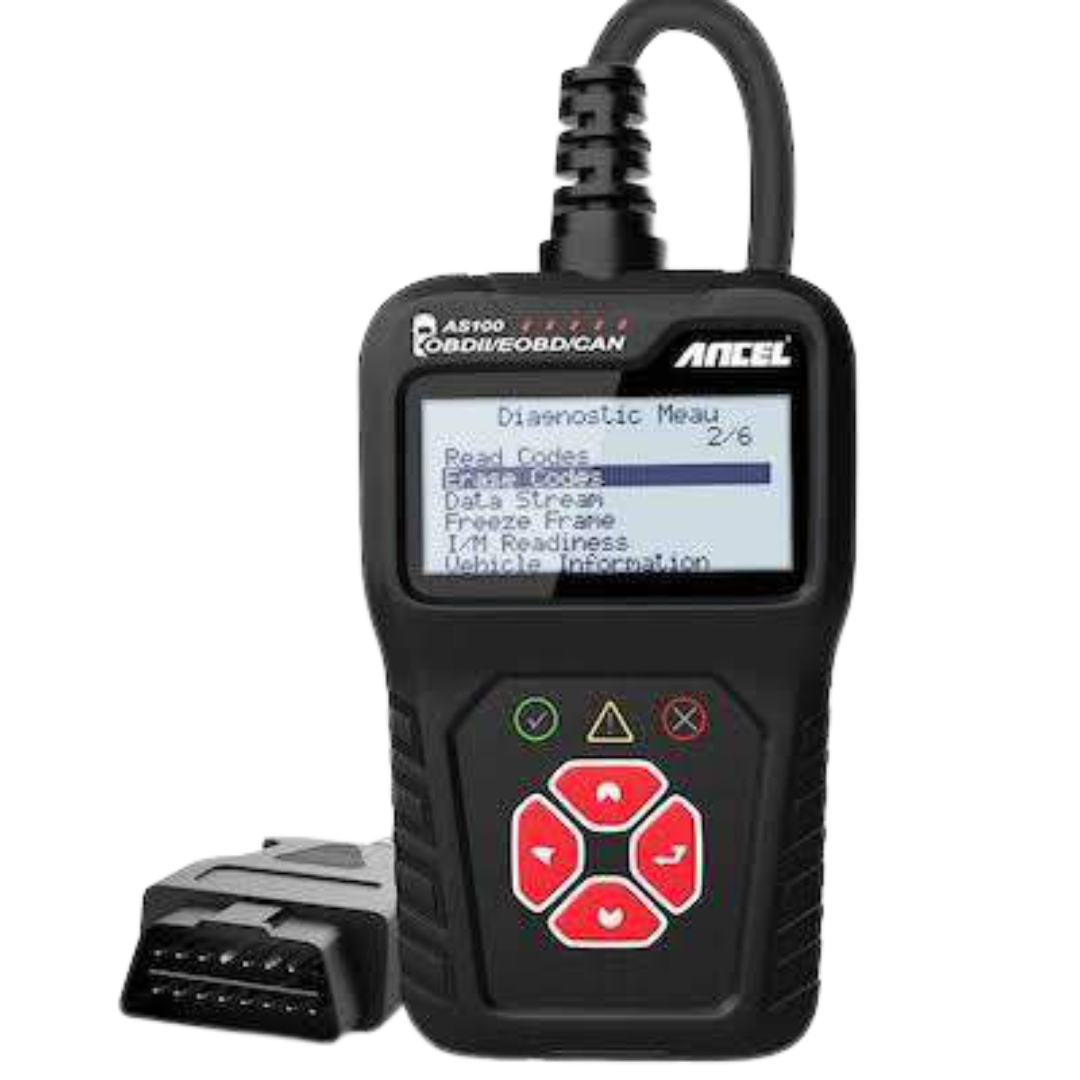

Ancel AS100

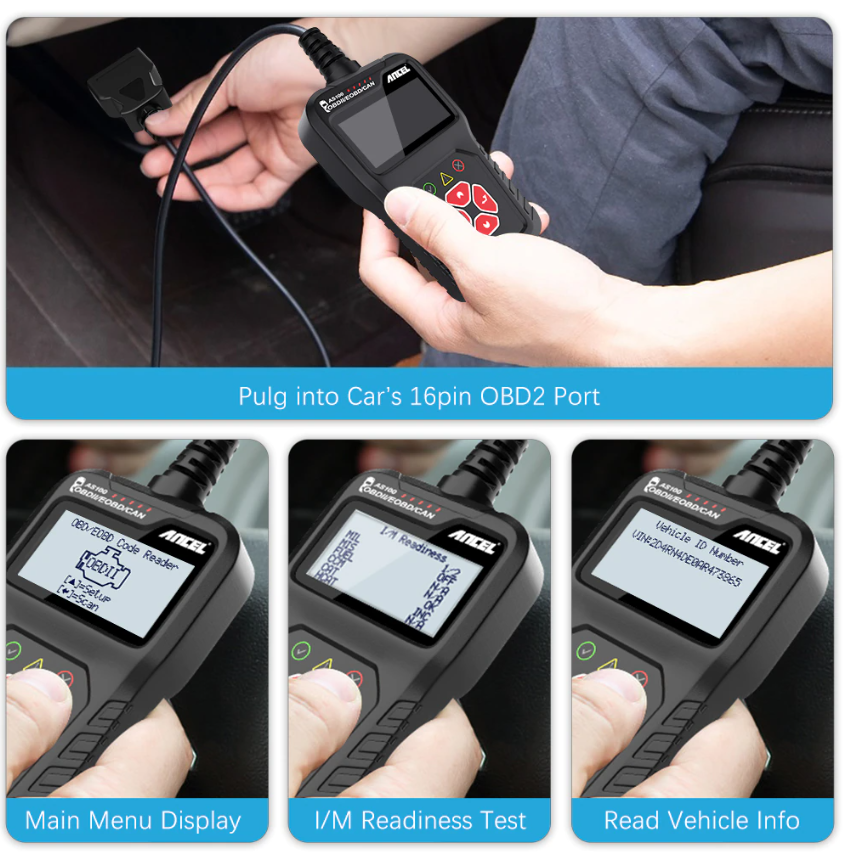

A compact, easy-to-use diagnostic scan tool that delivers core functionality with confidence. Simple setup, just plug in to begin diagnosing.

Key Features

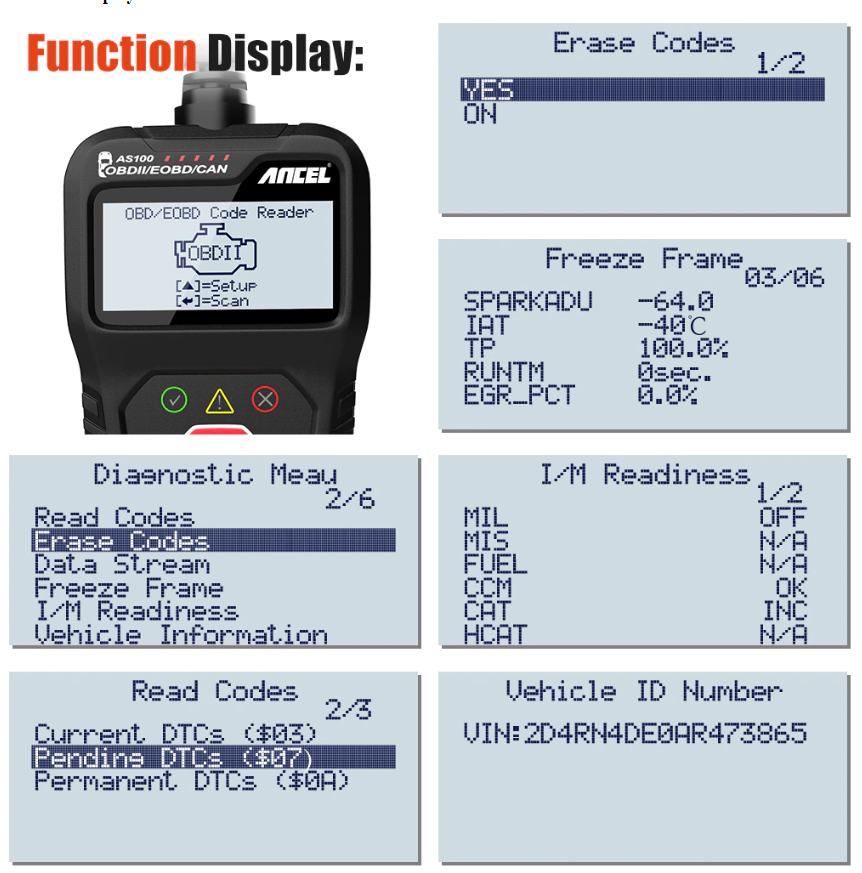

Read Trouble Codes — Retrieves generic, manufacturer-specific, and pending Diagnostic Trouble Codes (DTCs) with clear definitions.
Erase Codes & Reset MIL — Clears codes, turns off the malfunction indicator light, and resets readiness monitors.
Live Data Stream — Displays real-time vehicle parameters in text or graph format and records freeze-frame data for later review.
I/M Readiness Status — Indicates whether emissions-related systems are ready for inspection and maintenance on OBD2 compliant vehicles.

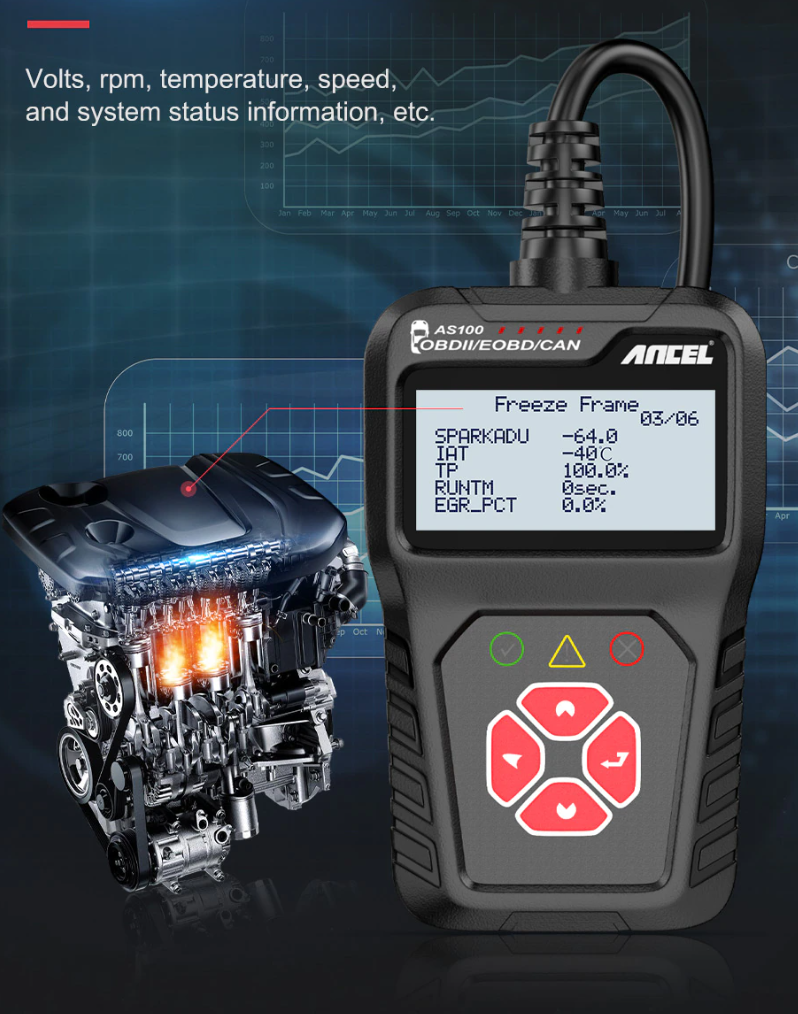

Freeze-Frame Data — Captures and displays engine conditions such as RPM, speed, and coolant temperature at the moment a fault is detected.
Vehicle Info — Shows VIN, Calibration ID (CID), and Calibration Verification Number (CVN).
Automatic VIN Decoding (Selected Regions) — Simplifies retrieval of manufacturer-specific codes and enhanced Mode 6 data.
Multilingual Menu — English, French, German, Spanish, Italian, Russian, Portuguese, Dutch, Finnish, and Polish.
Lifetime Free Updates — Firmware updates available via USB at no extra cost.

Compatibility

Supports most OBD2 compliant vehicles across multiple regions, including U.S., European, Australian and Asian models. Some vehicle-specific limitations may apply.

Protocols Supported

SAE J1850 PWM & VPW
ISO 9141-2
ISO 14230-4 (KWP)
ISO 15765-4 CAN (11/29 bit IDs at 250 kbps and 500 kbps)

Specifications

Specification	Details
Display	Monochrome 128 × 64 dot-matrix LCD, white backlight
LED Indicators	Green (no fault), Yellow (pending), Red (fault/MIL on)
Operating Voltage	8–25 V
Temperature Range	−20 to 70 °C (operating), up to 80 °C (storage)
Dimensions (L × W × H)	Approx. 115 × 70 × 20 mm
