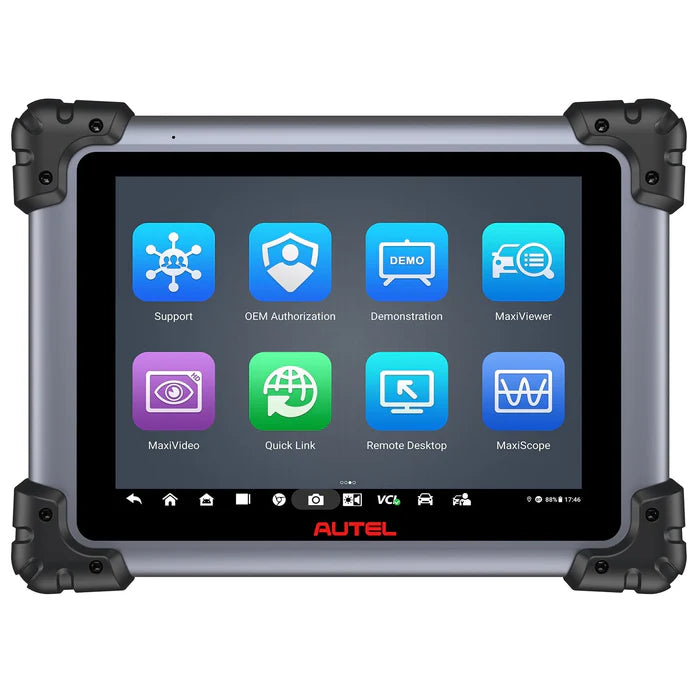

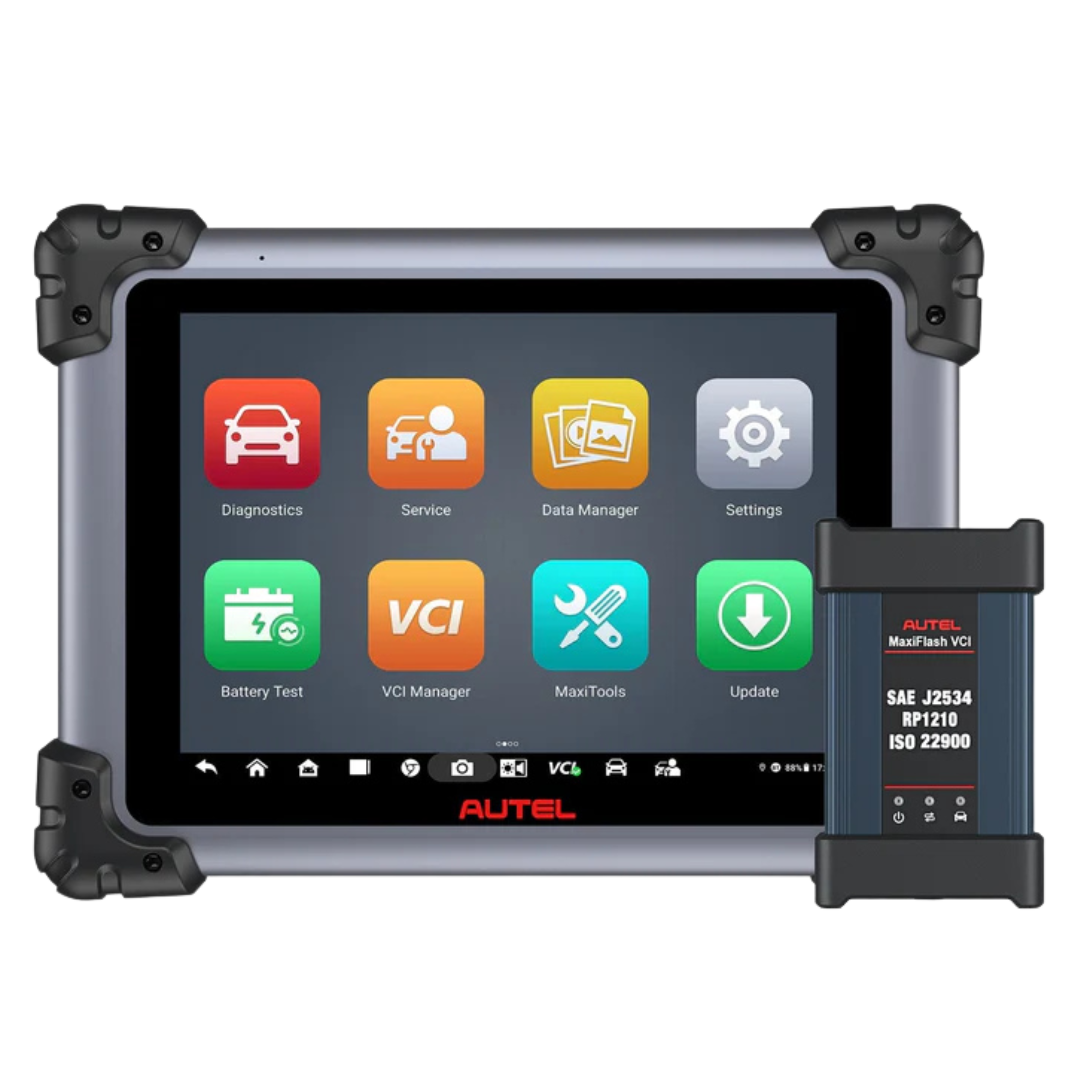

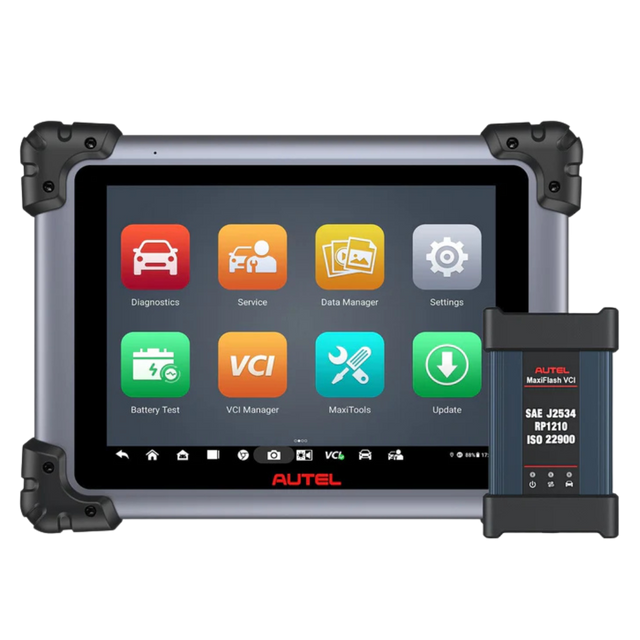

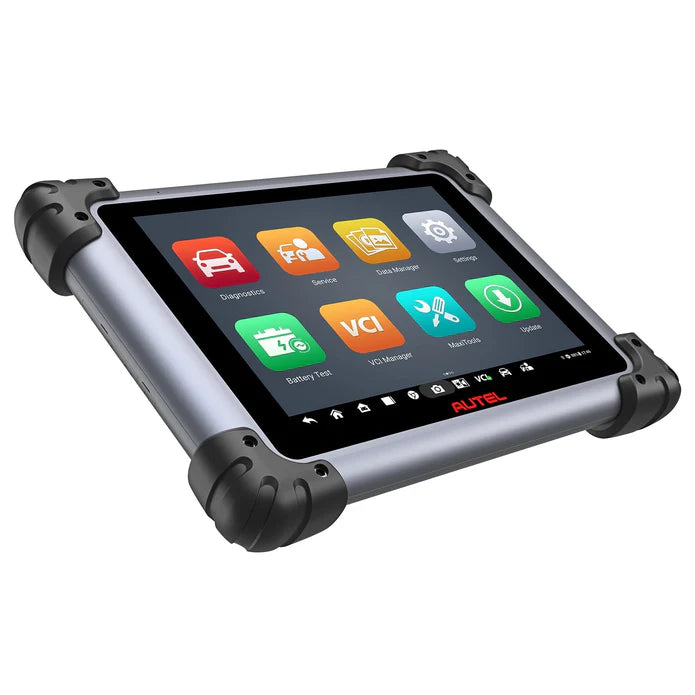

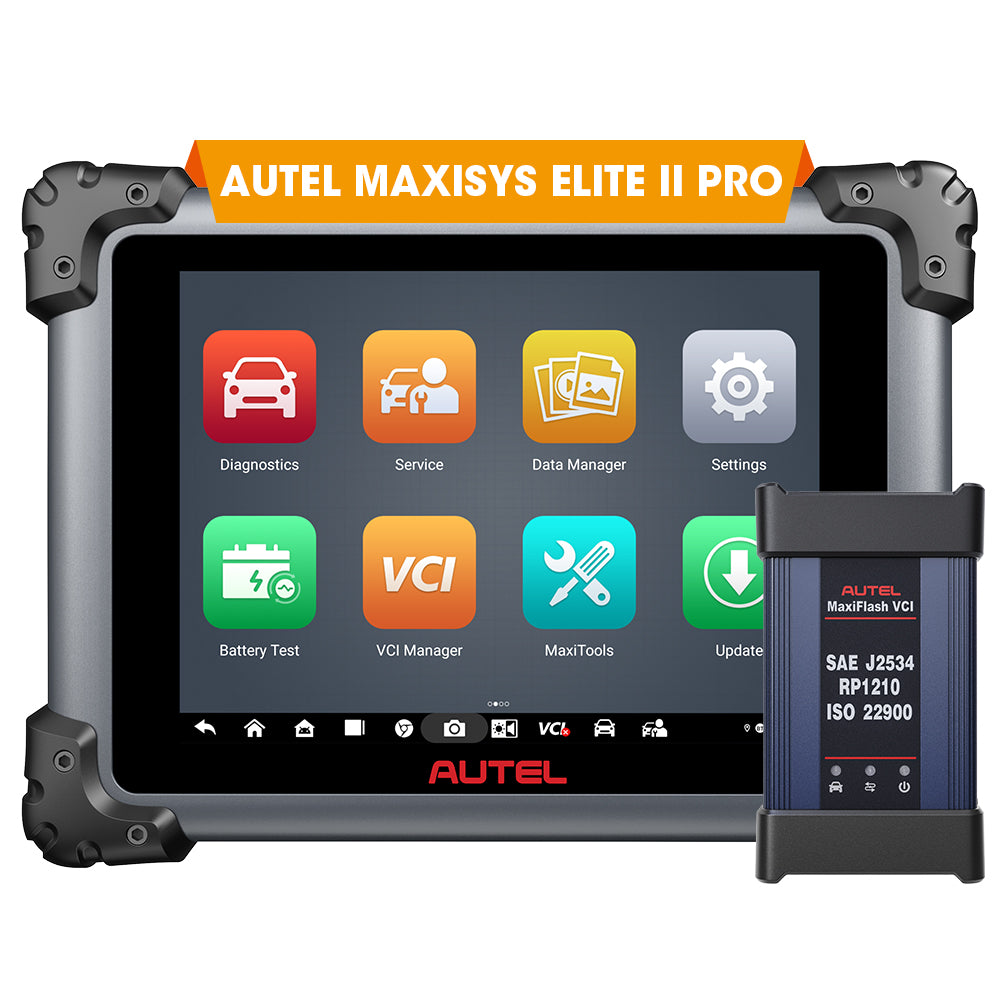

2022 Autel MaxiSys Elite II Professional Diagnostic Scan Tool With J2534 ECU Programming


Autel Maxisys Elite II is the latest version of the Maxisys Elite series, upgraded from Autel Maxisys Elite. It features improves hardware and software, the same hardware as MS909, Added functions for ADAS, oscilloscope, GPS, supports MaxiFix cloud service

 Current Promotion- If this tool is brought through us and registered between the 1st- Aug - 30th Sep you will get two years FREE updates  (Valued at $1850)

Our Autel Scan Tools all include Australian Software for Holden and Ford

To check what functions are available for each vehicle click here

1. Hardware and Software Platform Upgrade, a New Operating Experience

1). Samsung Exynos8895 8 core hardware platform.
2). Equipped 5M/ 16M camera.
3). Equipped 4G/ 128G super memory.
4). Equipped 15400mAh battery

2. Support More Expansion Functions, Easy to Manage Various Repair Scenarios

1). Battery detection (BT506)
2). Support ADAS calibration, oscilloscope, GPS

3. Support MaxiFix Cloud Service, Efficiency Enhancement at Your Fingertips

1). Support Remote expert service, RealFix, SMS.
2). Device management/report management, data on the cloud without fear of loss

Overview:

1. The most extensive complete system coverage for more than 80 US domestic, Asian and European makes and models.
2. Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming.
3. Uniquely integrated vehicle programming capabilities working with a SAE J2534-1 & -2 compliant vehicle programming pass-thru interface.
4. Automatic system and software updates with real-time push message notifications via internet.
5. Instant remote control tech support anytime, anywhere.
6. Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors.
7. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized.
8. Unique ergonomic design with rubberized outer protection and a rugged internal housing.
9. The most efficient scanner featuring progressive technologies like the Auto VIN Scan & Wi-Fi Data Logging inside a very intuitive and user-friendly interface design. 2x faster than any comparable device and MaxiSys Elite provides extended battery life and intelligent power saving.

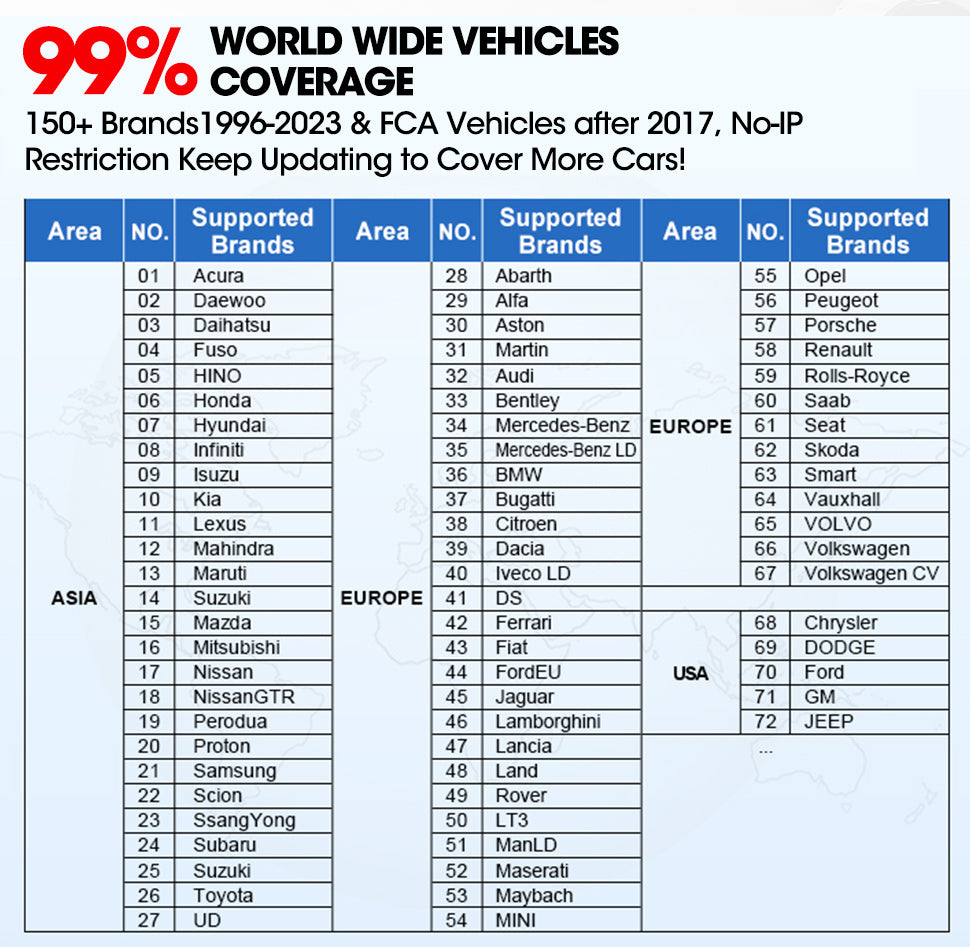

Vehicle Coverage:

The Latest Maxisys Elite II supports almost 90% of vehicles all around the world. These multi-functions perform various components adaptions allowing you to recalibrate or configure certain components after making repairs or replacement.

1) Supported Vehicle List: AUDI, BENZ, BMW, DACIA, EU FORD, AU Ford, Ford, Holden, LANDROVER, MINI, OPEL, PEUGEOT, RENAULT, SEAT, SKODA, VW, VOLVO, SMART, JAGUAR, BENZ SPRINTER, SAAB, FIAT, ABARTH, LACIA, ALFA ROMEO, VAUXHALL, MAYBACH, BENTLEY, BUGATTI, PORSCHE, GM, CHRYSLER, FORD, SUZUKI, KIA, DAWEOO, ISUZU, TOYOTA, SUBARU, SCION, NISSAN, MITSUBISHI, LEXUS, INFINITI, HYUNDAI, HONDA, ACCURA, MAZDA.

2) Supported Protocols:  ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L lins, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708V

Functions Supported:

1. Full System Diagnosis & Full OBDII functions

Using the additional OEM software, the Maxisys Elite II can be used as a Pass-Thru diagnostics tool as well, which allows users to read and clear Diagnostic Trouble Codes (DTCs) and data log PIDS, collect sensor data and log generic OBDII data, etc.
Similar to many Autel scan tools, the Autel Maxisys Elite II can perform all the OBD II test modes. These include the latest powertrain diagnostic data, freeze frame data, emission diagnostic trouble codes, emissions diagnostic data, oxygen sensor monitoring test results, onboard monitoring tests, VIN, and many more

2. Advanced functions & Online Programming

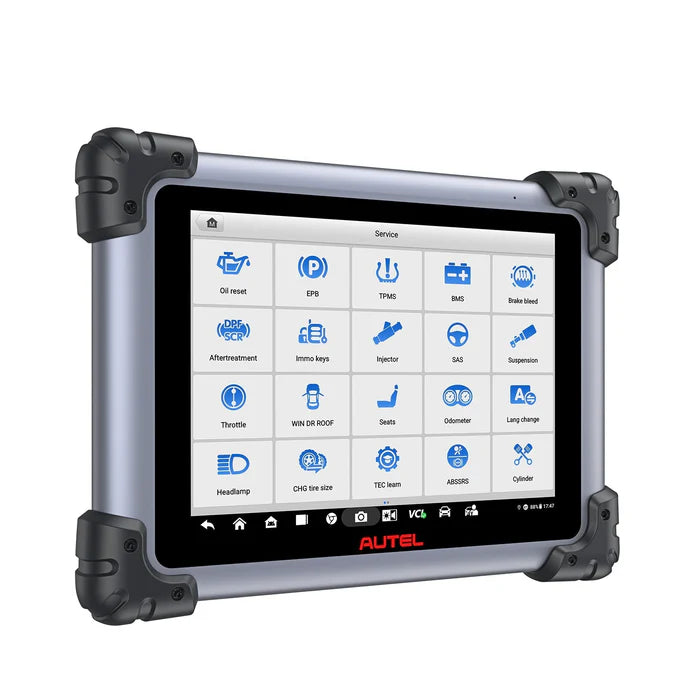

Maxisys Elite II diagnostic scanner comes with 25+ service functions, such as ABS Brake Bleeding( also for VAG cars), SRS Reset, SAS Calibration, Oil Reset, EPB, BMS, injector coding, DPF, Throttle Body, etc to meet your various needs. Online Programming is available on Maxisys Elite II.



3. Extensive vehicle coverage & Extra Vehicle Adapter

Maxisys Elite II is one of the most extensive diagnostic scan tools with complete system coverage for more than 80 US domestic, European, and Asian vehicle makes and models.
Even though it is an OBD II Scanner, it as well works on some OBD 1 vehicles. Some of the famous car brands that this scan tool is compatible with include GM, Ford, Chrysler, Audi, Toyota, Nissan, Honda, BMW, Benz, Chevrolet, etc.

4. Autel Cloud Technology

Autel Cloud Technology (MaxiFix Platform, Data Management, Data Feedback) gives you support anytime, anywhere.
1) MaxiFix Application launches the on-line troubleshooter database, which not only provides you virtually all common diagnostic trouble code (DTC) database for most vehicles, but also serves as a forum allowing you to network with other MaxiSys users, and gives you access to a vast database of repair and diagnostic tips along with proven filed fixes.
2). Data Manager application is used to store, print, and review the saved files.
3). Shop Manager application helps you to manage the workshop information, customer information records, and keep test vehicle history records, which can be a great assist in dealing with daily workshop business and improves customer service

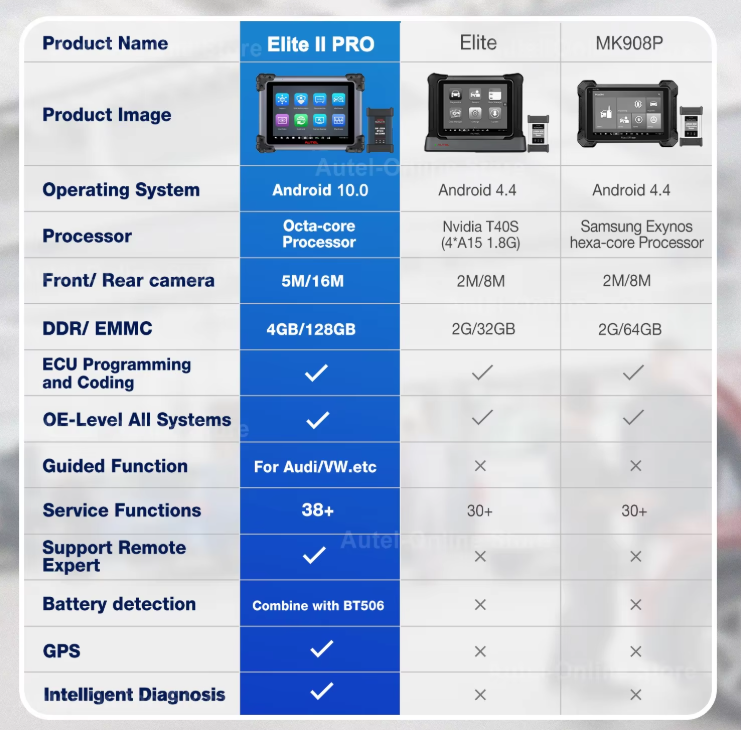

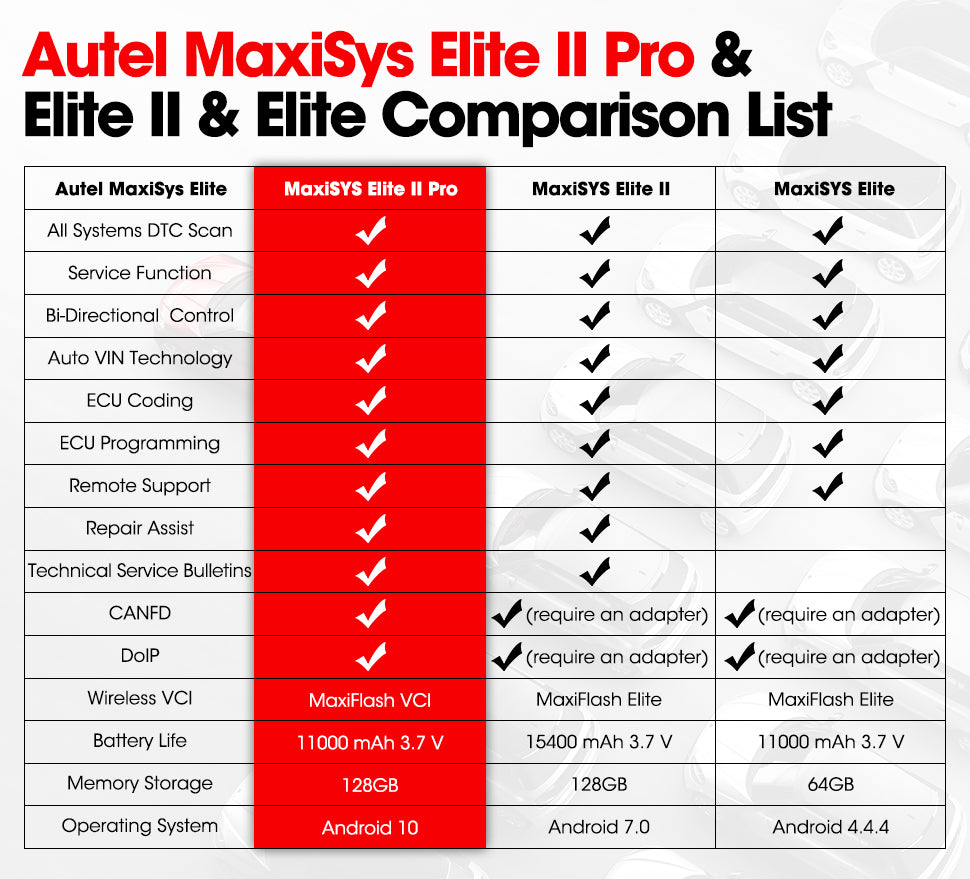

1. Hardware Comparison:


Item Autel MaxiSys Elite Autel MaxiSys Elite II Maxisys MS909
CPU Nvidia T40S (4*A15 1.8G) Samsung Exynos8895 8 Core (4*M2 2.3G+4*A53 1.7G) Samsung Exynos88958 Core (4*M2 2.3G+4*A53 1.7G)
EMMC 32GB/64GB /64GB /64GB
DDR 2GB 4GB 4GB
Android System Android4.4 Android 7.0 Android 7.0
LCD 9.7 inch 2048*1536 9.7 inch 2048*1536 9.7 inch BOE 1536×2048
Battery 15400mAH 15400mAH (Elite) 15000mah
Power (9V, 2A) / (12V, 3A) (12V, 3A) (12V, 3A)
TP 10 10 5
Front camera 2M 5M 5M
Rear camera 8M 16M 16M
Microphone connector 1Mic 1Mic (Elite) 1Mic
WiFi module wifi5 wifi5 Dual wifi5
Docking station Yes Yes No
GPS No Yes Yes
Battery tester No Optional Autel MaxiBAS BT506 Optional BT506

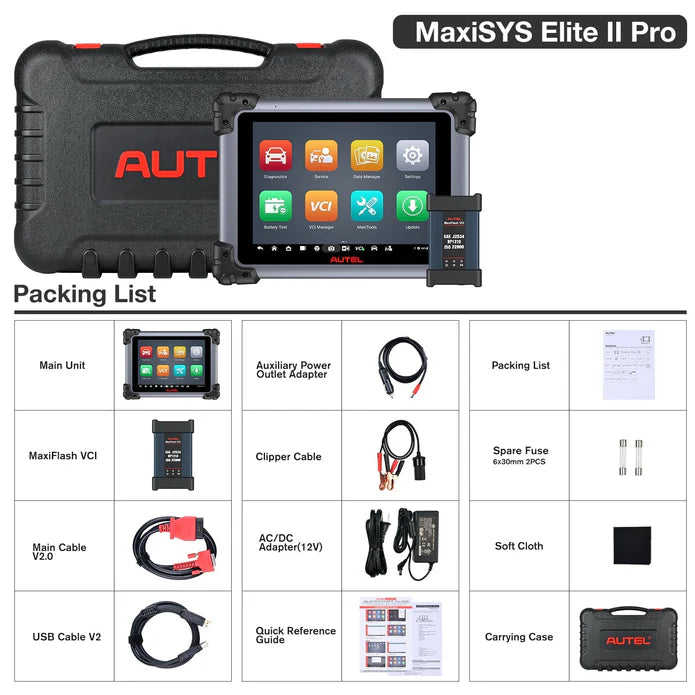

VCI MaxiFlash Elite MaxiFlash Elite MaxiFlash VCI


2. Software Functions Comparison:


Item Autel MaxiSys Elite Autel MaxiSys Elite II MaxiSys MS909
Immobilizer IMMO Function No No No
Diagnostic Test Plan Benz BMW VW Audi Jaguar Land rover Benz BMW VW Audi Jaguar Land rover Benz BMW VW Audi Jaguar Land rover
DTC description (Help) Benz BMW VW Audi Ford Toyota Nissan
Honda Hyundai Land rover Jaguar Peugeot
Citroen
Benz BMW VW Audi Ford Toyota Nissan Honda
Hyundai Land rover Jaguar Peugeot Citroen
Benz BMW VW Audi Ford Toyota Nissan Honda
Hyundai Land rover Jaguar Peugeot Citroen
Fault code

guidance

No No Benz BMW VW Audi GM (Cruze)
Technical Bulletin No No Benz BMW VW Audi Ford Chrysler GM Honda
Toyota Jaguar Land rover
DTC analysis No No Benz BMW VW Audi Chrysler Ford GM Nissan
Toyota Honda Land rover Jaguar
Repair case No No Benz BMW VW Audi Chrysler Ford GM Nissan
Toyota Honda Land rover Jaguar
Topology No No Ford Chrysler Nissan Land rover Jaguar Honda
Porsche Toyota Benz Hyundai
Calibration ADAS Yes Yes Yes
Battery test No Yes Yes
Oscilloscope Yes with MP408 Yes with MP408 No
MaxiFix Shop Manager (SMS) Yes Yes Yes
Remote Expert service No Yes Yes
Digital Vehicle Diagnostic Report Yes Yes Yes





One year free updates

Free Shipping

After-sales support

Product will come with a one year warranty

30-day money-back guarantee - we guarantee you'll love it or you'll get your money back
