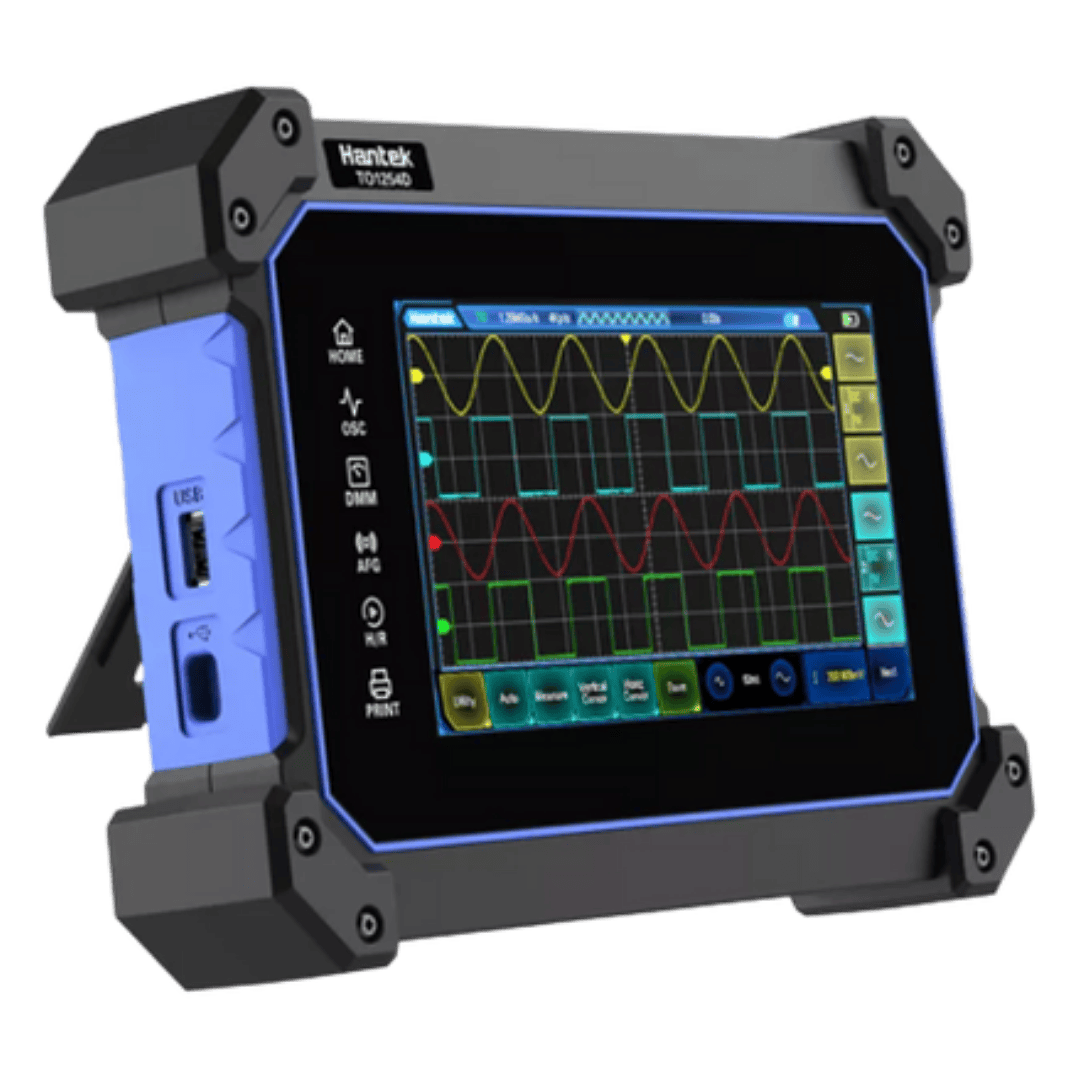

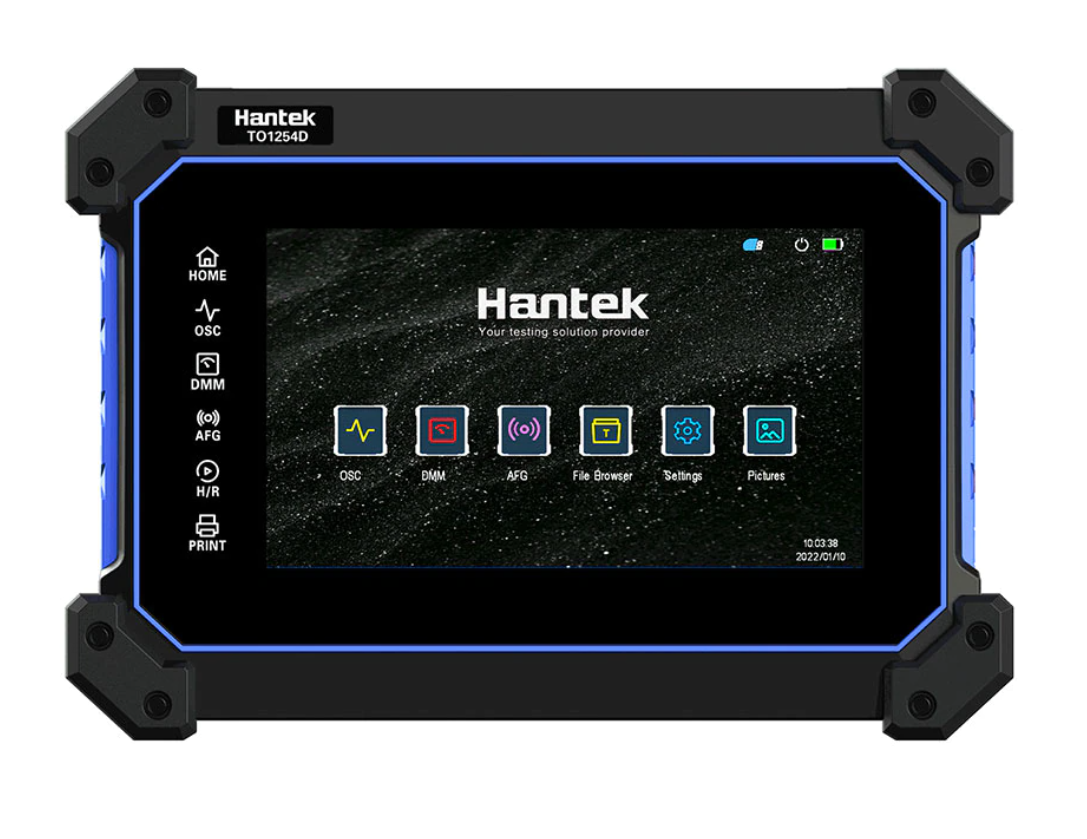

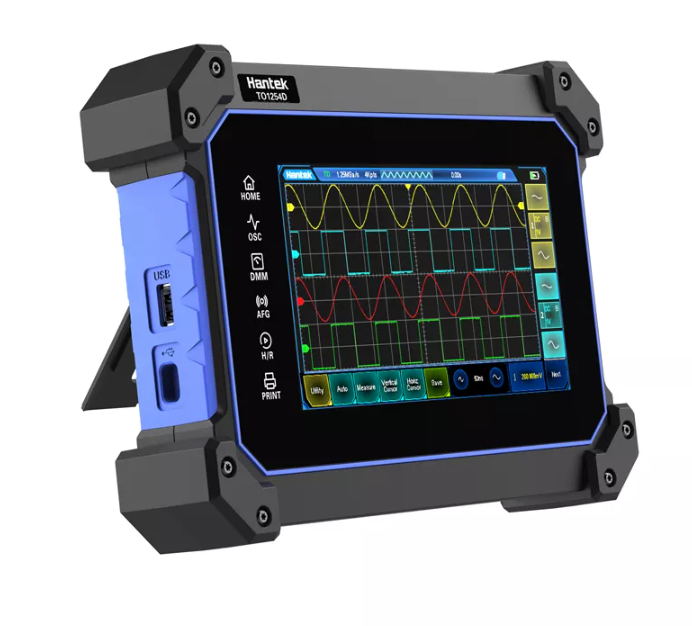

Hantek TO1254D Touch Screen Digital Oscilloscope 4 Channel

Hantek TO1254D Touch Screen Digital Oscilloscope Portable 4 Channels USB Oscilloscopes + Signal Source + Multimeter Tester 250MHZ

The new generation of TO1000 series oscilloscopes. The Hantek TO1254D has a thin body, is lightweight and easy to carry while being extremely durable.

It integrates an oscilloscope, multimeter, signal generator, and spectrum analyzer; Built-in large-capacity battery and offers fast charging to minimise downtime.

Features:

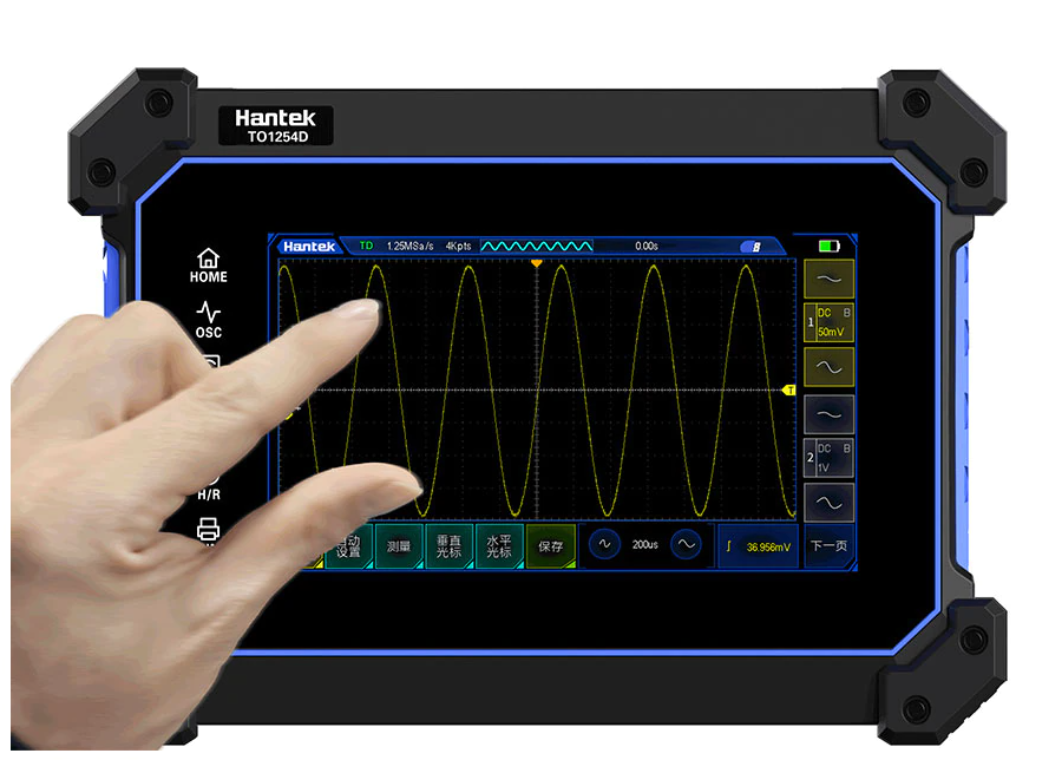

• Multi touch large screen, resolution up to 800 * 480, friendly and easy-to-use UI,

• Standard configuration of 4-channel oscilloscope, maximum bandwidth of 250MHz, the maximum sampling rate of 1GSa/s, 8M large storage.

• High-precision multimeter with data recording, storage, trend chart, statistical analysis and many other functions

• A variety of arbitrary waveforms are built into the signal generator, and the highest output frequency is 25MHz

• One key waveform storage, convenient and fast.

• Suspension foot design, multi-angle adjustment, durable anti-shock housing designed for use in tough environments

• Built-in super large capacity lithium battery, full power, long endurance, standby for up to half a year.

• The standard 18W charger supports type-C fast charging, and can also share a set of charging equipment with mobile phones.

 Specifications:

  TO1254D: 250MHz bandwidth

OSCILLOSCOPE:

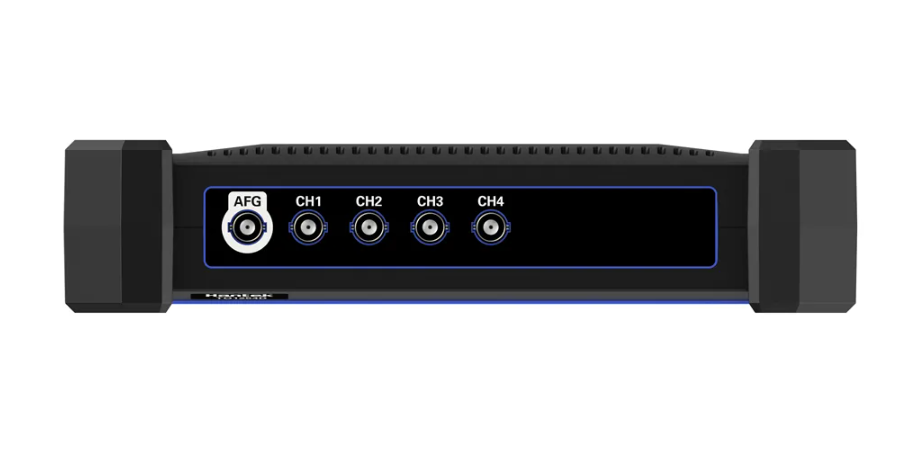

Channel: 4 Analog channels
Sampling Rate: 1GSa/S
Storage Depth: 8Mpts
Signal Source: 25MHz

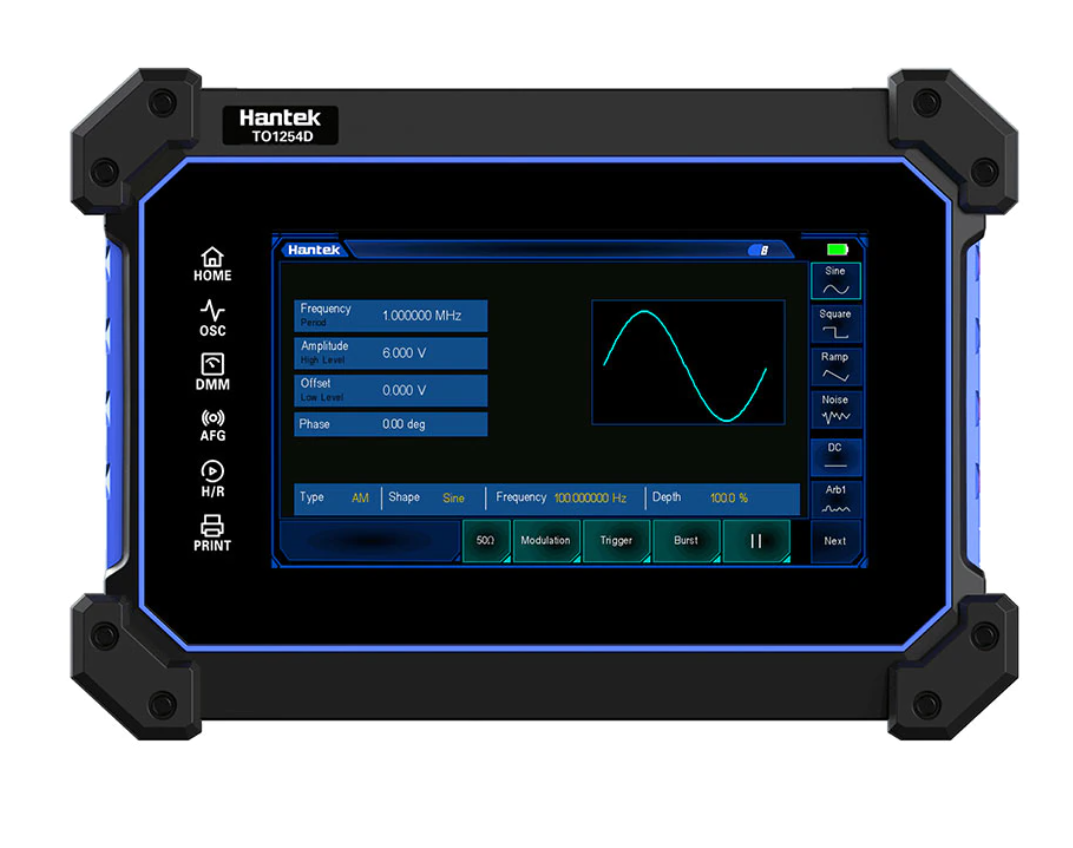

ARBITRARY WAVEFORM GENERATOR:
Channel Number: 1
Sampling Rate: 200MSa/s
Vertical Resolution: 12bit
The Highest Frequency: 25MHz
Standard Waveform: Sine wave, Square wave, Triangle wave, Noise, DC
Amplitude: 50Ω+2%
Wavelength: 4KSa

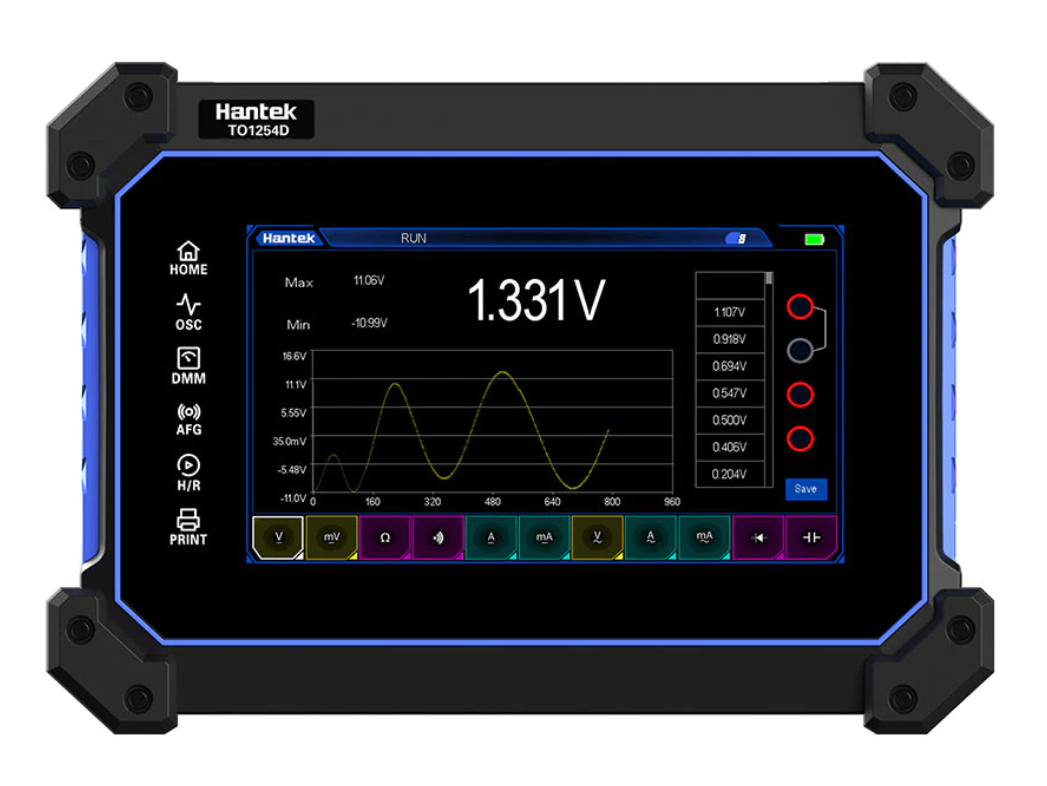

MULTIMETER:
Maximum Resolution: 4000 points
Measuring Method: Voltage, Current, resistance, capacitance, diode, on-off measurement
Maximum Input Voltage: AC: 600V; DC: 600V
Maximum Input Current: AC: 10A; DC: 10A
Input Impedance: 10MΩ
DC Voltage: 400mV/4V/40V/400V/600V
AC Voltage: 4V/40V/400V/600V
DC Current: 40mA/200mA/4A/10A
AC Current: 40mA/400mA/4A/10A
Resistance: 400Ω/4KΩ/60KΩ/400KΩ/4MΩ/40MΩ
Capacitance: 40nF/400nF/4μF/40μF/100μF
Diode: 0~1V
On off Measurement: <50Ω

GENERAL SPECIFICATIONS:
Panel Type: 7 "TFT LCD
Display Resolution: 800 (horizontal) *480 (vertical) pixels
Display Type: Point, Vector
Waveform Brightness: Adjustable
Grid Types: Solid line, Dotted line, None
Grid Brightness: Adjustable
Screen Brightness: Adjustable
Afterglow: 1s, 5s, 10s, 30s, Infinite, Off
Standard Interface: USB Host, USB Device
Power Supply: AC 100~240V, 50/60Hz; DC input: 5V3A/9V2A/12V1.5A
Power Consumption: <8W
Fast Charge: Support fast charging
Battery: 3.7V 2600mAh * 4 in parallel

ENVIRONMENTAL:
Temperature: 0~50℃
Storage Temperature: -20~60℃
Humidity: ≤104℉(≤40°C): ≤90%RH; 106~122℉(41~50°C): ≤60%RH
Cooling: Convection

Material: ABS
Item Size: 248 * 176 * 54mm / 9.76 * 6.93 * 2.13in
Item Weight: 1182g / 2.61lb
Package Weight: 2193g / 4.84lb
Package Size: 31.5 * 23.5 * 10.5cm / 12.40 * 9.25 * 4.13in

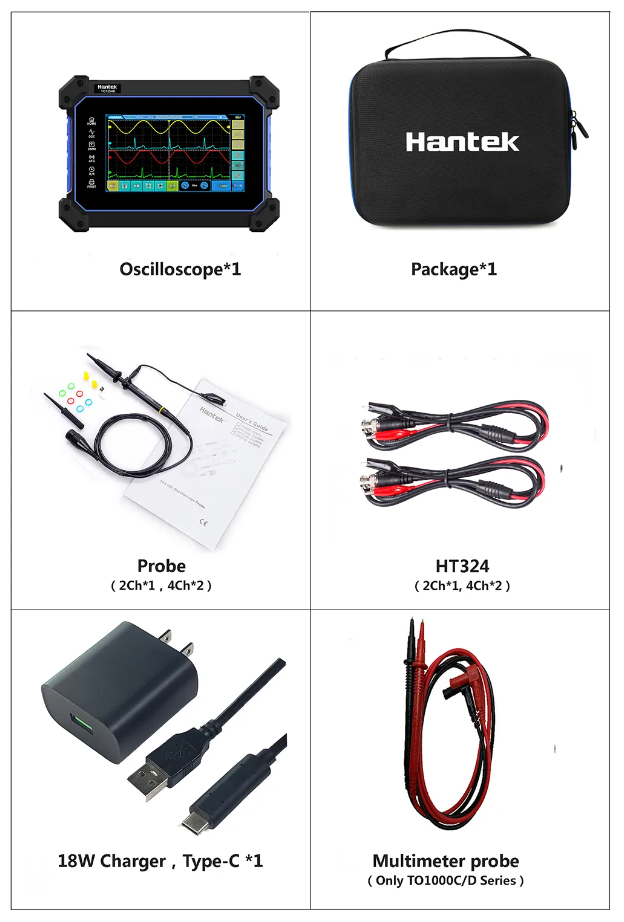

Package List:
1 * Digital Oscilloscope
2 * 2X Oscilloscope Probe
3 * Alligator Clip Line
1 * Type-C Cable
1 * Plug
2 * Package of Accessory
2 * Multimeter Probe
1 * Zipper Case
