Topdon ADAS PX1000 Advanced Driver Assistance Mobile Calibration System (Basic Package)

The Topdon ADAS Mobile PX1000 - Basic Package

With the increasingly widespread use of advanced driver assistance systems such as automatic emergency braking or lane departure warnings, replacing windscreens is becoming more and more complex. It requires the use of corresponding optical adjustment devices and reference panels together with a diagnostic device. To solve this problem, Topdon has manufactured a mobile product solution specifically designed for the calibration of the assistance systems on most vehicle brands.

Phoenix ADAS Mobile is a portable ADAS calibration tool for ADAS system calibration and is ideal for repair businesses to target new income streams. The unique fully collapsible design can minimize the transport risk, speed up the installation procedure and calibrate in various places. Features with 23-style manufacturer standard lenses and advanced ADAS software, Phoenix ADAS Mobile offer a one-stop calibration service.

Features:

1. Start to calibrate in seconds, no more tedious work of disassembly and installation
2. Fully foldable design including completely flat folded base, close-fitting foldable arms and foldable crank handle
3. Multi-functional base integrates 360°rotating wheels, wheel locks and fine-tuning height adjustment to adapt to uneven ground
4. Equilateral triangle design of the base ensures a stable frame
5. Digital distance laser shows the cross-bar height and makes sure it is equal to the standard value precisely
6. Five line laser and fine-tuning switch help to easy centre the device and parallel to the vehicle and offer high precision calibrating
7. Special small target design makes it convenient to carry and store
8. 23-style manufacturer standard targets provide one-stop calibration service
9. Quick access to ADAS calibration by step-by-step tutorial graphics on TOPDON Phoenix diagnostic tools,
10. Also compatible with Launch branded scan tools

Vehicle Model Coverage:

European

Mercedes-Benz, BMW, Audi, Volkswagen, Land Rover, Jaguar, Volvo, Fiat, Opel, Seat, Skoda, Renault, Citroen, Smart, Mini, Peugeot, Porsche, etc.

American

GM, Ford, Chrysler, Buick, Cadillac, Chevrolet, Dodge, Jeep, Lincoln, etc.

Asian

Kia, Hyundai, Toyota, Lexus, Honda, Acura, Nissan, lnfiniti, Mitsubishi, Subaru, Suzuki, Daihatsu, Mazda, etc.

Included:

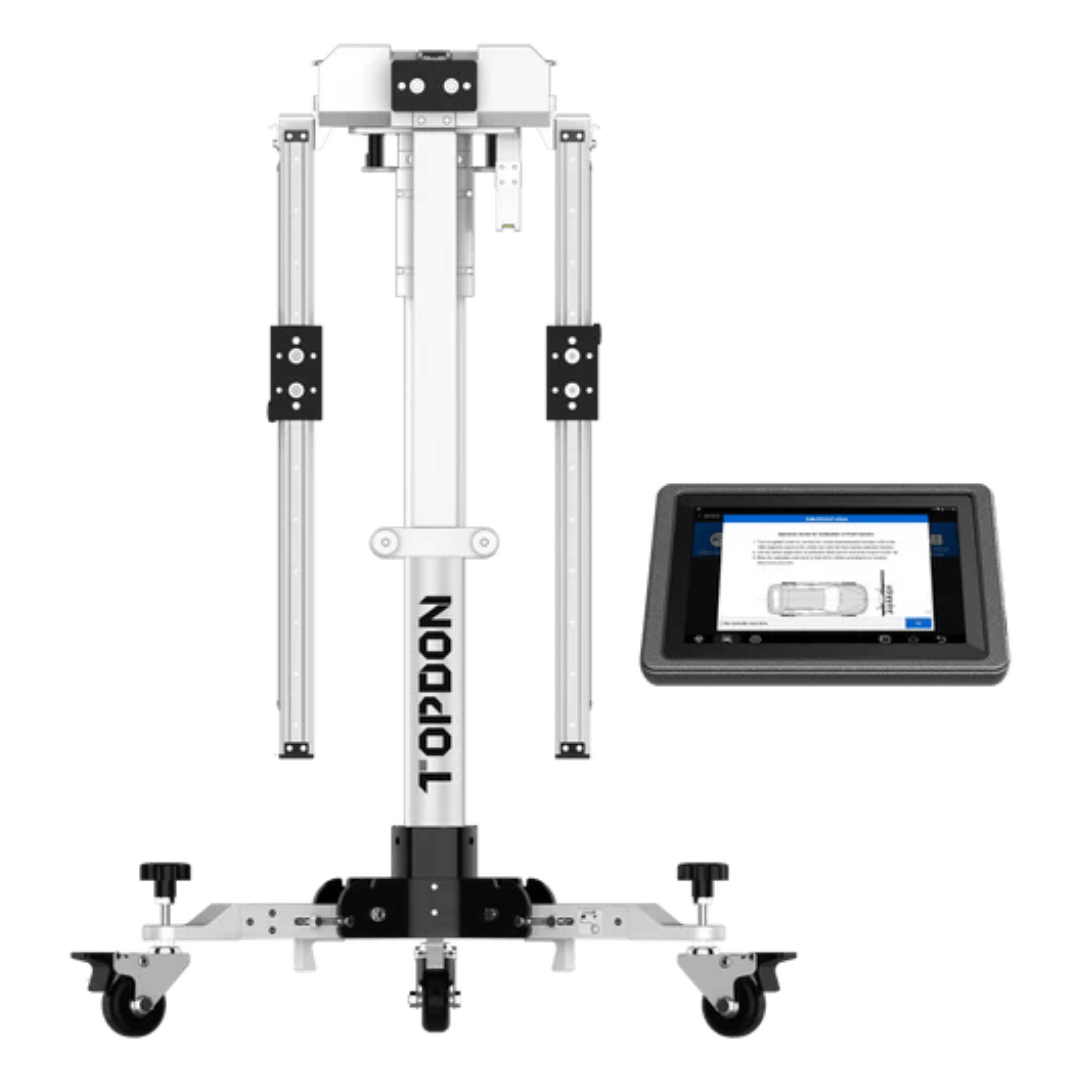

Main Frame: ADAS Mobile Calibration Frame and Laser range finder

Calibration with the Topdon ADAS Mobile PX100 is performed in accordance with OE manufacturer specifications.

LDW Targets:

LAM01-01: Mercedes LDW Target
LAM01-02: VW/Audi LDW Target
LAM01-04-L: Honda LDW Target
LAM01-04-R: Honda LDW Target
LAM01-06-1: Toyota LDW Target
LAM01-06-2: Toyota LDW Target
LAM01-06-3: Toyota LDW Target
LAM01-07-L: Nissan LDW Target
LAM01-07-R: Nissan LDW Target
LAM01-09: Hyundai/Kia LDW Target
LAM01-10: Mazda LDW Target
LAM01-12-L: Nissan/Renault LDW Target
LDW01-12-R: Nissan/Renault LDW Target
LAC01-13: Hyundai/Kia LDW Target
LAM01-15: Subaru LDW Target
LAM01-16-L: Mazda LDW Target
LAM01-16-R: Mazda LDW Target
LAM01-17: Honda LDW Target
LAM01-18-L: Suzuki LDW Target
LAM01-18-R: Suzuki LDW Target
LAM01-19-L: Mitsubishi LDW Target
LAM01-19-R: Mitsubishi LDW Target
LAM01-20: Honda LDW Target
LAM01-21: Subaru LDW Target

Extension Rod

LAM09-08: Extension Rod I   LAM09-08

LAM09-09: Extension Rod II   LAM09-09

Accessories
Five Line Laser   LAM09-01
Cross Laser   LAM09-02
Laser Reflector   LAM09-03
Auxiliary mirror   LAM09-04
L-shaped positioning bracket   LAM09-05
Plumb line    LAM09-06
Target storage bracket    LAM09-07
Tapeline
Cross sticker
User Manual
ADAS Activation Card

PDF Download - Topdon ADAS PX1000 Basic Package

PDF Download - Topdon ADAS PX1000 Mobile User Manual

Topdon ADAS PX1000 Unboxing and Review

 Topdon ADAS PX1000 How To Perform Lane Departure Warning Calibration

Topdon ADAS Training video

Shipping Cost Calculated at Checkout- It is recommended to have access to a forklift as the box is heavy 140kgs

After-sales support

Three-year warranty
