OBDSTAR Iscan Pro MERCRUISER Mercury Marine Diagnostic Scan Tool

$1,750.00

OBDSTAR ISCAN PRO for MERCRUISER & MERCURY (Marine Diagnostic Scan Tool)

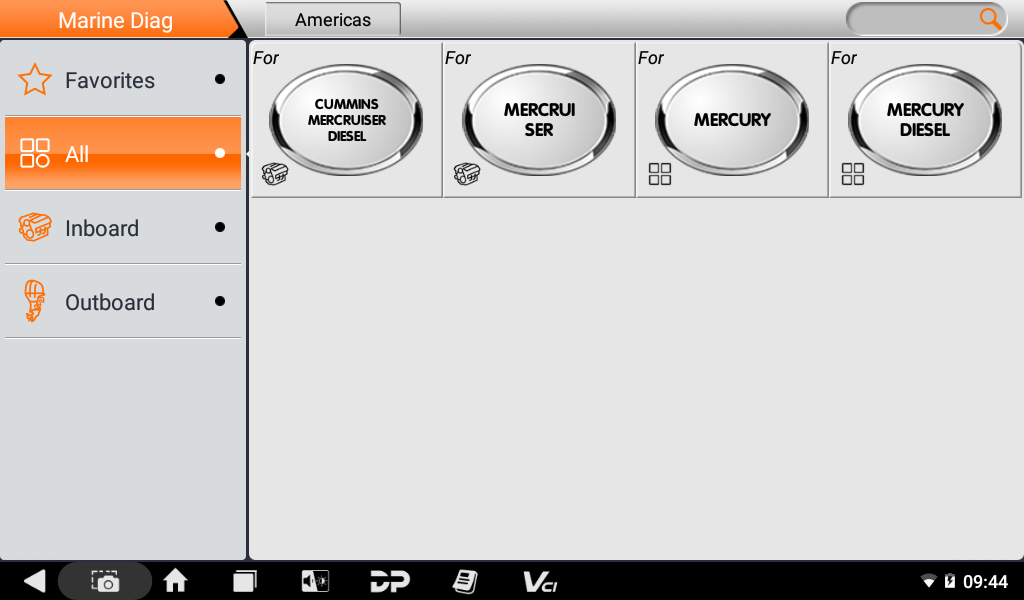

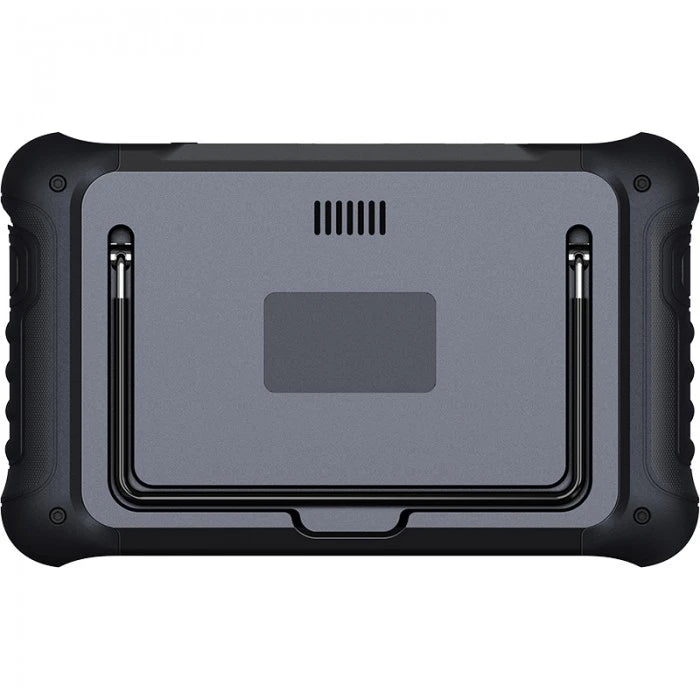

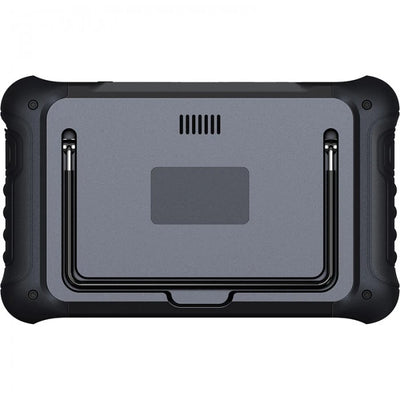

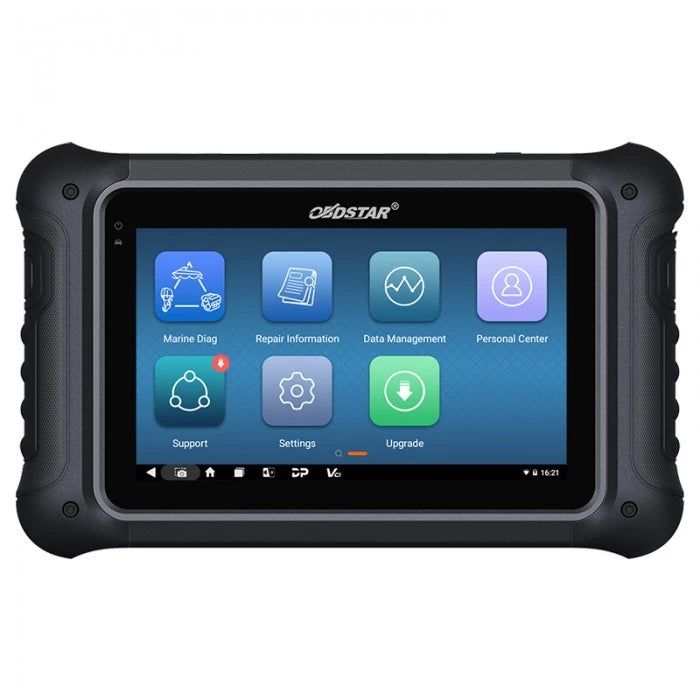

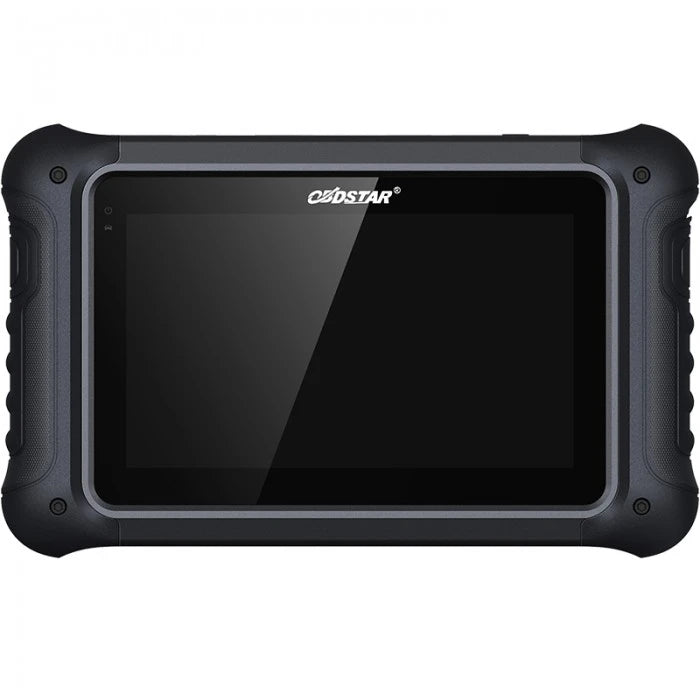

The OBDSTAR ISCAN PRO MERCRUISER & MERCURY is a powerful, portable diagnostic tablet tailored for Cummins MerCruiser Diesel, MerCruiser, Mercury, and Mercury Diesel systems. Built on a rugged 7" Android platform, it offers advanced diagnostics, bi-directional testing, and professional-level functions for marine repair and maintenance.


Key Features

  • Marine-Focused Support: Designed exclusively for Mercury & MerCruiser marine engines.

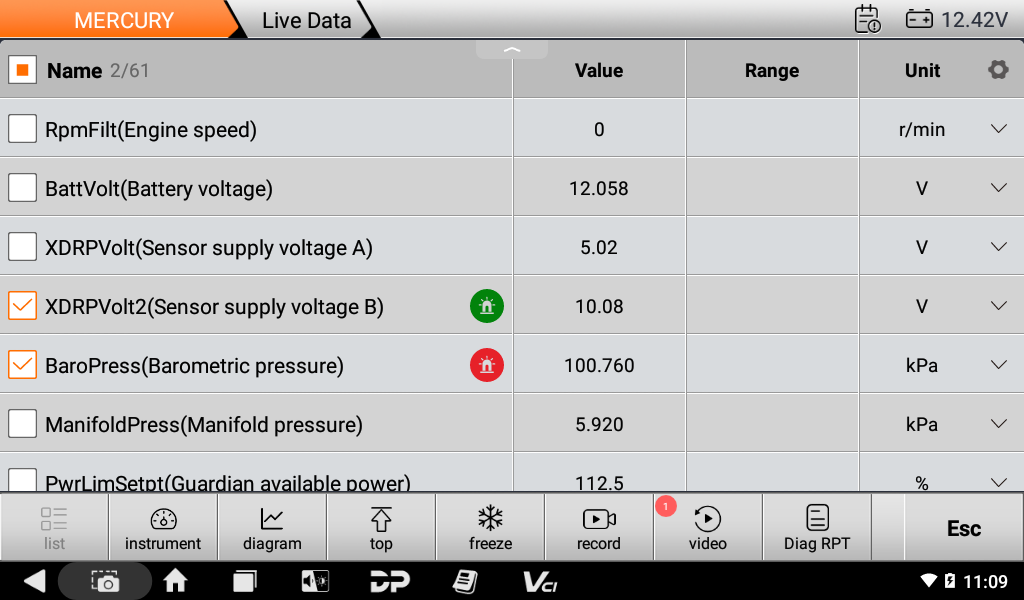

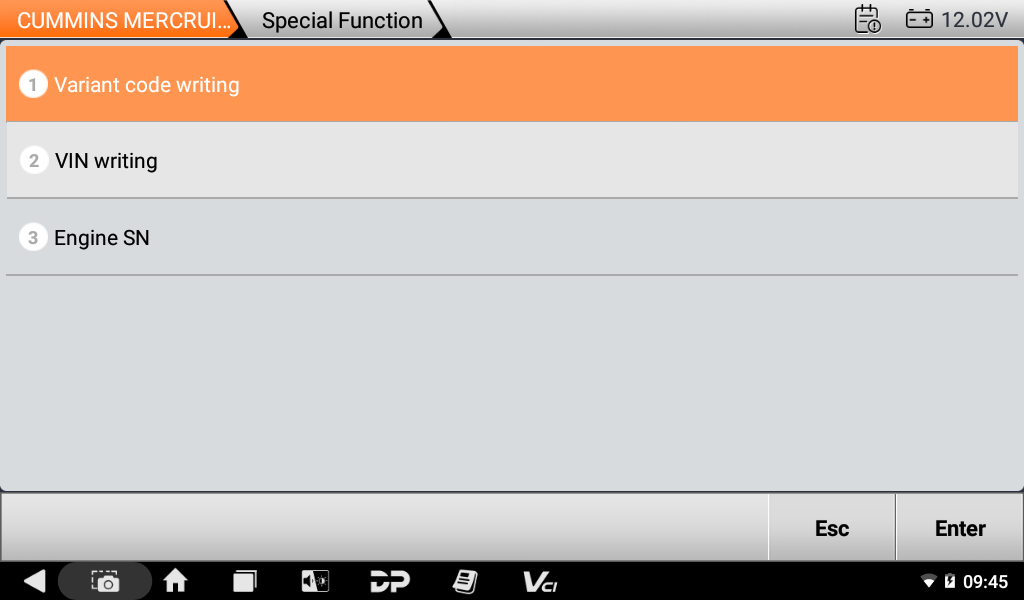

  • Comprehensive Diagnostics: Read/clear codes, live data, actuation tests, coding, configuration, and system resets.

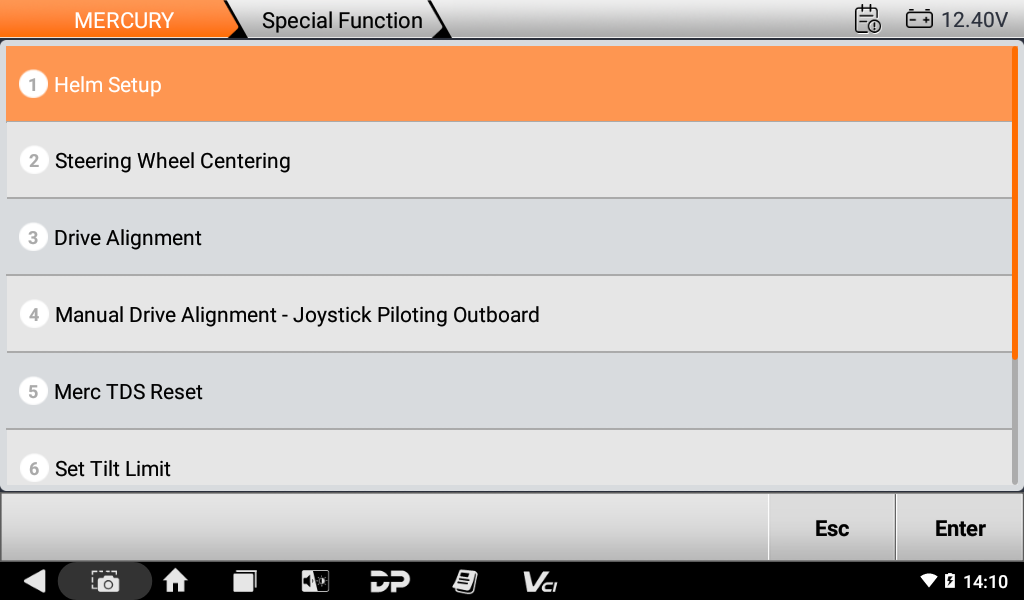

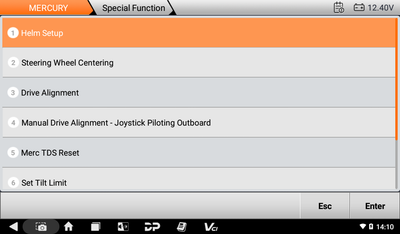

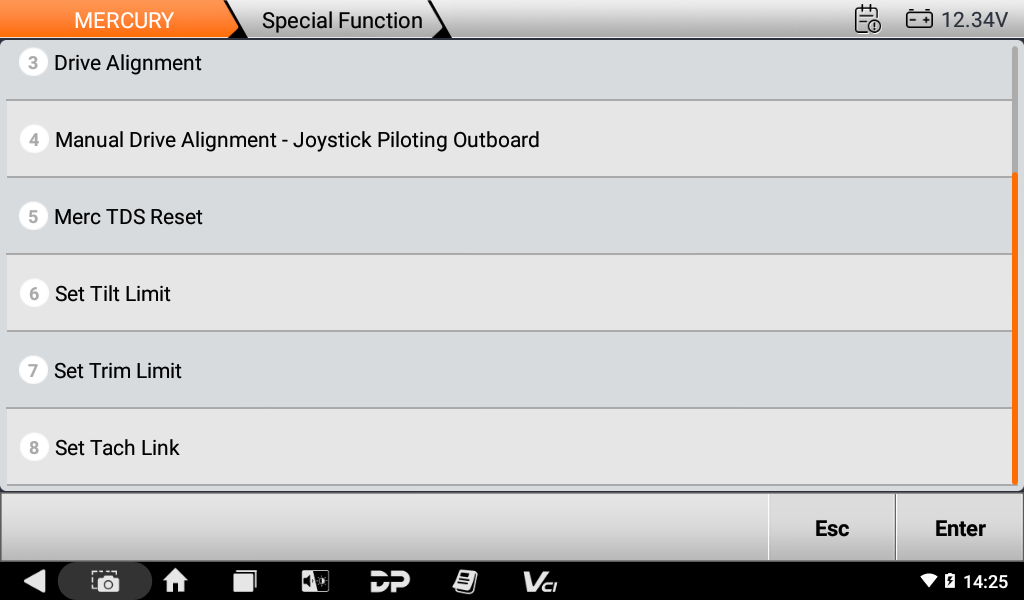

  • Advanced Marine Functions:

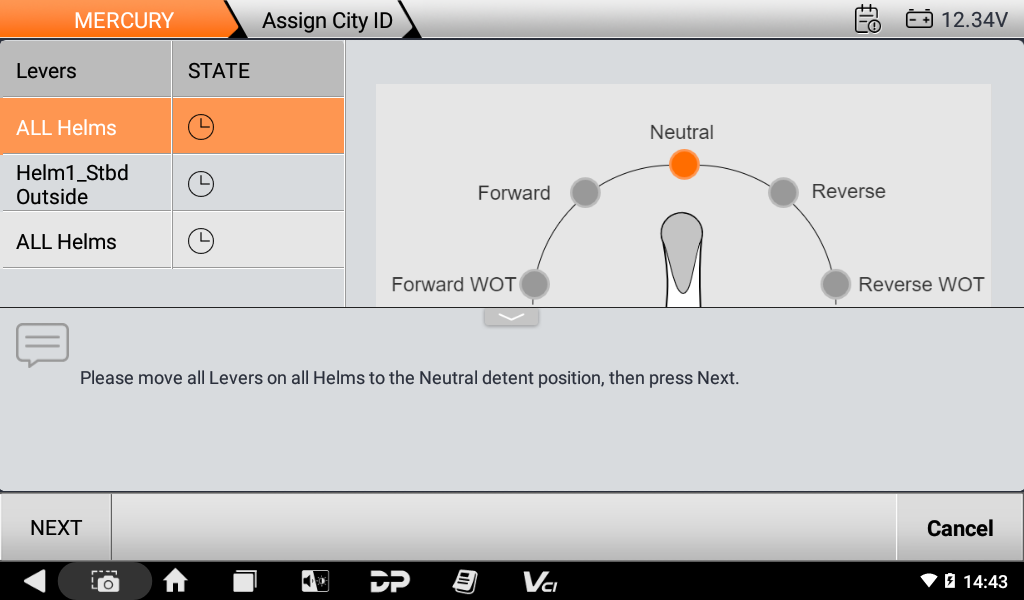

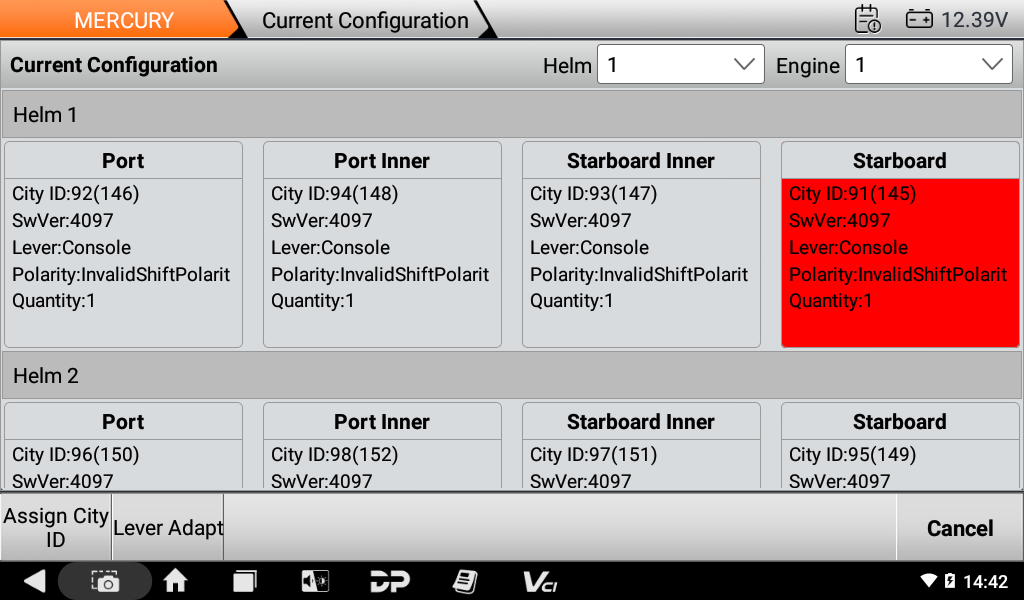

    • Helm & Joystick Configuration

    • Steering Wheel Centering

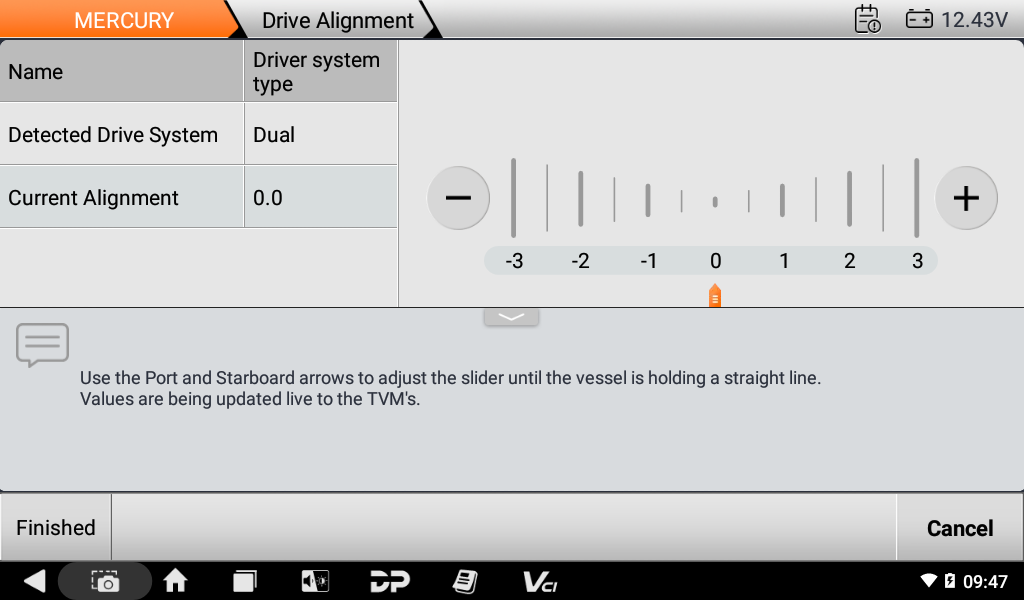

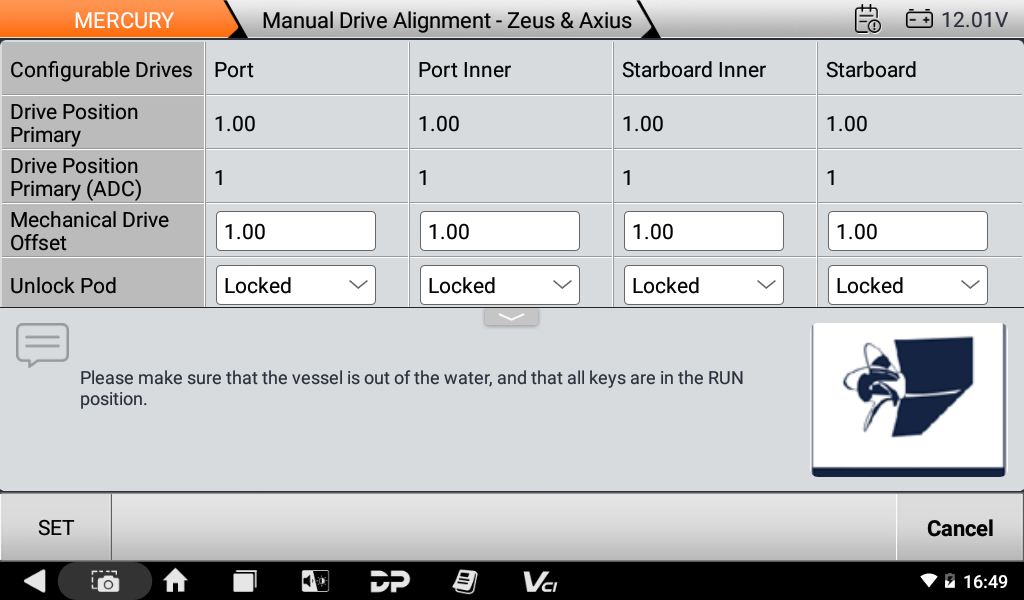

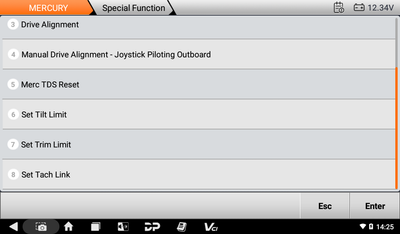

    • Drive Alignment & Initialization

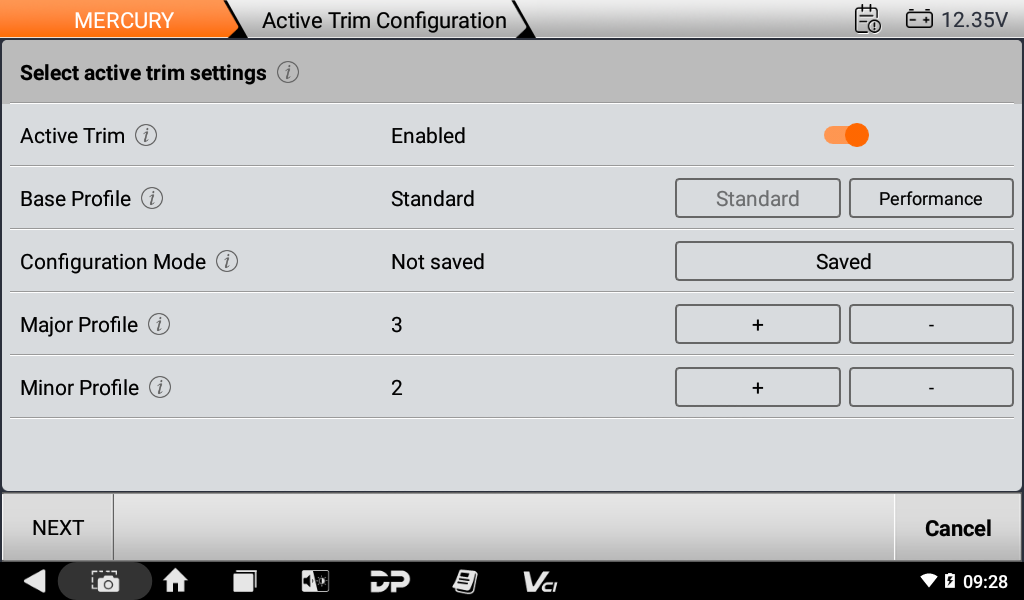

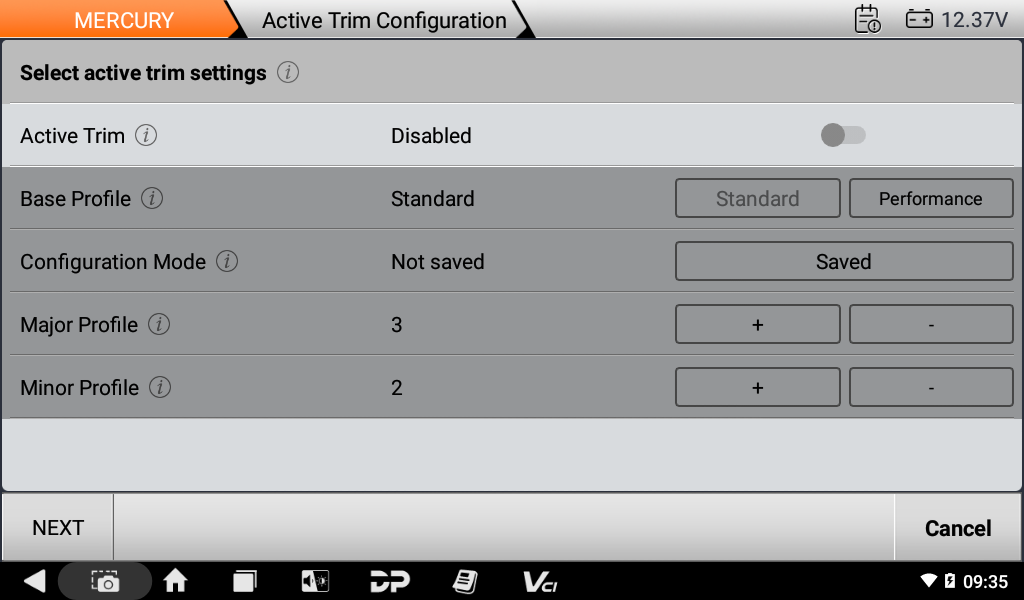

    • Active Trim GPS, Tilt/Trim Limits

    • Autopilot & Trackpad Setup

    • Transmission Settings & Vessel Harnessing Confirmation

  • Multilingual Interface: Supports 14+ languages including English, Spanish, French, German, Italian, Russian, and more.

  • Wi-Fi & Remote Support: One-click updates and OBDSTAR remote tech assistance.

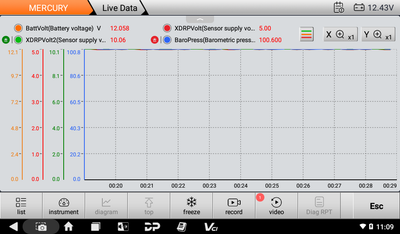

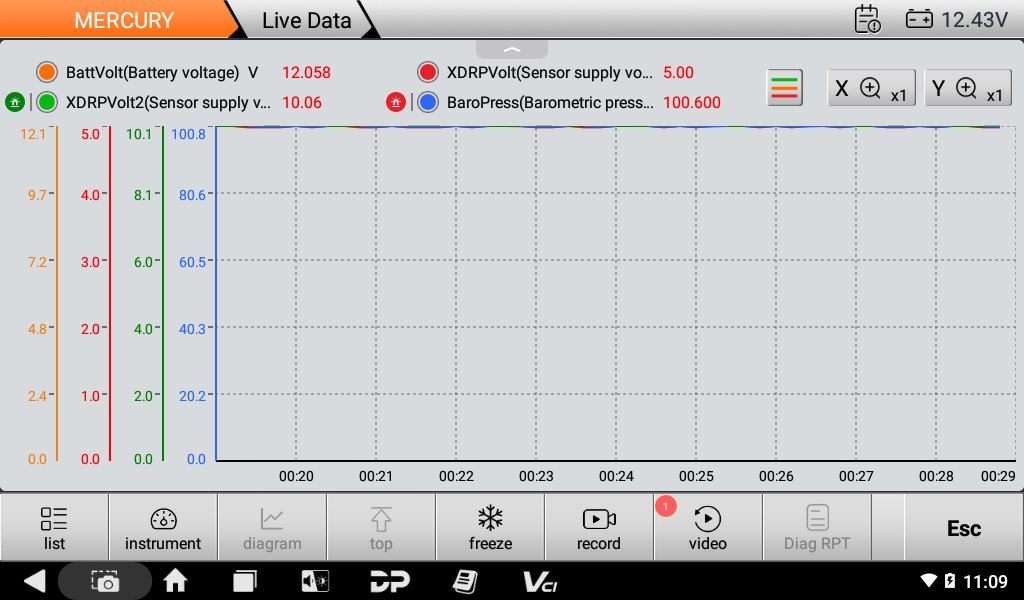

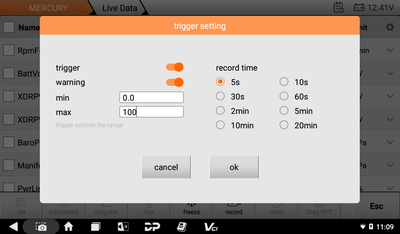

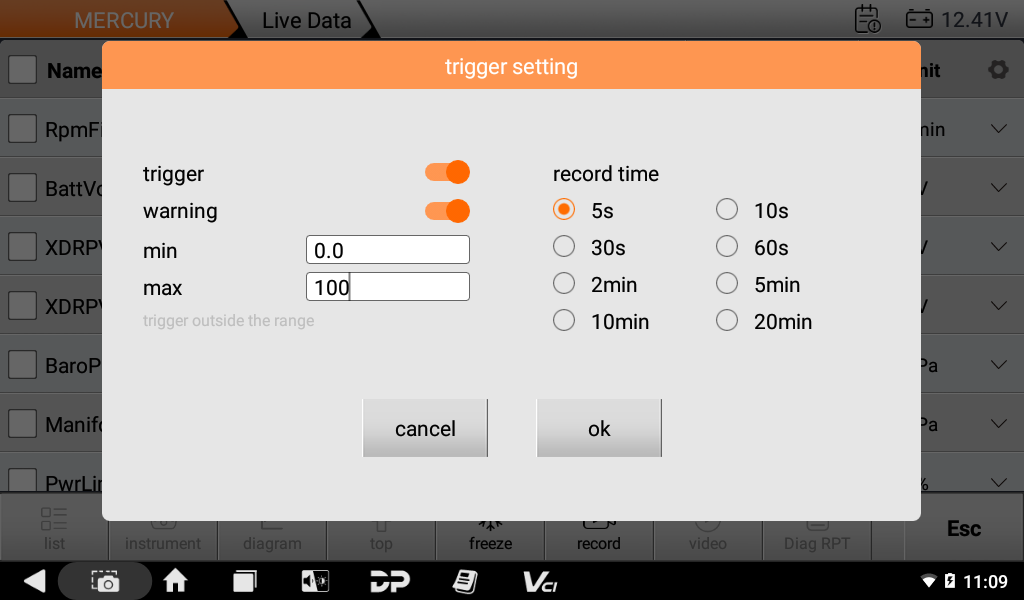

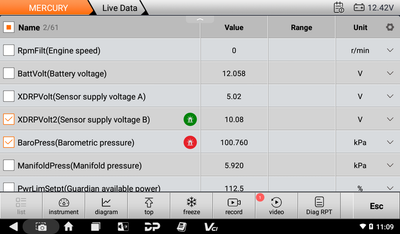

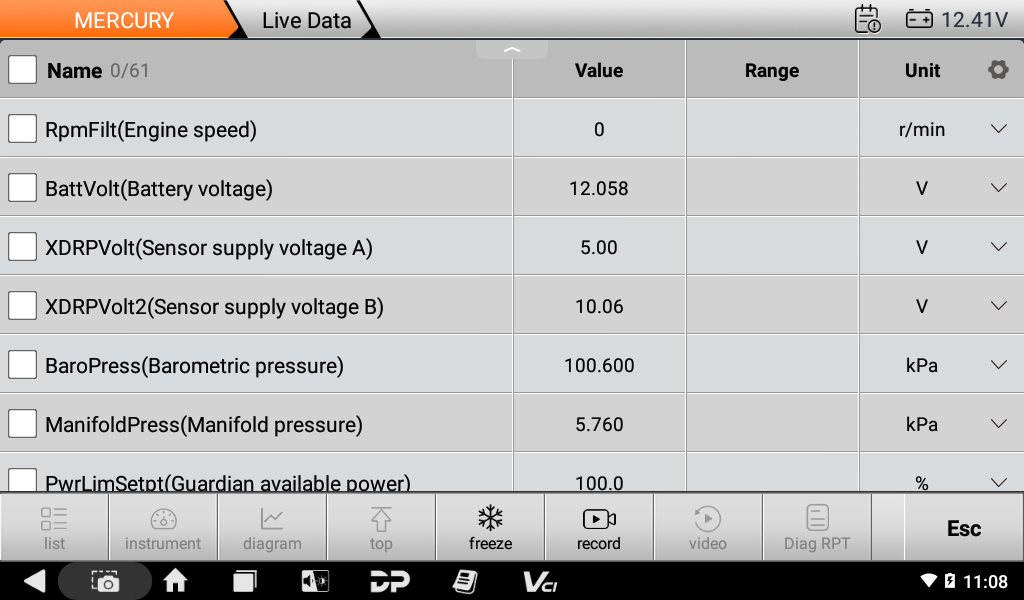

  • Data Graphing: View and analyze data in text, graph, or gauge form.

  • Supports 24V Systems

 Supported Models & Engine Types

Gasoline & Diesel Engine Coverage:

Includes support for all G3 systems and a wide range of Mercury and MerCruiser engines, such as:

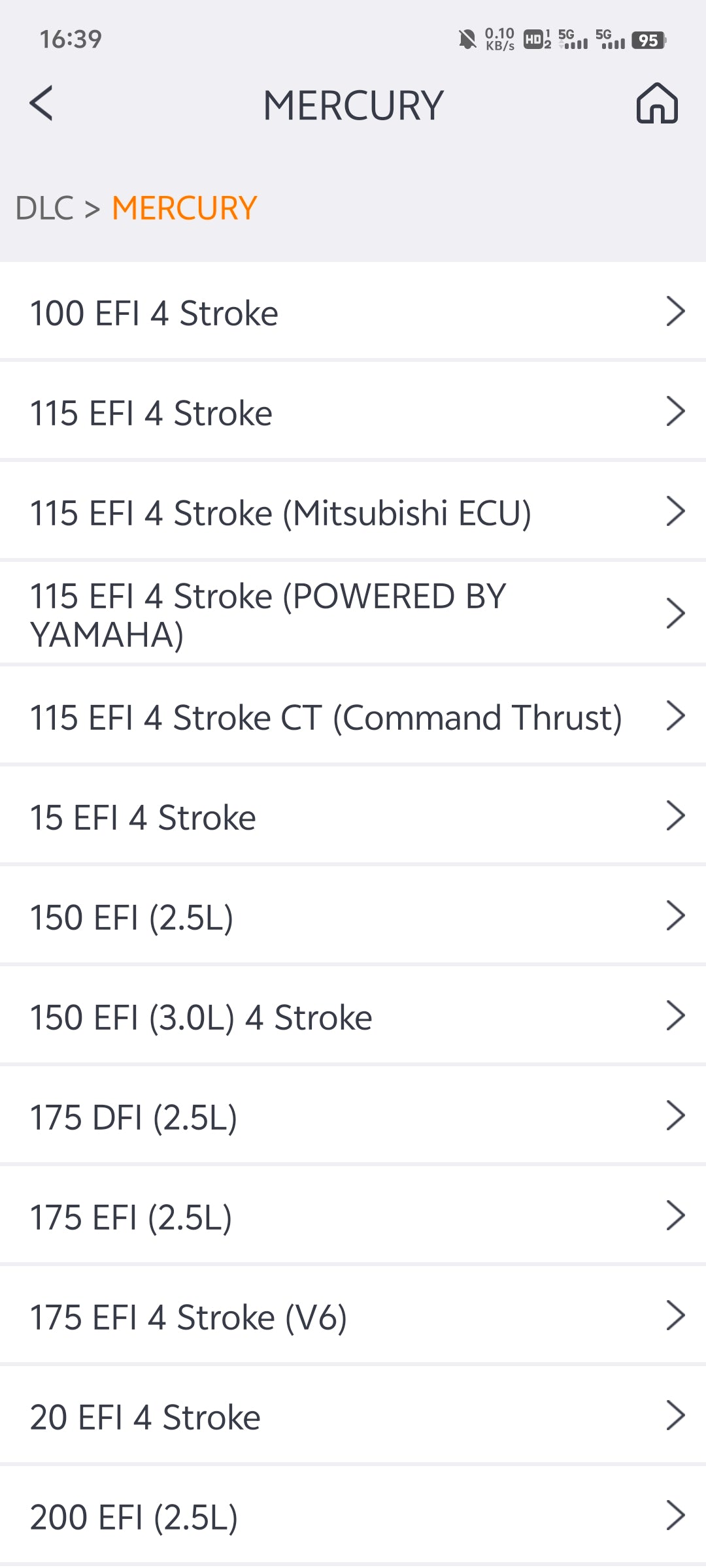

  • Outboards:

    • Optimax, DFI 2, Seapro, Verado, 40HP–300HP

  • Gasoline Inboards:

    • 3.0 MPI ECT, 4.3L MPI/TBI, 4.5L, 5.0L MPI/TBI, 5.7L MPI/TBI, 6.2L MPI/DTS, 7.4L MPI/TBI, 8.1L MAG/DTS/HO, 8.2L HO MPI, Black Scorpion (5.7L/6.2L), Scorpion 350/377

  • Diesel Engines:

    • 2.8L D-Tronic, 4.2L D-Tronic

    • Cummins MerCruiser QSD: 2.0–115, 2.0–130, 2.0–150, 2.0–170

    • QSD 2.8–220, QSD 4.2–270/320/350

    • VW TDI: 3.0–230/260, 4.2–335/370

    • FPT-Powered: 3.0L V6, 6.7L, V10, V12

    • MD Series: MD 2.0–115/130/150/170, MD 2.8–220, MD 4.2–270/320/350

🛠 Notable Configurations Supported:
350 MAG MPI, 496 MAG/DTS/HO, 377 MAG, 454 MAG MPI/TBI, 502 MAG MPI, 5.7L Tow Sport, 6.2L Horizon, 8.2L MAG MPI/MIE, and many others.


 Supported Modules & Devices

The ISCAN PRO MERCRUISER/MERCURY can access and test modules such as:

  • Engine Modules (Gasoline & Diesel)

  • Joystick Modules

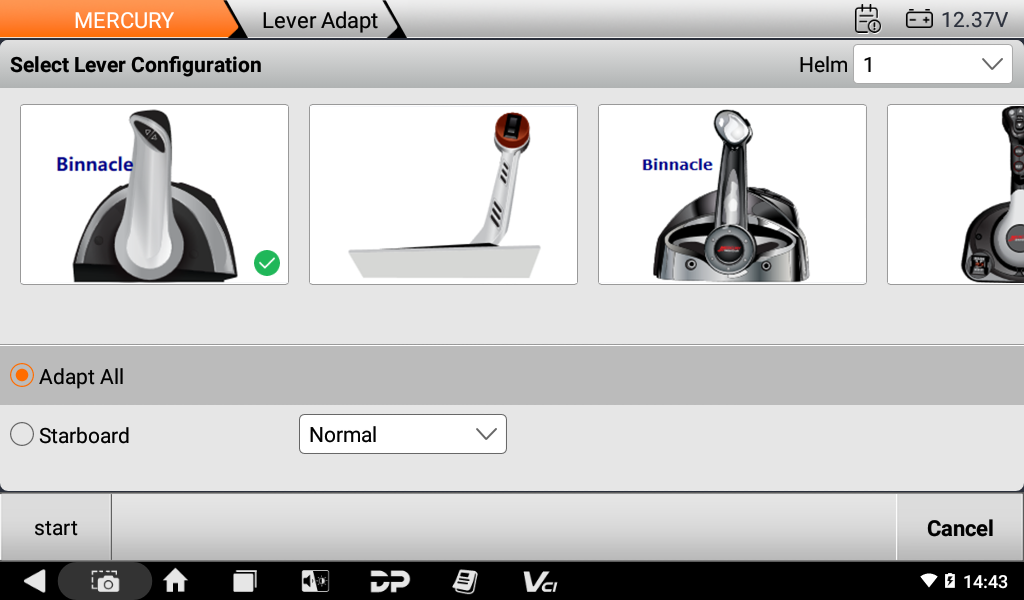

  • Throttle/Lever Configuration

  • Helm Systems (CCM, TCM, TVM, SIM, uX, Tachometers, Speedometers)

  • Autopilot & Trackpad

  • SmartCraft Devices

  • Mercury NMEA Gateways

  • Security Devices

  • Vessel Control Systems (VesselView Link/Mobile)

  • Bow & Stern Thrusters

  • Cruise Interfaces

  • Electronic Compass, Smart Sensors, Audio Satellite Receivers

  • Transmission Control Modules

  • Connected Vessel Devices

  • Helm Autopilot, Displays, Replicators, Multiplexers


Technical Specifications

Specification Detail
Operating System Android 5.1.1
CPU RK3128 Quad-Core ARM Cortex A7
Display 7.0" Capacitive Touch (1024×600)
Storage 16GB + Micro SD (32GB Supported)
Battery 3700mAh Lithium Rechargeable
Connectivity Wi-Fi
Voltage Input DC 24V Supported
Operating Temp -20℃ to 55℃ (14℉ to 131℉)
Dimensions / Weight 243×148×36 mm / 0.77 kg approx.

Supported Languages

English, Spanish, Russian, Portuguese, Thai, Turkish, Farsi, French, German, Polish, Italian, Indonesian, Vietnamese

OBDSTAR iScan Pro Mercury Mercruiser User Manual

OBDSTAR iScan Pro Mercury Mercruiser Coverage Checker Download

2 years free updates
