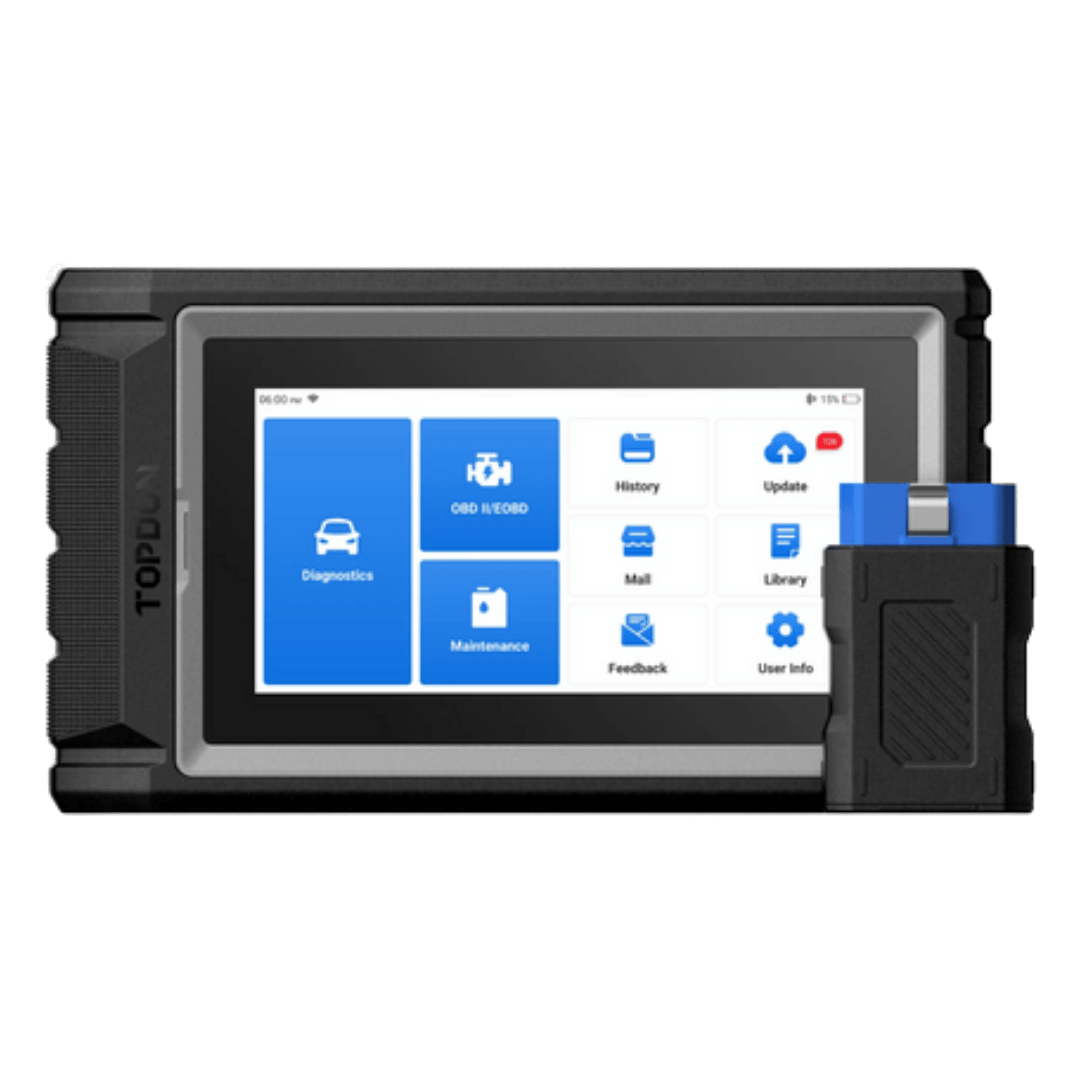

Topdon ArtiDiag800BT 2 Diagnostic Scan Tool
Description
Description

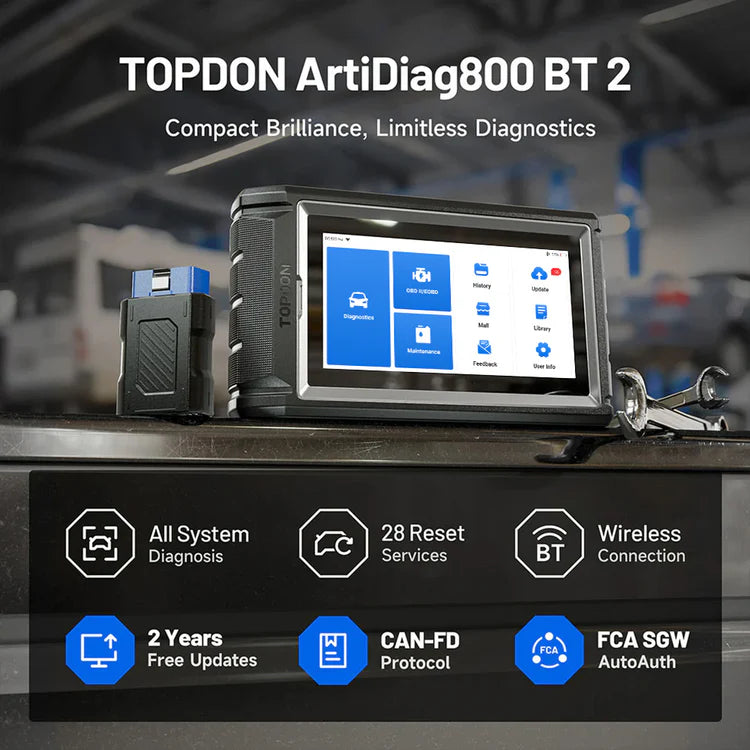

The Topdon ArtiDiag800 BT 2 is a wireless diagnostic tablet with full system coverage across 80+ vehicle brands. It supports CAN-FD, FCA Secure Gateway access, 28+ service functions, and Bluetooth 5.0 for wireless diagnostics. Lifetime free software updates are included.
The AD800BT 2 covers OBD2 and pre-OBD2 protocols.
Key Features
- Full system diagnostics across 80+ vehicle brands including Australian, US, European, and Asian vehicles
- CAN-FD protocol support — required for late-model GM and Chrysler vehicles from 2020 onwards
- FCA Secure Gateway access for Fiat, Chrysler, Dodge, and Jeep vehicles including 2024 models — requires AutoAuth account
- 28+ service and maintenance functions
- Bluetooth 5.0 wireless VCI — work freely around the vehicle during service
- Read and clear fault codes across all major systems
- Live data streaming — view up to 4 data streams simultaneously
- AutoVIN for automatic vehicle identification
- Diagnostic report generation and sharing
- TeamViewer remote support
- Lifetime free software updates included
28+ Service and Maintenance Functions
- Oil light reset
- Battery registration
- DPF regeneration
- Steering angle sensor relearn
- Throttle relearn
- Injector coding
- Window calibration
- EPB service
- TPMS relearn
- SAS calibration
- BMS reset
- And more — function availability varies by make and model
Full System Coverage
Scan all major systems including engine, transmission, ABS, SRS, TPMS, HVAC, and immobiliser. Read and clear codes, view ECU info, and stream live data across 80+ global makes.
CAN-FD Protocol
CAN-FD support allows faster and larger data transfers for working on new GM and Chrysler vehicles from 2020 onwards.
FCA Secure Gateway Access
Access advanced functions on late-model Fiat, Chrysler, Dodge, and Jeep vehicles including 2024 models. Requires your own AutoAuth account to log in.

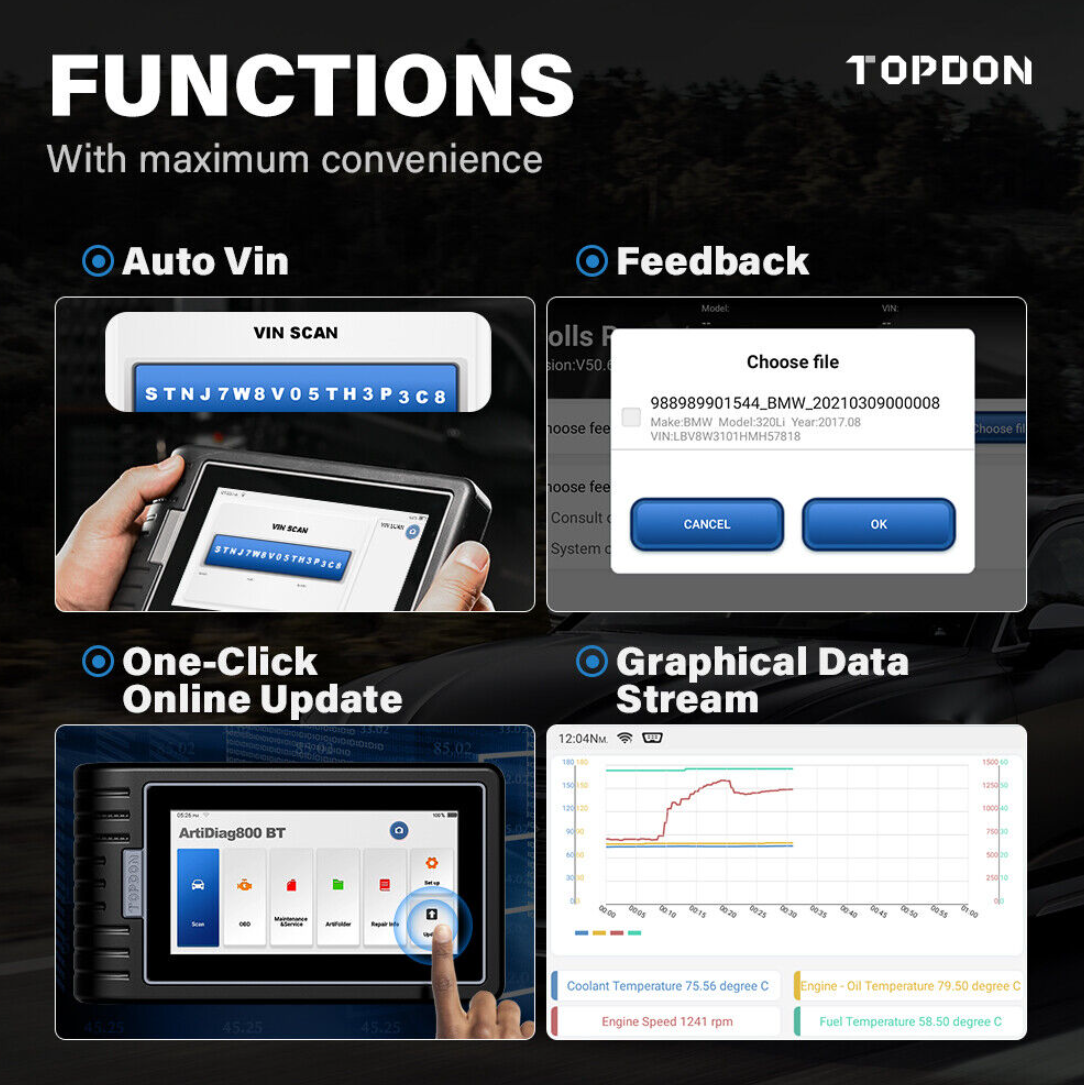

Live Data
View real-time performance with customisable graphs, numeric values, and multi-channel views. Compare up to 4 live data streams simultaneously to detect patterns and chase faults.
Specifications
| Display | 6" LCD, 1,400 x 720 |
| Processor | 4-core MT6761, 1.8GHz |
| OS | Android 10 |
| RAM / Storage | 2 GB / 64 GB |
| Battery | 5,050 mAh |
| Working Temp | 0°C to 50°C |
| Storage Temp | -20°C to 60°C |
| Dimensions | 215 x 126 x 46 mm |
| Weight | 660 g |
| Software Updates | Lifetime free |
Kit Includes
- ArtiDiag800 BT 2 scan tool
- Type-C to USB cable
- Power adapter
- AU, US, EU, and UK power adapter plugs
- Carry case
- Quick start guide
- User manual
Why Buy From Premium Diagnostic Equipment?
- Free shipping Australia-wide
- 12-month warranty included
- 30-day money back guarantee
- Australian support team — call us direct for pre-sale advice on specs and compatibility
