Launch X431 ProS Elite Diagnostic Scan Tool
Description
Description

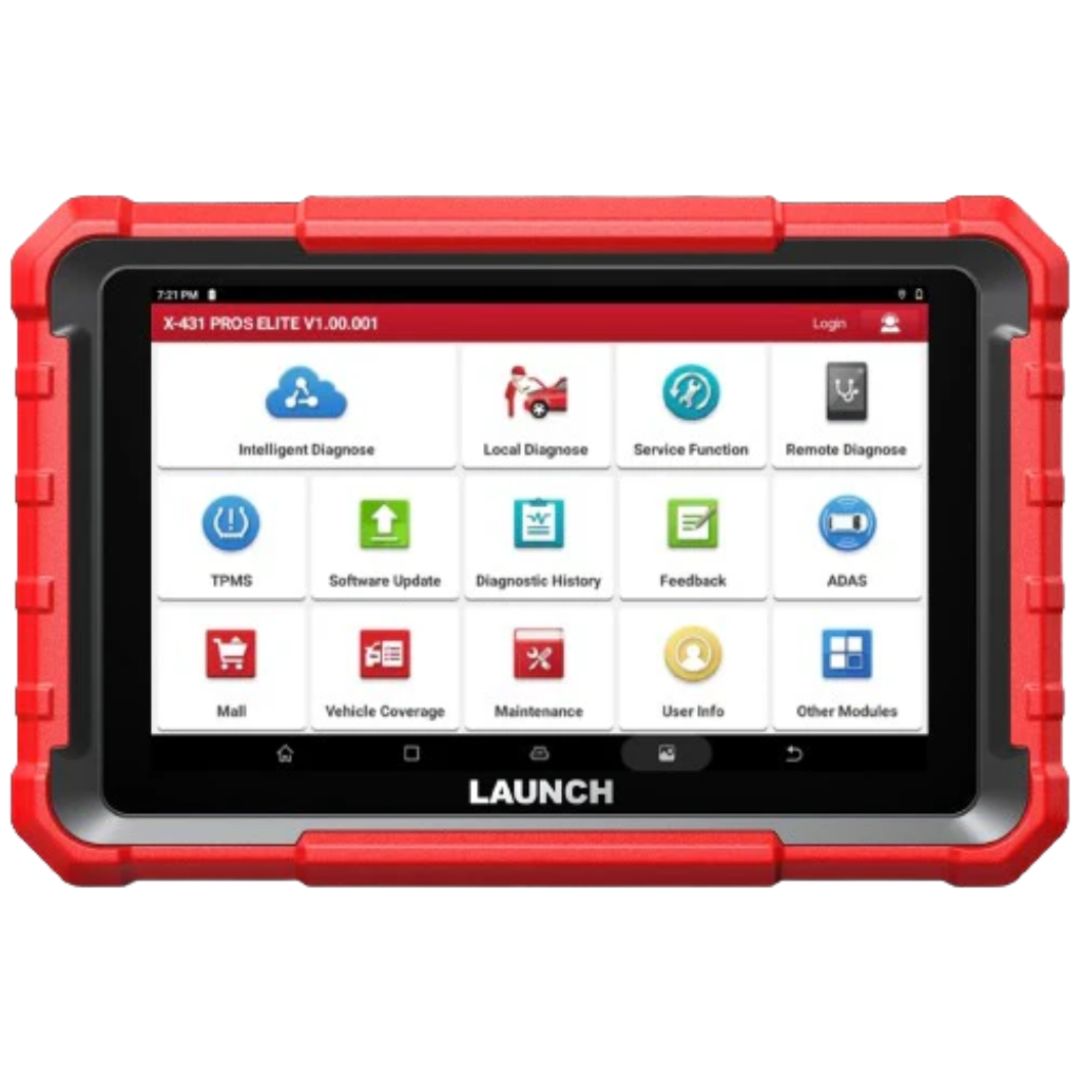

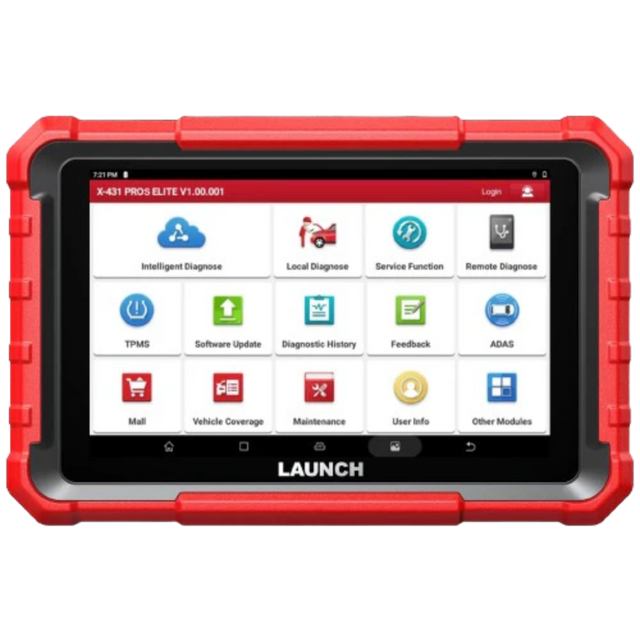

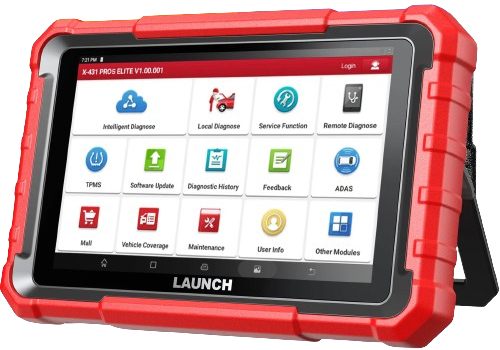

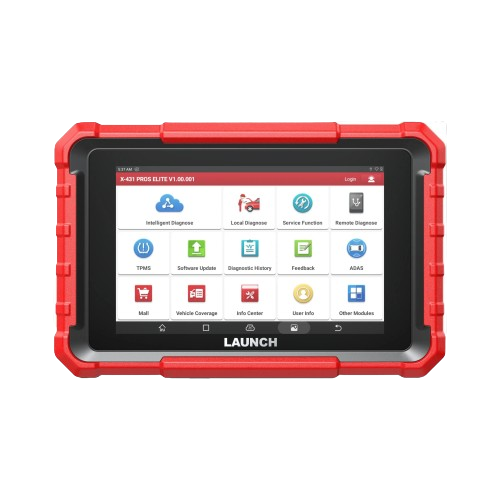

The Launch X431 ProS Elite is a professional diagnostic tablet covering OBD1 and OBD2 vehicles across 150+ brands. Built on Android 10 with a 2.0GHz quad-core processor, 4GB RAM, and 64GB storage, it supports bi-directional control, ECU coding, CAN FD, DoIP, FCA gateway access, and 32+ service functions. Two years of free software updates are included.
Key Features
- Full bi-directional / active test control
- ECU coding and online coding for 95%+ supported vehicles
- 32+ service and maintenance functions
- OE-level full system diagnostics across 150+ brands
- CAN FD and DoIP support — no additional adapters required for compatible vehicles
- FCA AutoAuth gateway access for Chrysler, Jeep, Dodge, Fiat, and Renault (2018 and newer)
- VAG guided functions
- Key programming on supported vehicles
- Vehicle personalisation and hidden function access
- Fast AutoVIN for quick vehicle identification
- Remote diagnosis capability
- 10,000+ vehicle coverage across 25 languages
- Supports expansion modules including ADAS, oscilloscope, battery tester, endoscope, and more
Bi-directional Control
Send commands directly to vehicle systems and components to verify inputs and outputs. Functions include fuel pump test, radiator fan control, cooling fan test, injector kill tests, relay testing, coil testing, solenoid valve control, throttle control, ABS motor pump, lights, A/C clutch, windows, doors, roof, and wipers.
ECU Coding and Vehicle Personalisation
Supports online ECU coding, component matching, programmable module installation, adaptive data reset, VAG guided functions, power balance, online calibration, and online parameterisation. Personalisation options include disabling seat belt warnings, adjusting max speed limiter, modifying daytime running lights, and enabling hidden functions on supported vehicles.
Service and Maintenance Functions
32+ functions including Oil Reset, EPB, SAS calibration, DPF, BMS, Throttle, TPMS Reset, Gearbox Match, Suspension, ABS Bleed, Injector Coding, Power Balance, EGR Relearn, A/C Relearn, A/F Reset, Start/Stop Reset, IMMO key functions, and more.
System Coverage
Engine, transmission, body, brake, chassis, powertrain, fuel, lighting, and all available modules across 150+ car brands from 1996 onwards including 12V sedans, light trucks, SUVs, and minivans.
Expansion Modules (all optional extras)
- ADAS calibration
- Oscilloscope
- Launch VSP600 Videoscope Inspection Camera
- Launch BST-360 Bluetooth Battery Tester
- Launch X-PROG 3 Immobiliser and Key Programmer
- Launch TSGUN TPMS tool
- Launch Wi-Fi printer
Specifications
| OS | Android 10.0 |
| CPU | 2.0GHz quad-core |
| RAM / Storage | 4 GB / 64 GB |
| Screen | 8" LCD touchscreen, 1,280 x 800 |
| Battery | 6,300 mAh |
| Rear Camera | 8 MP |
| Operating Temp | 0°C to 45°C |
| Storage Temp | -10°C to 45°C |
| Connection | OBD-II cable |
| Software Updates | 2 years free included |

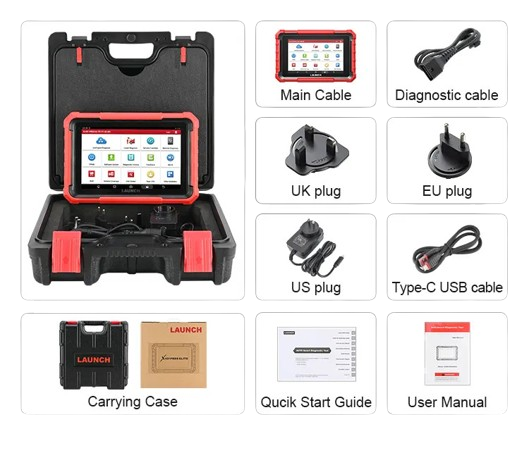

Kit Includes
- Launch X431 ProS Elite diagnostic tablet
- OBD-II diagnostic cable
- USB-C charging cable
- Power adapter
- Activation card
- User manual and quick start guide
- Protective carry case
- Port protection cover
Important Notes
- Active test functions vary across vehicles — confirm compatibility before purchase or contact our team
- FCA AutoAuth gateway access requires special adapters for 2018 and newer Chrysler, Jeep, Dodge, Fiat, and Renault vehicles
- Key programming availability varies by vehicle — contact us to confirm coverage for your specific vehicle
- CAN FD support covers GM models 2020 and later; DoIP covers BMW F and G chassis, Volvo 2018+, Land Rover and Jaguar 2017+
