Autel MaxiBAS BT506 Battery & Electrical System Analysis Tool

Name: Autel MaxiBAS BT506 Battery & Electrical System Analysis Tool
Brand: Premium Diagnostic Equipment
SKU: AUT-TSR-BT506
Price: 330.00 AUD
Availability: InStock

$330.00 $349.00

Pickup available at Gold Coast

Usually ready in 24 hours

Delivery and Shipping

Shipping Information

Orders placed before 12pm AEST Mon-Fri will be dispatched same day

Standard Shipping in Australia 2-9 business days - FREE

Express Shipping in Australia 1-3 business days - Shipped via Australia Post Express. In most cases you will get your order the next day if it was placed before 12pm but we can not guarantee this overnight service.

TNT Overnight Express - 1 business day if order is placed before 12pm.

To check freight costs enter your details and address at check out

Local Pick Up - Same day from Gold Coast warehouse providing we have stock on hand, please call us to confirm 07 3180 6771

Couriers we use - Most orders are shipped via Australia post. We may use TNT/FEDEX or Aramex depending on your location or preference.

Description

The Autel MaxiBAS BT506 is a professional-grade battery and electrical system analysis tool designed to deliver precise results through Adaptive Conductance technology — an advanced method that accurately evaluates a battery’s cold-cranking ability and reserve capacity. This ensures a true assessment of the battery’s health and the vehicle’s electrical system performance.

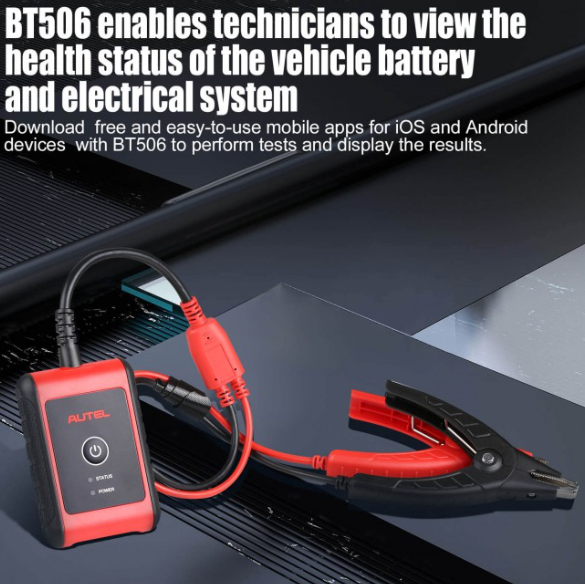

Technicians can easily view and interpret detailed test results via the free Autel Battery Test App, available for both iOS and Android devices. The BT506 connects wirelessly via Bluetooth, making it perfect for workshop or mobile use.

Key Features

Performs in-vehicle and out-of-vehicle testing of passenger vehicle batteries
Tests 6V and 12V batteries (100–2000 CCA) and 12V/24V cranking and charging systems
Supports Flooded, AGM, AGM Spiral, EFB, and GEL battery types
Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS, and MCA standards
Works with smartphones, tablets, or compatible Autel diagnostic tools
Delivers fast, reliable results using Adaptive Conductance battery analysis technology
Compact, durable, and user-friendly design ideal for professional and personal use

Specifications

Specification	Description
Connectivity	USB 2.0, Type-C
Bluetooth	V3.0 BR/EDR + V4.2 LE Dual-Mode
Input Voltage	5 V DC
Working Current	<150 mA at 12 V DC
Internal Battery	None
CCA Range	100–2000 A
Voltage Range	6–36 V
Working Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Dimensions (L × W × H)	107 × 75 × 26 mm (4.21” × 2.95” × 1.02”)
Weight	320 g (0.7 lb.) (clamp cable not included)
