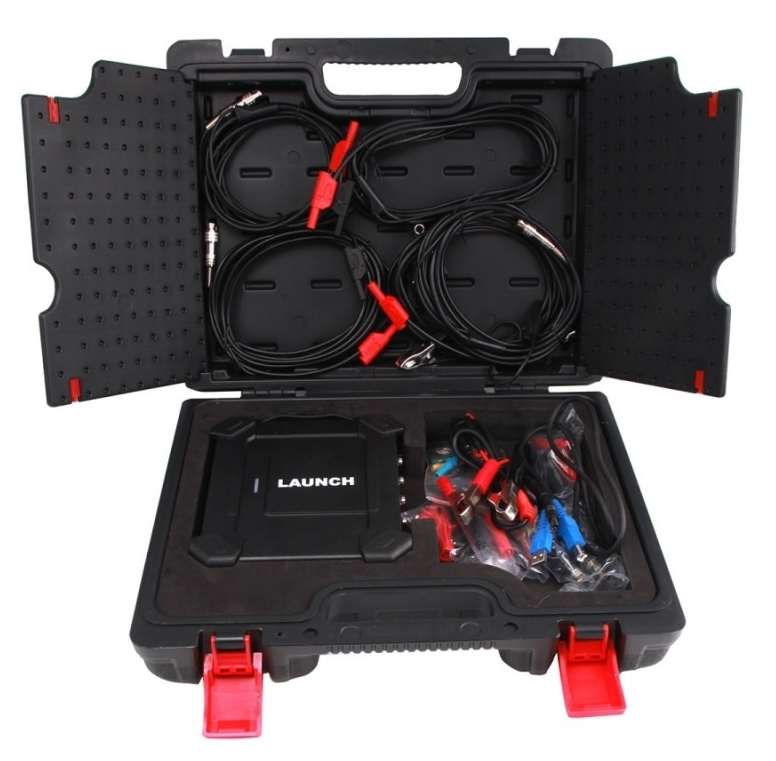

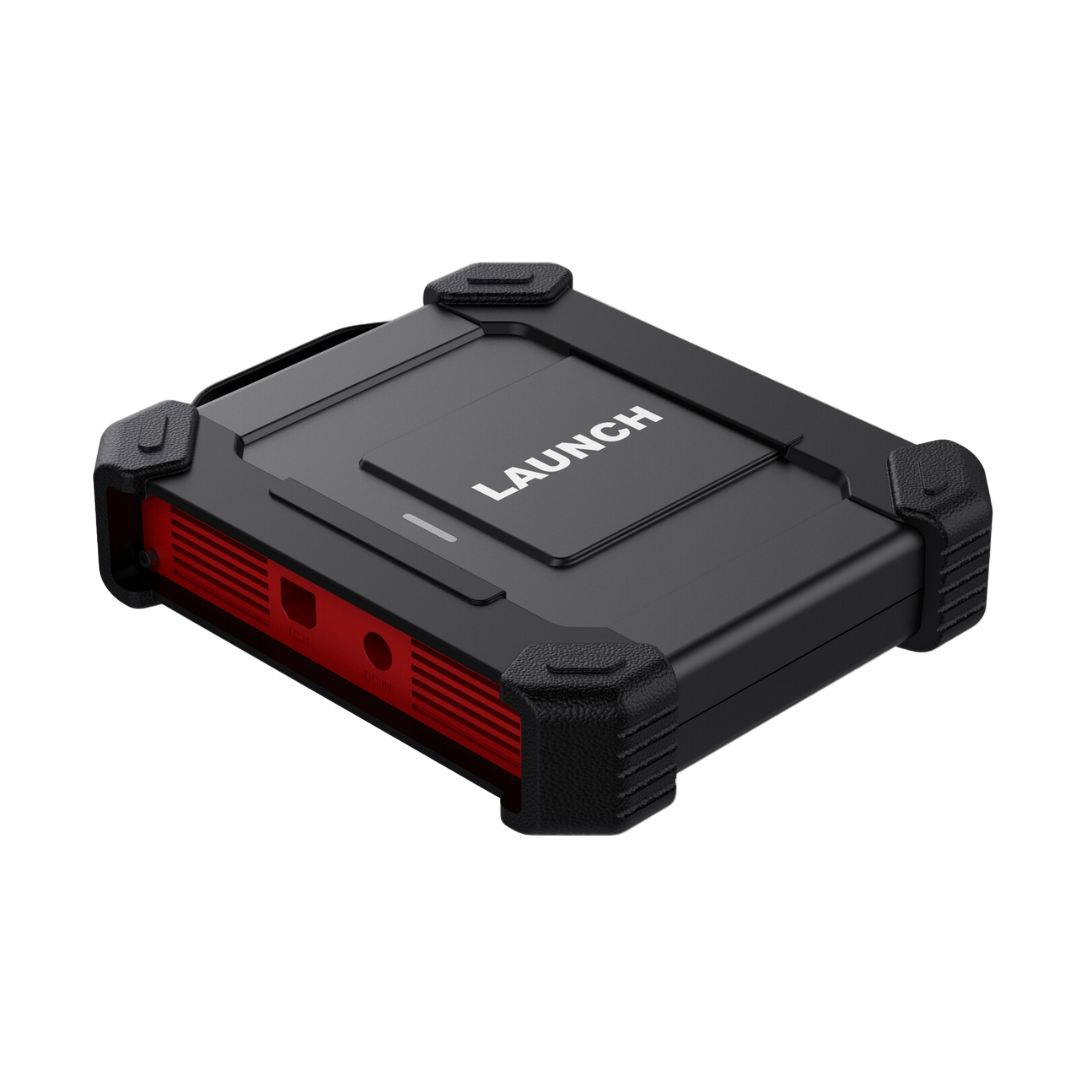

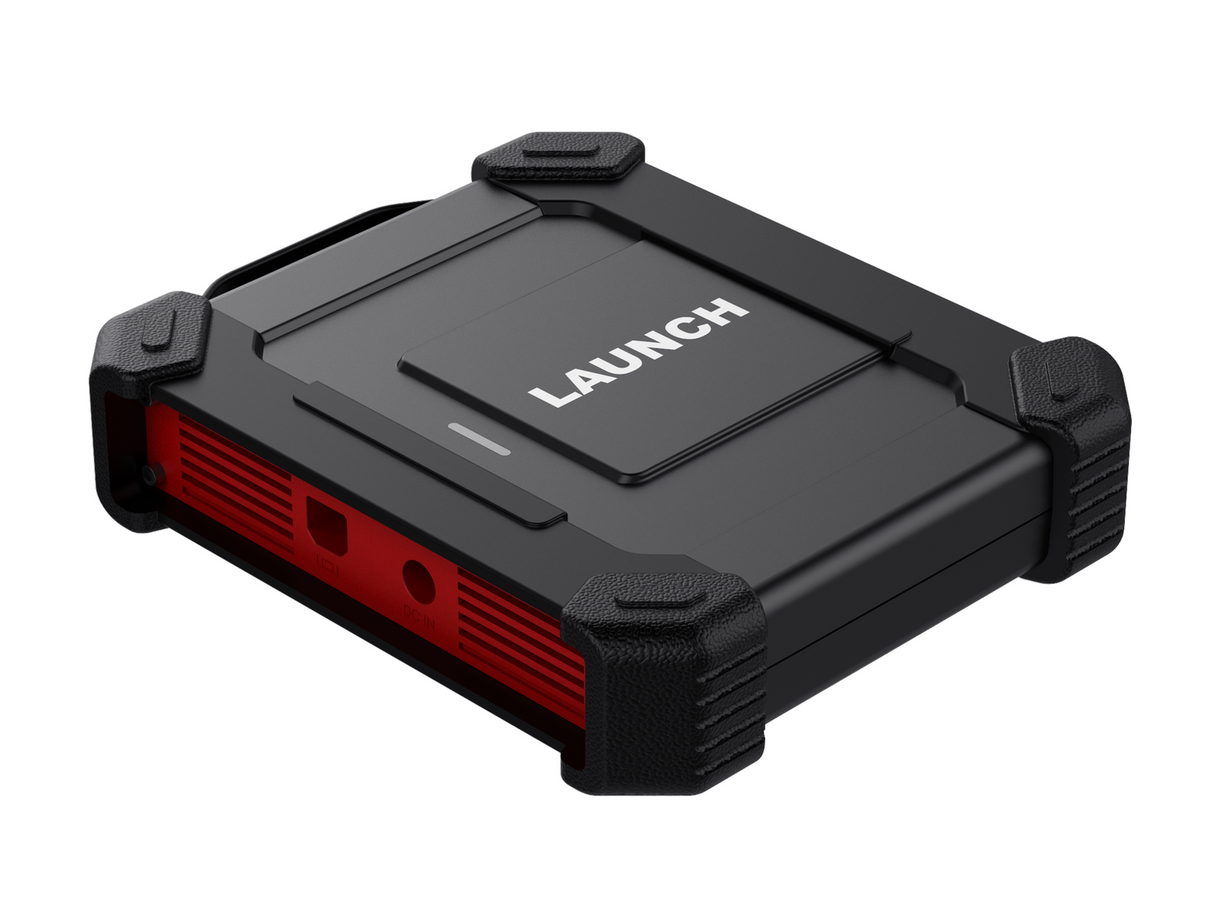

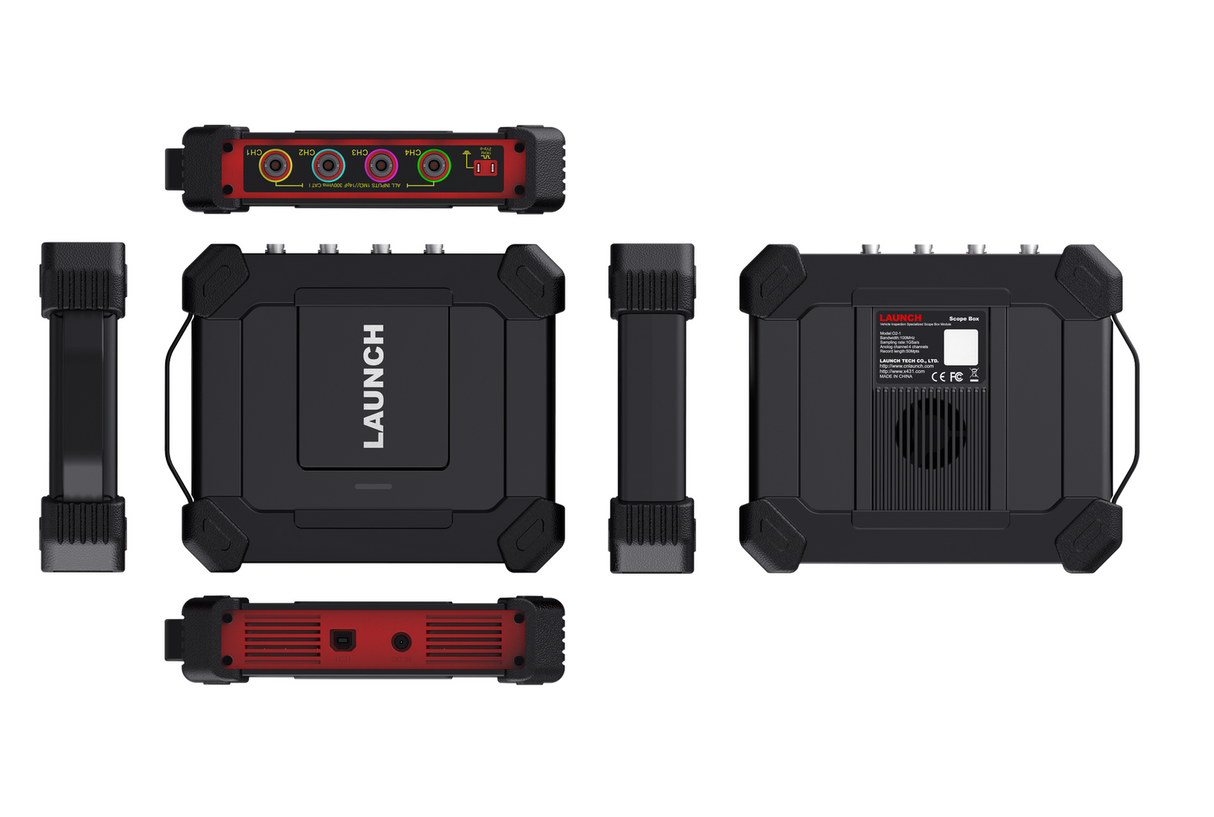

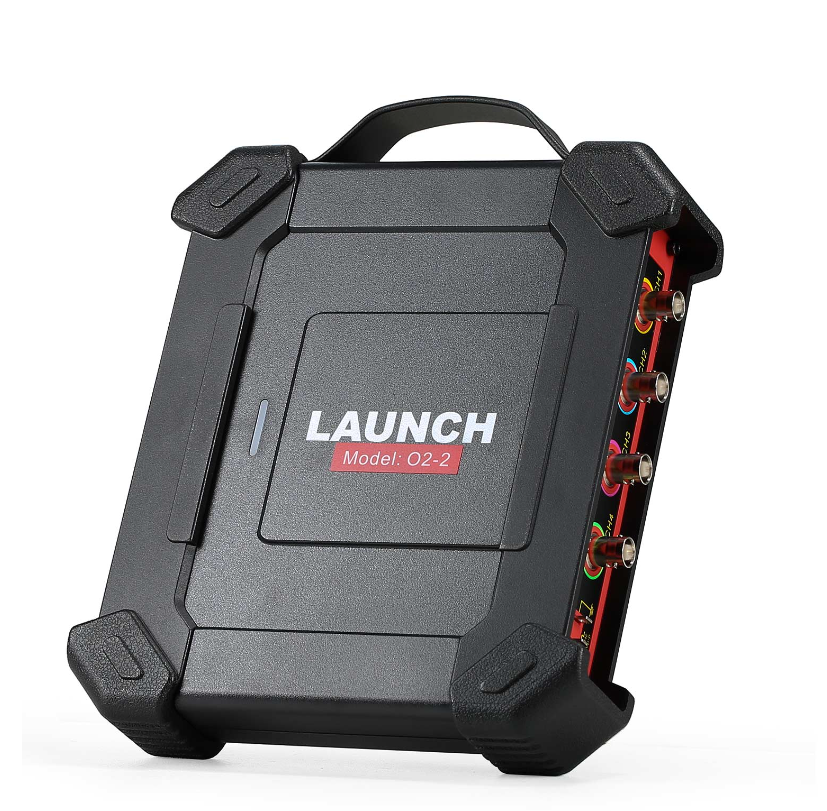

Launch X431 O2-2 Oscilloscope 4 Channel Scopebox
Description
Description
Introducing the LAUNCH O2-2 Scopebox, an innovative add-on module for your Launch X431 scan tool designed for detecting high-level faults in various electrical components like sensors, actuators, and circuits. Seamlessly integrating with the X-431 series scan tools via the O2-2 application, this module enhances your scan tool's capabilities by providing precise diagnostic insights.
Key Features:
- Record and playback high-resolution waveform data for future analysis.
- One-key enable function for capturing specific waveforms, boosting efficiency by 70% compared to other scopes on the market.
- Access 23 automatic measurement variants displayed on a single screen for easy switching.
- Streamline operations with direct input of names and characters via the virtual keyboard.
- Zoom in/out feature for reviewing precise details.
- Customise personal system settings and save them as configuration files for convenient viewing.
- Self-calibration function optimises the oscilloscope signal path for maximum measurement accuracy.
- Perform advanced waveform math operations like addition, subtraction, multiplication, and FFT for in-depth waveform analysis.
- Conduct multiple automotive tests including circuits, sensors, actuators, and ignition tests.
- USB Sync data transfer to external devices such as laptoop, tablet, etc
Specifications:
- Channels: 4
- Bandwidth: 100MHz
- Rising Time: 3.5ns (typical)
- Accuracy: ±3%
- Input Impedance: 1M ±1.5%
- Input Type: Single-ended, BNC Connector
- Input Coupling: DC, AC
- Overload Protection: ±200V on single input
- Timebase Ranges: 1ns
1ks (1 Channel), 1ns1ks (2 Channels), 1ns~1ks (4 Channels) - Vertical Resolution: 8 bits
- Buffer Memory: 10M (for 4 Channels)
- Power Interface: USB port, DC IN port
- Data Exchange Via: USB
- Trigger Mode: Normal, Auto, and Single SEQ
- Advanced Triggers: Edge, Pulse width
Upgrade your diagnostic capabilities with the LAUNCH O2-2 Scopebox, offering precision, efficiency, and versatility for electrical fault detection and analysis.
