$940.00 $1,100.00 You save: 14% ($160.00)

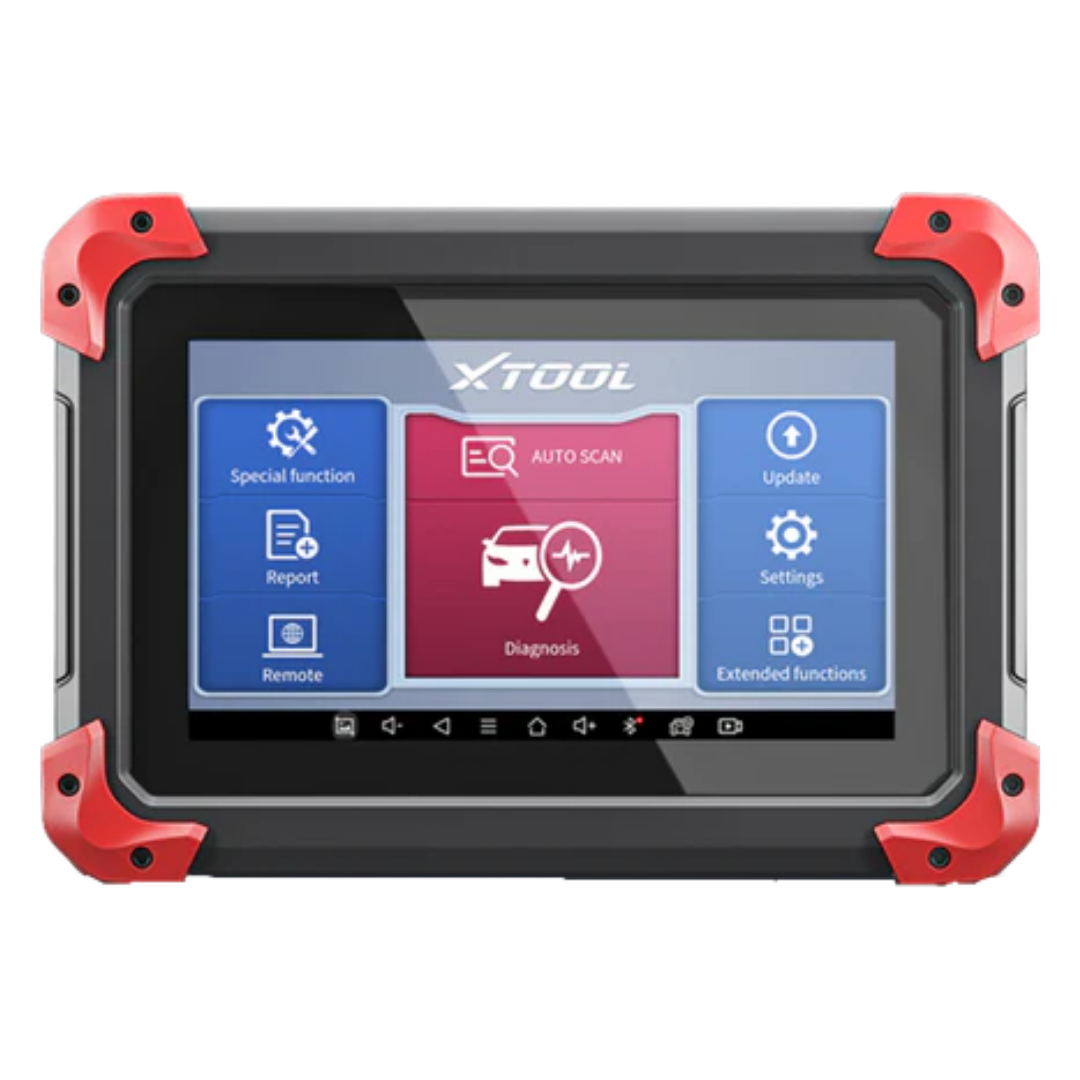

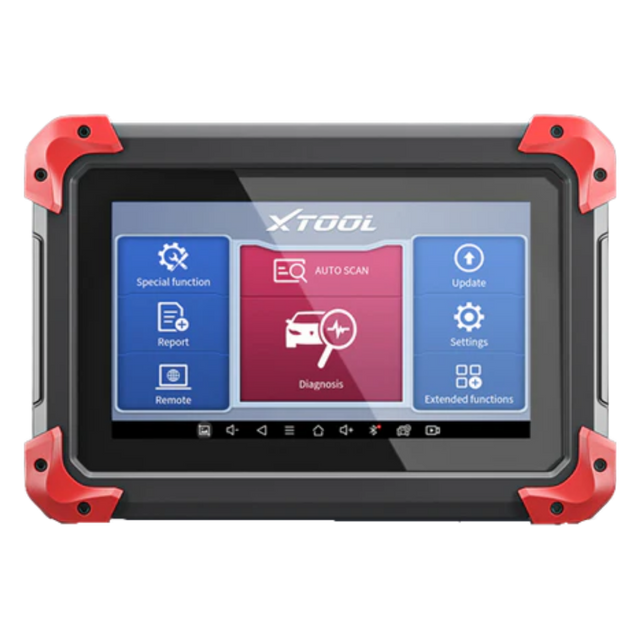

XTOOL D7 Diagnostic Scan Tool
1.OE Level All Systems Diagnostics
The D7 can support diagnostics in every car system, for reading and clearing codes, live data, freeze frame, active tests, ECU information and more
2. 26+ Kinds of Reset & Service Functions,like ABS Bleeding, Injector coding, Oil reset, EPB reset, Key Programming,TPMS reset, DPF and etc...
3. Auto VIN Scan+ Active Test (Bi-Directional Control)

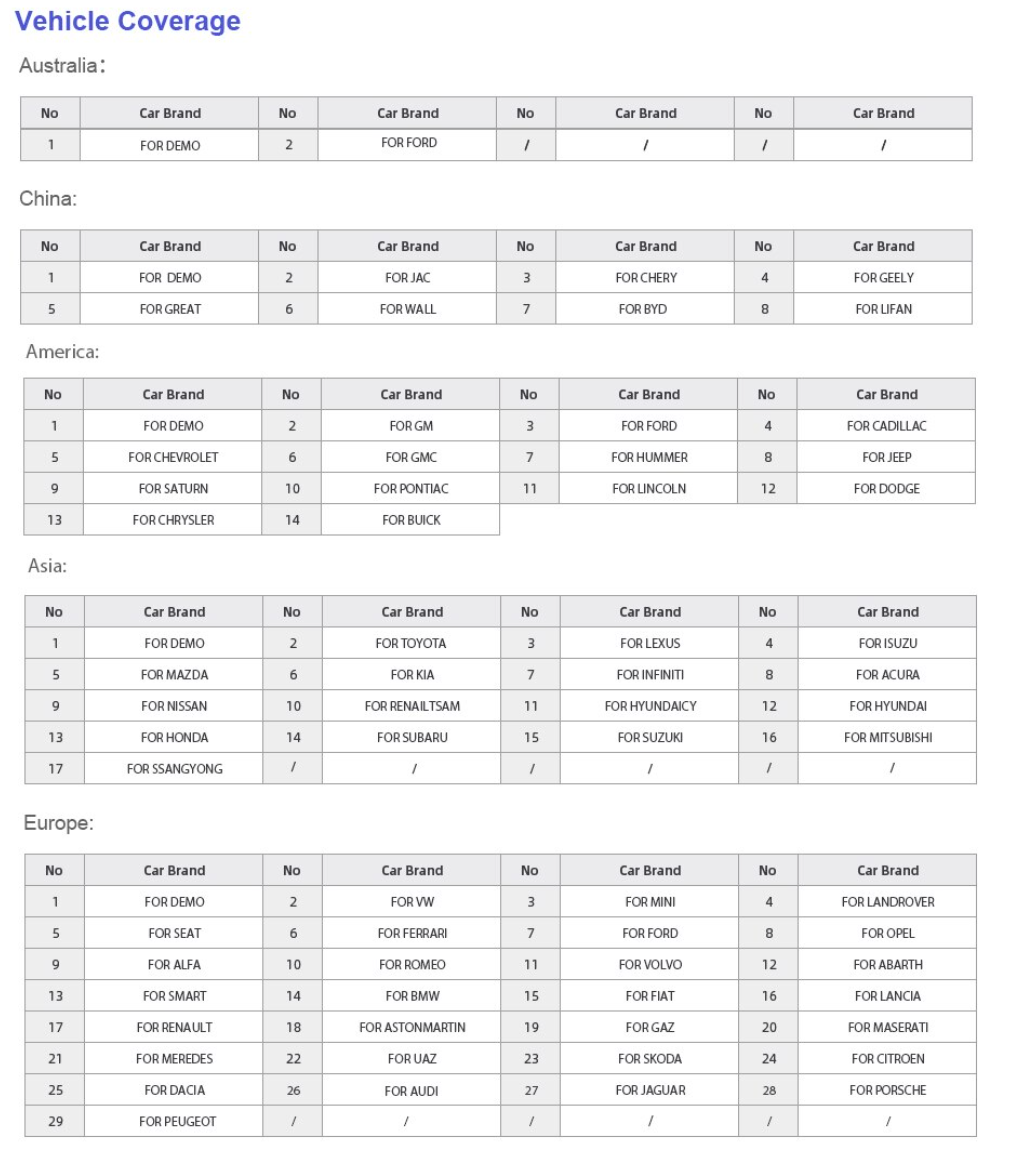

4. Extensive Vehicle Coverage of 85+ Car Brands
5. D7 can support 14 different languages
6. 3 Years Free Update 1 Year Warranty and Lifetime Technical Support
7. Built-in rechargeable lithium-polymer battery.
8. Powerful quad-core 1.6GHz processor with faster 2GB and reliable 32GB On-board memory, Dual-band wifi
Special functions:
1.Oil/Service/Maintenance Light Reset
2. EPB Reset
3.Throttle Relearn:
4.TPMS Reset
5. ABS Bleeding
6.Immobilizer: Allows to disable a lost vehicle key to protect the vehicle from being stolen and add the new key.
7. DPF Regeneration
8. Injector Coding
9. SAS Calibration
10.BMS Reset: Register the newly replaced car battery into the ECU.
11. Window Initialization
12. Gearbox Match
13. Instrument Cluster
14.Headlight
15. Air Suspension
16. Gear Learning
17. EEPROM Adapter
18. Airbag Repair
19. Cylinder match
20. Seat Configurations
21. Electronic Pump Activation
22. Disabled Transportation
23. Performance Tyre Upgrade, (change size)
24. A/F Setting
25. Stop/Start Reset,
26. Language Change and more
Active Test (Bi- Directional Control)
XTOOL D7 has Bi-Directional Control capability and is capable of performing Active Tests to access vehicle-specific subsystems and component tests. The test outputs command to the ECU to drive the actuators in order to determine the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators, like EVAP test, Cylinder Deactivation, Cycling A/C Clutch On/Off, switch fuel injector on/off, cycling ABS motor pump, test car window, door, sunroof, wipers and etc to pinpoint fault locations easily and effectively.
Auto VIN & Auto Scan
XTOOL D7 features Auto Vin function to easily read the vehicle identification number.
Once this diagnostic tool and the given car are properly connected, D7 performs a comprehensive scan of all available systems of your vehicle. With only one click, you can scan your car’s detailed version information, also all diagnostic trouble codes and live data stream of full electrical control units. If needed, you can only view the diagnostic information of the selected systems in the forms of checks.
Live Data Stream
XTOOL D7 displays live data stream in text or graph like misfire data, engine rpm, transmission oil temperature, mass air flow sensor data, cylinder balance rates, fuel pressure, actual fuel temperature vs desired fuel temperature and etc
Multi Language Support
XTOOL D7 can support 15 kinds of language: English, Spanish, German, French, Italian, Finnish, Arabic, Japanese, Korean, Polish, Portuguese, Vietnamese, Russian, Simplified Chinese and traditional Chinese.
(please send us the S/N of the device and then we will help you authorize language, and you can change it)
One Click Update Online & 3 Years Free Update
XTOOL D7 comes with one click online and 3 years free update to get the newest software that can support more functions and new vehicle models coverage.
The device still can work normally even when the free updates period expires.

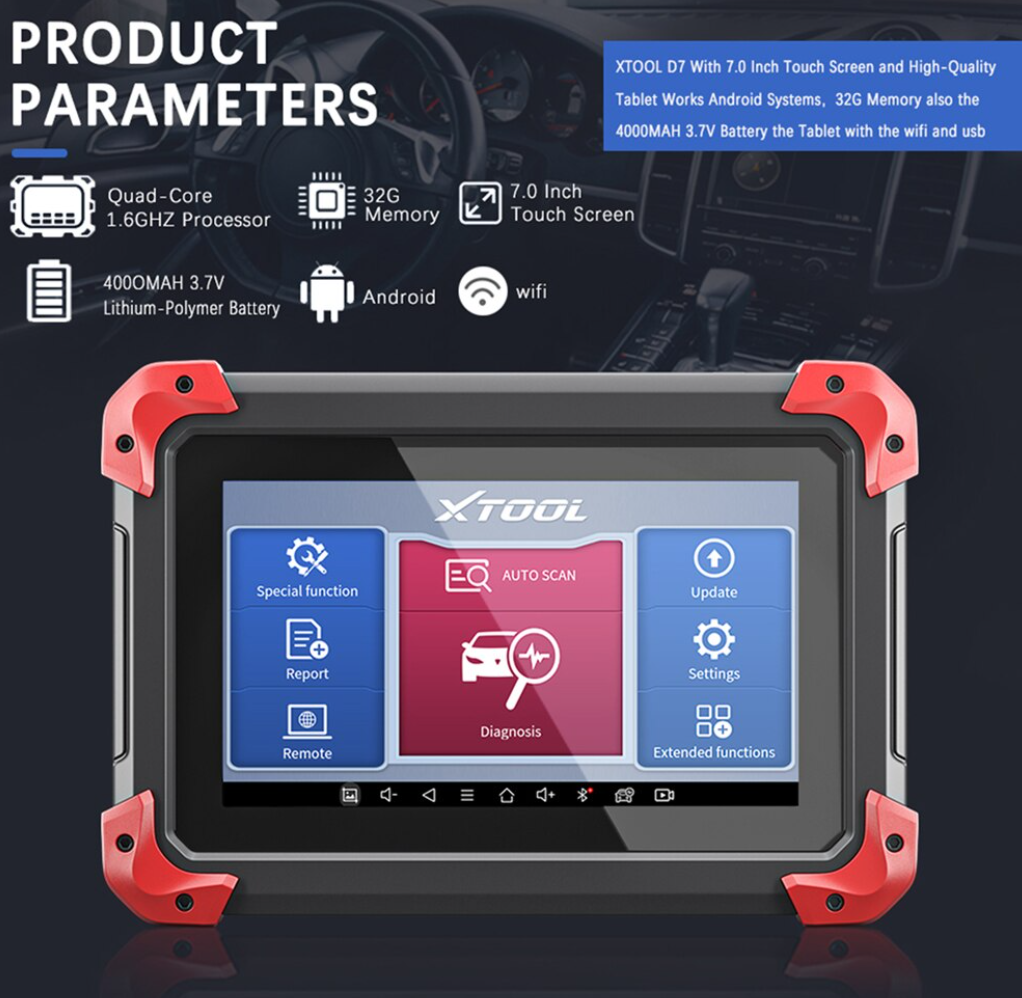

Specs:
Operating Systems: Android 5.1.1
Storage: 1G RAM 32G ROM
Connection: USB and WIFI (2.4GHz and 5GHz)
Processor: Quad care processor 1.6GHz
Sensor: Gravity sensor and Light sensor
Audio input & output: Microphone & Speaker
Battery: 4000mAh,3.7V lithium polymer battery
Power Voltage: 5V
working Temp: -20 to 60℃(-4 to 140℉)
Relative humidity <90%
Tablet Size: 218*150*29mm
Free Shipping
After-sales support
Product will come with a one year warranty
30 day money-back guarantee - we guarantee you'll love it or you'll get your money back
