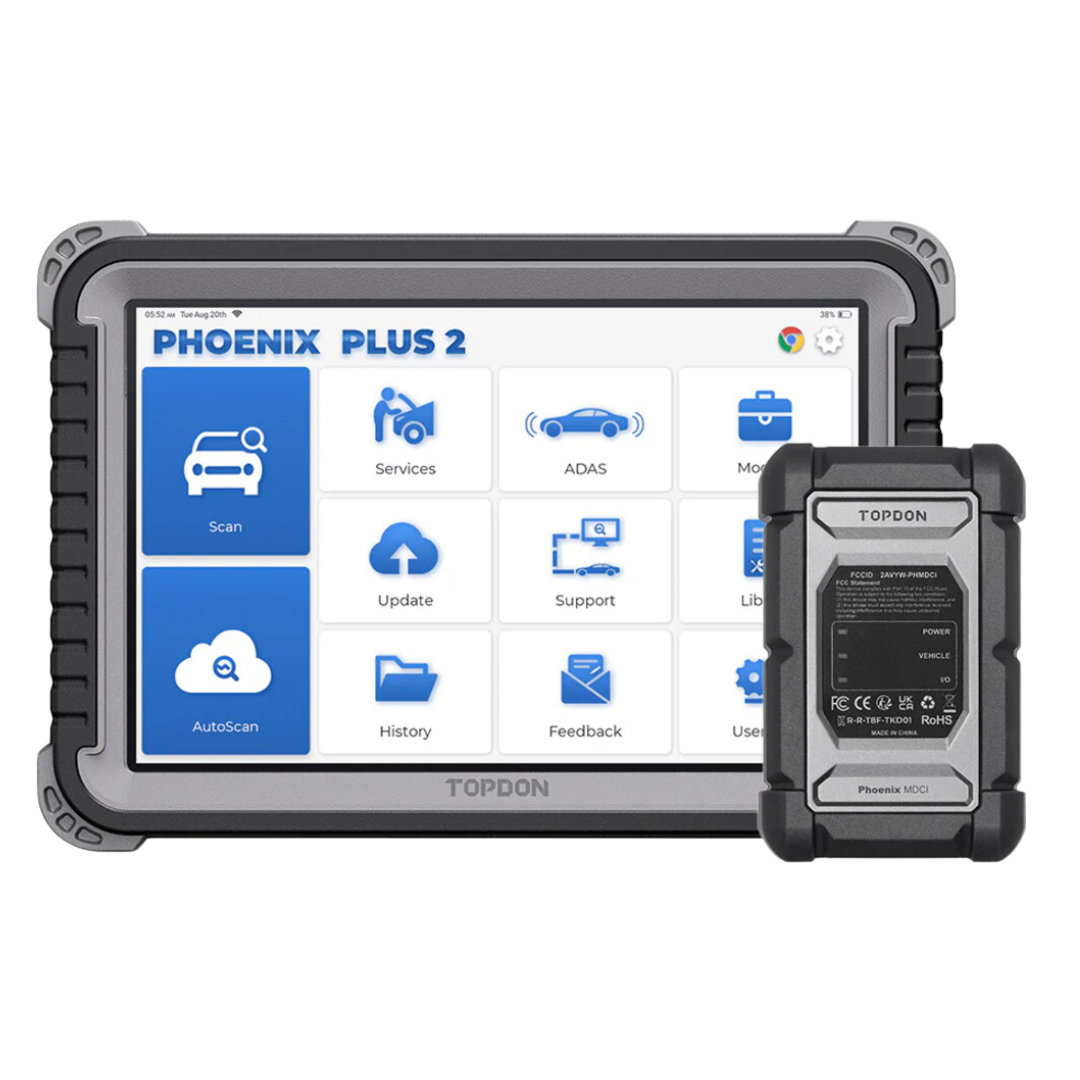

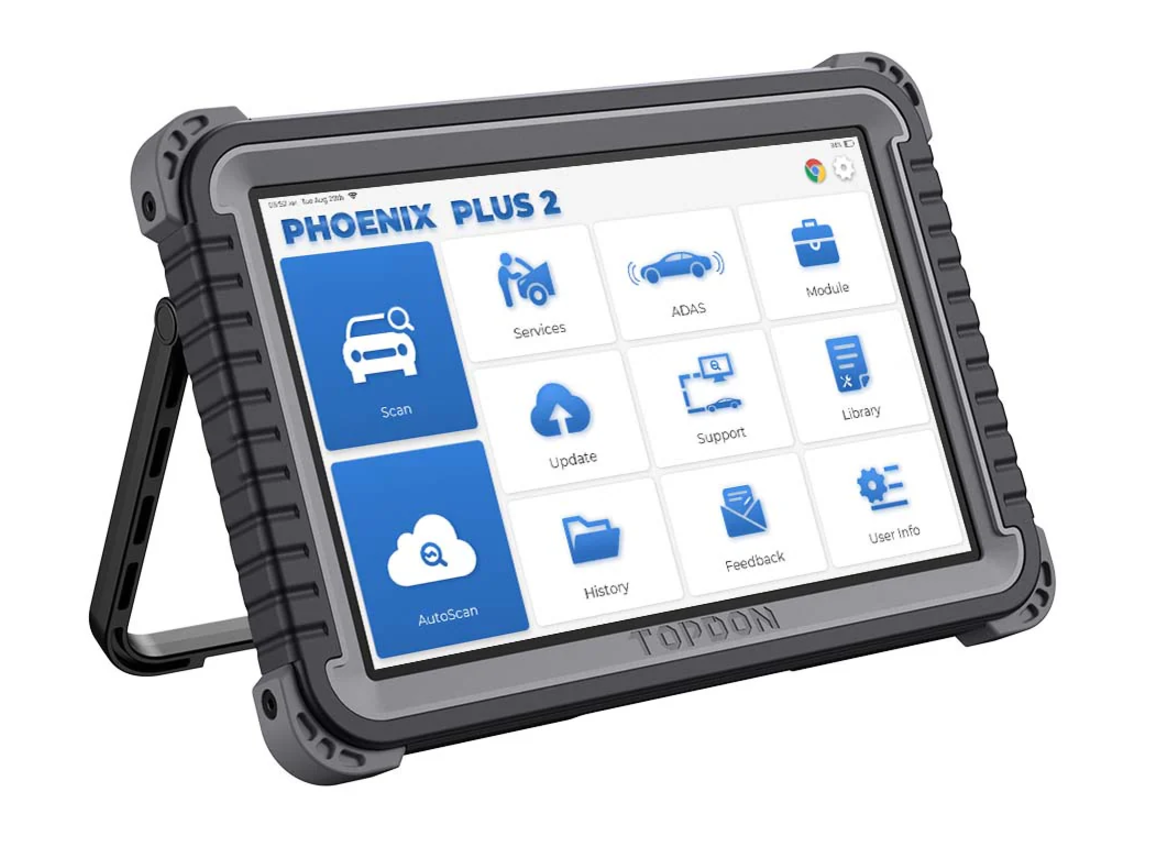

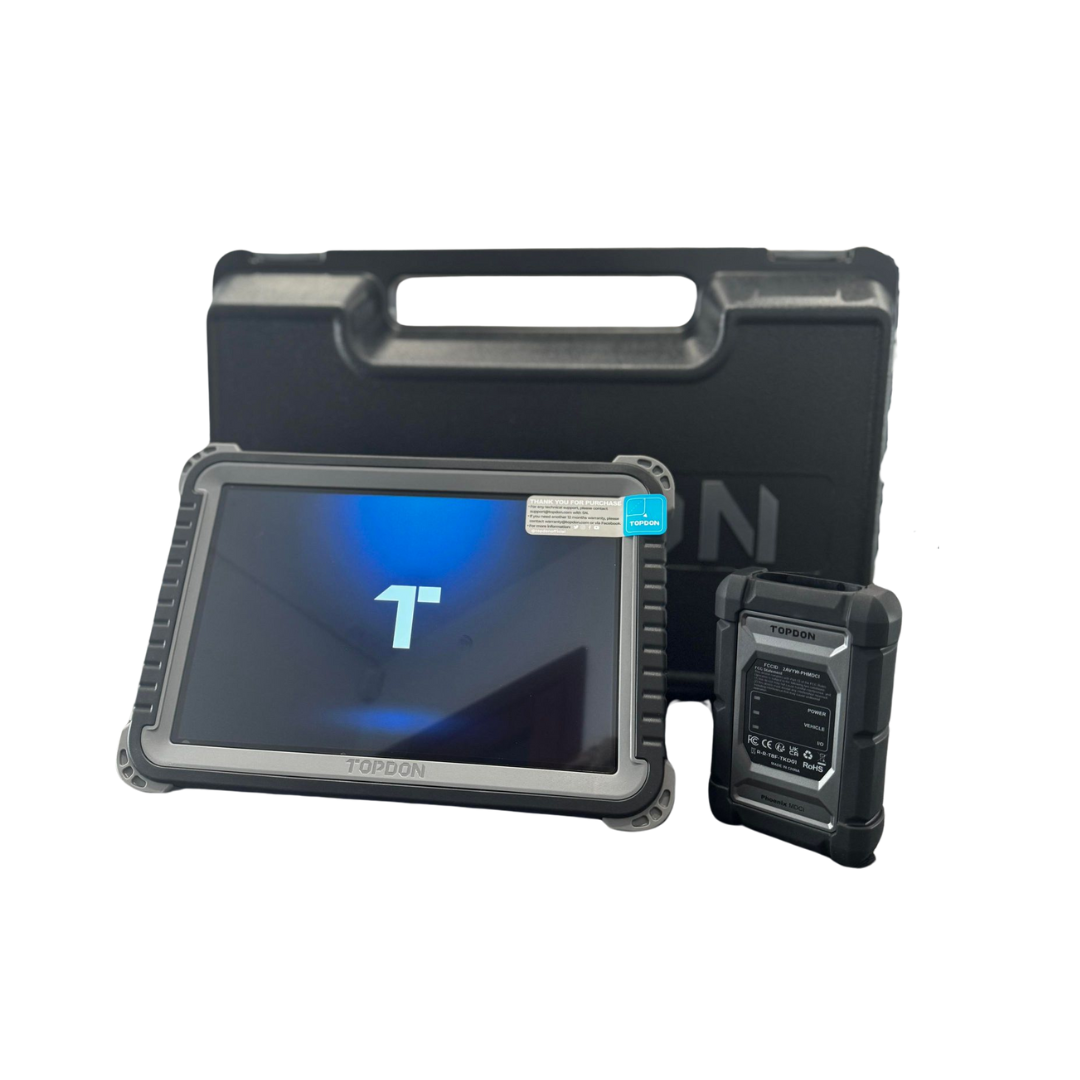

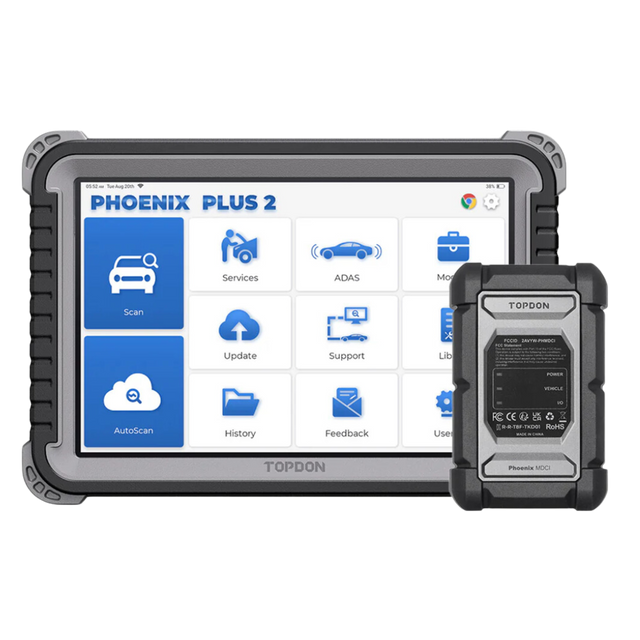

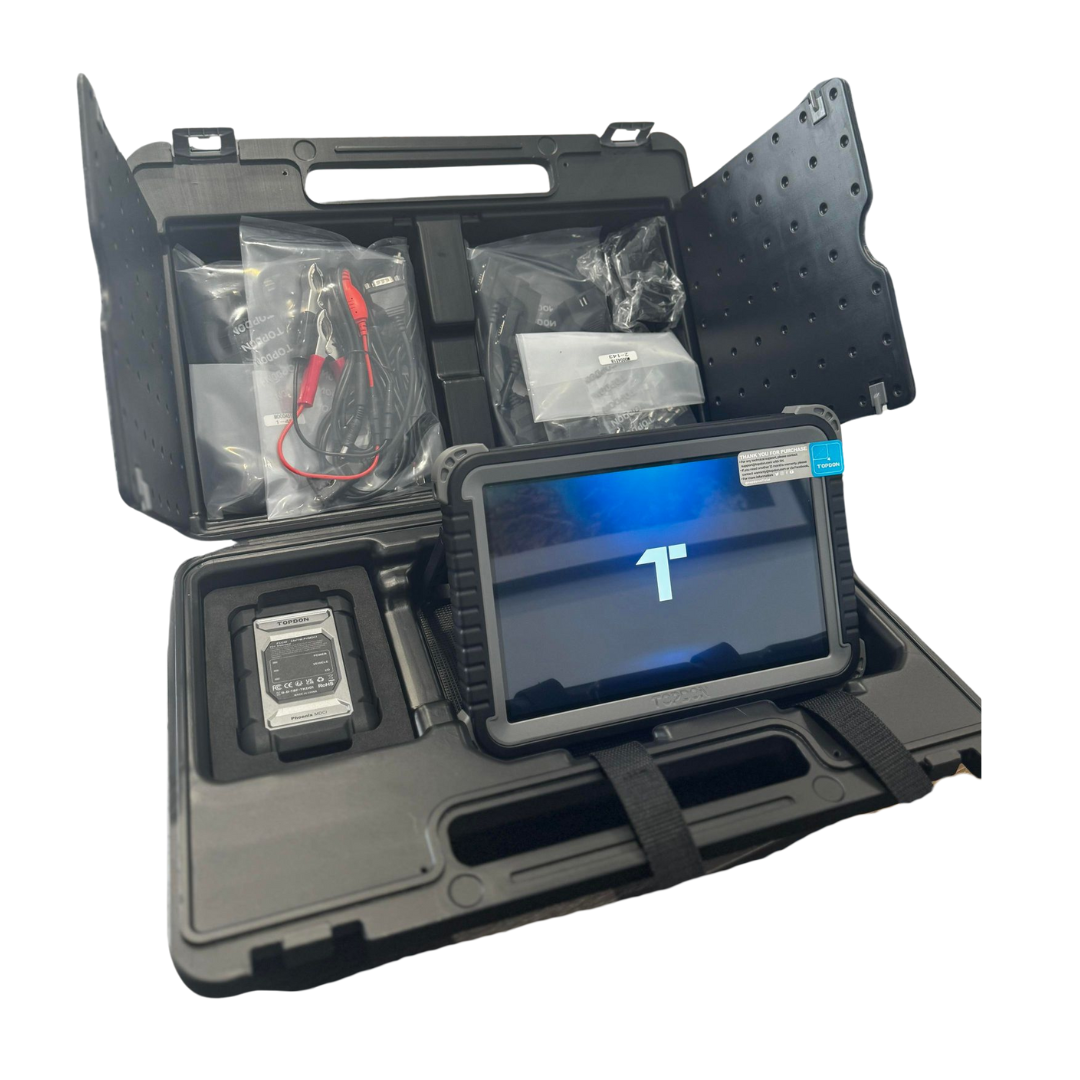

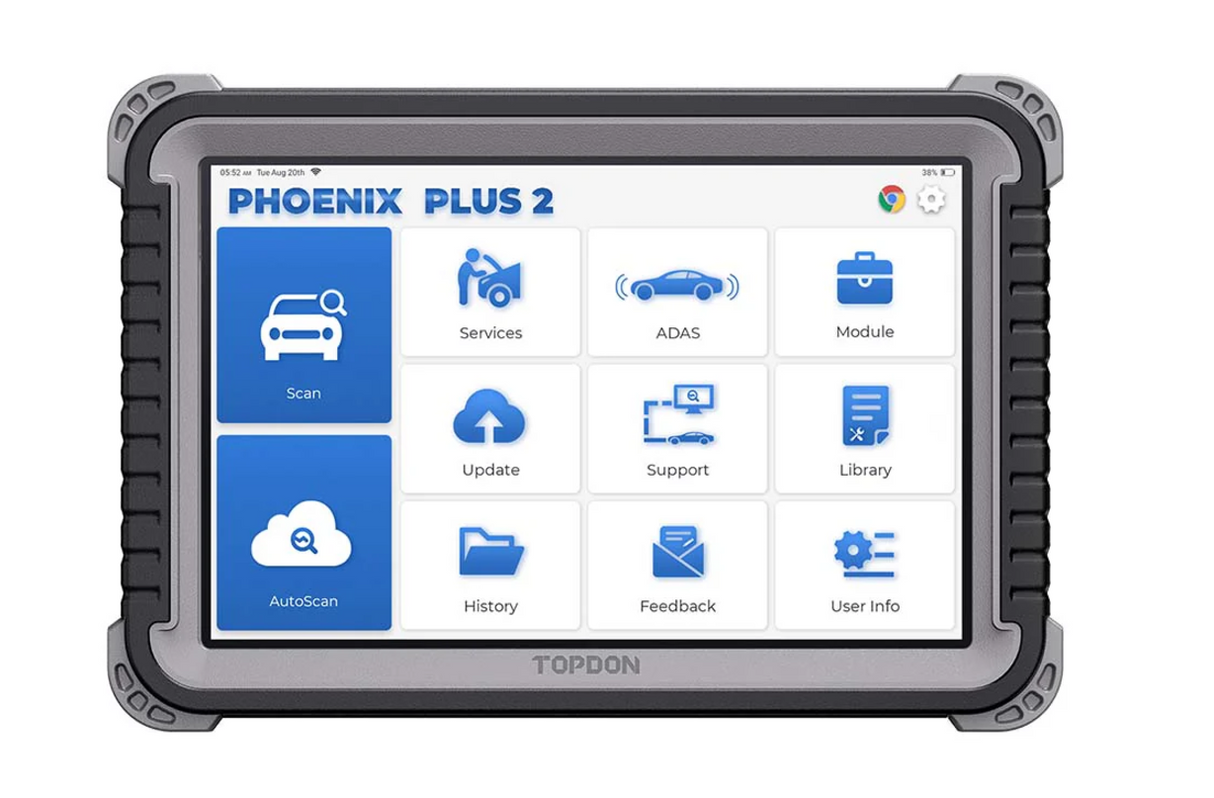

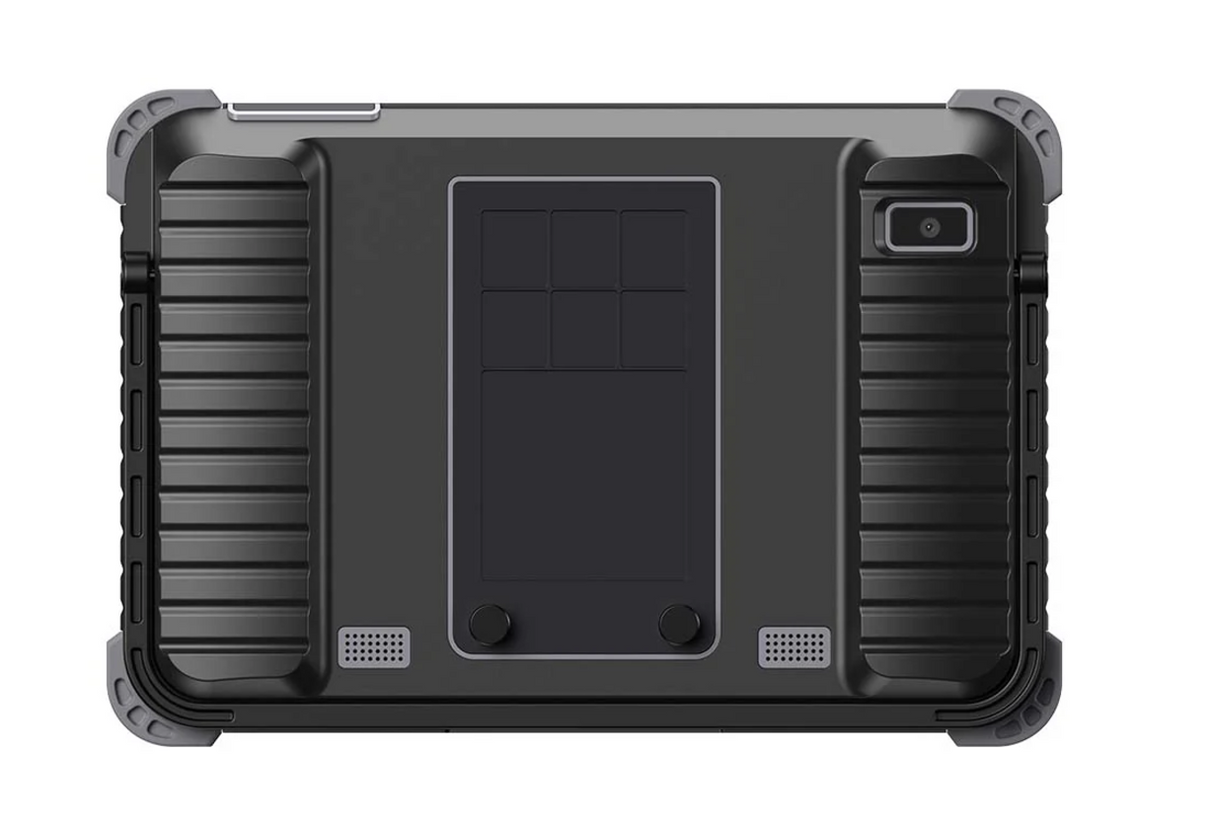

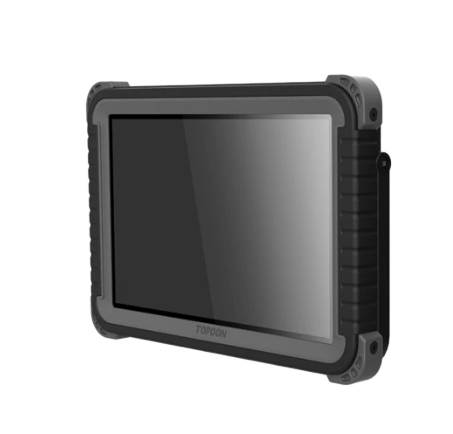

Topdon Phoenix Plus 2 Professional Diagnostic Scan Tool

Keeping up with aftermarket requirements to handle complex modern vehicle issues, TOPDON Phoenix Plus 2 is an all-in-one diagnostic tool that contains everything you need to diagnose, research, and manage any issues at your fingertips with its smooth logical workflow, where fully optimized easy-to-use software allows advanced OE-level diagnostics of online ECU coding, complete bi-directional functions, access to all vehicle modules, etc. equipped with the latest Android 10.0, preparing you to take on the toughest jobs with confidence.

The New Phoenix Plus 2 features an upgraded MDCI box to cover CANFD protocols

All Systems Diagnoses

This diagnostic scan tool can establish a data link to all systems and subsystems of the vehicle being serviced to:

-Retrieve ECU information of the tested control units including unit type, version numbers, and other specifications, etc.

-Read & erase DTCs to locate problem areas and clear the codes.

-View Live Data of each parameter item.

The following is a list of modern vehicle systems that this scan tool can get access to:

-Engines / Auto Transmission / Airbags / Immobilizer / Key Coding / ABS / Cruise Control / Instruments / Self Leveling Suspension systems

-Seats / Doors / Gateway / Steering Angle / Air Suspension / Body Systems / Electronic Power Steering & Motor Assisted / Power Steering / Tyre Pressure / Rain Sensors / 4WD System

-Stabilizer / Intelligent Parking Assist/Door Motors / Audio Systems / Air Conditioning / Tiptronic / Anti Theft / Soft Top / Headlamp Leveling / Central Locking / Automatic Clutch / DPF Reset

-Electric Windows / Plip Programming / Heated Rear Window / Xenon Headlights / Wash Wipe / Fuel Burning Heater / Transfer Box / Seat Memory / Oil Life Service Reset / Sliding Doors / Electronic Throttle

-Navigation System / Rollover Sensor / Cruise Control / Multi Function Steering Wheel / Aux Heating / Electronic Parking Brake / Clutch Electronics and more.



Features

Custom Solutions with ECU Coding

• Unlock advanced vehicle customization with enhanced ECU and online coding capabilities. Professionals can modify vehicle settings, enable hidden features, and disable unnecessary options for optimal performance. This functionality not only improves diagnostics but also broadens service offerings, ensuring a personalized driving experience for customers.

OE-Level Diagnostics with CAN-FD Boost

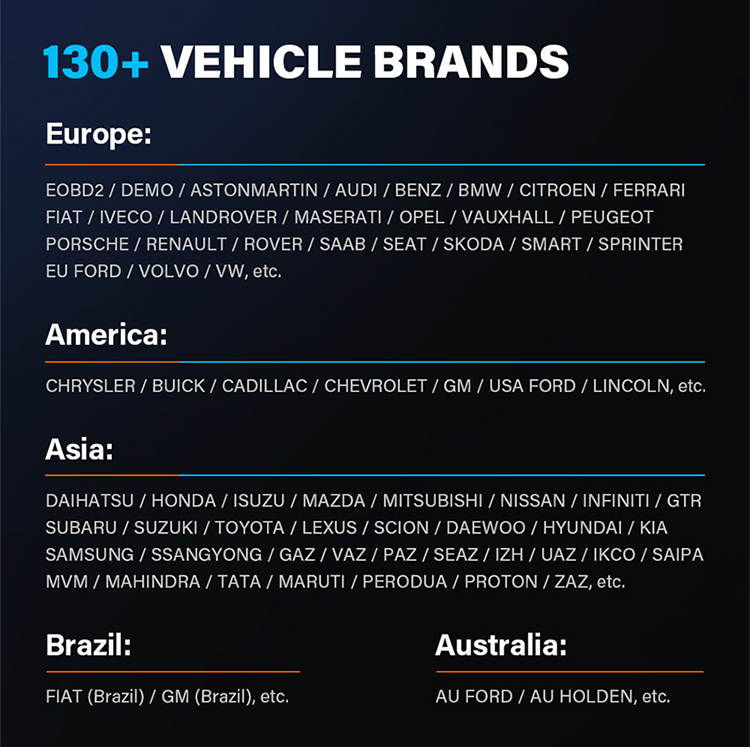

• The Phoenix Plus 2 provides comprehensive support for over 160 vehicle brands, covering critical systems like the engine, transmission, and ABS to ensure a complete assessment of vehicle health. Equipped with the latest CAN-FD protocol, it enables ultra-fast data transfer and improves communication with newer vehicles, including GM and Chrysler models from 2020 onward.

Unlock FCA SGW Access

• Enhance your diagnostics with exclusive access to FCA's Secure Gateway (SGW) systems. This trusted feature grants access to crucial vehicle data, enabling precise and reliable repairs on FCA models, ensuring a higher level of service and accuracy. Please note FCA SGW unlock requires additional software or cable purchase.

 Visualized Diagnosis for Clearer Insights

• Experience the benefits of topology mapping, which provides clear system connections and pinpoints critical issues, drastically cutting diagnostic time. The graphical live data display converts raw data into easy-to-understand visuals, allowing for quick identification of trends, anomalies, and potential issues at a glance.

Precise Troubleshooting with Active Tests

• By directly interacting with vehicle systems and controlling actuators, mechanics can swiftly isolate problems and confirm repairs with confidence. This approach reduces diagnostic time and boosts first-time fix rates, leading to a more efficient and reliable repair process.

41+ Maintenance Services Cover All Your Needs

• With access to over 41 essential reset services, you’re equipped to handle all maintenance tasks effortlessly. From routine procedures like oil and SAS resets to specialized functions like throttle adaptation and calibration, these tools empower you to provide exceptional service with ease.

Smart Features for Smart Work

• Smart AutoVIN technology streamlines vehicle identification, while VAG guided functions provide step-by-step instructions to make your workflow more efficient. With one-click WiFi updates, you'll always stay up to date with the latest advancements.

Go Wireless, Diagnose Anywhere

• Phoenix Plus 2 offers wireless connectivity, allowing you to diagnose vehicles freely without the limitations of cables. Paired with a robust 12,600mAh battery, this tool ensures long-lasting performance for extended work sessions.

Expandable Capabilities with Add-on Modules

• Upgrade your equipment effortlessly with a range of expandable add-on modules as your business grows. Connect ADAS for driving calibration, BTMobile ProS for battery testing, TC001 for thermal imaging, and an oscilloscope for analyzing electrical signals, ensuring you're always prepared for success.

Extra Add-ons

TC001 Thermal imaging camera

BT Mobile ProS Battery Tester

ADAS PX1000 Kit



Downloads

Specifications

• Display: LCD 10.1-Inch, 1280 * 800

• CPU 4-Core Processor, 2.0 GHz

• Operating System: Android 10.0

• RAM: 4G, ROM 64G

• Battery: 12600 mAh / 3.8V

• Operating voltage: 9~18V

• Storage Temperature: -20℃~60℃（-4℉~140℉）

• Working Temperature: 0℃~50℃（32℉~122℉）

• Dimension: 277.3*190.8*44.5mm（10.92*7.51*1.75in）

• Package size: 468*320*143 mm (18.43*12.60*5.63 in)

• Net Weight: 1576 g (3.47 lb)

• Multilingual Support: English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese (Traditional), Korean, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Finnish, Czech, Norwegian, Danish, Swedish, Thai, Bulgarian, Indonesian, Cambodian
