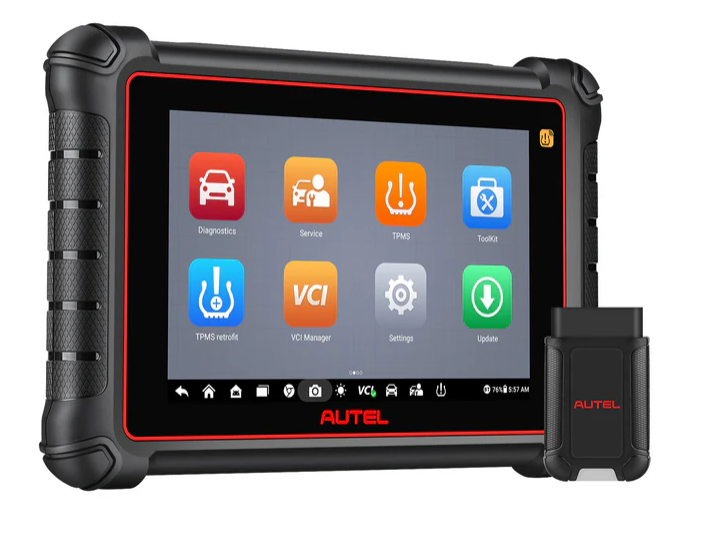

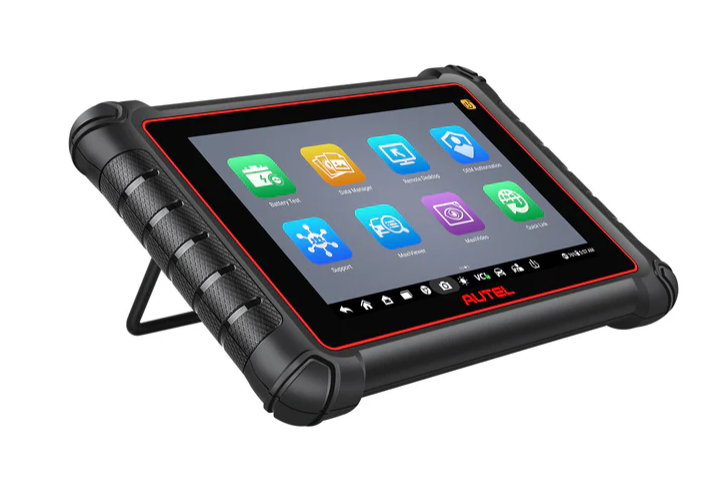

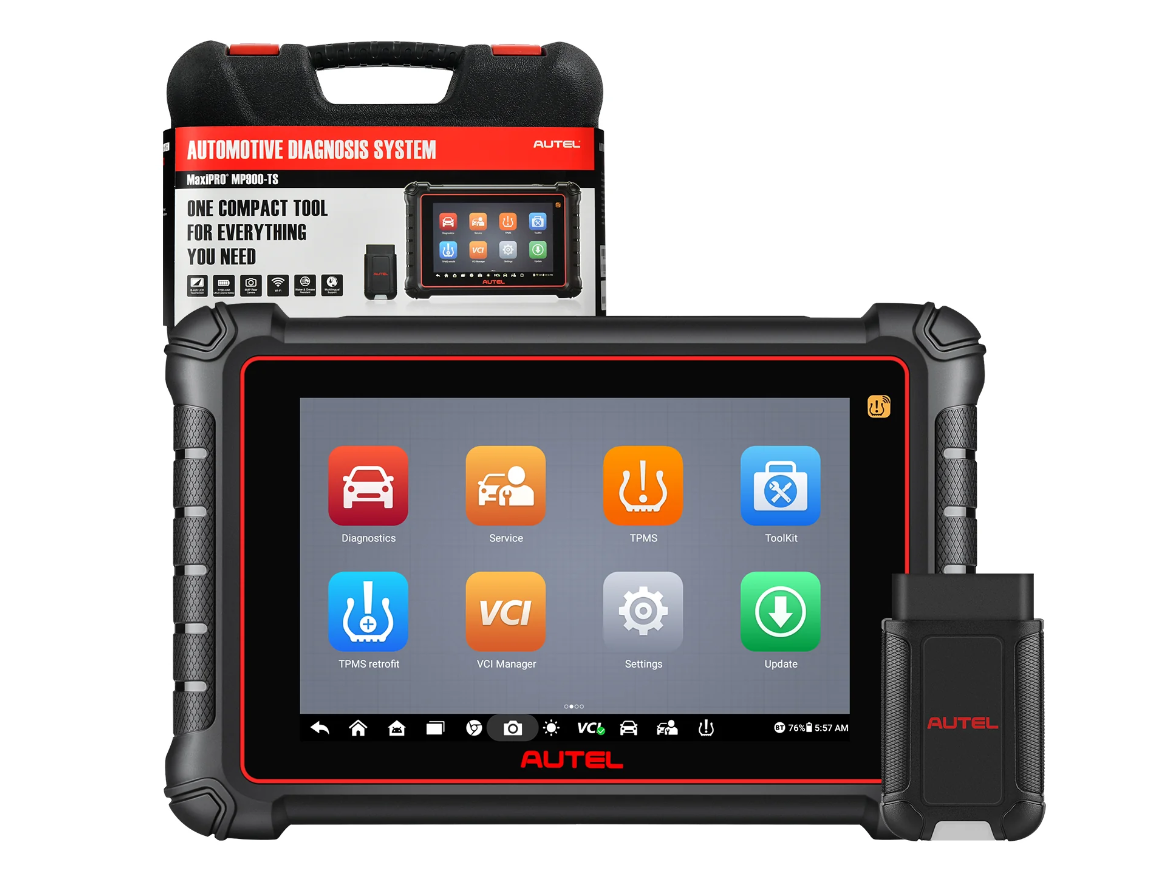

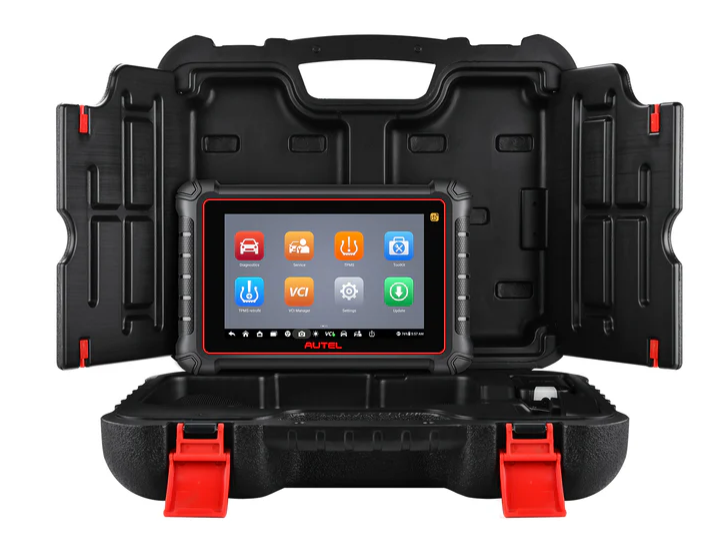

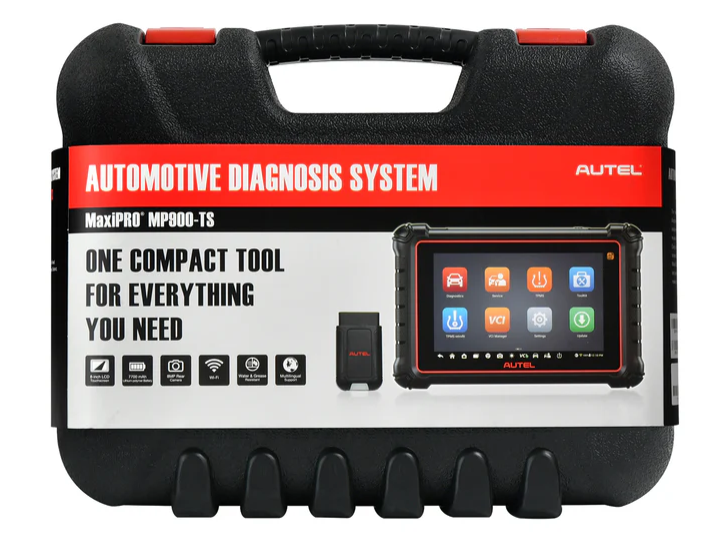

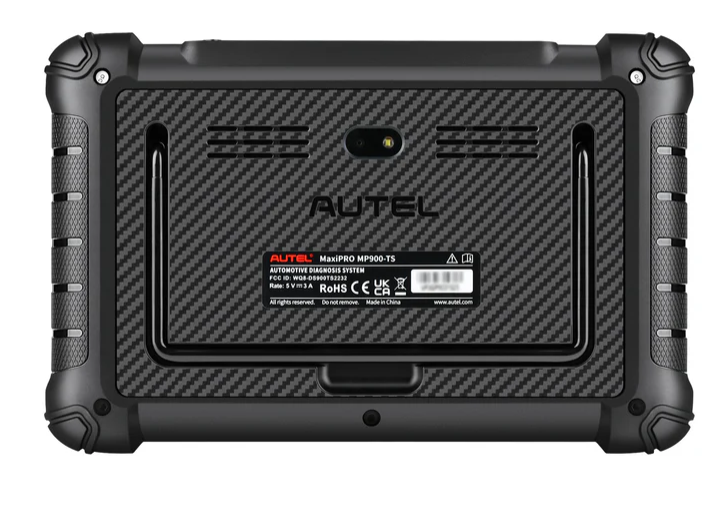

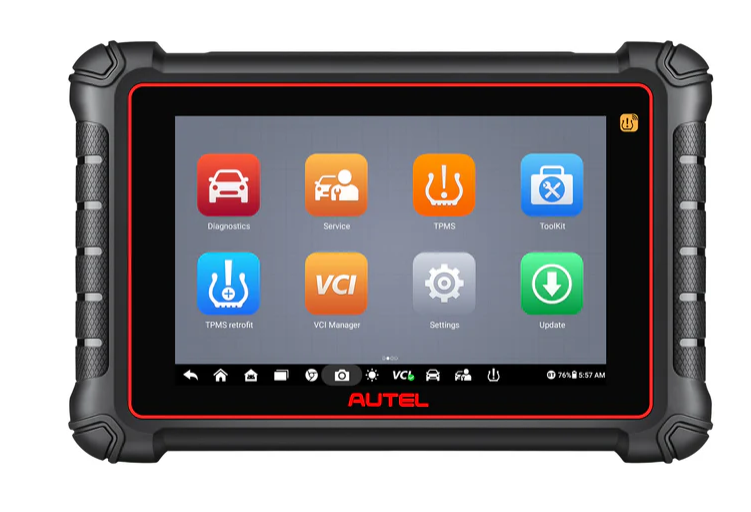

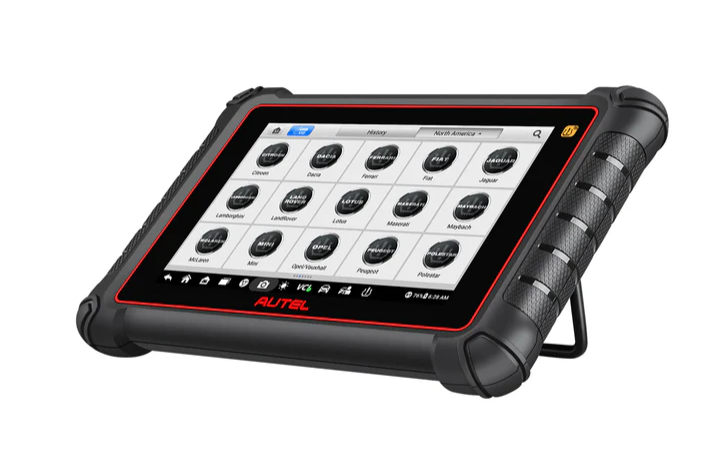

Autel MaxiPRO MP900-TS Diagnostic Scan Tool

Autel MaxiPRO MP900-TS Diagnostic Scan Tool Automotive Diagnosis System

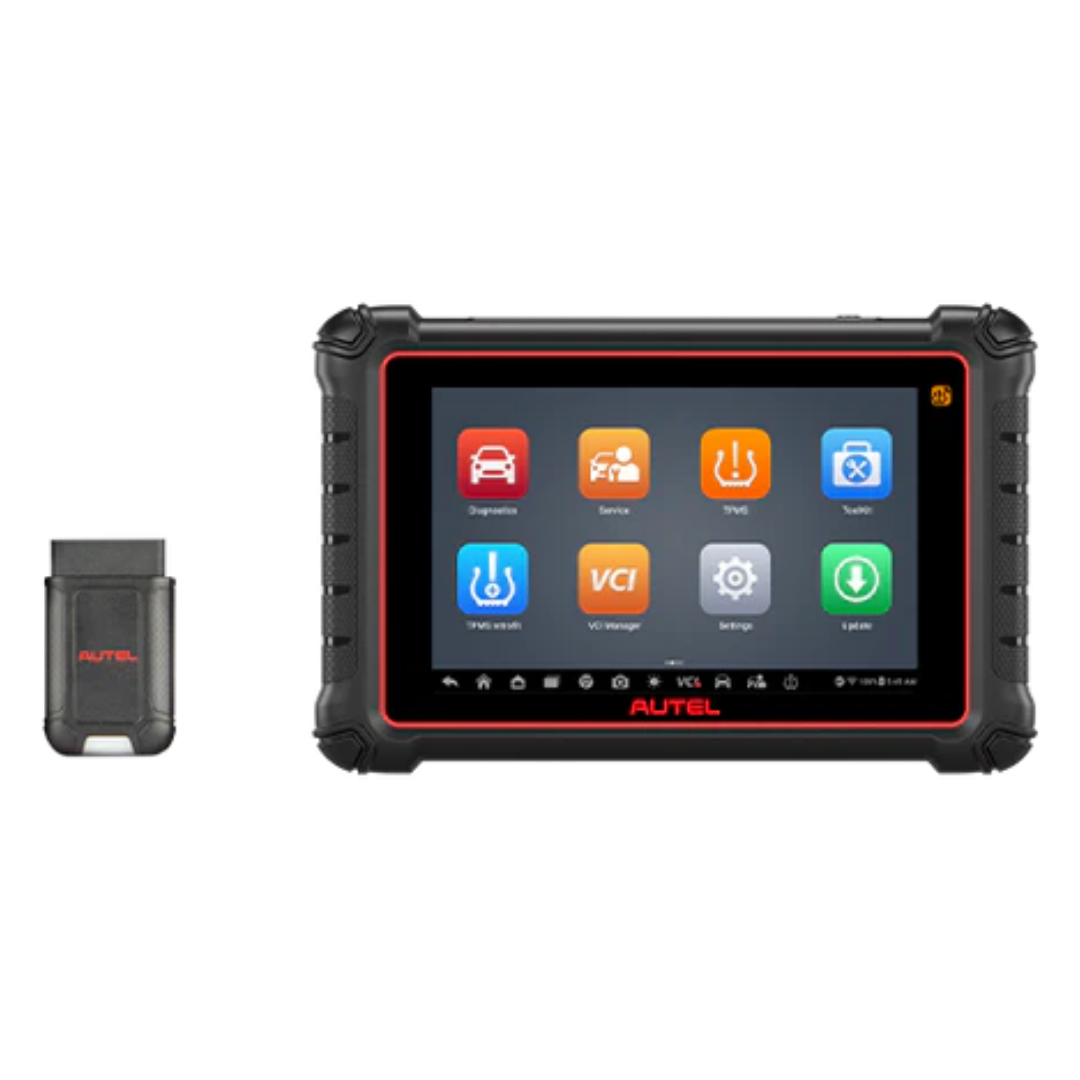

The new MaxiPRO MP900-TS delivers complete diagnostic functions and comprehensive TPMS solutions for all the covered makes and models. This results in an extremely purposeful and creative tool. Easy and intuitive navigation on the 8-inch touchscreen allows you to fast find what you need. The MaxiVCI V150 for wireless communication with the test vehicle and its advanced wireless technologies make it truly portable and Internet accessible.

• Extensive vehicle coverage for U.S., Asian, European and Australian vehicle makes
• Exceptional OE-Level system for all electronic systems
• Excellent functions for reading codes, live data, ECU information and performing active test, adapation, and matching, etc.
• Expansive 40-plus menu of service and maintenance tasks
• Features DoIP and CAN FD protocols
• Smart AutoVIN technology for identifying vehicles easily
• Automatic system and software updates with real-time push notifications through the Internet
• Instant remote control tech support
• Advanced TPMS diagnostics with DTC description
• TPMS status, one step for complete TPMS health check
• Activate all known TPMS sensors
• Program AUTEL MX-Sensor
• Comprehensive OBD relearn coverage
• On-screen relearn procedure
• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organised
• Supports Pre & Post Scan

Autel MaxiPRO MP900-TS Product Manual

Autel MaxiPRO MP900-TS Specifications:

• Operating System: Android 11
• Processor: Quad core Processor(1.8GHz)

• Memory: 4GB RAM & 64GB ROM

• Display: 8-inch LCD capacitive touchscreen with 1280x800 resolution
• Rear Camera: 8MP

• Connectivity: USBType-C, USB2.0, Wi-Fi & Mini SD card (supports up to 64GB)

• Audio Input/Output: Input: N/A Output: buzzer

• Battery: 3.7 V/7700mAh lithium-polymer battery

• Power: Charges via 5 VDC power supply

• Battery Charging Input: 5 V/3 A

• Operating Temp: 0 to 50°C (32 to 122°F)

• Storage Temp: -10 to 60°C (14 to 140°F)

• Protocols: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898(High-speed, Protocols Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART EchoByteProtocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD
• One-touch Software Upgrades: Keep upgrading for more supported cars and more features; subscription-free for 1 year.

CAN-FD & DoIP Protocol Support:

The latest DoIP (Diagnostics over Internet Protocol) and CAN FD (Flexible Data-rate) protocols are supported, enabling high-speed communication with newer vehicle models for efficient diagnostics and ECU programming.

ECU Coding:

• Module Replacement Matching: Replace and match ECU modules seamlessly.

  • Online Coding: Connect to the OEM server to access online data, enabling adaptive data reprogramming for high-end vehicles. Compatible with BMW, VW, Porsche, and more.
  • Offline Coding: Read codes from the original ECU and write them to the new module. Compatible with Ford, Mazda, Vauxhall, and others.

• Vehicle Customisation:

  • Function Disablement: Deactivate unnecessary functions, such as auto start-stop, chimes, injector buzz sounds, seatbelt warnings, and more. Compatible with BMW, VW, Benz, and others.
  • Function Reflashing: Customize high-end features like auto start-stop, interior lighting, US-style daytime running lights, automatic folding mirrors, cornering headlights with fog lights, and more. Compatible with BMW, VW, Skoda, and others.

Bi-Directional Active Test:

The MaxiPRO MP900-TS allows you to manually activate mechanical and electronic components to test sensors, valves, solenoids, and other systems, helping you quickly identify and fix issues.

Test Functions Include:

• Radiator fan activation
• Throttle modulation
• Window operation
• Mirror controls
• Injector buzzer test
• Interior/exterior light functions
• Horn activation
• Door lock actuators
• Front & rear side ACM solenoids
• Fuel pump operation
• A/C cycling
• Clutch testing (On/Off)
• Dynamic camera aiming
• Vehicle level calibration
• Brake vacuum pump activation
• Inlet & outlet valve testing
• Parking brake test
• And much more (dependent on vehicle make/model/year).

This powerful tool makes diagnosing and repairing complex vehicle systems faster and more efficient.

Advanced Diagnostics:

• Coding supported on BMW, VW, Porsche, Hyundai, Kia, Peugeot, and Citroen vehicles
• Hidden Functions renewal supported on BMW, VW, Audi, Nissan, and Toyota vehicles
• Guided Function for VW and Audi vehicles

Outstanding Performance, Ample Storage:

• 8-inch high-resolution, responsive touchscreen display
• Android 11 operating system offers advanced streamlined functionality
• 4G+64G high-capacity storage for quicker processing and software access
• 8 Megapixel rear camera for clear and detailed images

Smart And Efficient Design:

• One-touch report viewing, uploading, sharing, and printing
• One-touch reset of vehicle service and maintenance tasks.
• One-touch software updates, download only the software of the vehicles your shop services
• One-touch support, get help from professional and technical personnel

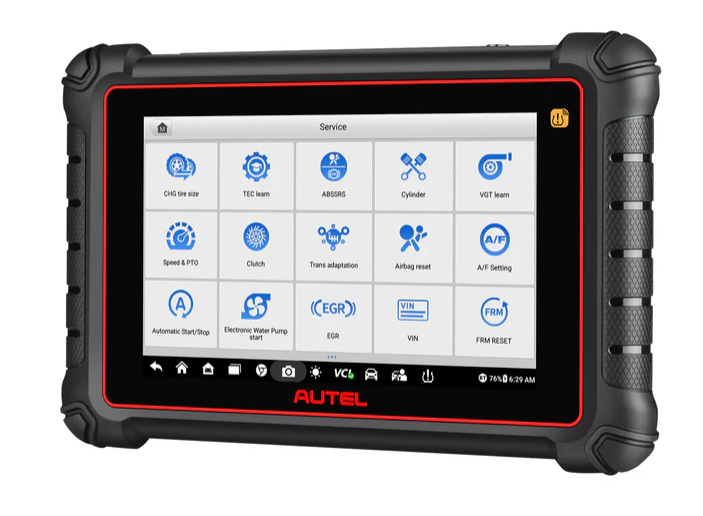

40+ Maintenance Services:

In addition to standard functions like oil resets, the MP900-BT Kit offers a wide range of advanced maintenance services, making it a versatile tool for automotive professionals:

• Oil Light Reset: Reset the oil service light after an oil change and recalibrate the optimal oil life change interval.
• Steering Angle Reset: Reset the steering angle sensor to zero, ensuring the vehicle drives straight.
• Injector Coding: Program new injector codes into the system to ensure accurate cylinder injection quantities.
• Electronic Parking Brake Reset: Reset the brake pads after replacement for proper functionality.
• ABS Bleeding: Perform ABS bleeding to maintain optimal brake performance.
• Throttle Adaptation: Initialize throttle actuators to their default state for proper throttle response.
• Battery Matching: Register the new battery after replacement to ensure proper vehicle function.
• DPF Regeneration: Perform regeneration of the Diesel Particulate Filter for efficient exhaust management.
• Tire Pressure Reset: Reset the tire pressure monitoring system (TPMS) after tire service.
• Suspension Level Calibration: Calibrate suspension levels for proper vehicle handling and stability.
• Headlight Matching: Initialize adaptive headlamp systems for optimal lighting performance.
• Gearbox Matching: Complete the gearbox self-learning process to improve gear shifting quality.
• Sunroof Initialization: Re-initialize the sunroof after closure or locking for proper operation.
• Tooth Learning: Complete tooth learning after replacing the crankshaft to ensure correct engine timing.

And much more! Autel continues to expand its service functions with regular updates, providing coverage for the latest vehicle makes and models.

Note:

1. Timely updates will introduce even more service functions.
2. Functions vary by vehicle model. Contact us with your VIN code to check compatibility.

Auto VIN:

With just a single click, the MP900-BT Kit simplifies the vehicle diagnostic process. The tool features advanced Auto VIN technology, allowing technicians to quickly identify key vehicle details such as the manufacturer, model, year, and place of manufacture, streamlining diagnostics and saving time. Please note AutoVin technology doesnt work on evey vehicle. You can always manually select the vehicle.

VAG Guided Function:

Skip the step of entering the security access code & channel number of VW, Audi, Skoda, Seat & ManLD vehicles for successful diagnostics.
