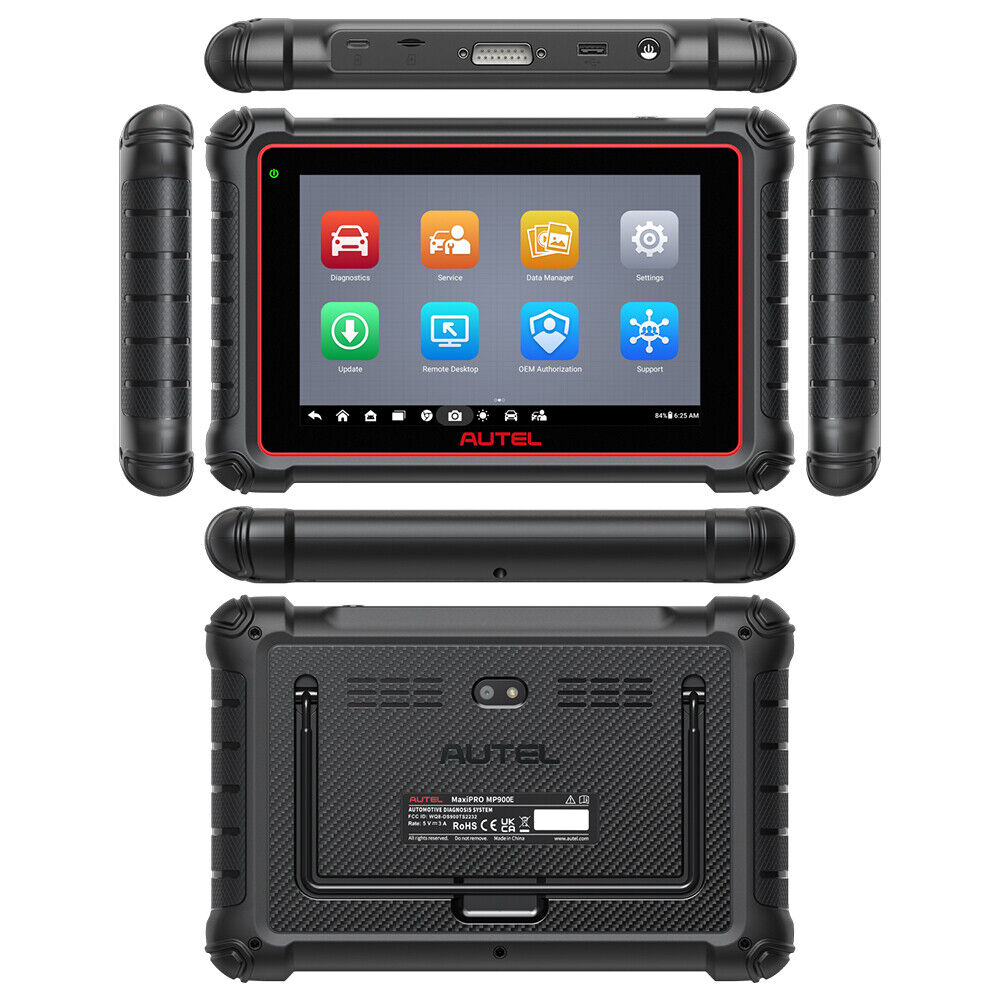

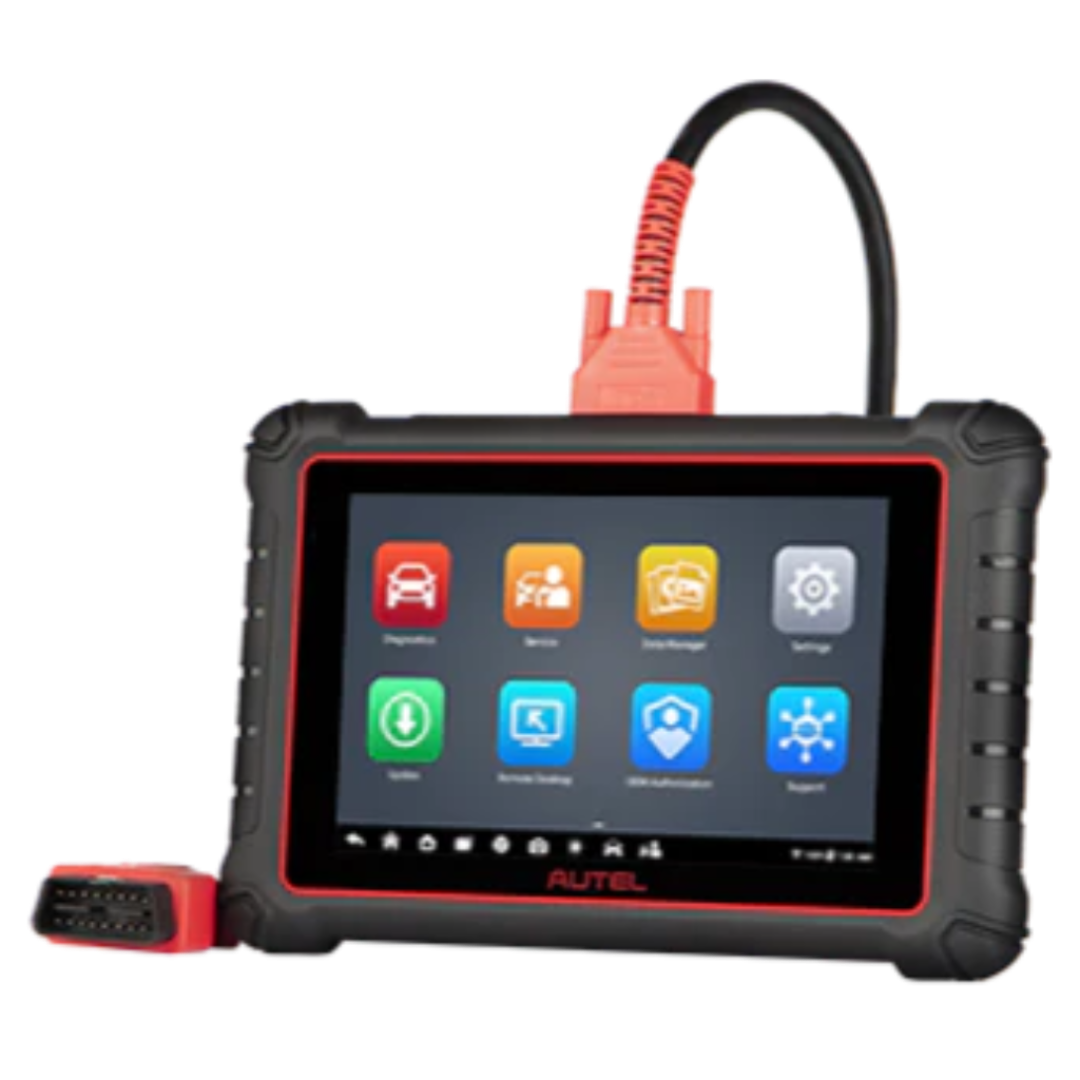

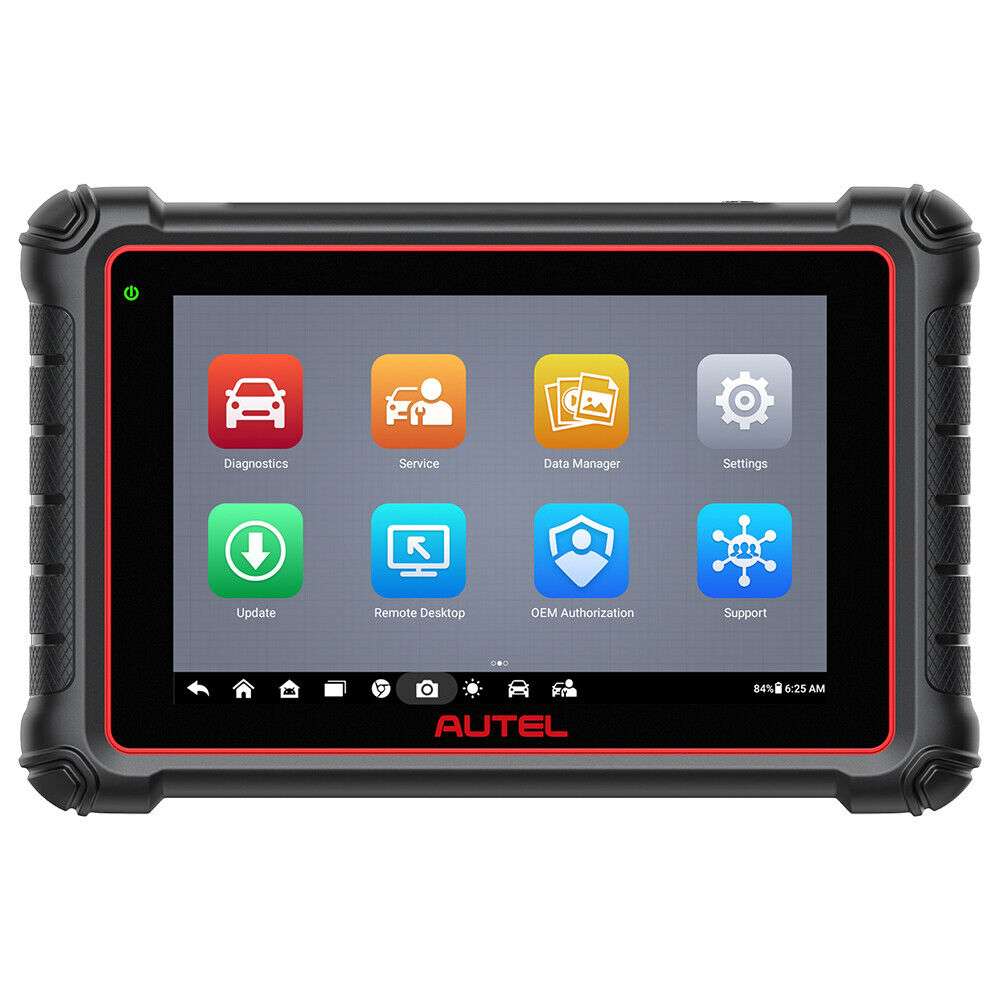

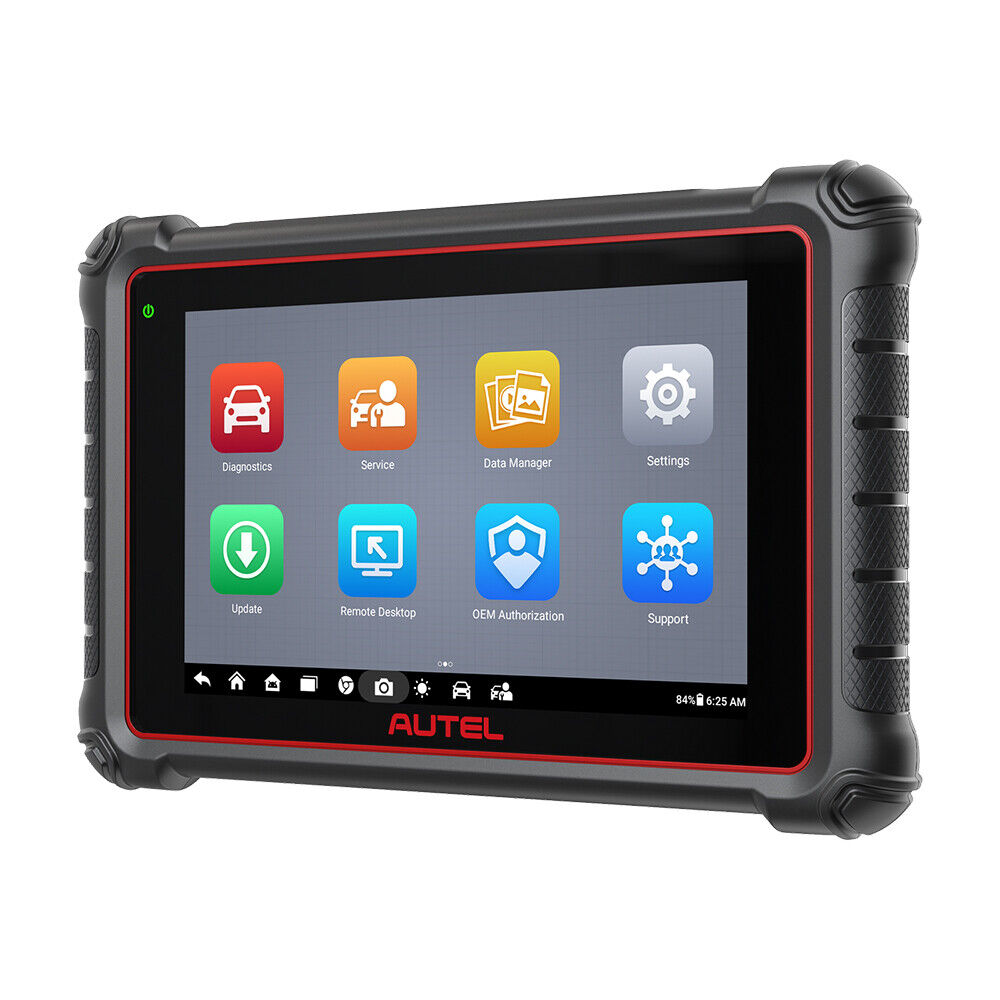

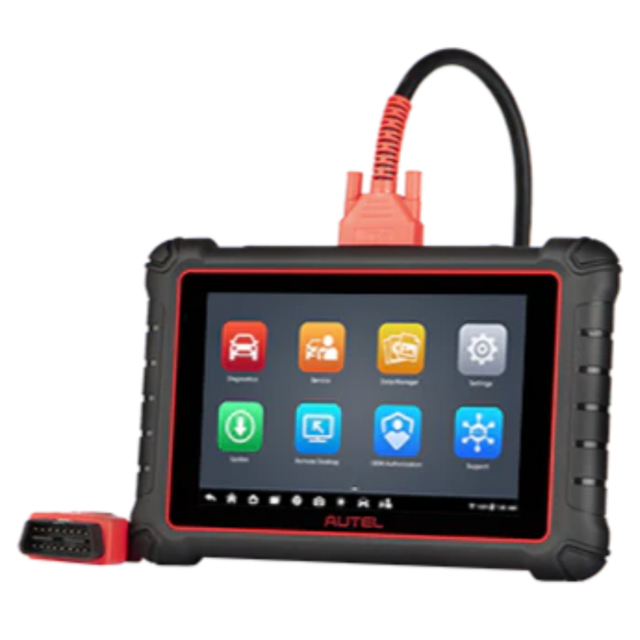

Autel MaxiCOM MK900 Diagnostic Scan Tool

The MaxiCOM MK900 is an all-system diagnostics tablet, compatible with U.S., Asian, and European vehicles, 1996 and newer. The eight-inch touchscreen Android-based tablet features a quad-core processor for maximum speed and efficiency.

When it comes to ultra-portability, the MaxiCOM tablet is your perfect companion.

Installed with a fast quad-core processor, the MaxiCOM tablet offers maximum convenience and swift diagnosis. The intuitive user screen makes using the device effortless through an 8-inch LCD touchscreen that displays at 1280 x 800 quality.

Together with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, the MaxiCOM tablet provides you with superior special functions, including Oil Reset, EPB (Electronic Parking Brake), SAS
(Steering Angle Sensor), BMS (Battery Management System), DPF (Diesel Particulate Filter), IMMO, and TPMS (Tire Pressure Monitoring System).

  • 8-inch high-resolution, responsive touchscreen display
  • Android 11 operating system offers advanced streamlined functionality
  • Extensive vehicle coverage for U.S., Asian, and European vehicle makes
  • Exceptional OE-Level system coverage for all electronic systems
  • Complete code, live data, ECU information, active test, and special function capabilities
  • Supports the latest communication protocols, including DoIP and CAN FD
  • Smart AutoVIN technology for quick and accurate vehicle identification
  • Expansive menu of service and maintenance tasks
  • Detailed Pre- and Post Scan Reporting
  • Automatic system and software updates with real-time Wi-Fi push notifications
  • Remote Access Technical Support Troubleshooting
  • One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
  • Convenient data management system for managing internal applications and reviewing data

Downloads:



Features of the Autel MK900:

1. Upgraded of MK808S/MK808Z/MK808BT Pro:

Autel MK900 is the latest MaxiCom version, upgraded from MK808BT Pro but almost same cost. It’s got better compatibility, more advanced features, and smoother navigation. New features: IMMO Ke.ys (basic), Battery Test (w/ BT506), Digital Inspection (w/ MV108S), Wi-Fi Print, Pre & Post Scan, 10 OBD2 Functions, 4-in-1 Live Data, Scan VIN, etc. Level-up hardware: Android 11.0, 8"-1280*800, 4G/64G, 7700mAh. Biggest ban;g for the buck in the category.

2. NEW DoIP & CAN-FD, 150+ Brands Coverage:

You can always trust Autel scanners: #1 car coverage in industry, superior to most scanner automotriz. If you work on diverse makes/models worldwide, this 2024 Autel MK900 will satisfy you. It’s got the same vehicle coverage as high-end Autel scanners value at 2000 bucks: 150 brands (EU/US/Asian), US top-selling models (1996-2024), FCA & Renault SGW, DoIP & CAN-FD (won't see in equal-level bidirectional scan tools). NO-IP limited version of MX900.

3. 3000+ Active Tests, 150 Makes Support:

What if you don’t have a bidirectional scan tool? 5X times longer to find faults. And, have to tear your vehicle apart in serious cases! That’s why you need this obd2 automotive scanner diagnostic tool: 3000+ active test menu & lighting-fast processing & widest-ever 150+ makes coverage. 3000+ actuators that you can directly test: EVAP/VTEC/ETCS (TAC)/Radiator FAN/AC Clutch & Compressor/Injectors/VTC/Cylinder/Starter/Turbocharger and more.

4. 40+ Services Function:

  • Oil Reset
  • EPB Reset
  • SAS Reset
  • Airbag Reset
  • BMS Reset
  • Brake Bleed
  • TPMS (indirect)
  • D.P.F Regen
  • IMMO (basic)
  • Clutch
  • Trans Adaption
  • Seats Calibration
  • Suspension Calibration
  • Throttle Adaption
  • Sunroof Initialisation
  • A/F Setting
  • Injector Coding
  • More!

30+ Commonly Used Reset Functions for Fast Maintenance or Repairs:

Oil Reset, EP-B, BMS, ABS Bleed, TPMS, Airbag Reset, D-P-F Reg., IMMO Service, Injector Coding, SAS Calibration, Suspension Calibration, Throttle Adaption, ABS/SRS, Gear Learning, Sunroof Initialization, Seats Calibration, Language Change, Headlight Matching, A/F Setting, WIN DR Roof, CHG Tire Size, Cylinder, Turbocharging, Limit, Trans Adaption, and more.

10+ Advanced Functions for Advanced Vehicle Models:

Neutral Gear Position Learning, Torque Sensor Adjustment, Signal Check, Yaw Rate Sensor (YRS) Learn, Clutch Pedal Position Learn, Cylinder Power Balance, Component Matching, Stop/Start Reset, Transport Mode, Auto-Door L-ock, and more.

5. OE-Level All System Diagnostics, Not Just for 4 Systems:

  • For Engine:
    The automotive scanner diagnostic tool can immediately pull the error log from the engine system. Quickly determines the cause of common faults of poor lubrication, failing oil pump, oil deposits and debris, inadequate fu*el, and air compression, leaking engine coolant, blocked engine radiators, prolonged engine detonation, damaged oxygen sensors, aged spark plugs, etc., to avoid engine breakdowns.
  • For Antilock Braking System (ABS)
    This scan tool can work with the anti-lock brake system (ABS) to pull the diagnostic trouble code that causes the ABS lights to come on. Common problems include blown sensor fuses, low brake fluids, and faulty sensors. Once the problem has been fixed, you can use this diagnostic scan tool for all vehicles to reset the ABS lights.

  • For Airbag System (SRS)
    To prevent serious harm or death in case of an accident, this mechanic tool makes the car work in a safe and proper way by reading and clearing any fault code that exists in SRS (Airbag) system, and then turning off the airbag’s warning light.

  • For Transmission
    The ignorance of a gearbox problem will lead you to a tremendous maintenance cost. To keep the transmission system output closely linked to the load and speed, this bidirectional scan tool views live data, reads and clears codes in transmission systems, and turns off the warning light.

  • And More
    CEM (Central Electronic Module) | DIM (Driver Information Module) | ASDM (Active Safety Domain Master) | BBS (Battery Backed-up Sounder) | IMS (Interior Movement Sensor) | SWM (Steering Wheel Module) | HUD (Head Up Display) | SCL (Steering Column L-ock Module) | TACM (Transmission Actuator Control Module) | AUD (Audio Module)

6. Scan VIN/License. More-Advanced AutoVIN:

Unlike many other Autel scanners in the same pri-ce range, this 2024 Autel obd2 scanner MK900 can get the VIN data from a license plate or barcode scan acting as the high-end MaxiSys series scanners. This saves you a lot of time and effort as you won't have to do much research of your vehicle.

*Reminder: this technology is mostly for 2006+ cars. If fails, try “manual VIN input and scan”.

One Tool to Handle Almost All Cars Around The World:

America – compatible with Fo.rd, GM, Chrysler

Asia – compatible with Toyota, Nissan, Honda, Hyundai, Mazda, Holden, Lexus, Mitsubishi, Suzuki, Kia, Infiniti, Isuzu, Mahindra, Maruti Suzuki

Europe – compatible with V.W, A.udi, Volvo, Fiat, Porsche, Renault, Be.nz, BW.M, Saab, Scion, Subaru, Abarth, Acura, Alfa, Bentley, Bugatti, Citroen, Dacia, Daewoo, EU F-ord, Jaguar, Lancia, LandRover, Mini, Opel, Peugeot, Seat, Skoda, Smart, Sprinter, Vauxhall

Luxury Cars – compatible with Rolls-Royce, Lamborghini, Porsche, Bentley, Maybach, Bugatti, Ferrari, Roadster, Pagani, Koenigsegg, TechArt, McLaren

Top-selling brands in America – compatible with Toyota, Honda, Chevrolet, Fo-rd, Be-nz, BM-W, Au-di, Renault, Land Rover, Volvo, Chrysler, Jaguar, Kia, Hyundai, Nissan ...

FCA SGW Gateway:

This Autel car scan tool MK900 can be the licensed bidirectional scan tool to get diagnostic access to 2018+ FCA cars equipped with the SGW secure module. You’ll have the equal-level stable & reliable functionalities as the automotive scanner diagnostic tool does on non-SGW-equipped vehicles, e.g. clear codes, bi-directional functions, active tests, actuation & relearns, etc.

Note : it need to pay money to active FCA

Access 2015+ Renault SGW Gateway:

After the purchase of specialized Renault unl-ocking software & device, you can skip the security module and gain access to the restricted ECMs of 2015+ Renault RGW-equipped vehicles (compatible with Kadjar, Megane IV, Scenic IV, Talisman, Espace V, Koleos II, and Captur II, etc.), and then perform advanced diagnostic and programing functions such as reading and clearing fault codes, programming ke-ys, and performing module replacements.

IMMO Keys for Basic IMMO System:

This professional auto scan tool mk900 can add or replace car keys, making sure only authorized drivers can start and drive your car. Note that this feature only works for the vehicles equipped with basic IMMO systems, compatible with Honda, Toyota, Infiniti, Chrysler, Dodge, Jeep, GM, Ford, Peugeot, Saab, BMW, Mini, Opel, Vauxhall, Alfa Romeo, etc.

Practical Pre & Post Scan Report:

This bidirectional scan tool mk900 provides “Pre & Post Report” when diagnose and repair issues with modern vehicles. “Pre-Scan Report” spots possible problems in the car before fixing anything, saving you from unnecessary repairs and further damage. “Post-Scan Report” checks that repairs are done right and all issues are fixed, providing evidence if anything goes wrong during repairs.

Other Features:

1. IMMO Keys for Basic IMMO System:

Same as MK900BT, this professional auto scan tool mk900 can add or replace car ke-ys, making sure only authorized drivers can start and drive your car. Note that this feature only works for the vehicles equipped with basic IMMO systems, compatible with Honda, Toyota, Infiniti, Chrysler, Dodge, Je-ep, G-M, Fo-rd, Peugeot, Saab, BM-W, Mini, Opel, Vauxhall, Alfa Romeo, etc.

2. Practical Pre & Post Scan Report:

Same as MK900BT, this bidirectional scan tool mk900 provides “Pre & Post Report” when diagnose and repair issues with modern vehicles. “Pre-Scan Report” spots possible problems in the car before fixing anything, saving you from unnecessary repairs and further damage. “Post-Scan Report” checks that repairs are done right and all issues are fixed, providing evidence if anything goes wrong during repairs.

3. Print Out Report via Wi-Fi Printer:

Wi-Fi printing offers convenience through wireless connectivity, allowing you to print from your Autel scanner within the Wi-Fi network range. Setting up a Wi-Fi printer is generally straightforward, simply involving connecting the printer to your Wi-Fi network and your automotive scanner diagnostic tool. Once set up, printing becomes hassle-free.

4. Inspection Work w/ MV108S:

Endoscopes provide high-definition visual inspection of hard-to-reach or inaccessible areas, allowing you to see inside engines, pipes, or other confined spaces without disassembly. Autel MK900 obd ii tool allows you to work with Autel’s endoscope MV108S (sold separately) to quickly pinpoint issues with high-quality imaging, flexible cable, and adjustable LED lighting.

Specifications:

  • Operating System:Android 11
  • Processor:Quad core Processor(1.8GHz)
  • Memory: 4GB RAM & 64GB ROM
  • Display:8-inch LCD capacitive touchscreen with 1280x800 resolution
  • Battery: 3.7V/7700mAh lithium-polymer battery
  • Power:Charges via 5 VDC power supply
  • Connectivity:USB Type-C, USB 2.0, Wi-Fi, Micro SD card
  • OBD Interface:CAN, EOBD, OBD, OBDII
  • Supported System:ABS, DPF, EPB, SAS, SRS, TPMS
  • Protocols: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898(High-speed, Middle-speed, Low-speed  and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD

Packing List:

  • Main Unit
  • Soft Cloth
  • Main Cable
  • Quick Reference
  • Power Adapter
  • USB Type-C Cable
  • Packing List

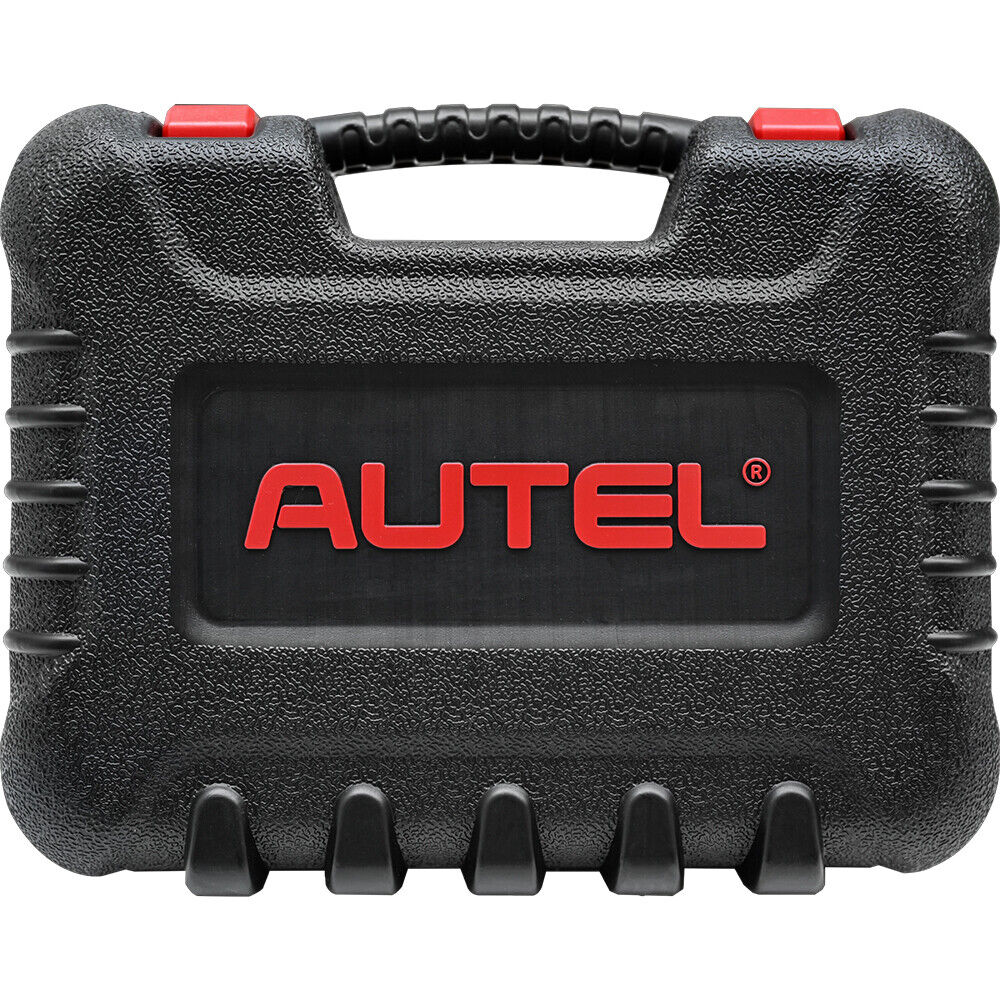

  • Carrying Case


Product Comparison:


MaxiCOM MK900 MaxiCOM MK900-BT MaxiCOM MK900-TS
Read Codes
Erase Codes
Live Data
ECU Information
Active Test
Service Functions √
Complete OBD Diagnostics
Pre & Post Scan
Scan VIN
Tire Pressure Monitoring System Basic Basic Complete
Immobilizer Function Basic Basic Basic
Advanced TPMS Diagnostics for Complete TPMS Health Check -- --
Activate All Known TPMS   Sensors -- --
Program AUTEL MX-Sensors -- --
Comprehensive OBD relearn   coverage -- --
On-screen Relearn Procedure -- --
DoIP
CANFD
Battery Analysis --
Videoscope
Processor Quad-core 1.8GHz Quad-core 1.8GHz Quad-core 1.8GHz
Operating System Android 11 Android 11 Android 11
Memory 4G + 64G 4G + 64G 4G + 64G
Display 8" LCD 8" LCD 8" LCD
Battery 7700mAh 7700mAh 7700mAh
Internet Updatable Wi-Fi Wi-Fi Wi-Fi
Multilingual Support
Historical Test Records
Save and Playback Data
Wi-Fi Print
Vehicle communication method Wired Wireless (bluetooth)

Wireless (bluetooth)



Free Shipping

After-sales support

The product will come with a one-year warranty and one year free updates

30-day money-back guarantee - we guarantee you'll love it or you'll get your money back
