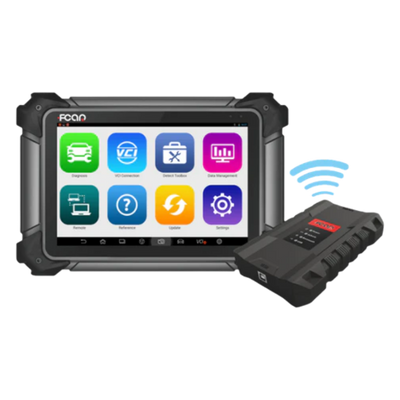

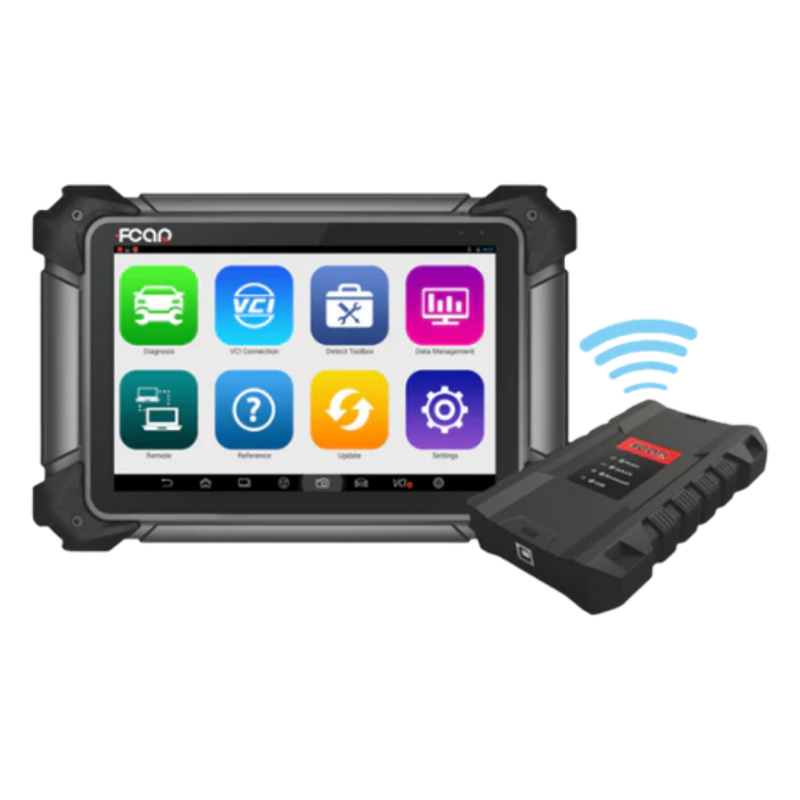

FCAR F9S-G  Heavy Duty & Passenger Vehicle Diagnostic Scan Tool

The FCAR F9S-G  is FCAR’s most advanced and versatile diagnostic platform, purpose-built to deliver complete OE-level diagnostics across both 12V passenger vehicles and 24V commercial vehicles all from a single rugged Android tablet.

More than just a scan tool, the F9S acts as the central hub of the entire FCAR ecosystem, seamlessly connecting and controlling FCAR diagnostic equipment, auxiliary tools, chassis repair systems, and maintenance devices to create a truly intelligent workshop solution.

Powered by dual VCI communication boxes (FV400 + FV500), built-in DeepSeek AI, cloud-based reporting, and extensive heavy vehicle software coverage, the F9S  stands as the flagship model in the FCAR range.

Why Choose the FCAR F9S?

Complete 12V & 24V Vehicle Coverage

the F9S includes both:

• FV400 VCI Box — for 12V passenger vehicles
• FV500 VCI Box — for 24V heavy-duty commercial vehicles

This allows workshops to diagnose virtually every vehicle category from a single platform.

Passenger Vehicle Coverage

Supports all major manufacturers including:

• Toyota, Nissan, Mazda, Honda, Isuzu
• Ford, Holden
• BMW, Audi, Skoda
• Mercedes-Benz
• Volkswagen
• GM
• BYD
• And many more

Heavy-Duty Commercial Vehicle Coverage

Coverage includes:

• Hino
• Volvo
• Isuzu
• Iveco
• Kenworth
• Sinotruck
• And more

Diesel Engine Coverage

Supports major engine manufacturers including:

• Cummins
• Caterpillar
• Detroit
• Deutz
• Weichai
• Yuchai
• And more

Agricultural Machinery Coverage

Coverage includes:

• John Deere
• Massey Ferguson
• New Holland
• CLAAS
• And more

Construction Machinery Coverage

Supports:

• Komatsu
• Hitachi
• Hyundai
• JCB
• Bobcat
• Zoomlion
• And more

ABS & Transmission Coverage

Coverage includes:

• Allison
• Bendix
• Bosch
• Delphi
• Denso
• Wabco
• ZF

OE-Level Diagnostic Functions

The FCAR F9S delivers professional dealership-level diagnostics across American, Asian, European, and Australian vehicles.

Features include:

• Automatic VIN identification
• Full-system diagnostics
• Bi-directional control
• Advanced coding functions
• Actuation tests
• Read & clear fault codes
• Live data graphing
• Topology module mapping
• DOIP & CAN-FD support
• Pre-scan & post-scan reporting
• Comprehensive diagnostic reports

Advanced DPF Regeneration Visualization

One of the standout features of the F9S  is its intelligent DPF Regeneration Visualization System.

Using live ECU data through the OBD port, the system provides:

• Real-time soot load monitoring
• Temperature & pressure analysis
• Live 3D charts and graphs
• Smart regeneration management
• Fault diagnosis assistance

This allows technicians to improve repair accuracy, increase workshop efficiency, extend DPF lifespan, and reduce emission-related issues.

Extensive Special Functions

Heavy Vehicle Functions

The F9S supports advanced commercial vehicle service functions including:

• DPF forced regeneration
• Injector programming
• Parameter programming
• Clutch adjustment
• Speed limiter changes
• Engine brake programming
• Transmission setup
• Cylinder cut-out tests
• Compression testing
• Idle shutdown timer settings
• Fuel consumption reset
• Accumulation data clearing

Passenger Vehicle Functions

Supports a huge range of service and maintenance functions including:

• Oil reset
• TPMS reset
• SAS reset
• Injector coding
• Battery matching
• ABS bleeding
• Brake reset
• Electronic throttle relearn
• Gearbox learning
• Immobilizer (Immo)
• Suspension reset
• Sunroof calibration
• Window calibration
• Stop/start reset
• Airbag reset
• AC system relearn
• ECU reset
• Turbocharger matching
• Intelligent cruise control functions
• And much more

Built-In DeepSeek AI & Remote Technical Support

The FCAR F9S includes integrated DeepSeek AI technology for intelligent real-time fault analysis and diagnostic assistance.

Additional smart workshop features include:

• AI-assisted fault analysis
• Remote technical support
• Direct communication with FCAR engineers
• TeamViewer remote assistance
• Real-time message centre notifications
• Cloud-based report storage

This ensures technicians always have access to expert-level support when needed.

Brand-New FV400 & FV500 Dual VCI Boxes

The included FV400 and FV500 communication interfaces feature upgraded durability, Bluetooth & WiFi communication, and support for the latest diagnostic protocols.

Supported Protocols Include:

FV500 (24V Commercial)

• SAE J1939
• J1708/J1587
• ISO 13400 DoIP
• CAN-FD
• UDS
• KWP2000
• ISO 9141-2

FV400 (12V Passenger)

• SAE J1850
• ISO 9141
• ISO 14230
• ISO 11898 CAN-FD
• ISO 13400 DoIP
• J2534

Massive Hardware Upgrade

The F9S is built around a powerful upgraded hardware platform designed for demanding workshop environments.

FCAR Ecosystem Integration

The F9S  is designed around a unified FCAR cloud account, giving technicians complete control over diagnostics, reports, connected equipment, and workshop workflows from a single login.

Features include:

• Cloud-linked diagnostic reports
• Vehicle profile management
• FCAR device integration
• Connected workshop equipment control
• AI-assisted diagnostics
• Centralised workshop management

F9S  The Flagship FCAR Platform

The F9S combines all the capabilities of heavy duty and light duty models into one complete professional solution. It is the only model in the lineup that includes both VCI communication boxes and full coverage across all supported vehicle categories.

If your workshop needs one diagnostic platform capable of handling passenger vehicles, heavy-duty trucks, diesel engines, agricultural machinery, and construction equipment - the FCAR F9S delivers unmatched versatility and capability.
