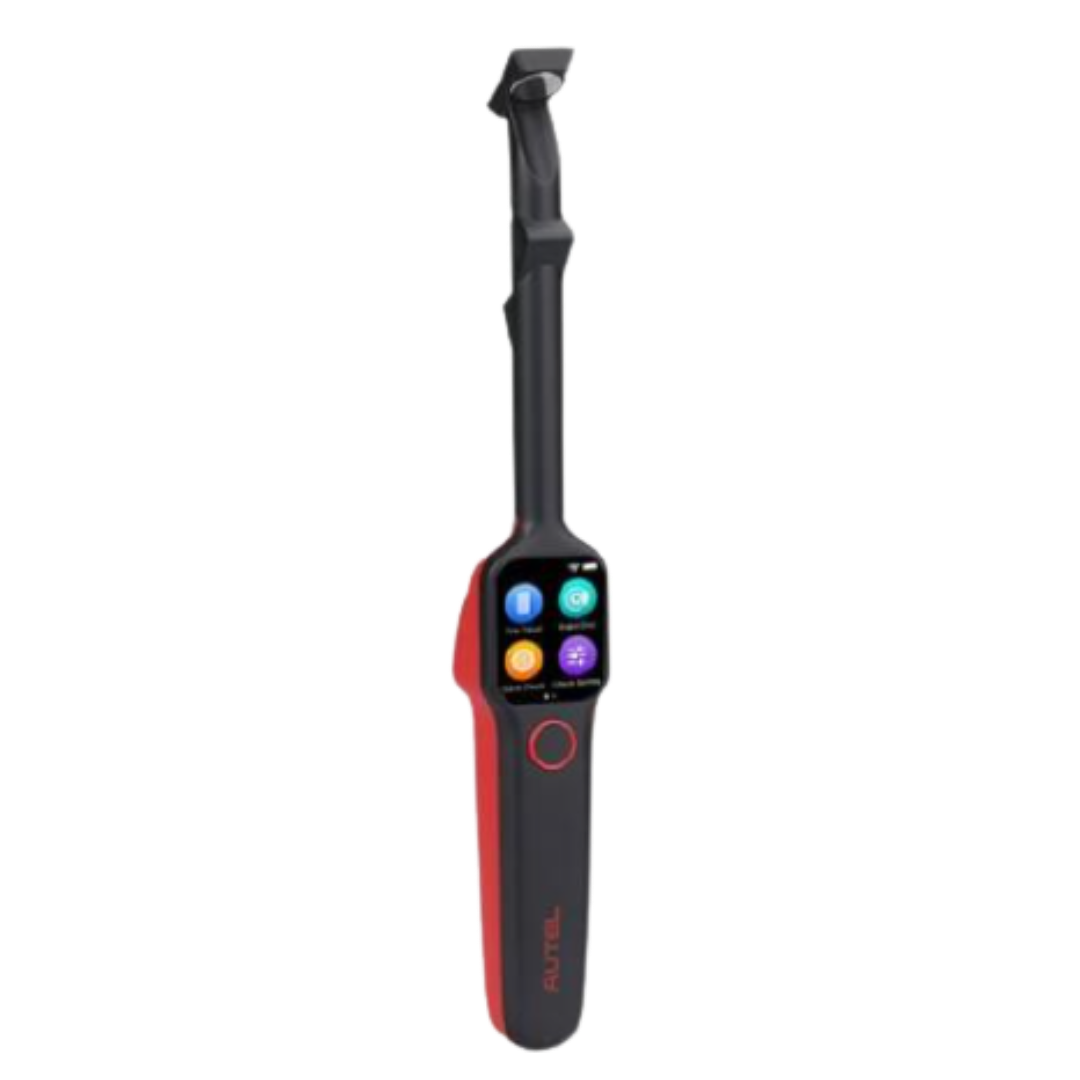

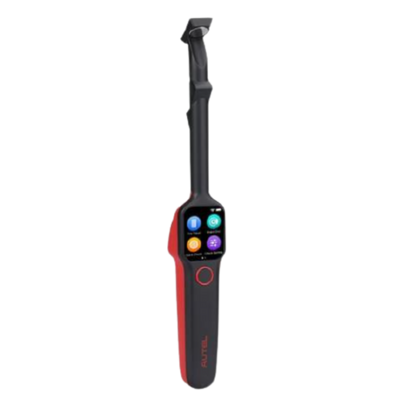

Autel TBE200 MaxiTPMS Laser Tyre Tread Depth & Brake Disk Wear Examiner

Overview
The Autel TBE200 is a professional laser-enabled diagnostic tool that measures tyre tread depth and brake disc wear with precision and efficiency. Designed for workshops, tyre shops, and advanced DIYers, the TBE200 delivers quick results without the need to remove wheels. Its 1.65” AMOLED super retina touchscreen and dual-camera system provide real-time analysis, documentation, and tyre identification capabilities, making tyre and brake servicing faster, safer, and more accurate.

Key Features

Laser Precision Measurement

• Measures tyre tread depth and brake disc wear in one tool

• High accuracy laser measurement (0.1 mm)

• Full tread depth measurement for detailed analysis

• Perform quick checks without removing the wheel

Real-Time Analysis & Recommendations

• Real-time data displayed on AMOLED touchscreen

• Graphical curve display of tyre and brake conditions

• Detects uneven tyre wear patterns

• Provides detailed recommendations for rotation, alignment, or replacement

• Tyre DOT scan with expiration alerts and recall lookup

Dual Camera Documentation

• 4 MP macro camera for close inspection of tyre wear and damage

• 8 MP zoomable camera for detailed images

• Capture and store visual records of tyre conditions

Comprehensive Reporting

• Generates complete test reports covering TPMS health, tread depth, and brake disc wear

• Can be paired with the Autel ITS600 to view, save, and print detailed service reports
