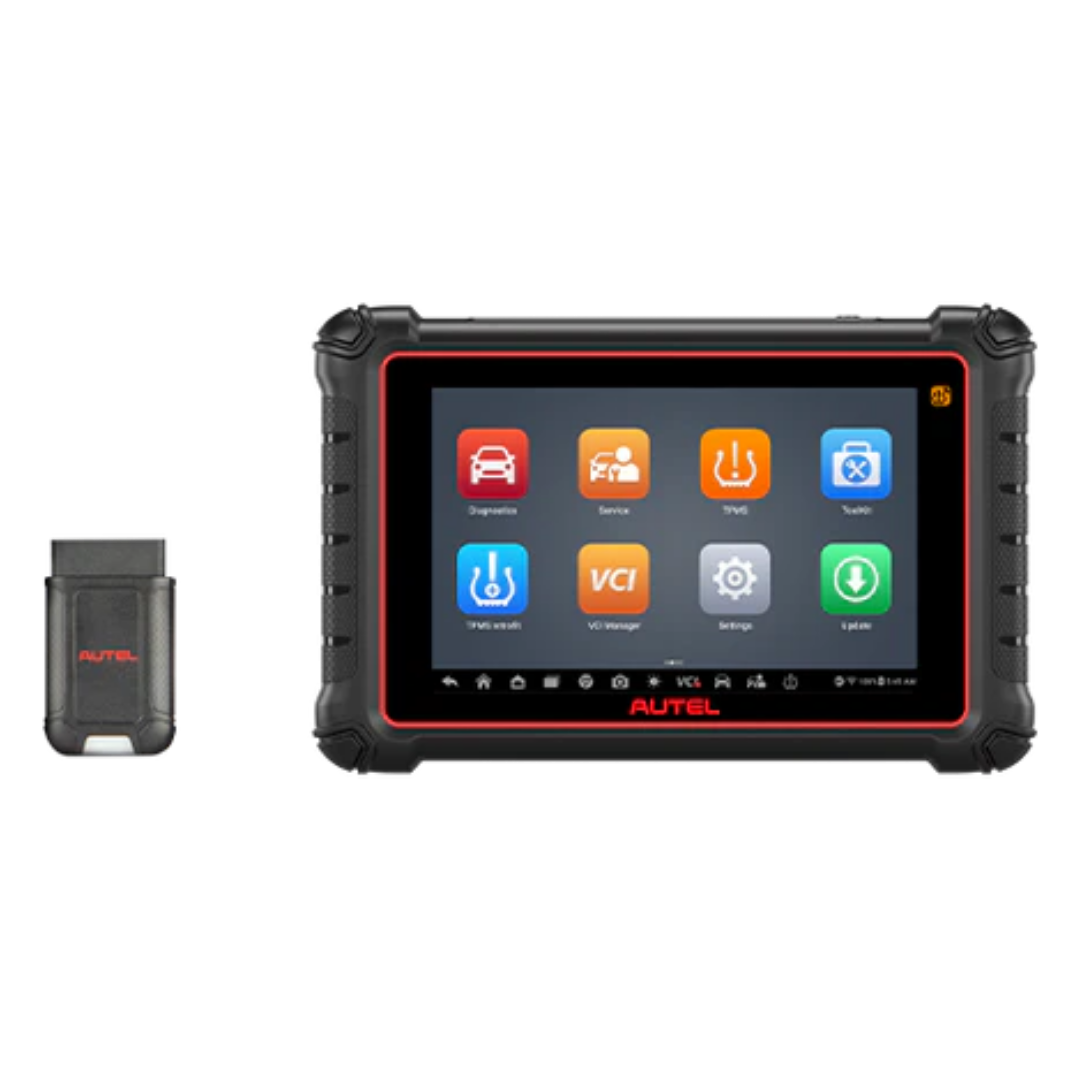

Autel MaxiCOM MK900-TS Diagnostic Scan Tool

Autel MaxiCOM MK900-TS Diagnostic Scan Tool

Together with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, MaxiCOM MK900-TS provides superior special functions, including Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), and BMS (Battery Management System). In addition to OBDII diagnostics and special functions, MK900-TS can perform comprehensive TPMS services with ease.

OE-Level All Systems Diagnostic:Autel MaxiCOM MK900-TS diagnostic tablet scanner can access and scan all available electronic systems to read and clear codes, view live data stream, and retrieve ECU information.

Full TPMS Functions: Easily diagnose and service TPMS, activate/relearn 99% of known sensors, and program MX-sensors.

AUTO VIN & AUTO SCAN: Autel MK900-TS diagnostic scan tool can quickly work on specific vehicles to retrieve VIN information and perform comprehensive scan on all available systems for efficient and accurate diagnosis and services.

40+ Service Functions: Autel MaxiCOM MK900-TS car diagnostic tool also provides 40+ services including Oil Reset, EPB, SAS Reset, D-P-F Regeneration, Throttle Reset, ABS Bleed, Battery Registration, Injector Coding, WIN DR Roof,Cylinder, Headlamp and so on.

Enhanced Hardware:Autel MK900TS is equipped with Android 11.0 OS, ROCKCHIP RK3566 CPU, 4G RAM & 64G ROM, 5X Faster, 8-inch LCD capacitive touchscreen and 8 MP Rear Camera.

Features of the Autel MK900-TS:

  • Extensive vehicle coverage for U.S., Asian, and European vehicle makes
  • Exceptional OE-Level system for all electronic systems
  • Excellent functions for reading codes, live data, ECU information and performing active test, adaptation, and matching, etc.
  • Features DoIP and CAN FD protocols
  • Smart AutoVIN technology for identifying vehicles easily
  • Automatic system and software updates with real-time push notifications through the Internet
  • Instant remote control tech support anytime and anywhere
  • Advanced TPMS diagnostics with DTC description
  • TPMS status, one step for complete TPMS health check
  • Activate all known TPMS sensors
  • Program AUTEL MX-Sensor
  • Comprehensive OBD relearn coverage
  • On-screen relearn procedure

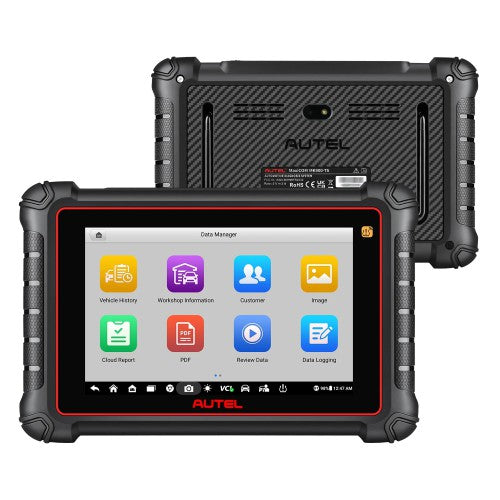

  • One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
  • Supports Pre & Post Scan

Downloads:

Specifications:

  • Operating System:Android 11
  • Processor:Quad core Processor(1.8GHz)
  • Memory: 4GB RAM & 64GB ROM
  • Display:8-inch LCD capacitive touchscreen with 1280x800 resolution
  • Battery: 3.7V/7700mAh lithium-polymer battery
  • Power:Charges via 5 VDC power supply
  • Connectivity:USB Type-C, USB 2.0, Wi-Fi, Micro SD card
  • Protocols: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898(High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD

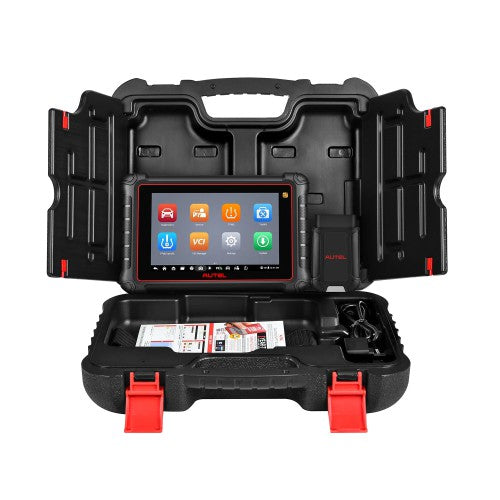

Packing List:

  • 1x MK900-TS tablet main unit
  • 1x MaxiVCI V150
  • 1x Power Adapter
  • 1x USB Type-C Cable
  • 1x Soft Cloth
  • 1x Quick reference guide
  • 1x Carrying Case
  • 1x Packing List


Product Comparison:


MaxiCOM MK900 MaxiCOM MK900-BT MaxiCOM MK900-TS
Read Codes
Erase Codes
Live Data
ECU Information
Active Test
Service Functions √
Complete OBD Diagnostics
Pre & Post Scan
Scan VIN
Tire Pressure Monitoring System Basic Basic Complete
Immobilizer Function Basic Basic Basic
Advanced TPMS Diagnostics for Complete TPMS Health Check -- --
Activate All Known TPMS   Sensors -- --
Program AUTEL MX-Sensors -- --
Comprehensive OBD relearn   coverage -- --
On-screen Relearn Procedure -- --
DoIP
CANFD
Battery Analysis --
Videoscope
Processor Quad-core 1.8GHz Quad-core 1.8GHz Quad-core 1.8GHz
Operating System Android 11 Android 11 Android 11
Memory 4G + 64G 4G + 64G 4G + 64G
Display 8" LCD 8" LCD 8" LCD
Battery 7700mAh 7700mAh 7700mAh
Internet Updatable Wi-Fi Wi-Fi Wi-Fi
Multilingual Support
Historical Test Records
Save and Playback Data
Wi-Fi Print
Vehicle communication method Wired Wireless (bluetooth)

Wireless (bluetooth)



Free Shipping

After-sales support

The product will come with a one-year warranty and one year free updates

30-day money-back guarantee - we guarantee you'll love it or you'll get your money back
