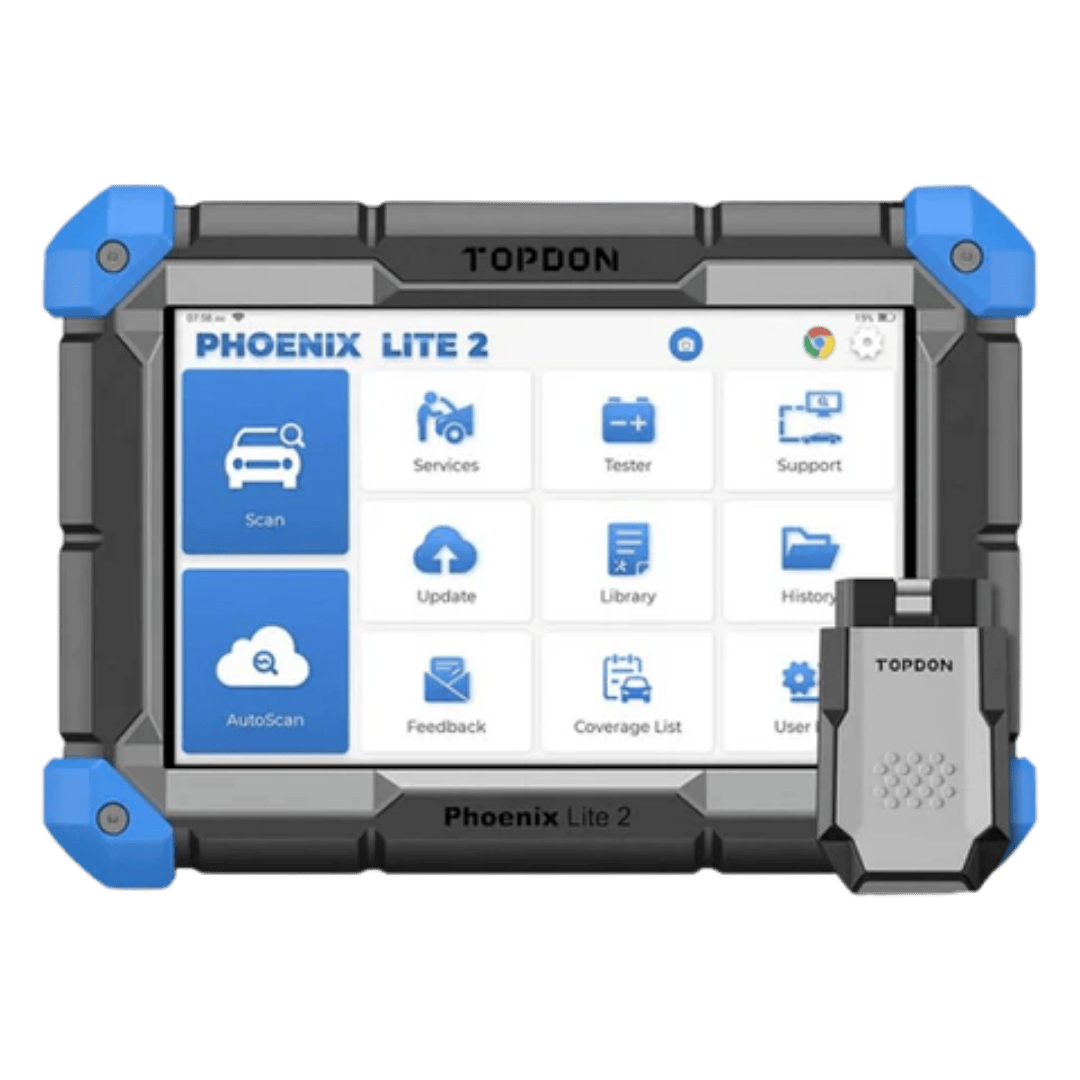

Topdon Phoenix Lite 2 Diagnostic Scan Tool

The Topdon Phoenix Lite 2 is TOPDON’s new compact pro-level scan tool. This tool is designed to offer fast comprehensive diagnostics.
With a robust array of special functions, online coding, and broad vehicle coverage, this versatile scan tool is perfect for busy technicians and workshops. Generate the most complete diagnostic reports with advanced scanning functions and Bluetooth battery testing compatibility.

35 Maintenance Services

The Phoenix Lite 2 can meet nearly all of your needs by offering 35 maintenance services for mainstream brands, an ideal choice for car repair shop owners and professional technicians.
Note: For more special functions, refer to the special function menu: Scan>Brand>System>Special Function Menu

Covers 200 + Vehicle Makes

The Phoenix Lite 2 allows technicians to take on more jobs with access to automotive coverage for over 200 vehicle makes, including Australian Holden and Ford, GM, Chrysler, Benz, BMW and more.

Bi-Directional Control to Identify Problems Accurately

With Bi-Directional capabilities, the Phoenix Lite 2 can perform individual tests for single actuators. Capabilities include fuel injectors, coolant pumps, windows, windshield wipers, and more.

Step-by-Step VAG Guidance

Equipped with VAG Guided functions for VW, AUDI, SKODA and SEAT vehicles, the Phoenix Lite 2 can walk you through operations with step-by-step instructions, help you skip the security access code and channel numbers to perform matching, calibrations, and basic adjustments or settings, effectively streamlining the diagnostic process.

OE-Level Full System Diagnostics

The Phoenix Lite 2 allows the user to dig deep into all available systems including Engine, Transmission, Airbag, ABS, ESP, TPMS, Immobilizer, Gateway, Steering, Radio, Air Conditioning Systems, and more.

Work Easier With The Phoenix Lite 2

The Phoenix Lite 2 reads & clears fault codes with ease.  Users can quickly detect the fault codes in all systems and clear them with one click. Record data streams for reference at any time. The data will be displayed in the form of an easy-to-read graph which helps users intuitively observe data changes over time and view up to 12 data streams on one screen.

Customize Your Car With Online Coding

The Phoenix Lite 2 supports online coding for BMW, PORSCHE, VW, AUDI, SEAT and more vehicles. This helps to match and code new ECUs after a replacement, or to unlock the hidden functions, bringing more possibilities to your car.

Acquire Vehicle’s Information In Seconds

The AutoVIN function lets the Phoenix Lite 2 gather important vehicle information including the vehicle make, model, and year automatically, shortening the diagnostic time substantially.

Wireless Bluetooth Diagnosis

With the wireless VCI connected to the vehicle, a technician is not bound to a cable connection. This wireless VCI gives technicians the ability to diagnose and code as long as they are in range of the Bluetooth VCI.

Expand Your Capabilities With The BTMobile Pros

Users can pair the Lite 2 with TOPDON’s latest battery analyzer, the BTMobile Pros to monitor a car’s battery health wirelessly. This pairing turns the Phoenix Lite 2 into a hi-tech battery testing tool.

View Topdon BT Mobile ProS Battery Tester

Specifications

• Display

  LCD 8-Inches, 1280*800 Pixels

• CPU

  4-Core Processor, 2.0 GHz

• Operating System

  Android 10.0

• RAM

  2G

• ROM

  32/64G

• Battery

  12600 mAh / 3.8V (tested to have up to 24h of battery life with the screen on)

• Operating Voltage

  9~18V

• Storage Temperature

  -20℃ to 60℃（-4℉ to 140℉）

• Working Temperature

  0℃ to 50℃（32℉ to 122℉）

• Product Dimensions

  258*183*50.5 mm (10.2*7.2*2 inches)

• Package Dimensions

  468*320*143 mm (18.4*12.6*5.6 inches)

• Net Weight

  1184.5 g (2.61 lbs.)

• Multilingual Support

  24 Languages English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese (Traditional), Korean, Finnish, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Czech, Danish, Norwegian

MDCI Lite Specs

• Working Temperature

  -10℃~50℃（14℉~122℉）

• Operating Voltage

  9~18 V

• Working Current

  ≦ 130 mA

• Dimensions

  81.3*51.0*31.0 mm（3.2*2.0*1.2 inches)

Phoenix Lite 2 packing list:

• Phoenix Lite 2 Tablet
• MDCI Lite OBDII Connector
• OBDII Extension Cable
• AC Power Adapter
• OBDI Adapter BOX Transfer Line
• Non-16pin Adapter Kit includes:
  - BZ-38 (BENZ)
  - TA-22 (TOYOTA)
  - TA-17 (TOYOTA)
  - G/V-12 (GM/VAZ)
  - B-20 (BMW)
  - CR-6 (CHRYSLER)
  - HA-3 (HONDA)
  - NN-14+16 (NISSAN)
  - M/H-12+16(MITSUBISHI/HYUNDAI)
• Battery Clamps/Cable Set
• Cigarette Lighter Cable
• Fuses (φµ5*20mm)*4 and (φ6*30mm)*2
• Type-C to USB Cable
• Password Envelope
• User Manual
