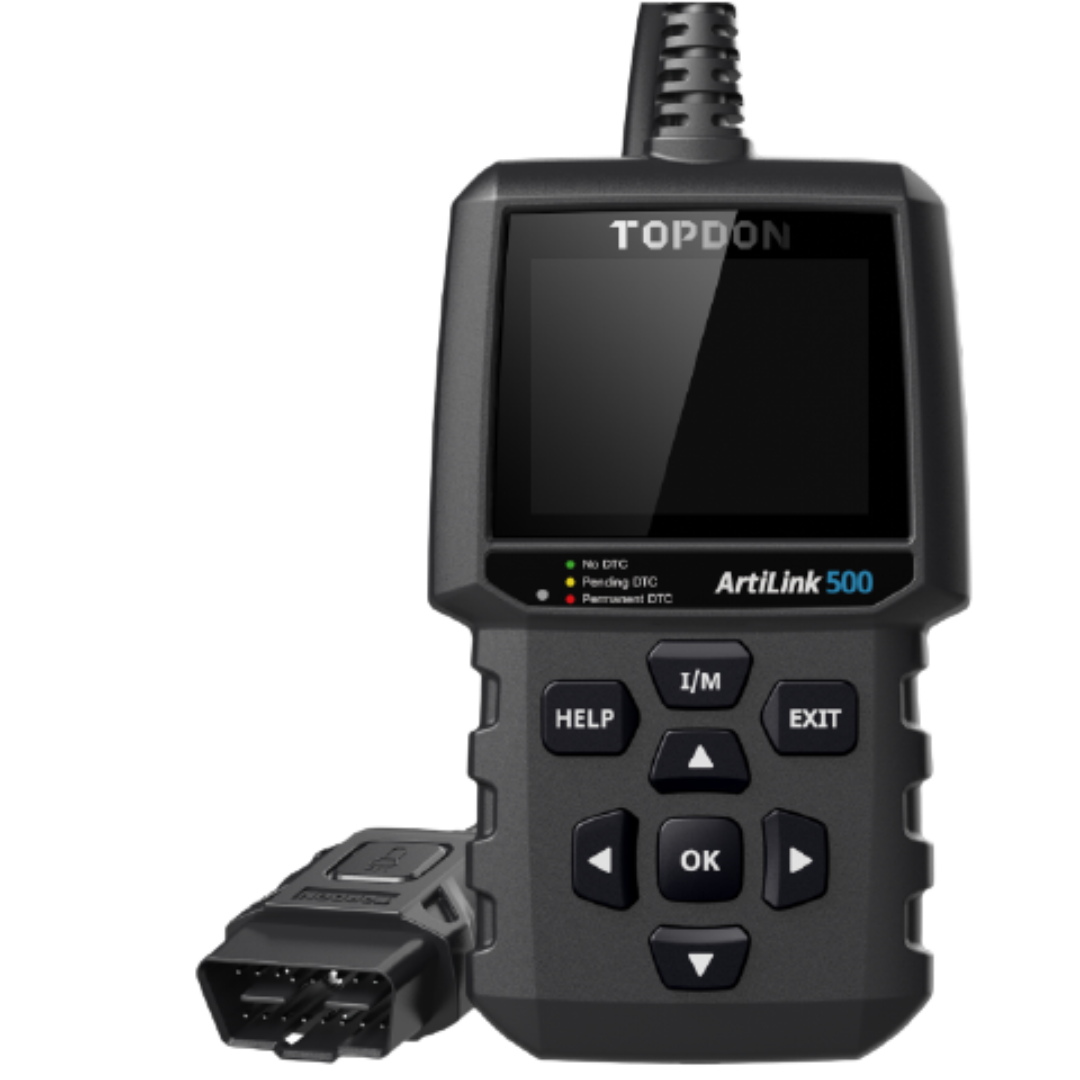

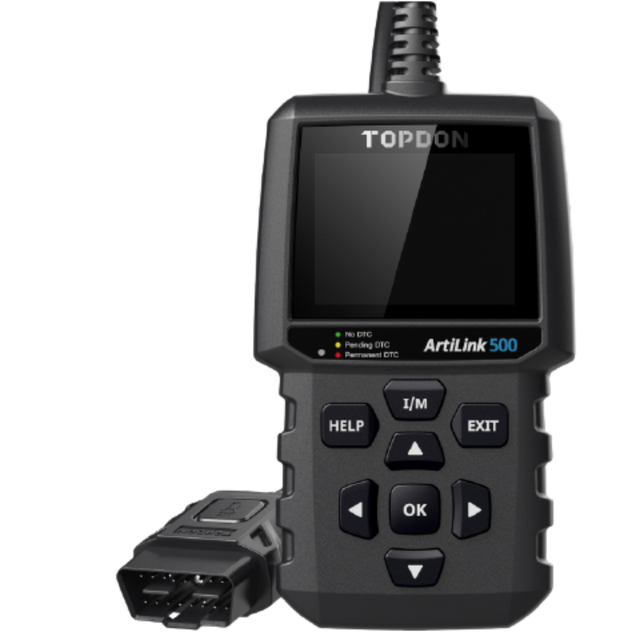

The TOPDON ArtiLink500 is a powerful and easy-to-use OBD2 diagnostic tool designed for vehicles from 1996 (US-built), 2000 (EU-built), 2006 (AU-built), and newer OBD2-compliant models. With full OBD2 diagnostic modes, it allows you to read and clear codes, reset the Check Engine Light, and run real-time monitoring functions.
Equipped with a 2.8-inch LCD colour display, the ArtiLink500 delivers clear and accurate data. A one-click I/M Readiness function provides quick emissions checks, while the built-in DTC Lookup Library and HELP hotkey make diagnostics easier for all users. The device also supports live data graphing, O2 sensor testing, and freeze frame data retrieval.
Full OBD2 diagnostics with CAN, ISO9141, KWP2000, J1850 PWM, and J1850 VPW protocol support
Reads and clears codes, turns off Check Engine Light (MIL)
One-click I/M Readiness test for emissions pre-checks
3-LED indicators to show vehicle status at a glance
DTC Lookup Library with built-in definitions
HELP hotkey for quick diagnostic tips
Displays freeze frame data, VIN, CIN, and CVN
O2 sensor testing and live data monitoring
Connector LED light for locating OBD2 port in dark spaces
USB support for free lifetime updates and printable data via PC
Multilingual menu: English, French, German, Spanish, Portuguese, Russian, Japanese
Plug-and-play operation with no external power or batteries required
Suitable for cars, SUVs, light trucks, and other OBD2-compliant vehicles
Free lifetime updates keep the tool current with the latest vehicle coverage
Rugged handheld design for workshop or DIY use
1* ArtiLink500 Code Reader
1* Quick start Guide
1* User's Manual
1* USB Cable
| Specification | Details |
|---|---|
| Display | 2.8-inch LCD, 320 × 240 resolution |
| Operating Voltage | 9–18 V |
| Storage Temperature | –20 °C to 70 °C (–4 °F to 158 °F) |
| Working Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Dimensions | 163.6 × 94.3 × 31.4 mm (6.44 × 3.71 × 1.23 in) |
| Cable Length | 1435 mm (56.49 in) |
| Net Weight | 270 g (9.52 oz) |
| Protocols Supported | CAN, ISO9141, KWP2000, J1850 PWM, J1850 VPW |
| Languages | English, French, German, Spanish, Portuguese, Russian, Japanese |
