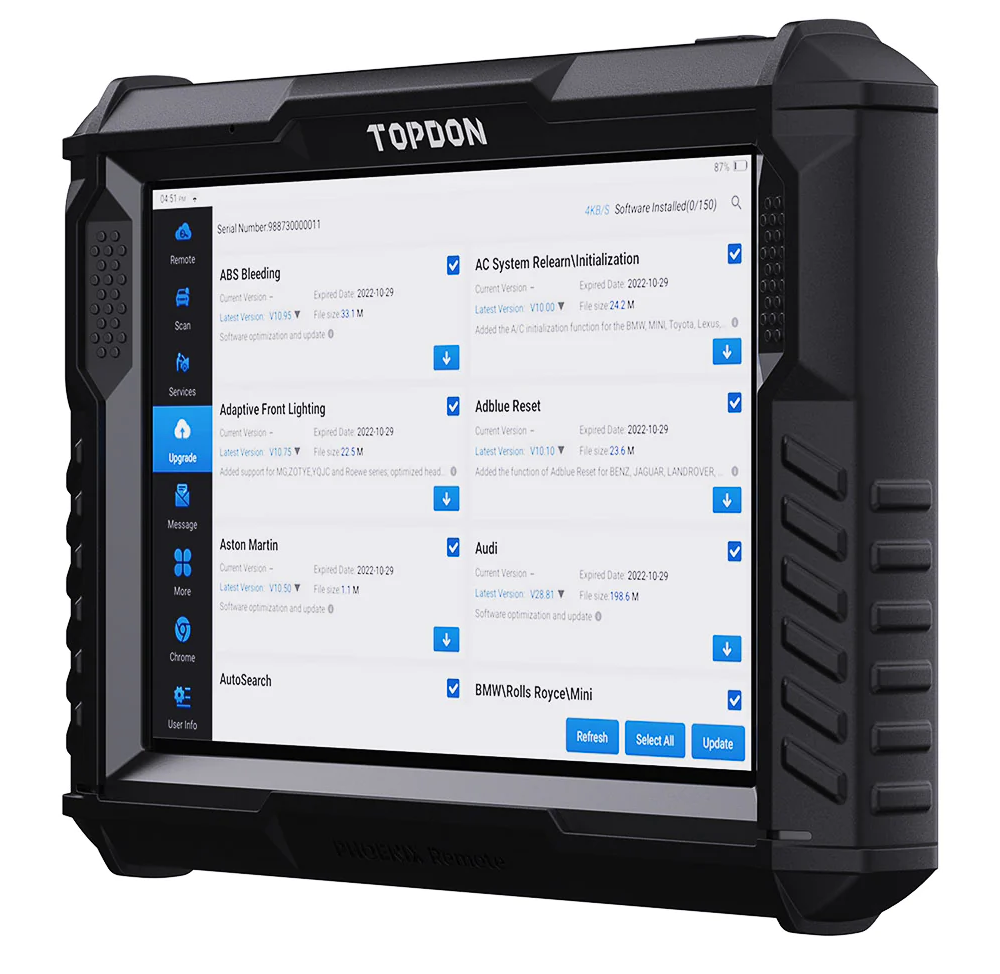

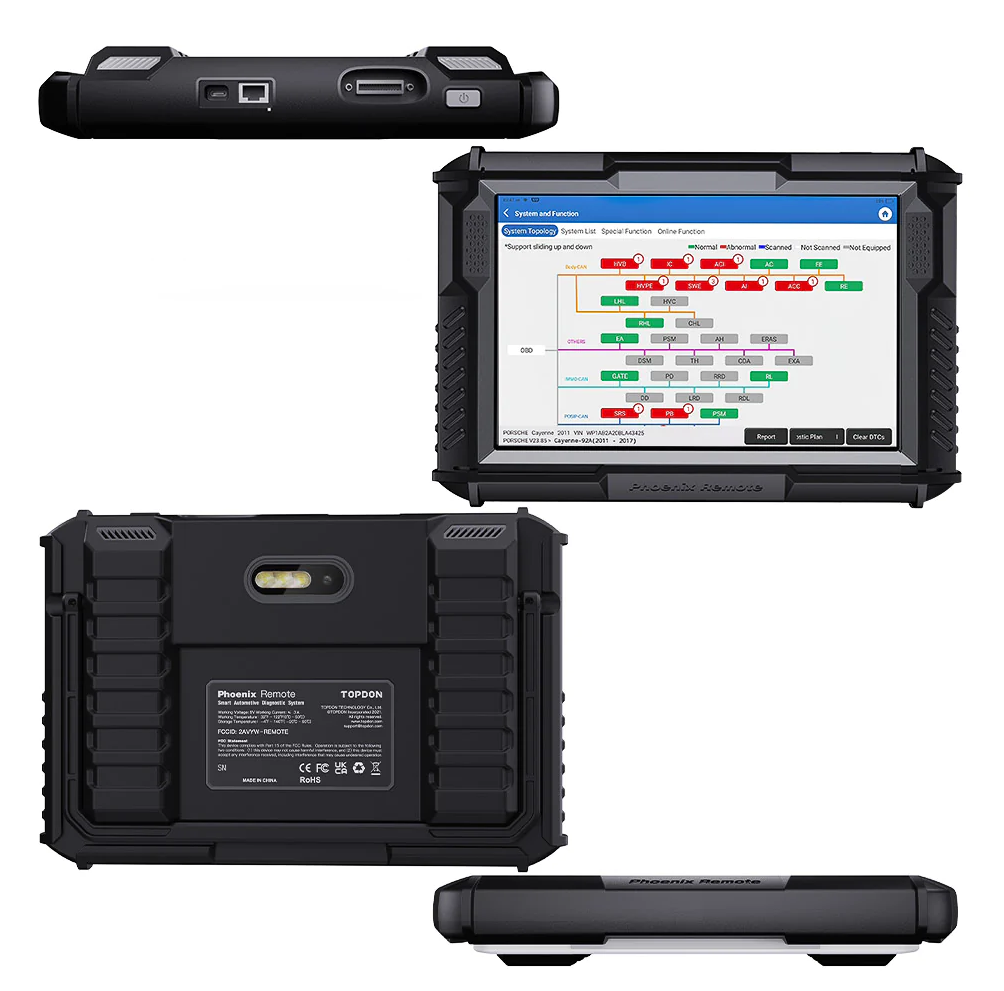

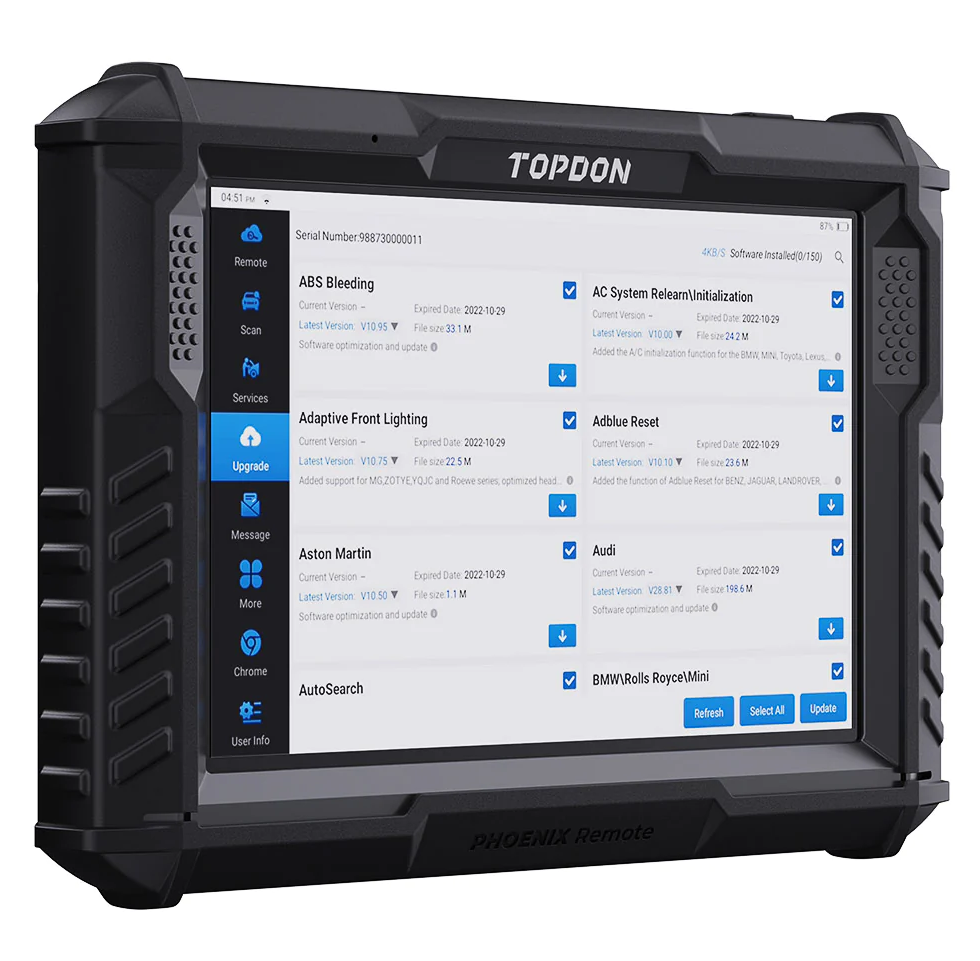

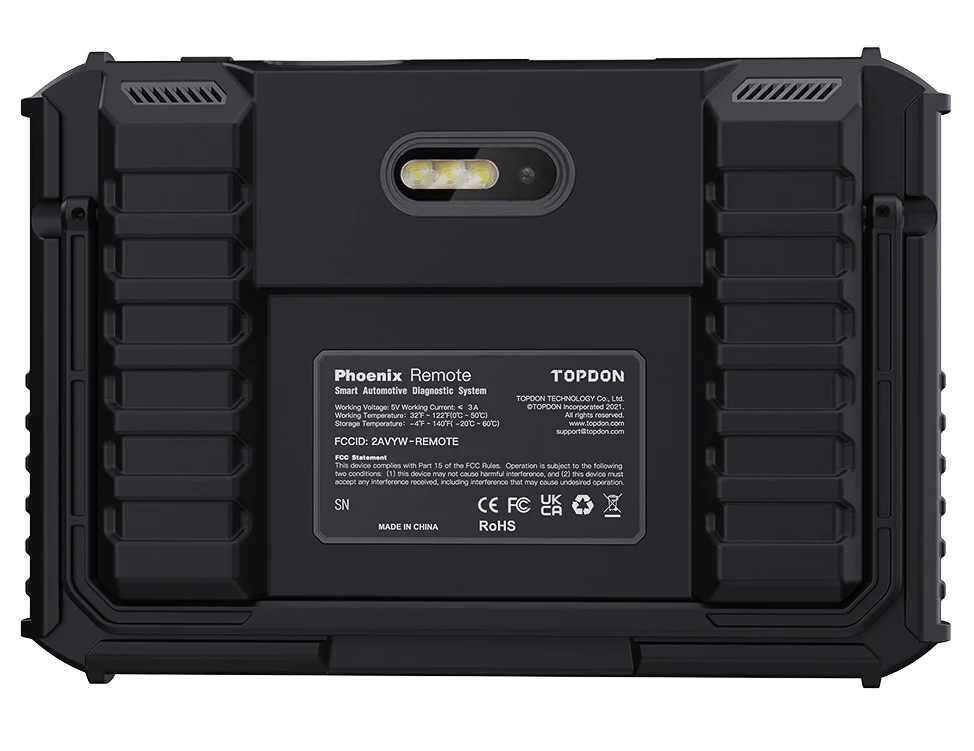

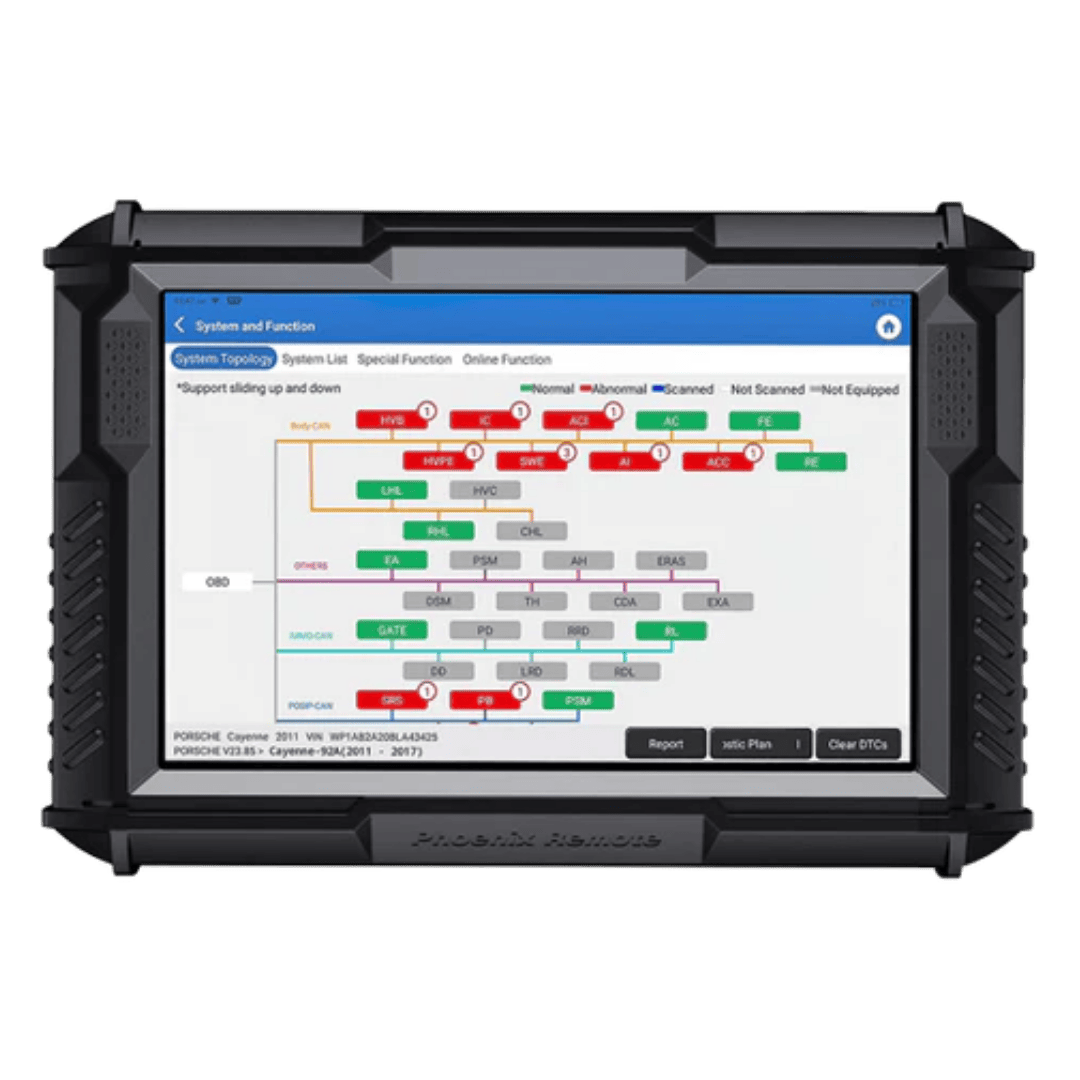

Topdon Phoenix Remote Diagnostic Scan Tool

TOPDON’s Phoenix Remote is an automotive diagnostic scan tool with extensive coverage of over 200+ brands of passenger cars and over 1000+ models including new energy vehicle models. Featuring Remote Diagnosis, this tool offers unprecedented insight and convenience. This functionality enables real-time communication between smart tools without space constraints and leverages OE-level functions - making it a game-changing device for repair shops.

The Phoenix Remote provides unprecedented coverage with its MDCI, an expanded VCI equipped with the latest protocols: CAN2.0, CAN FD, DoIP, J2534 (only for Remote Access programming), D-PDU, and RP1210. It also offers a variety of advanced functions and crucial features, such as Cloud-based Programming, Coding, and FCA Secure Gateway Access.


Dual Diagnosis For Limitless Capabilities

With Remote and Local/Intelligent Diagnostics, this new technology of remote diagnostics gives you diagnostic capabilities without limits.

Get The Job Done At Any Time, From Anywhere

The Phoenix Remote supports voice & video calls to ensure real-time communication between customers and technicians.

Get Instant Support From TOPDON Professionals

This tool's technical support includes remote service staff composed of TOPDON's professional technicians, available to offer instant assistance throughout remote diagnosis procedures. This remote service is provided by us at Premium Diagnostics and is only available to our customers in Australia.

Access The Latest Protocols With The Remote

TOPDON’s Phoenix Remote supports J2534, CAN2.0, DoIP, CanFD, D-PDU, and RP1210 protocols. With the Phoenix Remote, you will never be forced to outsource!

Electric Cars

This tool operates on a growing list of electric and alternative energy cars, allowing users to match growing revenue opportunities, and work on even more vehicle makes.

Vehicle Models

The Phoenix Remote boasts a comprehensive database with over 200 vehicle models, offering unmatched coverage to end users.

Access To Advanced Functions

Perform other vehicle modifications by accessing advanced functions with the Phoenix Remote. This core scanner lets you unlock special vehicle features. Applicable to Audi, BMW, Ford, Mercedes-Benz, Toyota, Volkswagen, and many brands.

FCA Secure Gateway Access

The Remote supports FCA Secure Gateway Access, letting you adjust protected functions on the most modern makes.

VAG (Volkswagen Audi Group) Coverage

The VAG Guided Procedures include intuitive step-by-step directions for Volkswagen, Audi, Skoda and SEAT vehicles.

Optional 24V software can be added to the Phoenix remote  - Click here to view add on software and truck adapter cables


Topdon vehicle coverage checker - check here to see what is covered on a specific vehicle



  • Screen Dimensions: LCD 10.1”, 1280 x 800
  • CPU: 4-Core Processor, 2.0 GHz
  • Operating System: Android 10.0
  • RAM Memory: 4G
  • ROM Memory: 128G
  • Rear Camera: 13MP
  • Battery Capacity: 12,000mAh
  • Operating Voltage: 9-36V
  • Storage Temperature: -20℃~60℃ (-4℉~140℉)
  • Working Temperature: 0℃~50℃ (32℉~122℉)
  • Product Dimensions: 291 x 199 x 50mm (11.46 x 7.83 x 1.97”)
  • Package Dimensions: 563 x 412 x 184mm (22.16 x 16.22 x 7.24”)
  • Multilingual Support:23 Languages
    English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese (Traditional), Korean, Finnish, Greek, Slovak, Romanian, Hrvatski, Slovenian, Czech, Danish, Norwegian

Topdon Phoenix Remote User Manual Download

What's in the Box:

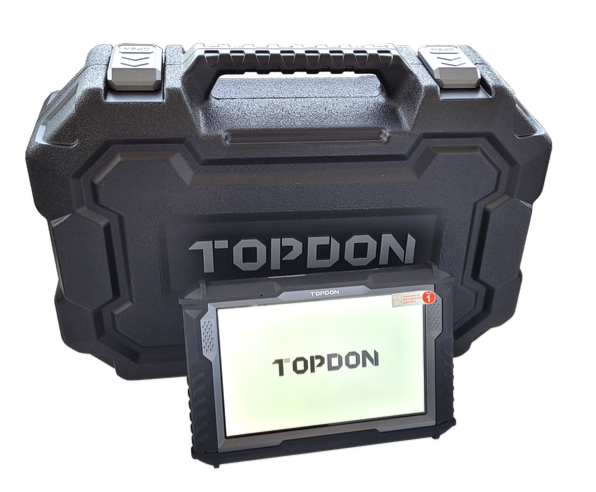

  • TOPDON Phoenix Remote
  • OBDⅡ Extension Cable
  • Battery Clamps
  • Cigarette Lighter Cable
  • Fuse x 4 (φ5*20mm)
  • Fuse x 2 (φ6*30mm)
  • Type-C to USB Cable
  • NN-14+16 Nissan
  • OBDⅠ Adapter BOX Transfer line
  • FT-3 Fiat
  • Password Letter
  • BZ-38 Benz
  • TA-22 Toyota
  • TA-17 Toyota
  • G/V-12 GM/VAZ
  • B-20 BMW
  • CR-6 Chrysler
  • HA-3 Honda
  • M/H-12+16
  • Mitsubishi/Hyundai
  • Power Adaptor
  • Ethernet Cable
  • Packing List
  • User Manual

  • Free Shipping

    After sales support

    Product will come with a one year warranty

    Two years free updates

    30 day money back guarantee - we guarantee you'll love it or you'll get your money back
