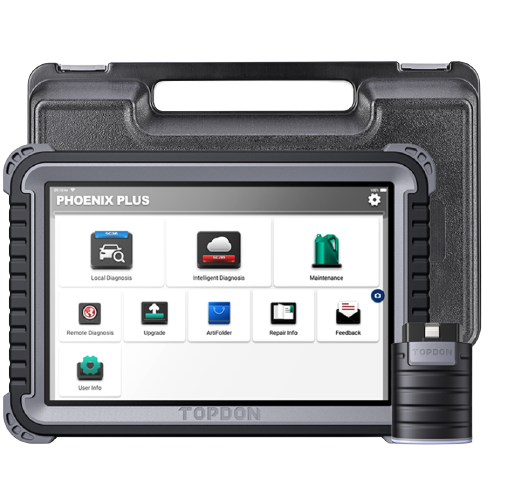

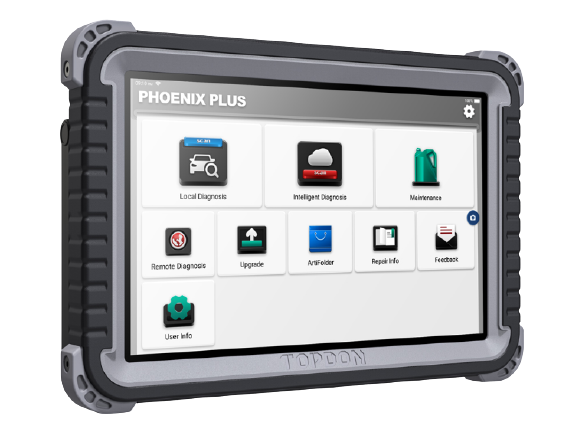

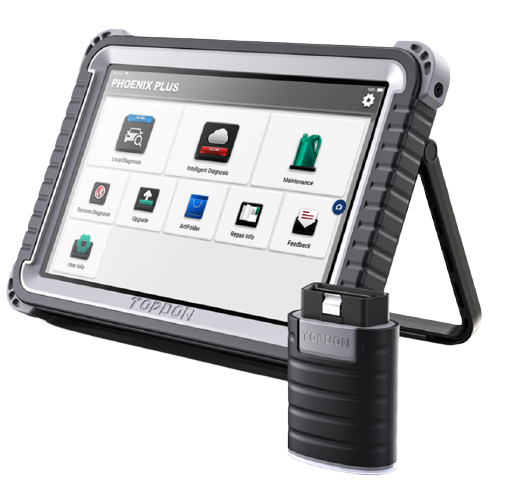

Topdon Phoenix Plus Professional Diagnostic Scan Tool

Topdon Pheonix Plus Professional Diagnostic Scan Tool


DESCRIPTION
keeping up with aftermarket requirements to handle complex modern vehicle issues, TOPDON Phoenix Plus is an all-in-one diagnostic tool that contains everything you need to diagnose, research, and manage any issues at your fingertips with its smooth logical workflow, where fully optimized easy-to-use software allows advanced OE-level diagnostics of online ECU coding, complete bi-directional functions, access to all vehicle modules, etc. equipped with the latest Android 10.0, preparing you to take on the toughest jobs with confidence.


All Systems Diagnoses

This diagnostic scan tool can establish a data link to all systems and subsystems of the vehicle being serviced to:

-Retrieve ECU information of the tested control units including unit type, version numbers, and other specifications, etc.

-Read & erase DTCs to locate problem areas and clear the codes.

-View Live Data of each parameter item.

The following is a list of modern vehicle systems that this scan tool can get access to:

-Engines / Auto Transmission / Airbags / Immobilizer / Key Coding / ABS / Cruise Control / Instruments / Self Leveling Suspension systems

-Seats / Doors / Gateway / Steering Angle / Air Suspension / Body Systems / Electronic Power Steering & Motor Assisted / Power Steering / Tyre Pressure / Rain Sensors / 4WD System

-Stabilizer / Intelligent Parking Assist/Door Motors / Audio Systems / Air Conditioning / Tiptronic / Anti Theft / Soft Top / Headlamp Leveling / Central Locking / Automatic Clutch / DPF Reset

-Electric Windows / Plip Programming / Heated Rear Window / Xenon Headlights / Wash Wipe / Fuel Burning Heater / Transfer Box / Seat Memory / Oil Life Service Reset / Sliding Doors / Electronic Throttle

-Navigation System / Rollover Sensor / Cruise Control / Multi Function Steering Wheel / Aux Heating / Electronic Parking Brake / Clutch Electronics and more.



FEATURES

  • OE-Level Diagnostics: Online ECU Coding, Active Test, Module Replacement, Modification, Personalization, Access all modules in all available systems, Anti-theft & Key Matching, among many others, with Guided Function (varies by vehicle specifics).
  • Online ECU Coding: make software modifications to customise a vehicle's settings
  • AutoAuth Access: covering Chrysler, Dodge, Jeep, Alfa Romeo, Fiat, to communicate with FCA SGW Authentication System and bypass SGM for OBDII diagnostics, active test, calibrations etc.
  • Guided Functionscovering VW/Audi/Skoda/Seat; step-by-step operation guidance for quick and accurate diagnostics.
  • Active Test: control car functions directly from the tablet to activate or test components on demand, without using the vehicle’s own controls.
  • Maintenance Service: Oil Reset • EPB Reset • SAS Service • ABS Bleeding • TPMS Reset • Gear Learning • IMMO Service • Injector Coding • BMS Service • DPF Regeneration • Throttle Matching • Gearbox Matching • AFS Reset • Sunroof Initialization • Suspension Calibration • EGR Adaption, and more.
  • Camera VINScan: quick recognition of vehicle barcode with rear camera.
  • Smart AutoVIN & AutoScan: save manual selections to identify car make / model / year, and head towards proper diagnostics.
  • User-Oriented Design: Multitasking; VCI Bluetooth wireless diagnosis; One-touch software update via Wi-Fi; Instant remote technical support; Ideal management of workshop operations; Rubberized outer protection; Automatic power-off.
  • Non-16pinKit: enable to work on pre-OBDII compliant vehicles.
  • Optimized Hardware: Android 10.1, 4-core 2.0GHz Processor, 10.1” Touch Screen (1280*800), 4GB RAM &64GB On-Board Memory, 8MP Rear Camera, 6000mAh battery, etc.
  • Compatible Protocol: ISO 9142-2 • ISO 14230-2 • ISO 15765-4 • K/L-Line • Flashing Code • SAE-J1850 VPW • SAE-J1850 PWM • CAN ISO 11898 • Highspeed • Middlespeed • Low-speed and Singlewire CAN • GM UART • UART Echo Byte Protocol • Honda Diag-H Protocol • TP 2.0 • TP 1.6 • SAE J1939 • SAE J1708 • Fault-Tolerant CAN, and more.
  • Multilingual Menu: English, French, Spanish, German, Russian, Italian, Portuguese, Traditional Chinese, Japanese.



-Complete online module programming supported by OE-compliant software licensing.

-Topological graphing feature provides a more intelligent single screen display of all modules in the vehicle system and how they are connected, to assist technicians in diagnosing more accurately.

-Approved by FCA to unlock Secure Gateway (SGW) protected vehicles with AutoAuth registered account access.

-Supporting ADAS driver-assist system sensor calibrations using step-by-step software guidance.

-Features 28 maintenance service reset functions, advanced coding and adaptations, bi-directional controls, can access all modules in all systems to perform AutoSCAN and AutoVIN (2006+).

-Generate printable diagnostic health reports based on vehicle data and AutoSCAN confirmed DTCs.

-Software and vehicle coverage is updatable via WiFi, and includes 2 years of free software updates and 1 year warranty. Supports 8 different expansion modules including video scope, oscilloscope, thermal imager, module dock and TPMS tool, to provide technicians with more repair services in one scan tool.

SPECIFICATIONS

  • Operating System: Android 10.0
  • CPU: 2.0GHz Quad-core
  • Display: 10.1” Touch Screen (1280*800 Resolution)
  • RAM: 4GB
  • ROM: 64GB
  • Connectivity: Wi-Fi (802.11 b/g/n) / Bluetooth 5.0
  • Camera: 8.0MP Rear-Facing Camera with AF
  • Audio Output: Built-in Speakers
  • Input Voltage: DC 5V/2.5A
  • Working Temperature: 0℃~50℃ (32~122℉)
  • Storage Temperature: -20℃~ 60℃ (-4~ 140℉)
  • Built-in Battery: 6000mAh
  • Dimension: 277.3*190.8*44.5mm (10.92*7.51*1.75 inch)
  • Weight: 1555g (54.85 oz)

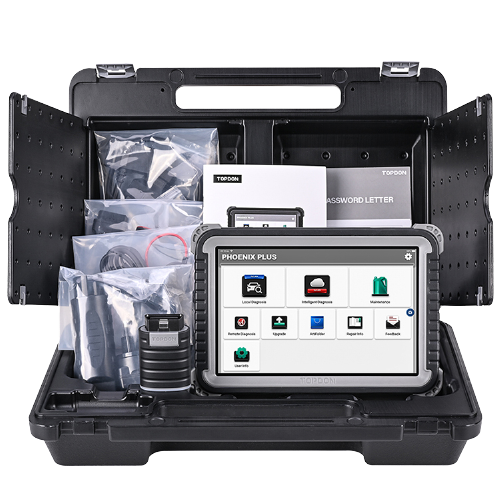

PACKING LIST
1*Phoenix Plus

1*VCI Dongle
1*OBDI Adapter BOX Transfer Line
1*OBDII Extension Cable
1*Cigarette Lighter Cable
1*Type-C to USB Cable
1*Battery Clamps/Cable Set
1*Power Adaptor
1*User Manual
1*Password Envelope
1*Non-16pin Adaptor Cable Kit:
-BENZ-38
-FIAT-3
-NISSAN-14+16
-BMW-20
-CHRYSLER-6
-GM/VAZ-12
-HONDA-3
-MITSUBISHI/HYUNDAI-12+16
-TOYOTA-17
-TOYOTA-22
4*Fuse (φ5*20mm)
2*Fuse (φ6*30mm)



Free Shipping

After-sales support

Two years free updates

Product will come with a one year warranty

30-day money-back guarantee - we guarantee you'll love it or you'll get your money back
