Topdon TC001 High Resolution Thermal Imaging Camera IR for Android ...
Description
Description

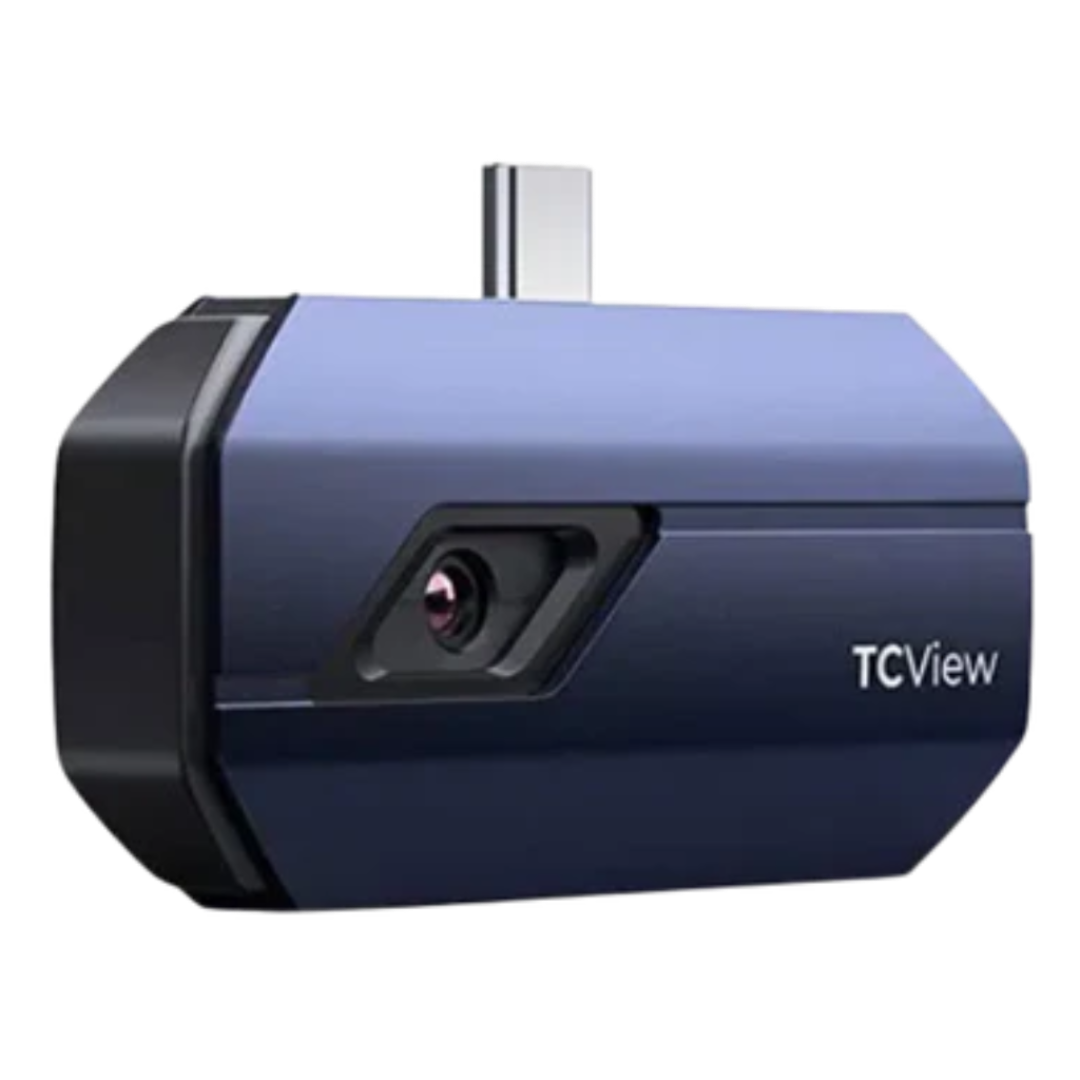

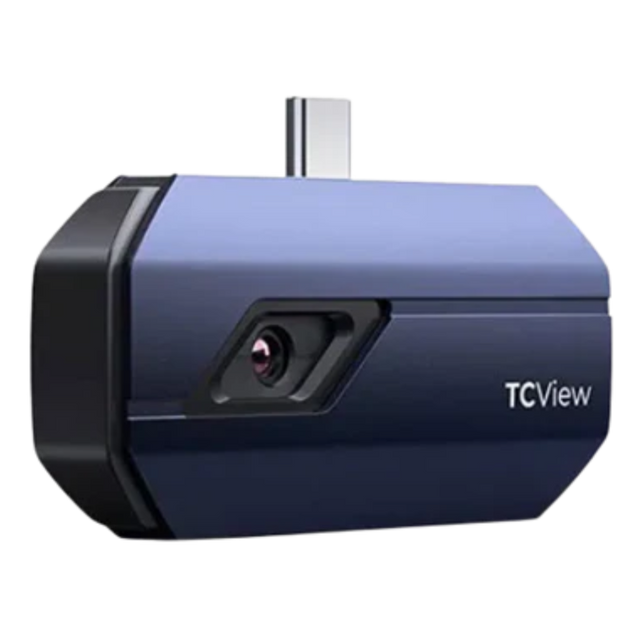

The Topdon TC001 is a portable thermal imaging camera that connects to your Android smartphone, tablet, or Windows laptop via USB-C. Download the free app and your device becomes a high-resolution thermal imager. Suited to automotive technicians, electricians, HVAC technicians, home inspectors, and anyone who needs to detect heat, cold spots, or insulation faults.
Key Features
- 256 x 192 IR resolution — clear thermal images on objects with subtle temperature differences
- Temperature range: -20°C to 550°C
- Accuracy: ±2°C or 2% of max temperature, resolution to 0.1°C

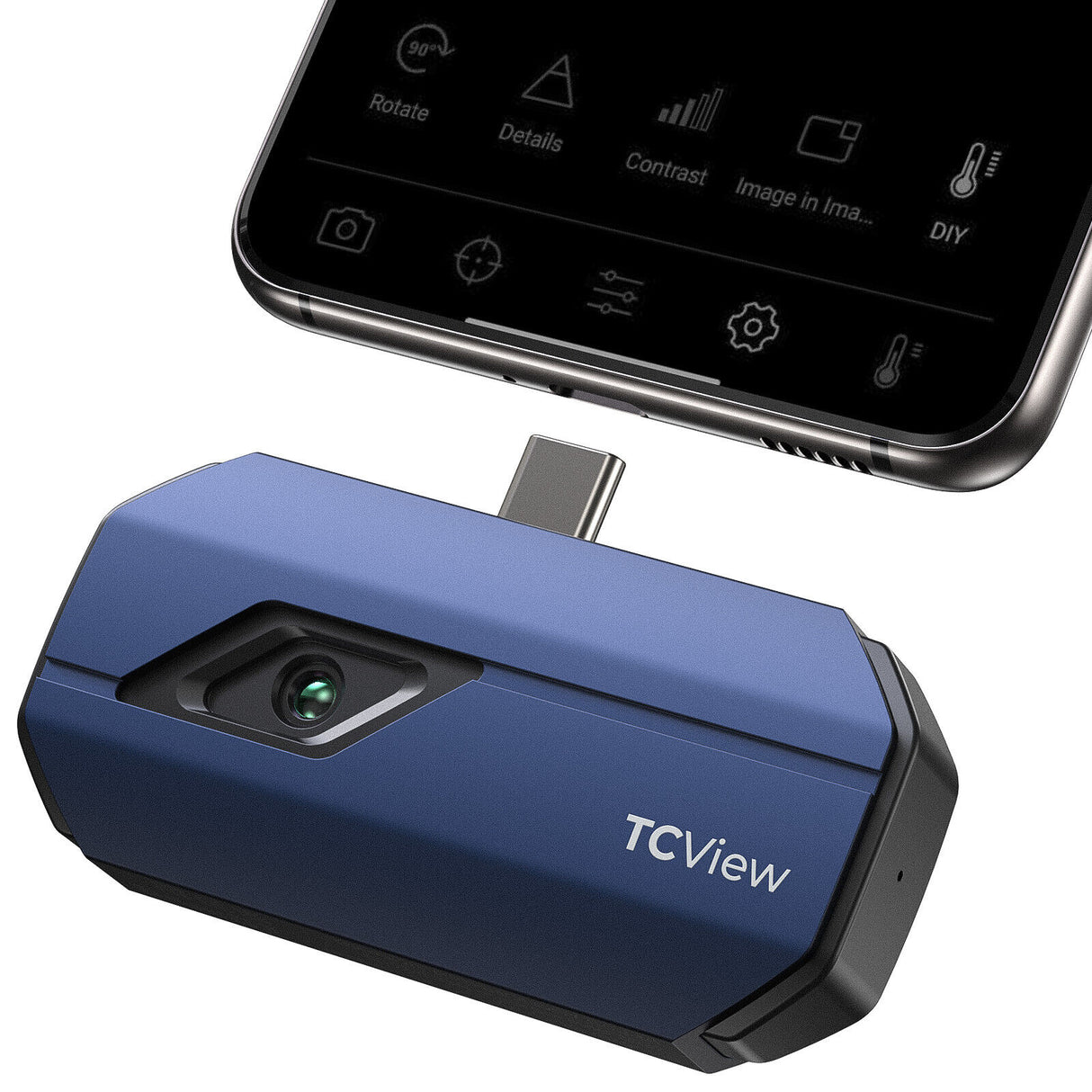

- Connects via USB-C — powered by the host device, no separate battery needed (0.35W draw)
- Compatible with Android smartphones/tablets and Windows laptops
- Free app download — view live thermal imaging, set temperature ranges, and set colour palettes

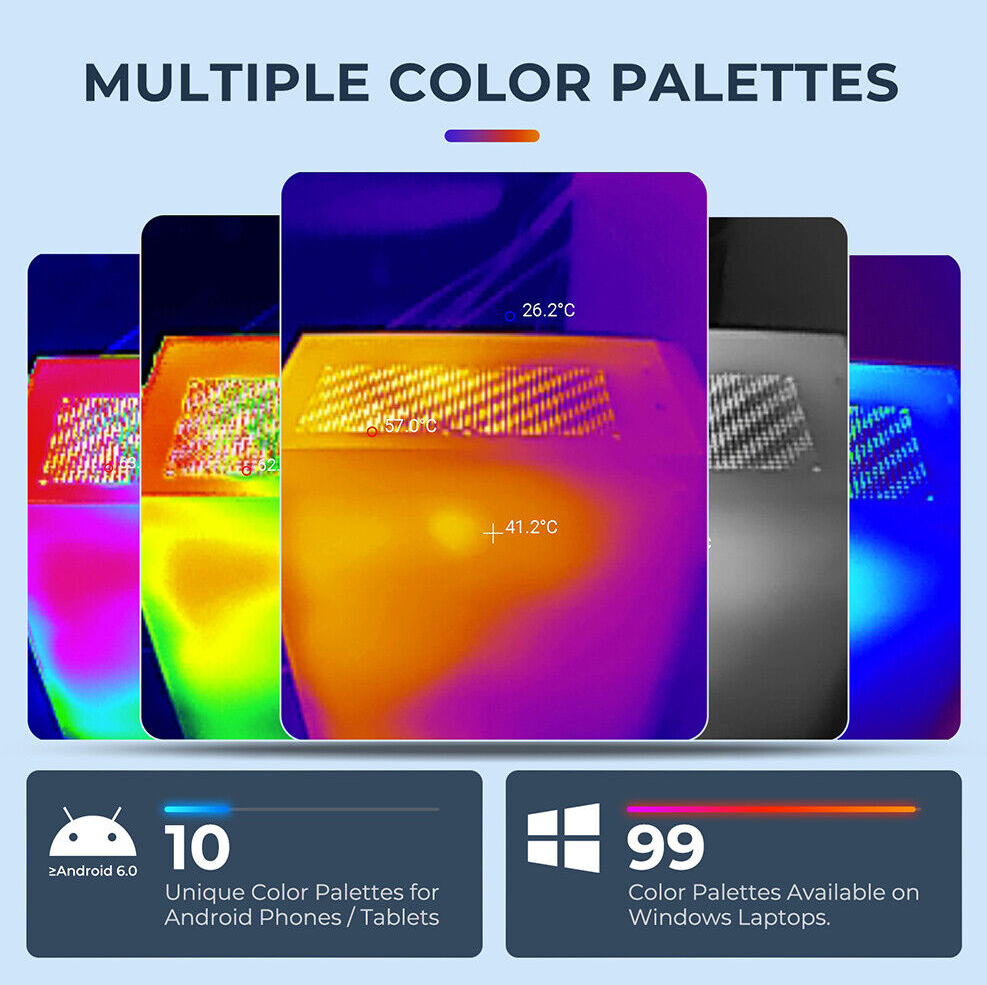

- 10 colour palettes with sharpness, contrast, and picture-in-picture adjustment

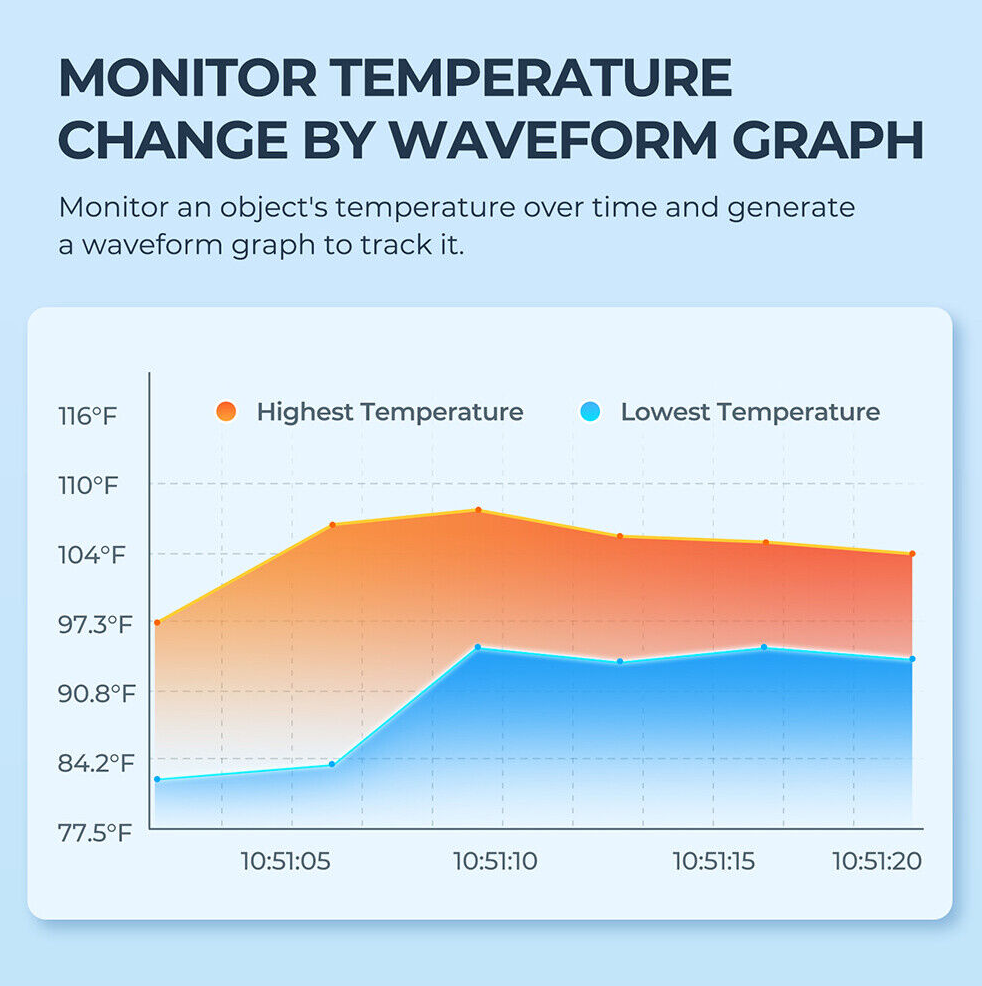

- Waveform graph function — continuous temperature monitoring over time with high/low/average tracking
- Compact and lightweight: 71 x 42 x 14mm, 30g
Automotive
Detecting overheating components, coolant leaks, exhaust faults, electrical hotspots, and brake heat distribution.
Electrical and Trade
Circuit board inspection, switchboard audits, insulation faults, HVAC performance checks, and plumbing leak detection.
Home and General
Heat loss through walls, under-floor heating, moisture intrusion, and general energy audits.
Specifications
| IR Resolution | 256 x 192 pixels |
| Temperature Range | -20°C to 550°C |
| Accuracy | ±2°C or 2% of reading |
| Temperature Resolution | 0.1°C |
| Dimensions | 71 x 42 x 14 mm |
| Weight | 30 g |
| Power Consumption | 0.35W |
| Connection | USB-C |
| Compatible Systems | Android, Windows |

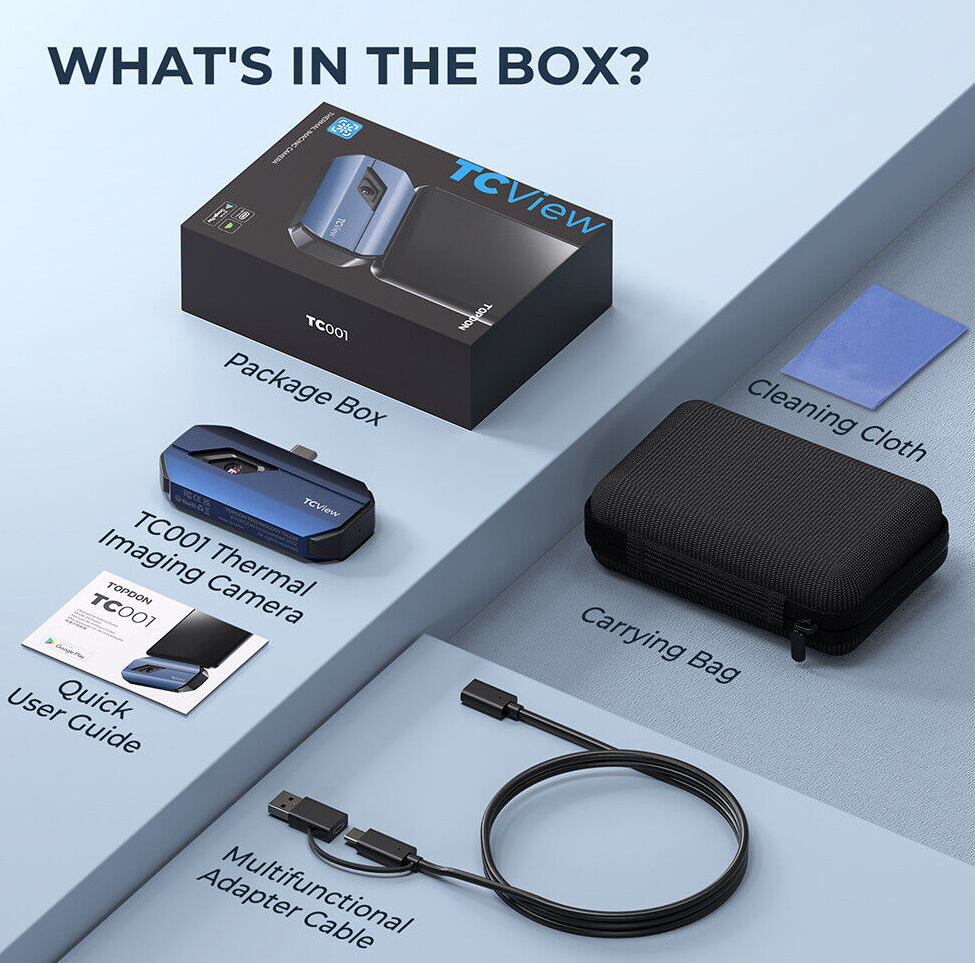

Kit Includes
- Topdon TC001 thermal imaging camera
- Multifunctional adapter cable
- Carrying bag
- Cleaning cloth
- Quick user guide
