Topdon Phoenix Smart Advanced Intelligent 12/24v Diagnostic Scan Tool

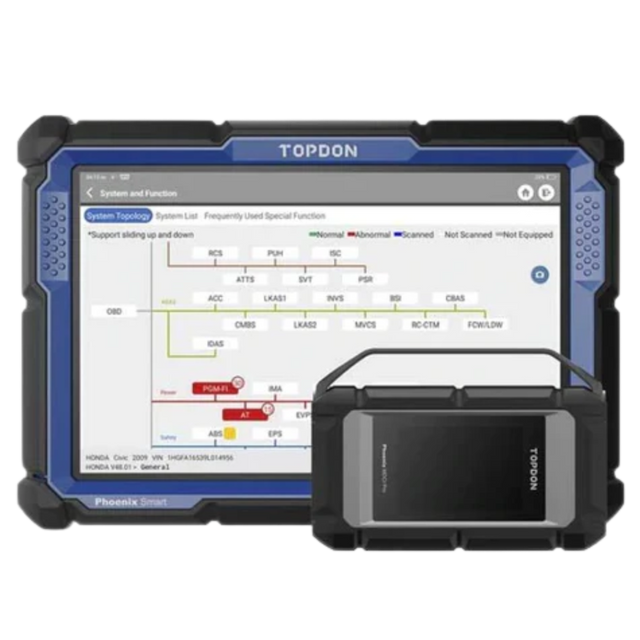

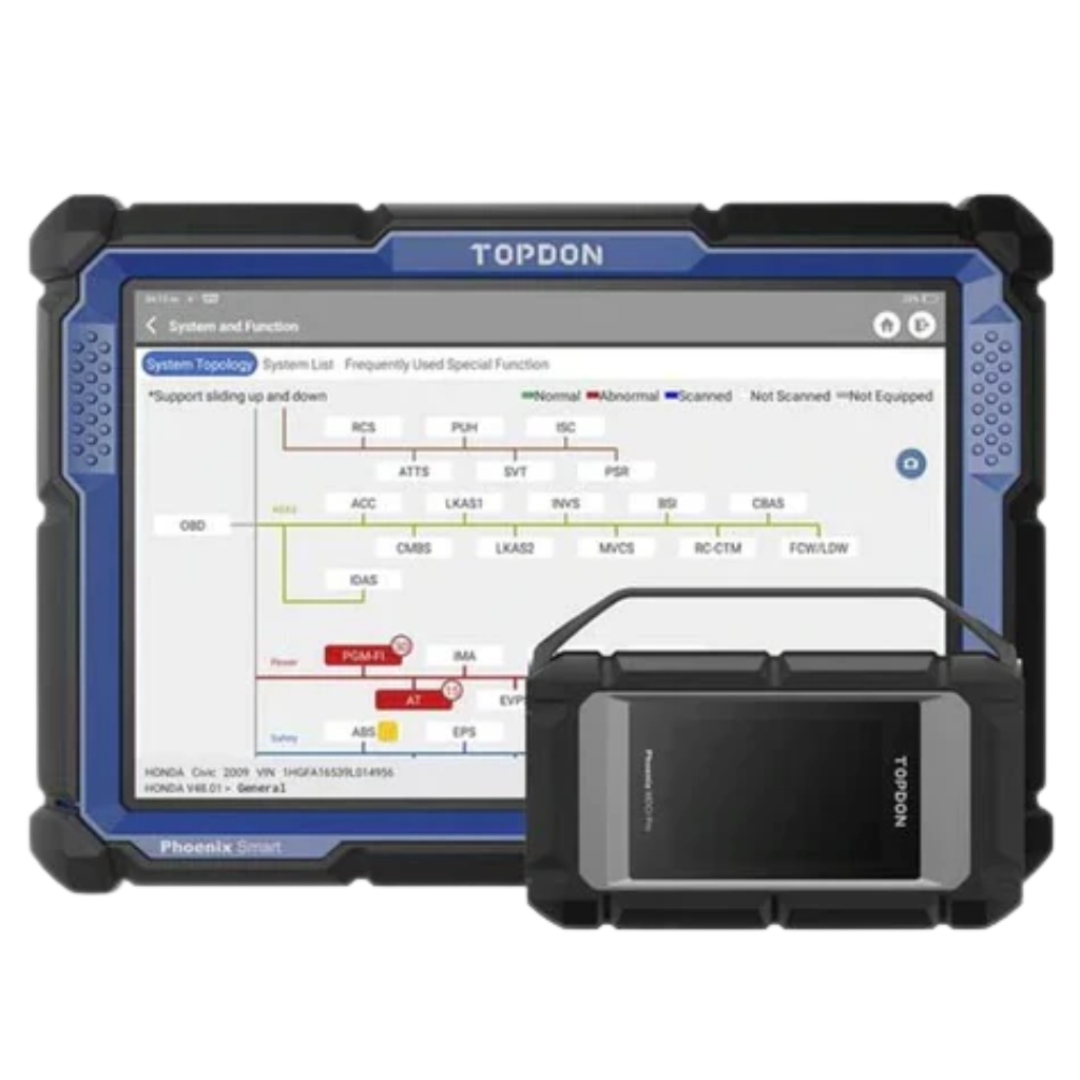

The Topdon Phoenix Smart is a professional 12/24V diagnostic platform built for workshops that need OE-level access, cloud-based programming, and comprehensive system coverage across passenger vehicles and heavy trucks. It features a 10.1-inch HD touchscreen, a 12,600 mAh battery, and the MDCI Pro VCI supporting J2534, DoIP, CAN FD, D-PDU, and RP1210 protocols.

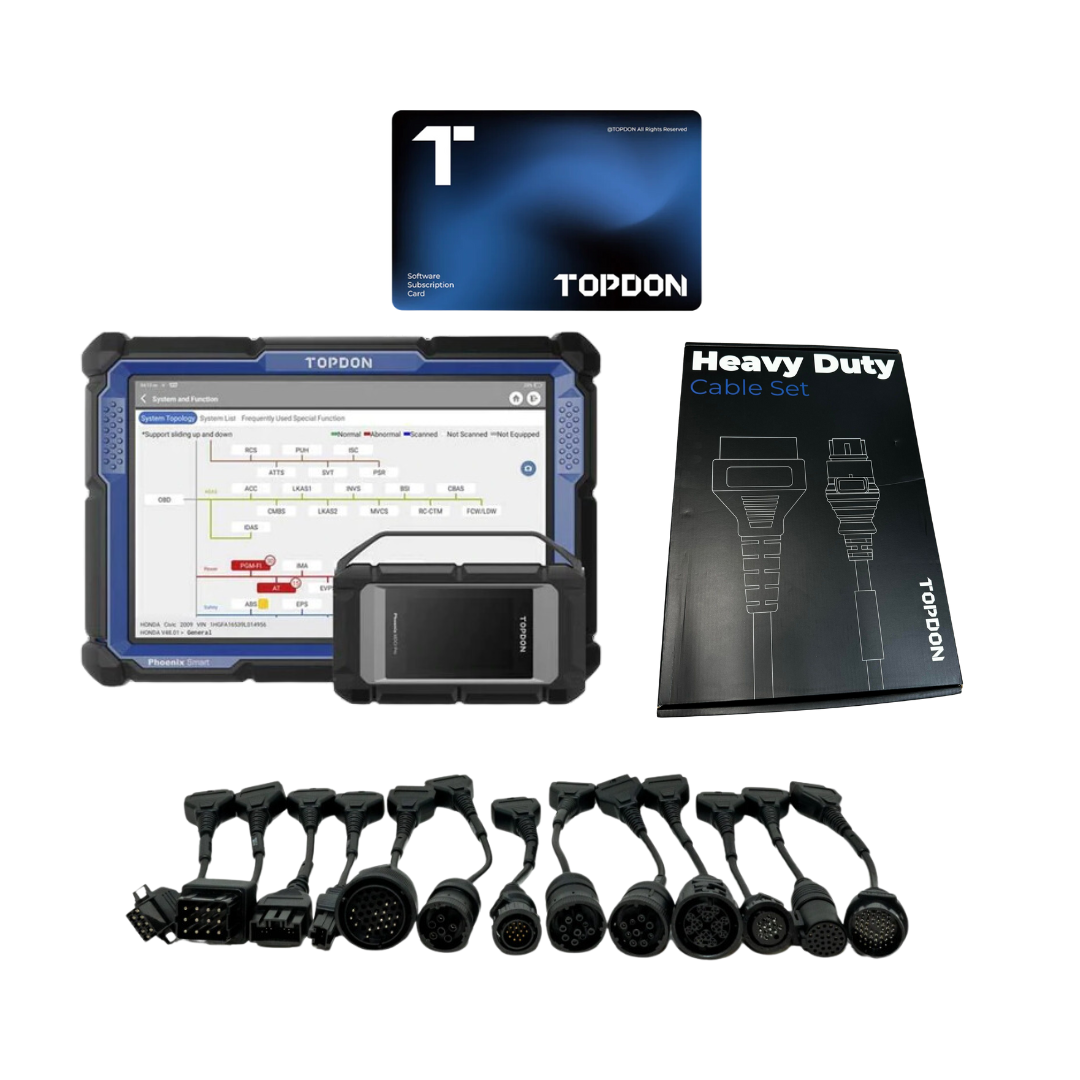

Available in two variants. The standard version covers passenger vehicles on 12V. The truck variant includes HD software and adapter cables for 24V commercial vehicle diagnostics.

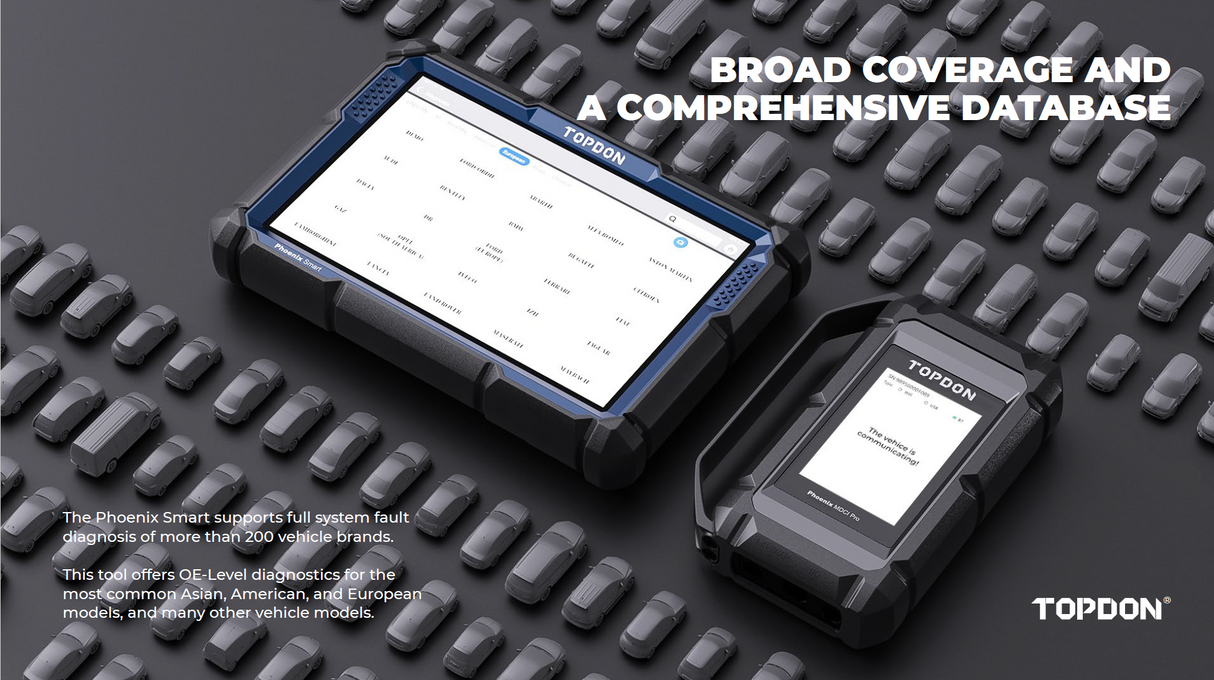

OE-Level Full System Diagnostics

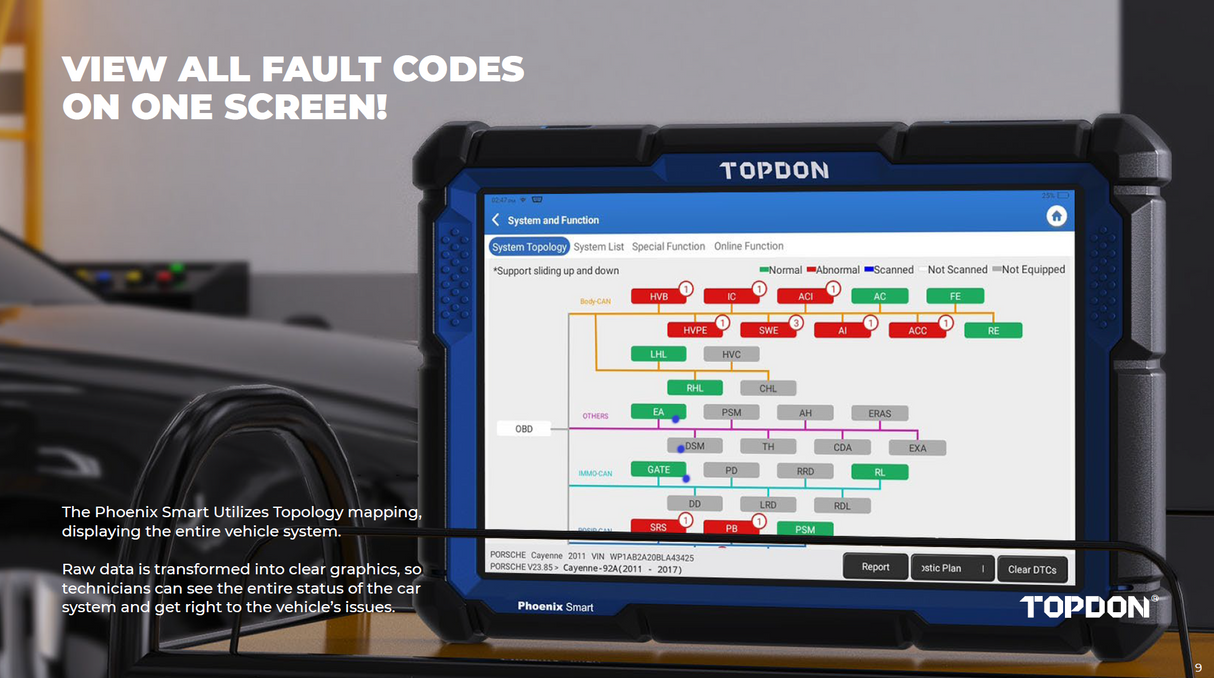

Full system coverage across 200+ vehicle brands including the full range of Asian, European, and American makes. Read and clear fault codes, stream live data, run active tests, and access every module in the vehicle. Topology mapping displays the entire vehicle system on one screen with all fault codes visible at a glance — triage faster and stop chasing problems through menus.

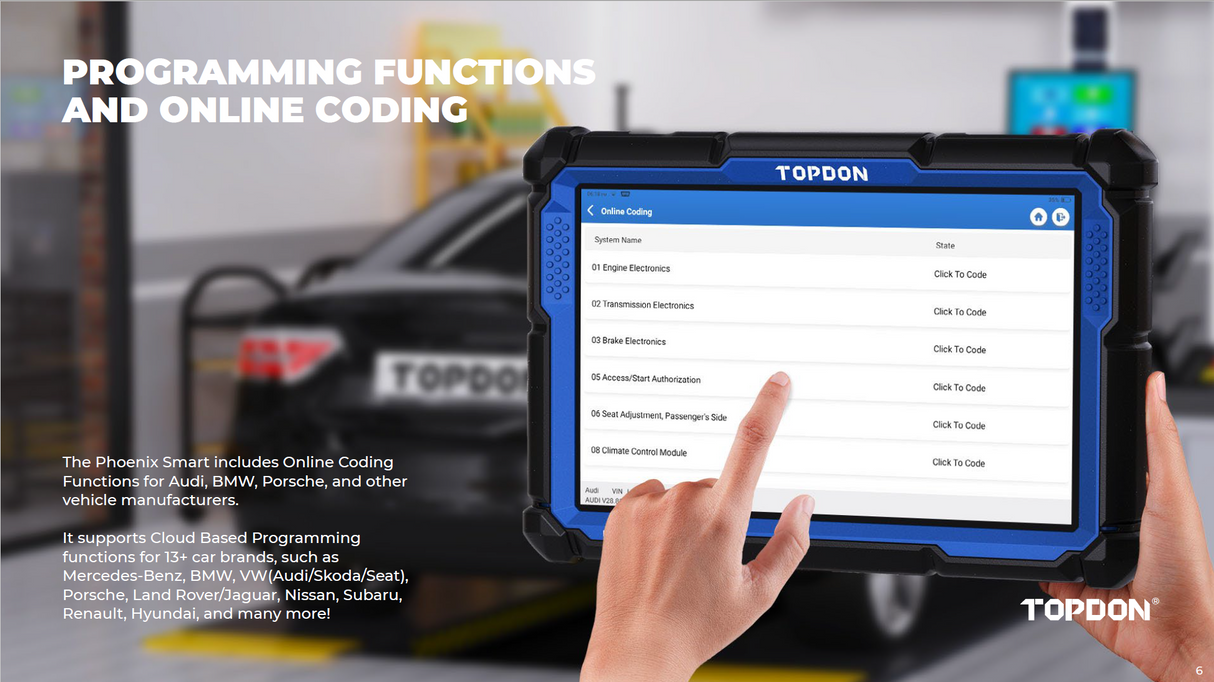

Cloud-Based Programming and Online Coding

Supports cloud-based ECU programming for 15 car brands including Mercedes-Benz, BMW, VW, Audi, Skoda, SEAT, Porsche, Land Rover, Jaguar, Nissan, Subaru, Renault, and Hyundai. Online coding functions cover Audi, BMW, Porsche, and other manufacturers. Unlock settings, enable or disable features, and adapt modules without sending the vehicle elsewhere.

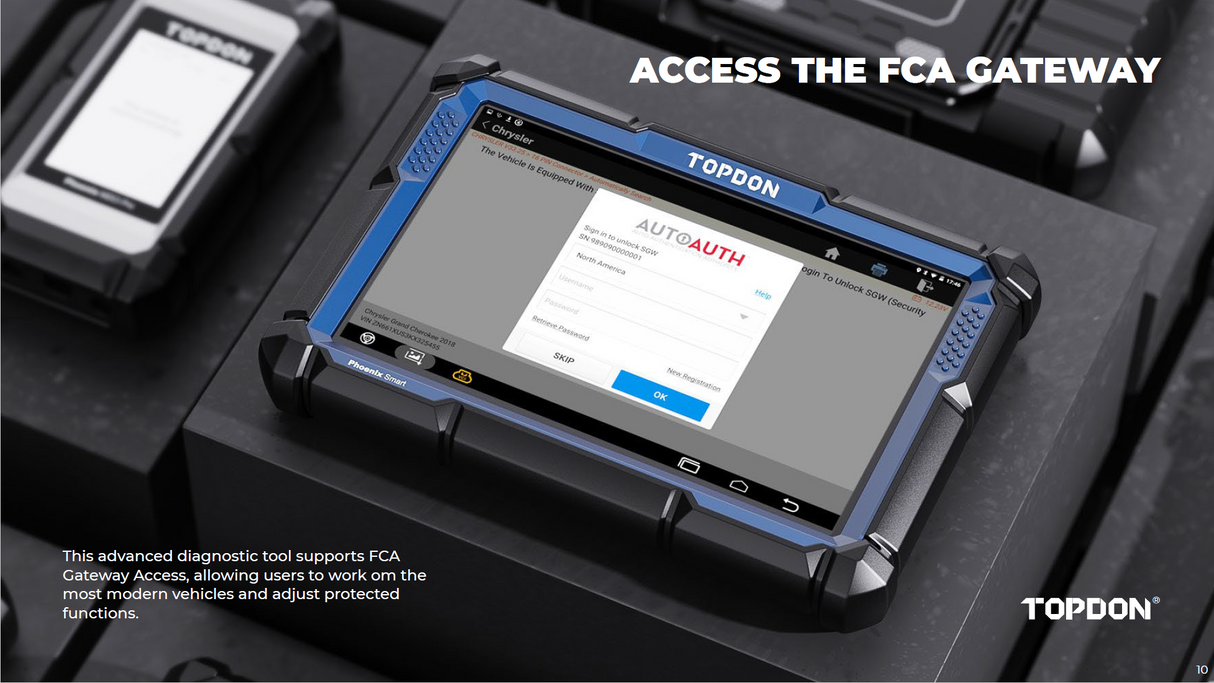

FCA Secure Gateway Access

Supports FCA Gateway Access for Chrysler, Jeep, Dodge, Fiat, and Ram vehicles. Work on protected functions and modern CJD platforms that lock out generic scanners without gateway authorisation.

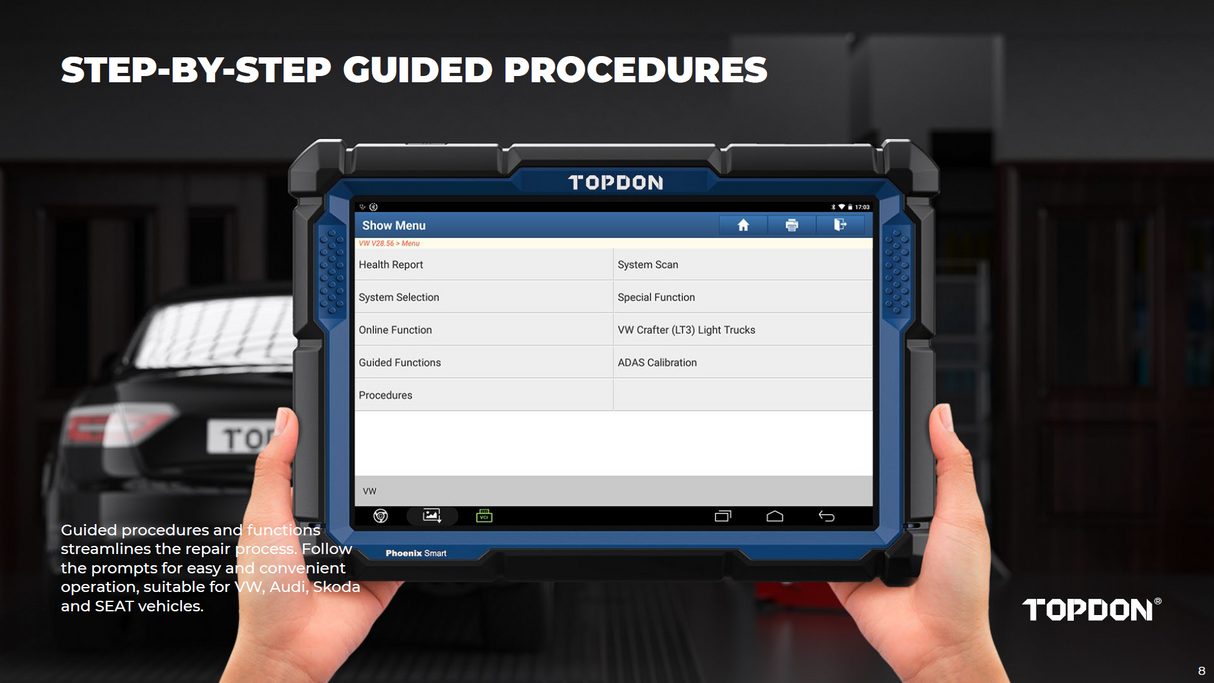

Step-by-Step Guided Procedures

Built-in guided procedures walk you through complex operations on VW, Audi, Skoda, and SEAT vehicles — useful for keeping consistency across the workshop on complex adaptations.

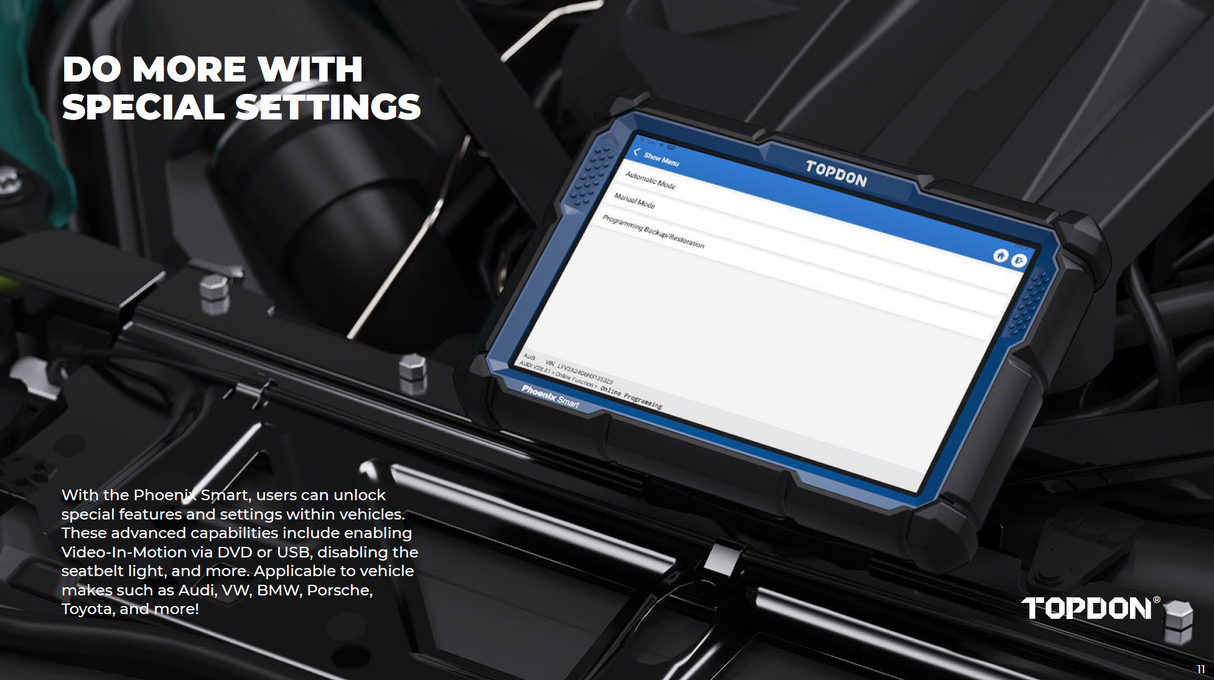

Special Functions and Vehicle Customisation

Unlock and modify vehicle-specific settings including Video-in-Motion via DVD or USB, seatbelt warning disabling, and more. Applicable to Audi, VW, BMW, Porsche, Toyota, and others.

ADAS Ready

Pair the Phoenix Smart with Topdon's Phoenix ADAS Mobile Package to perform ADAS calibration. As more vehicles require camera and radar recalibration after glass or suspension work, this is a capability that keeps paying for itself. ADAS software and equipment sold separately.

Service and Maintenance Functions

Oil Reset, EPB, BMS, SAS, DPF, TPMS, Brake Bleeding, Injector Coding, Throttle Adaptation, Gear Learn, Transmission Adaptation, Steering Calibration, and more — 34 functions total.

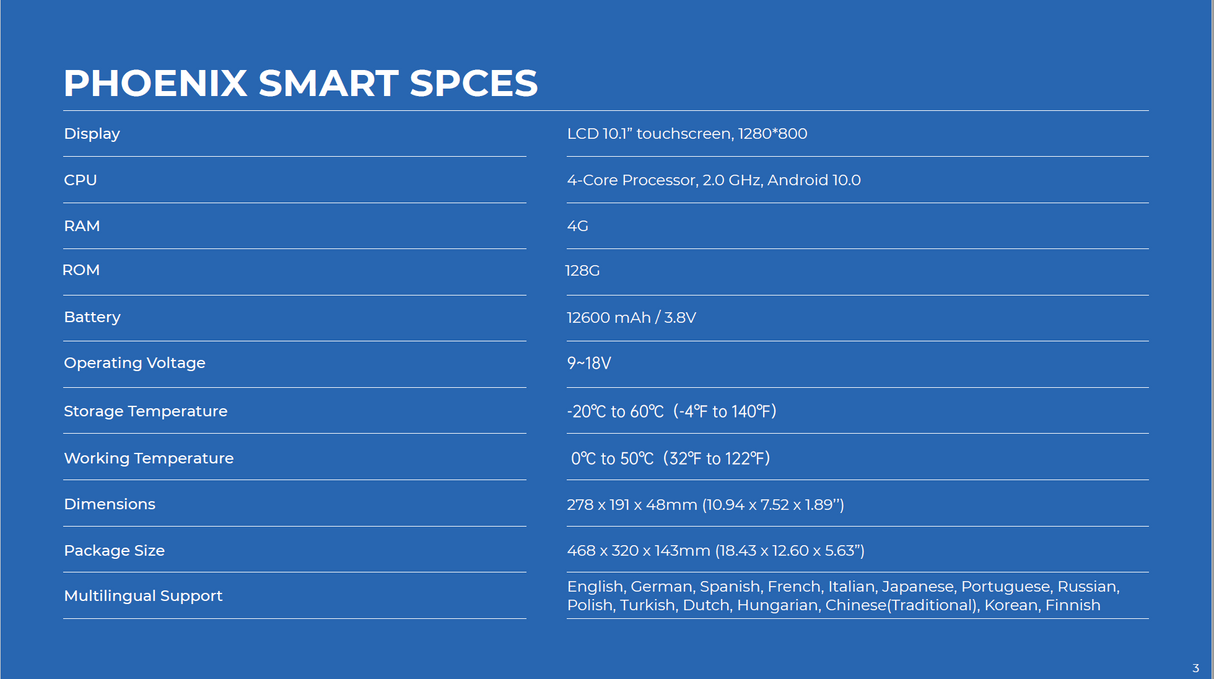

Specifications

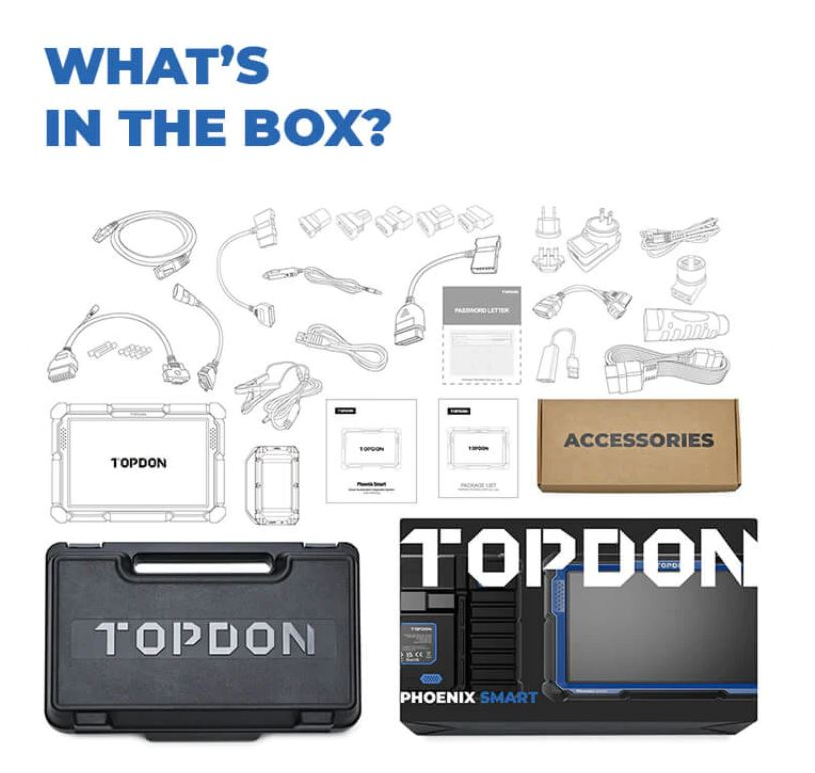

Kit Includes

• Phoenix Smart tablet (10.1" Android 10)

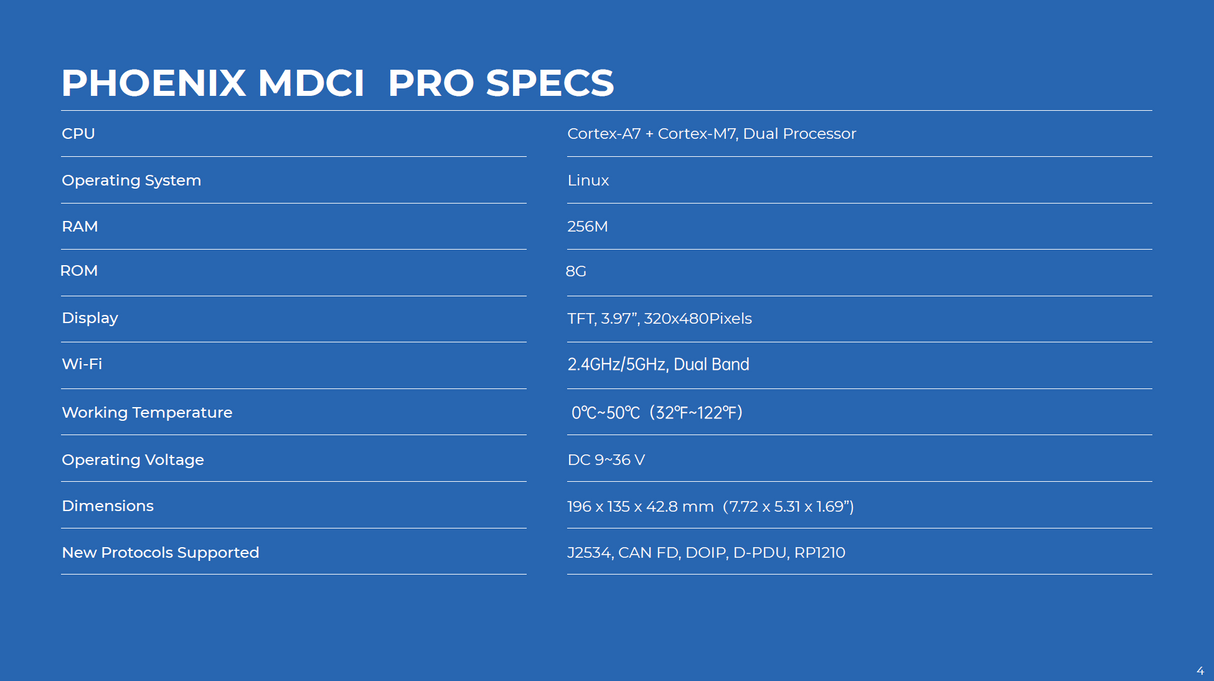

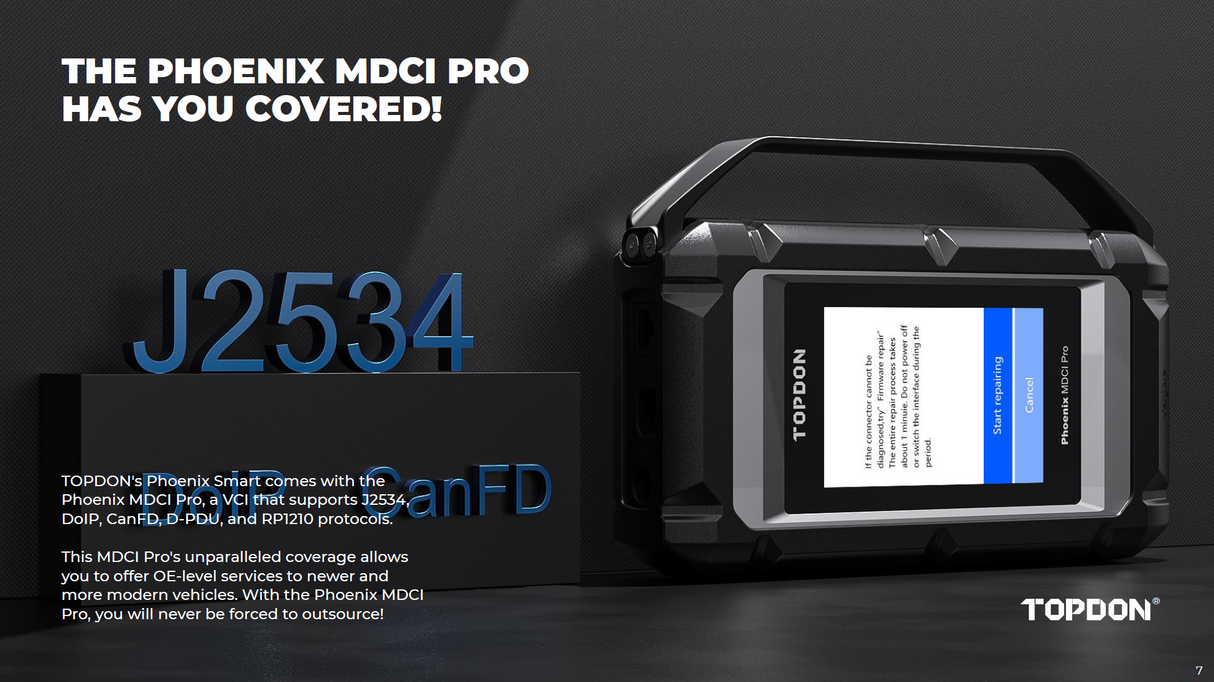

• Phoenix MDCI Pro VCI wireless dongle (J2534, DoIP, CAN FD, D-PDU, RP1210)
• OBDII extension cable
• OBDI adapter box transfer line
• 10-piece non-16-pin adapter kit (NN-14+16, BZ-38, TA-17, TA-22, G/V-12, B-20, CR-6, HA-3, M/H-12+16, FT-3)
• Battery clamps and cable set
• Cigarette lighter cable
• Type-C to USB cable
• Type-A to Type-B data cable
• Power adapter (wall charger)
• Spare fuses
• User manual and registration password envelope (for 2 years free software updates activation)

Important Notes

• 24V commercial vehicle diagnostics require the HD software package — select the truck variant if you need this
• ADAS calibration requires the separate Topdon Phoenix ADAS Mobile Package
• Cloud-based programming functions require an active internet connection and may require manufacturer account subscriptions for certain brands

Downloads

• Topdon Phoenix Smart User Manual
• Topdon Phoenix Smart Product Brochure
• Check vehicle and function coverage on the Topdon Compatibility Tool
