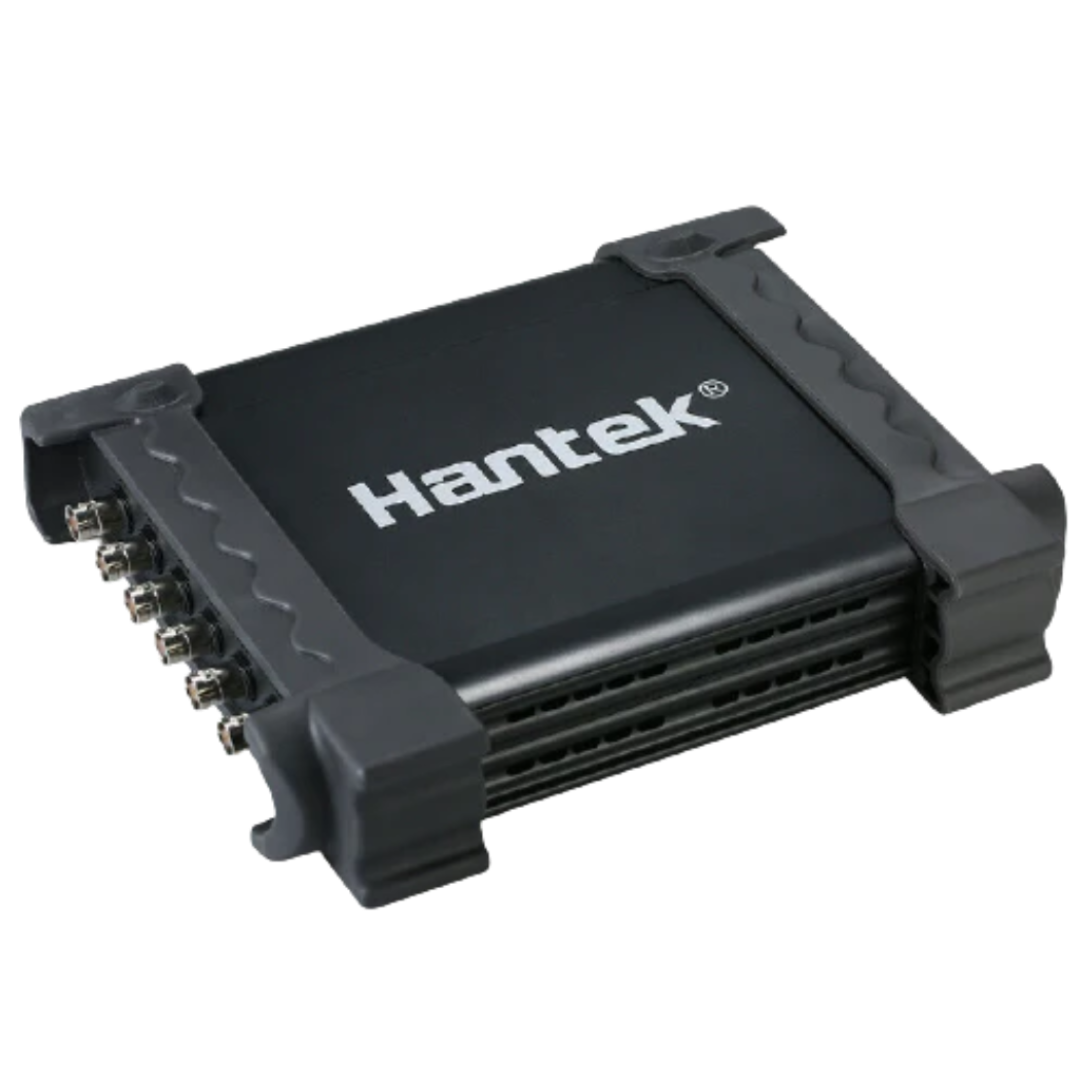

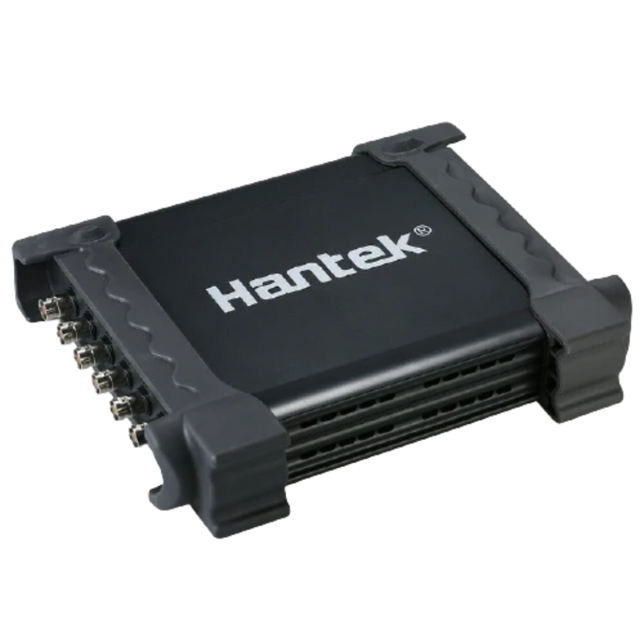

Hantek 1008C 8CH USB 2.0 Automotive Diagnostic PC Oscilloscope

Name: Hantek 1008C 8CH USB 2.0 Automotive Diagnostic PC Oscilloscope
Brand: Premium Diagnostic Equipment
SKU: HAN-MT-1008C
Price: 290.00 AUD
Availability: InStock

$290.00

Pickup available at Gold Coast

Usually ready in 24 hours

Delivery and Shipping

Shipping Information

Orders placed before 12pm AEST Mon-Fri will be dispatched same day

Standard Shipping in Australia 2-9 business days - FREE

Express Shipping in Australia 1-3 business days - Shipped via Australia Post Express. In most cases you will get your order the next day if it was placed before 12pm but we can not guarantee this overnight service.

TNT Overnight Express - 1 business day if order is placed before 12pm.

To check freight costs enter your details and address at check out

Local Pick Up - Same day from Gold Coast warehouse providing we have stock on hand, please call us to confirm 07 3180 6771

Couriers we use - Most orders are shipped via Australia post. We may use TNT/FEDEX or Aramex depending on your location or preference.

Description

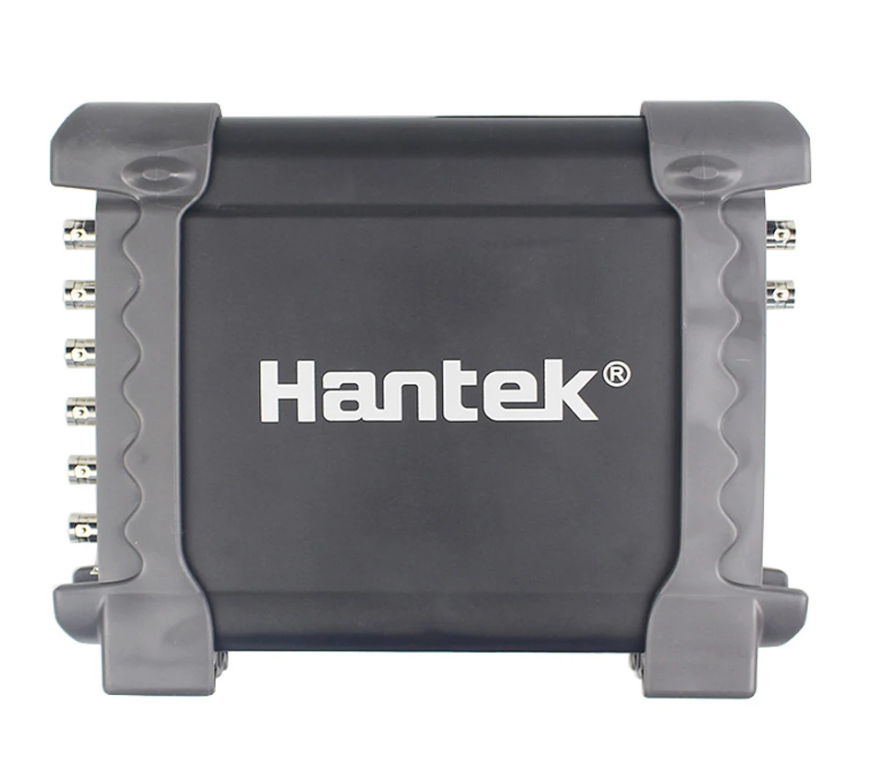

Hantek 1008C 8CH Automotive Oscilloscope

8 channels oscilloscope, 2.4MSa/s real-time sampling rate
12 bits vertical resolution, spectrum analysis function
Bus Diagnosis: CAN bus data examination, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus
Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position
More than 20 types of automatic testing functions, a similar interface with bench top oscilloscope, easy to use

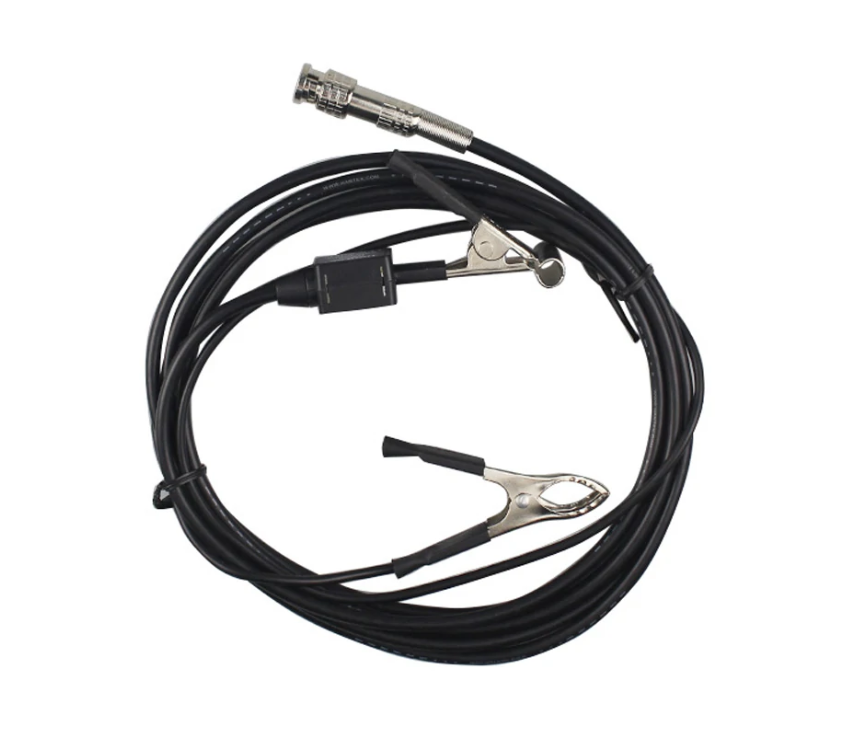

Comes with Hantek HT25

1. Vehicle Testing

First Diagnosis: Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition
Ignition: primary and secondary
Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position
Bus Diagnosis: CAN bus data examination, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus Performer: Petrol/Diesel
Starter and charging circuits

2. Oscilloscope

8 channels oscilloscope, 2.4MSa/s real time sampling rate
10mV/div to 5V/div input sensitivity, 8 gears adjustable
12 bits vertical resolution, spectrum analysis function

3. Programmable Generator

8 channels programmable generator

4. Others

USB 2.0 interface plug and play, and no need for extra power supply;
More than 20 types of automatic testing functions, a similar interface to benchtop oscilloscope, easy to use;

Software support: Windows NT, Window 2000, Windows XP, VISTA, Windows 7; Windows 8, Windows 10
Vertical
Analog Channel:8
Input Impedance:Resistance: 1MΩ
Input Sensitivity:10mV/div to 5V/div
---------------------------------------------
Input Coupling: DC
Resolution:12 bits
---------------------------------------------
Horizontal
Memory Depth:4K
Max. Input:400V (DC+AC Peak)
Real-Time Sampling Rate:2.4MSa/s
Time Base Range:1ns/div to 20000s/div(1-2-5 sequences)
Time Base Precision:±50ppm
---------------------------------------------
Trigger

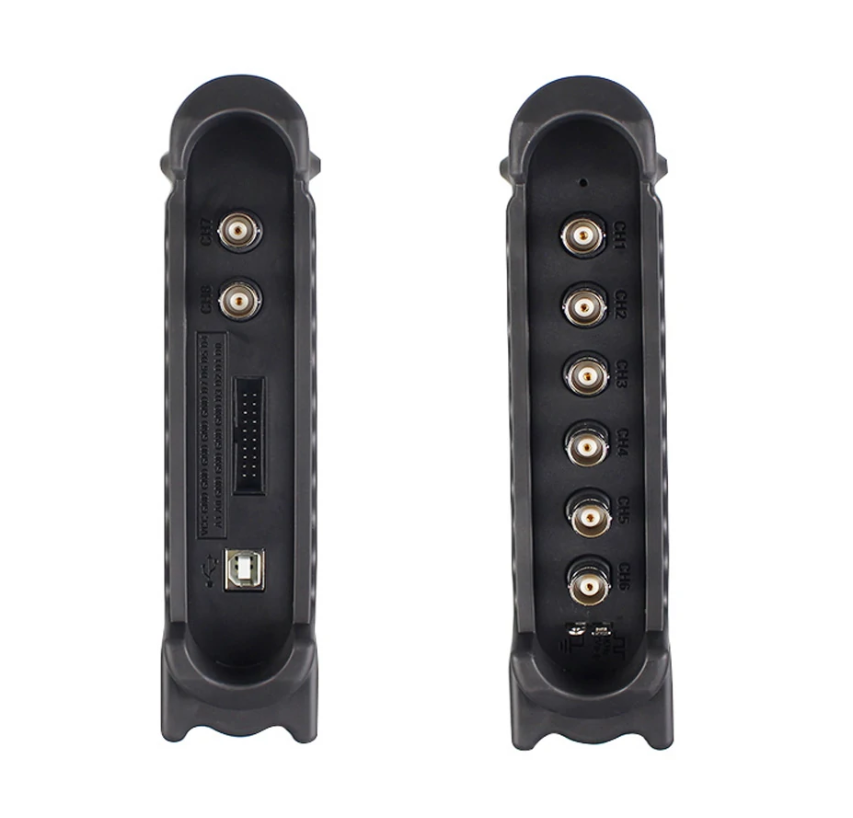

Source:CH1, CH2,CH3,CH4, CH5, CH6,CH7,CH8
Mode: Edge
---------------------------------------------
X-Y Mode
X-Axis Input: CH1
Y-Axis Input: CH2
