Launch X-431 ECU & TCU Programmer Standalone Cloning device

Launch X431 ECU Programmer Functions:

1. ECUs Data Reading & Writing quickly.
   · Support two methods to read various vehicle brand ECUs info.
   · Support Read the chip ID and Back up the EEPROM data.
   · Support Back up the FLASH data and Restore EEPROM/FLASH data

2. Support Data Processing, anti-theft shutdown and file verification.

ECU Support list June 2023:

Launch X431 ECU TCU Programmer and PC Software Use Guide:

Firstly, connect the X431 ECU &TCU Programmer to the computer with a cable. Then, click to enter the software. The serial number will be automatically recognized from the X-431 ECU &TCU Programmer, and the activation code needs to be obtained from the envelope bar of the X-431 ECU&TCU Programmer.

Click [Activate] to activate (only activate once, no need to activate again later)

Obtain the  related  ECU.

Method (1)

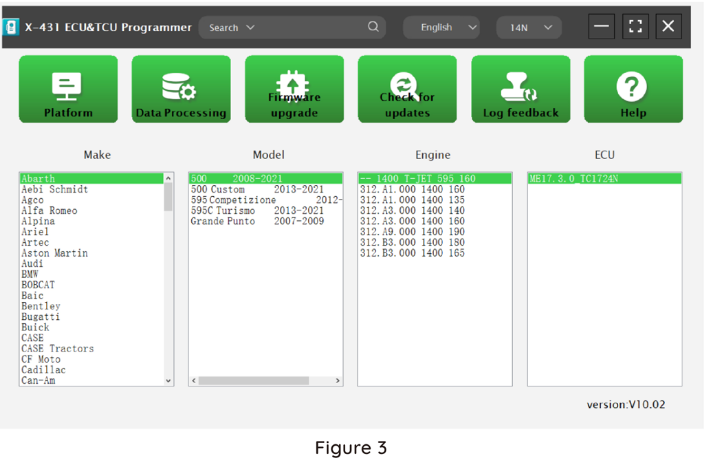

Obtain the desired ECU type through brand > model > engine > ECU in turn,

Method (2) :

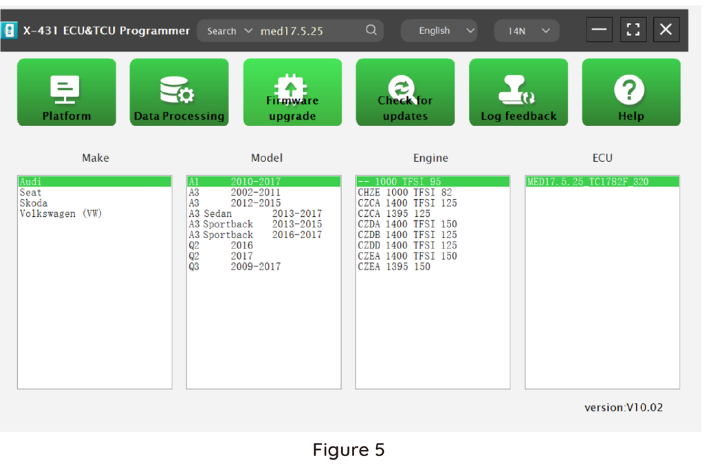

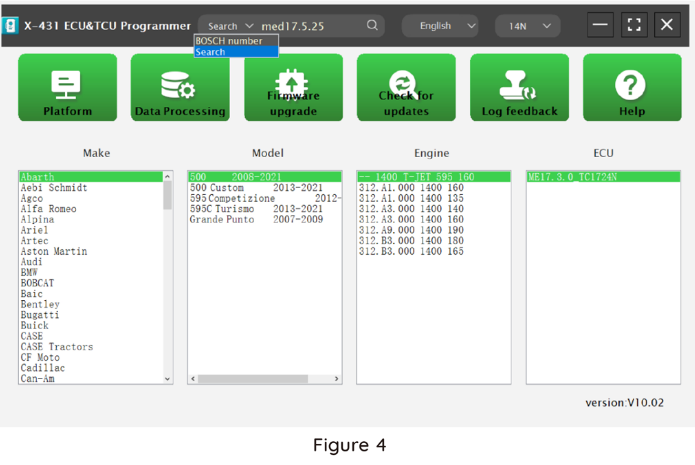

Query the desired ECU by entering a value in the search box. The search categories include Bosch number and Search, as shown in Figure 4. For example, search for the MED17.5.25 engine by Search, as shown in Figure 5.

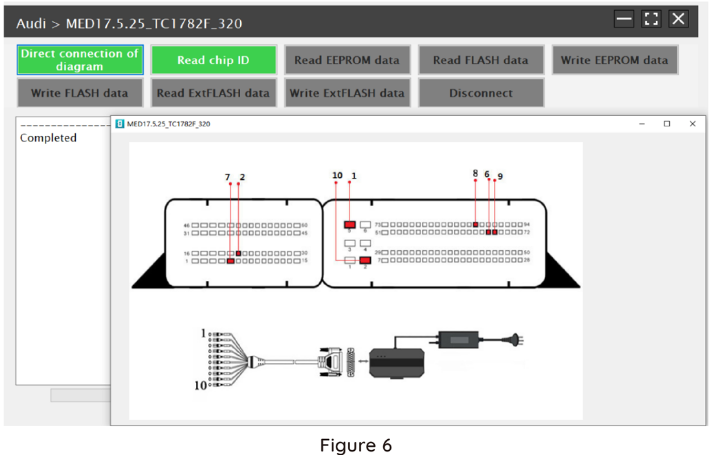

2.Click [Direct Connection Diagram] to obtain the ECU connection diagram, as shown in Figure 6.
3. Connection:

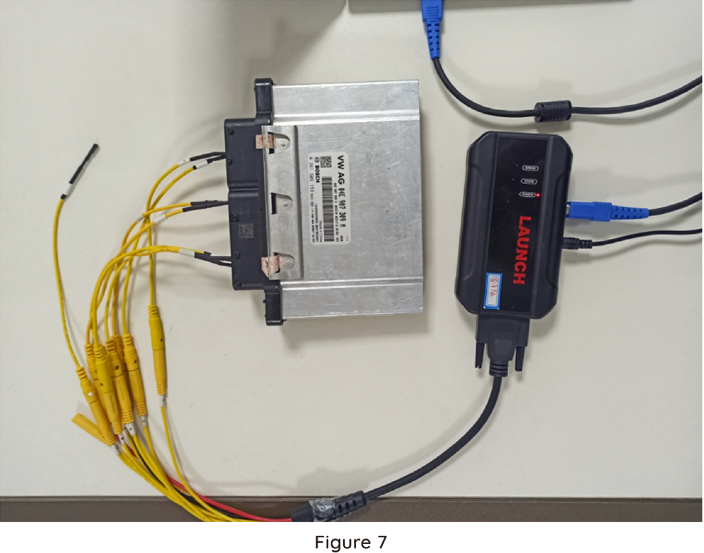

Connect  the  ECU and PCBOX according  to the  information provided in the connection diagram.  The physical connection diagram of MED17 .5 .25 (using the BENCH mode line)is shown in Figure 7, and the physical connection diagram using the gearbox adapter is shown in Figure  8.

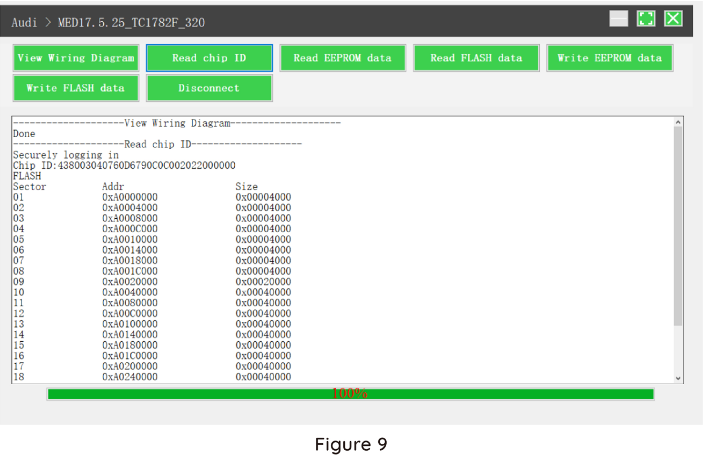

4. Read the chip ID, as shown in Figure 9.

5. Back up the EEPROM data and save it, as shown in Figure 10 (the figure shows the save page of the read date).

6. Back up the Flash date and save it, as shown in Figure 11 (the figure shows the process of reading FLASH date).

7. Restore EEPROM / FLASH date,  as shown in Figure 12 (the figure shows the file selection page).

II. Date Processing

1. Click the [Date Processing] button on the main page, as shown in Figure 13, and select [IMMO Off and File Verification] ([DTC Shield] is not currently supported), as shown in Figure 14.


   2. File verification and IMMO OFF (process: select file>connect network to obtain>save file), as shown in Figure 15.
