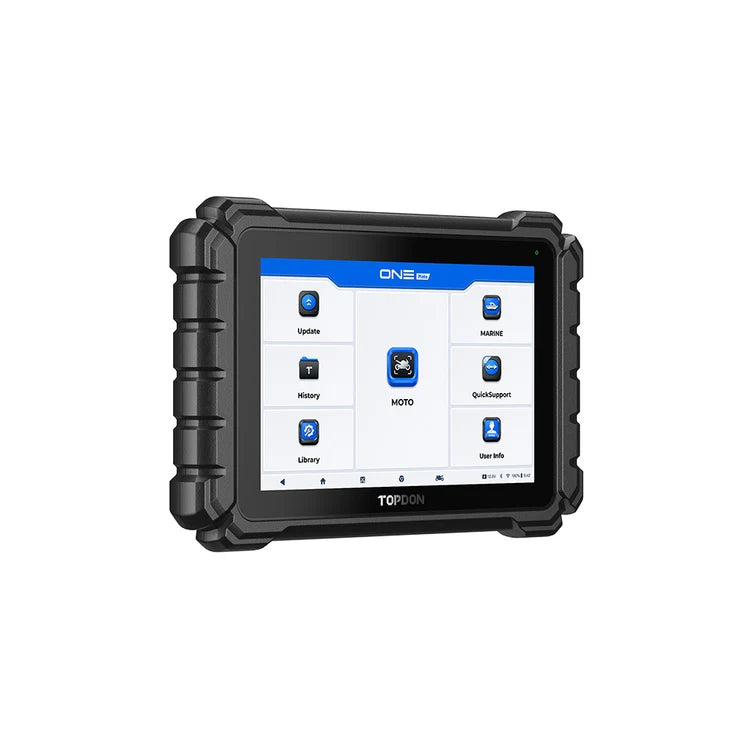

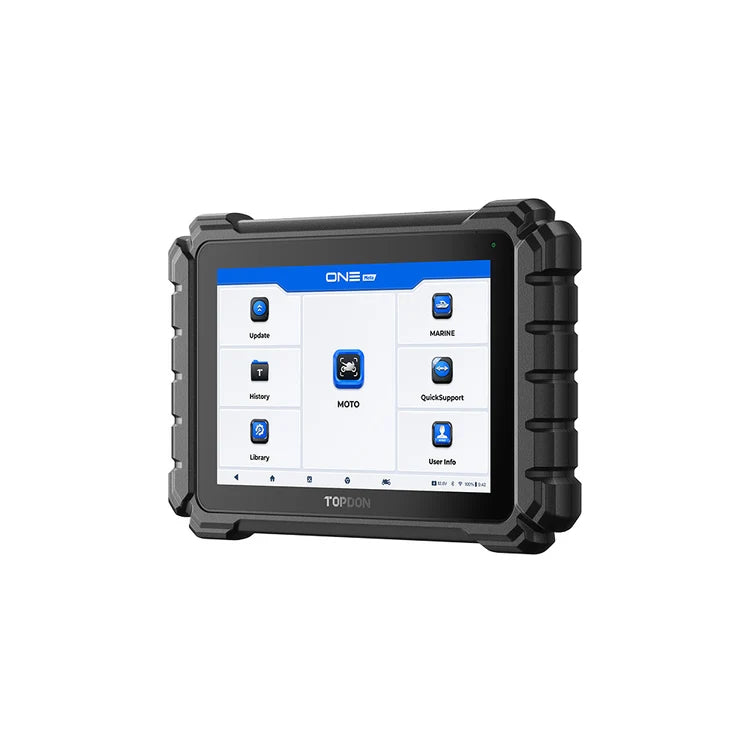

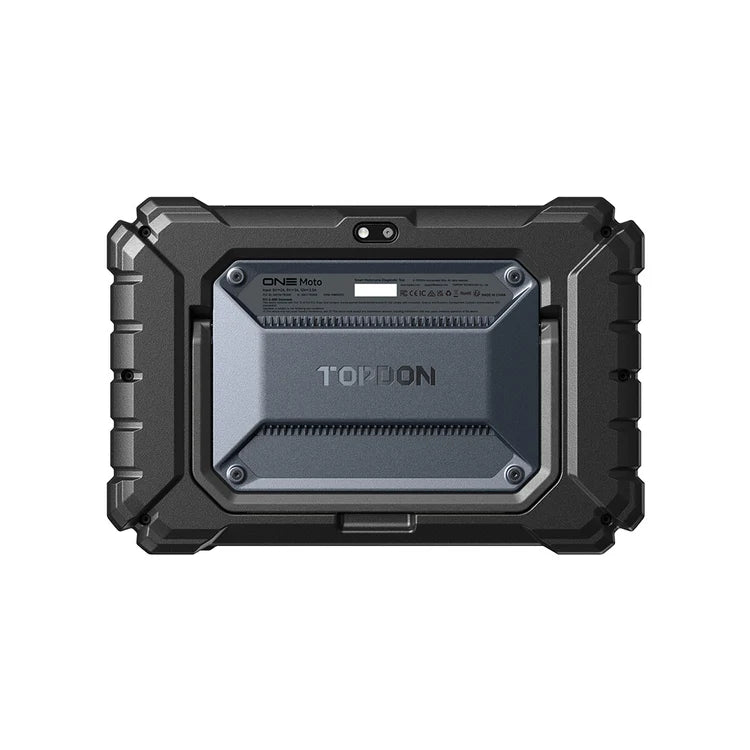

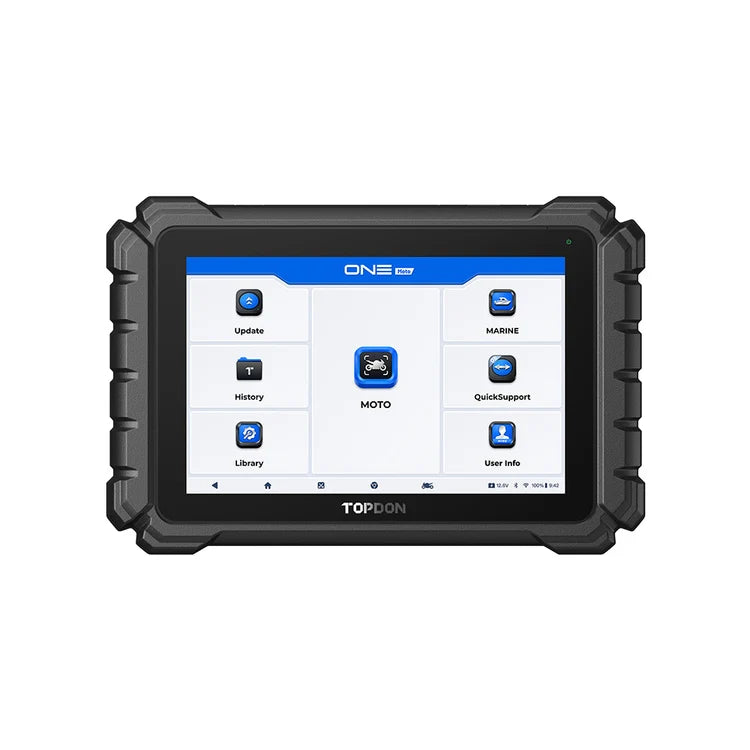

Topdon One Moto Scan Tool for Motorcycles, ATV and Marine

ONE Moto: TOPDON’s advanced diagnostic tool for motorcycle, ATV, and marine vehicles. Built to withstand the toughest garage and dockside environments, it offers full-system scanning for 100+ motorcycle brands, alongside marine diagnostic support for 9 brands such as Honda, Yamaha, Kawasaki, and BRP. From routine oil resets to advanced module flashing.

Features

Dealer-Level ECU Access for 9 Leading Manufacturers

• Go beyond diagnostics with advanced ECU programming capabilities for nine major motorcycle brands including Honda, Harley, Ducati, and more. Perform ECU matching, software updates, and module configuration directly through the ONE Moto, helping you complete more repairs in-house without relying on dealership support. From replacement control modules to advanced electronic systems, ONE Moto gives technicians the tools needed to tackle complex ECU-related repairs with confidence.

Diagnostics for 100+ Motorcycle and Marine Brands

• Expand your diagnostic capabilities with coverage for more than 100 motorcycle and ATV brands, plus dedicated marine diagnostics for nine major manufacturers, including Honda, Yamaha, Kawasaki, and BRP. With full-system diagnostics, ONE Moto helps shops service a wider range of vehicles without investing in multiple diagnostic platforms.

Routine Maintenance Made Faster

• Speed up everyday jobs with dedicated maintenance functions, including Oil Resets, TPMS Registration, and Air/Fuel (A/F) Adjustments. By simplifying common procedures and reducing manual steps, ONE Moto helps technicians complete routine maintenance more efficiently.

Advanced Service & Calibration Functions

• Complete advanced repair and replacement procedures with support for functions such as VIN Writing, Odometer Recalibration, and Cruise Control Realignment. ONE Moto helps technicians perform critical service operations without additional tools or dealership support.

Vehicle Customization Features

• Customize supported vehicle settings to match rider preferences. Functions such as Daytime Running Light control, audio system adaptations, and Transport Mode management help users personalize vehicle behavior without additional tools or the dealership.

Bi-Directional Control for Faster Troubleshooting

• Verify component operation and pinpoint faults with bi-directional control. Command systems and actuators directly, including fuel pumps, ABS valves, cooling fans, fuel injectors, and relays. By testing components on demand, technicians can isolate problems, reduce guesswork, and avoid unnecessary parts replacement.

Ready for a Wide Range of Vehicles

• ONE Moto comes with a wide range of adapters, helping users connect to more vehicles right out of the box. With the most common connectors included, technicians can spend less time sourcing accessories and more time getting to work.

Built-In DLC Location Guide

• Motorcycle and marine diagnostic ports aren't always easy to find. Instead of searching manuals or online forums, simply select the vehicle model to view an image of the DLC location. With guided connector placement, users can locate the port faster and begin diagnostics with less guesswork.

Expand Your Key & Immobilizer Services

• ONE Moto equips technicians with the advanced capabilities required for modern anti-theft and key servicing. From key replacement and remote registration to PIN code resets and immobilizer restorations where supported.

Diagnose with Real-Time Data

• View up to 12 live data streams simultaneously and compare up to four parameters using dynamic waveform graphs. Built-in recording and playback functions make it easier to track performance, identify intermittent issues, and confirm repairs after service.

Specifications

ONE Moto Specs

• CPU: 8-Core 2.0 GHz Processor

• Storage: RAM: 4 GB; ROM: 128 GB

• Screen: 10.1-Inch LCD, 1280×800 resolution

• Battery: 10000 mAh/3.8V

• Charging: PD fast charging (5V/3A, 9V/3A, 12V/2.5A)

• Camera: 16 MP with autofocus

• Bluetooth: 5.0 with 10m/33-foot range

• Dual WiFi Modules: Supports 2.4GHz & 5GHz (802.11 b/g/n/ac)

• Buttons & I/O: Power button, one USB-A (Host mode), one USB-C (Host/Device mode)

• Operating System: Android 12.0 (closed system)

• Storage Temperature: -20℃ to 70℃ (-4℉ to 158℉)

• Operating Temperature: -10℃ to 50℃ (14℉ to 122℉)

• Product Dimensions: 311×207×39mm (12.24×8.15×1.54 inches)

• Packing Box Size: 507×380×147mm (19.96×14.96×5.79 inches)

• Net Weight: 1574g (3.47 lbs)

• Languages: 45 Supported Languages (English, French, German, Spanish, Portuguese, Russian, Japanese, Korean, Italian, Traditional Chinese, Simplified Chinese, Turkish, Polish, Serbian, Slovak, etc.)


VCI Specs

• Bluetooth: 5.0 10m/33-foot range

• WiFi: Supports AP mode; 802.11 b/g/n (2.4 GHz), 2T2R; Up to 300 Mbps

• Storage Temperature: -20℃ to 70℃ (-4℉ to 158℉)

• Operating Temperature: -10℃ to 50℃ (14℉ to 122℉)

• Product Dimensions: 114.8×51×29mm (4.52×2.00×1.14 inches)

• Net Weight: 96g (3.39 oz)


Packing List

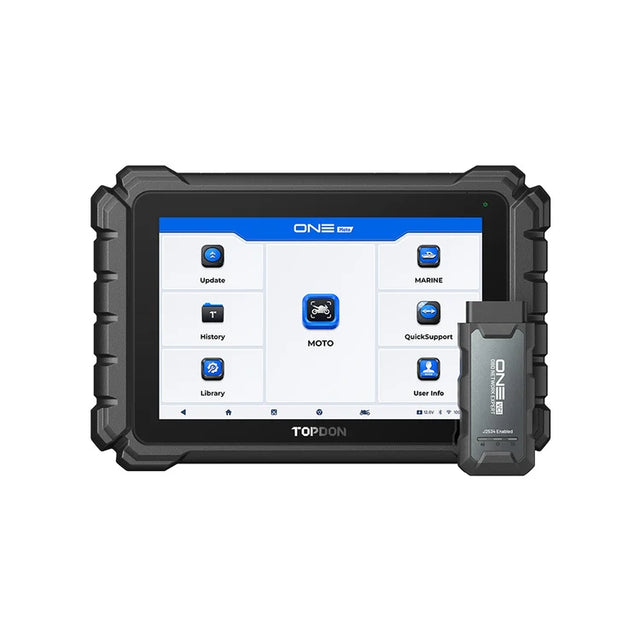

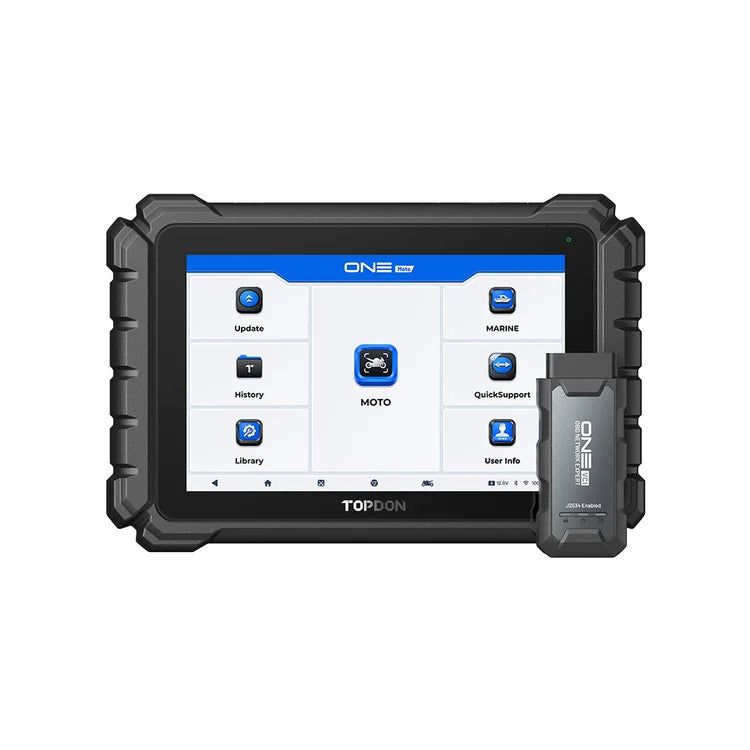

• ONE Moto

• ONE VCI

• Power Adapter

• USB-C to USB-C Cable

• USB-A to USB-C Cable

• Quick User Guide

• Packing List

• Diagnostic Connector Kit*36

• Carrying Case*2
