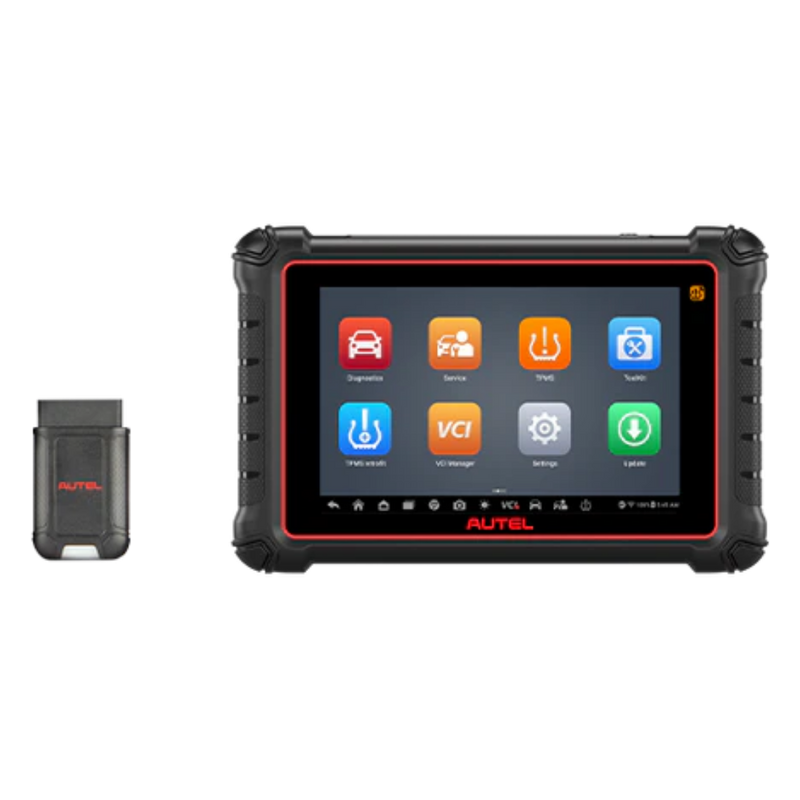

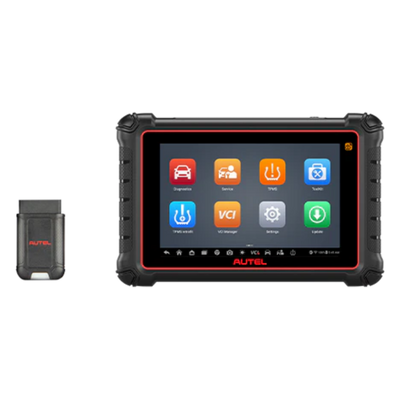

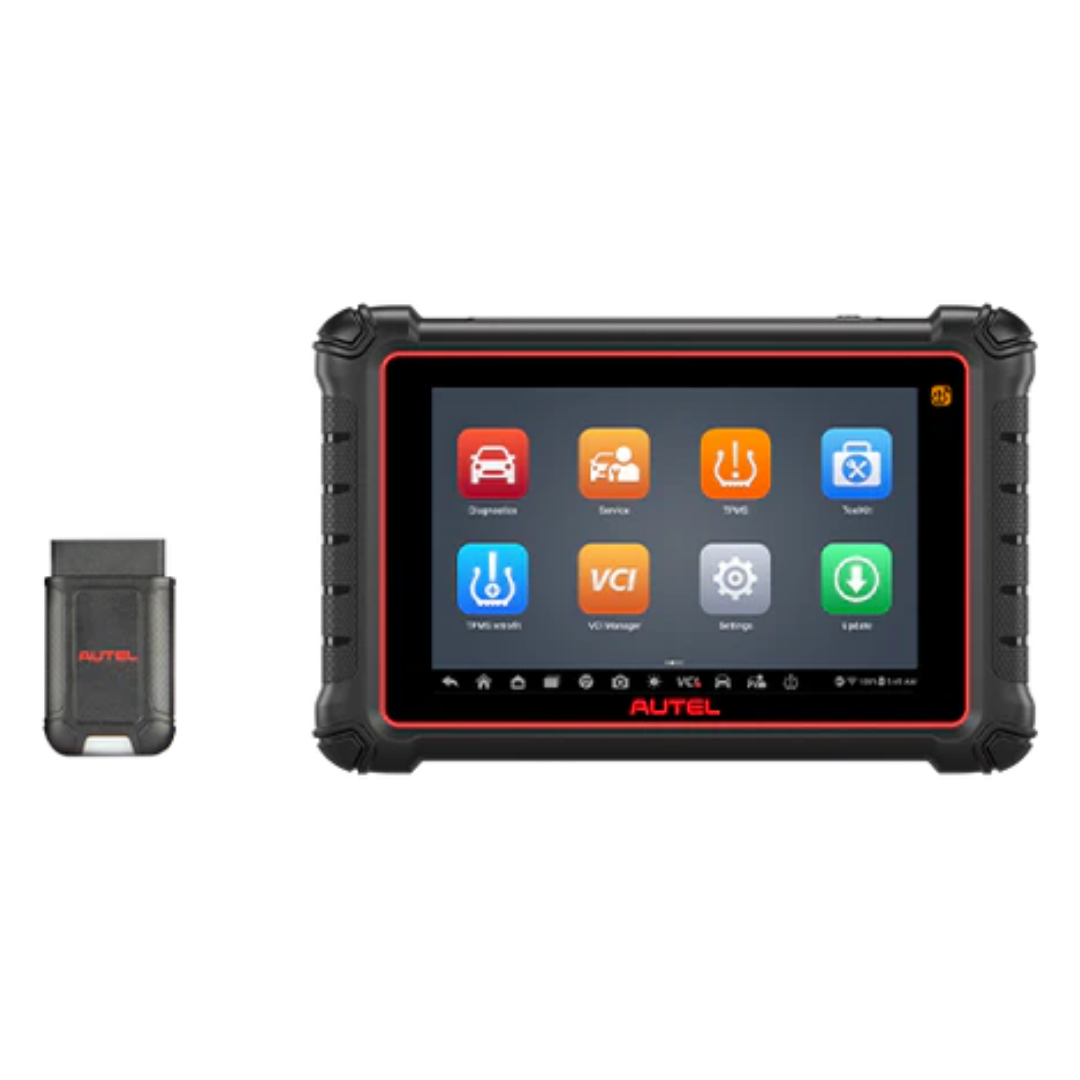

Autel MaxiPRO MP900-TS Diagnostic Scan Tool

Autel MaxiPRO MP900-TS Diagnostic Scan ToolAutomotive Diagnosis System

The new MaxiPRO MP900-TS delivers complete diagnostic functions and comprehensive TPMS solutions for all the covered makes and models. This results in an extremely purposeful and creative tool. Easy and intuitive navigation on the 8-inch touchscreen allows you to fast find what you need. The MaxiVCI V150 for wireless communication with the test vehicle and its advanced wireless technologies make it truly portable and Internet accessible.

• Extensive vehicle coverage for U.S., Asian, and European vehicle makes
• Exceptional OE-Level system for all electronic systems
• Excellent functions for reading codes, live data, ECU information and performing active test, adapation, and matching, etc.
• Expansive 40-plus menu of service and maintenance tasks
• Features DoIP and CAN FD protocols
• Smart AutoVIN technology for identifying vehicles easily
• Automatic system and software updates with real-time push notifications through the Internet
• Instant remote control tech support anytime and anywhere
• Advanced TPMS diagnostics with DTC description
• TPMS status, one step for complete TPMS health check
• Activate all known TPMS sensors
• Program AUTEL MX-Sensor
• Comprehensive OBD relearn coverage
• On-screen relearn procedure
• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
• Supports Pre & Post Scan

Autel MaxiPRO MP900-TS Product Manual

Autel MaxiPRO MP900-TS Specifications:

• Operating System: Android 11
• Processor:Quad core Processor(1.8GHz)

• Memory: 4GB RAM & 64GB ROM

• Display: 8-inch LCD capacitive touchscreen with 1280x800 resolution
• Rear Camera: 8MP

• Connectivity: USBType-C, USB2.0, Wi-Fi & Mini SD card (supports up to 64GB)

• Audio Input/Output: Input: N/A Output: buzzer

• Battery:3.7 V/7700mAh lithium-polymer battery

• Power: Charges via 5 VDC power supply

• Battery Charging Input: 5 V/3 A

• Operating Temp: 0 to 50°C (32 to 122°F)

• Storage Temp: -10 to 60°C (14 to 140°F)

• Protocols:ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898(High-speed, Protocols Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART EchoByteProtocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD

Superior Diagnostic Capabilities, Simplified Service Tasks:

• Extensive vehicle coverage fo North America, Asian, and European vehicles
• Exceptional OE-Level system coverage for all electronic systems
• Complete coding, live data, ECU information, active test, and special function capabilities
• Supports the latest communication protocols, including DolPand CAN FD
• Smart AutoVIN technology for quick and accurate vehicle identification
• Expansive 40-plus menu of service and maintenance tasks
• Detailed Pre- and Post-Scan Reporting
• Automatic system and software updates with real-time Wi-Fi push notifications
• Remote Access Technical Support Troubleshooting

Advanced Diagnostics:

• Coding supported on BMW, VW, Porsche, Hyundai, Kia, Peugeot, and Citroen vehicles
• Hidden Functions renewal supported on BMW, VW, Audi, Nissan, and Toyota vehicles
• Guided Function for VW and Audi vehicles

Outstanding Performance, Ample Storage:

• 8-inch high-resolution, responsive touchscreen display
• Android 11 operating system offers advanced streamlined functionality
• 4G+64G high-capacity storage for quicker processing and software access
• 8 Megapixel rear camera for clear and detailed images

Smart And Efficient Design:

• One-touch report viewing, uploading, sharing, and printing
• One-touch reset of vehicle service and maintenance tasks.
• One-touch software updates, download only the software of the vehicles your shop services
• One-touch support, get help from professional and technical personnel
