Autel Maxisys Ultra Professional Diagnostic Scan Tool
Description
Description

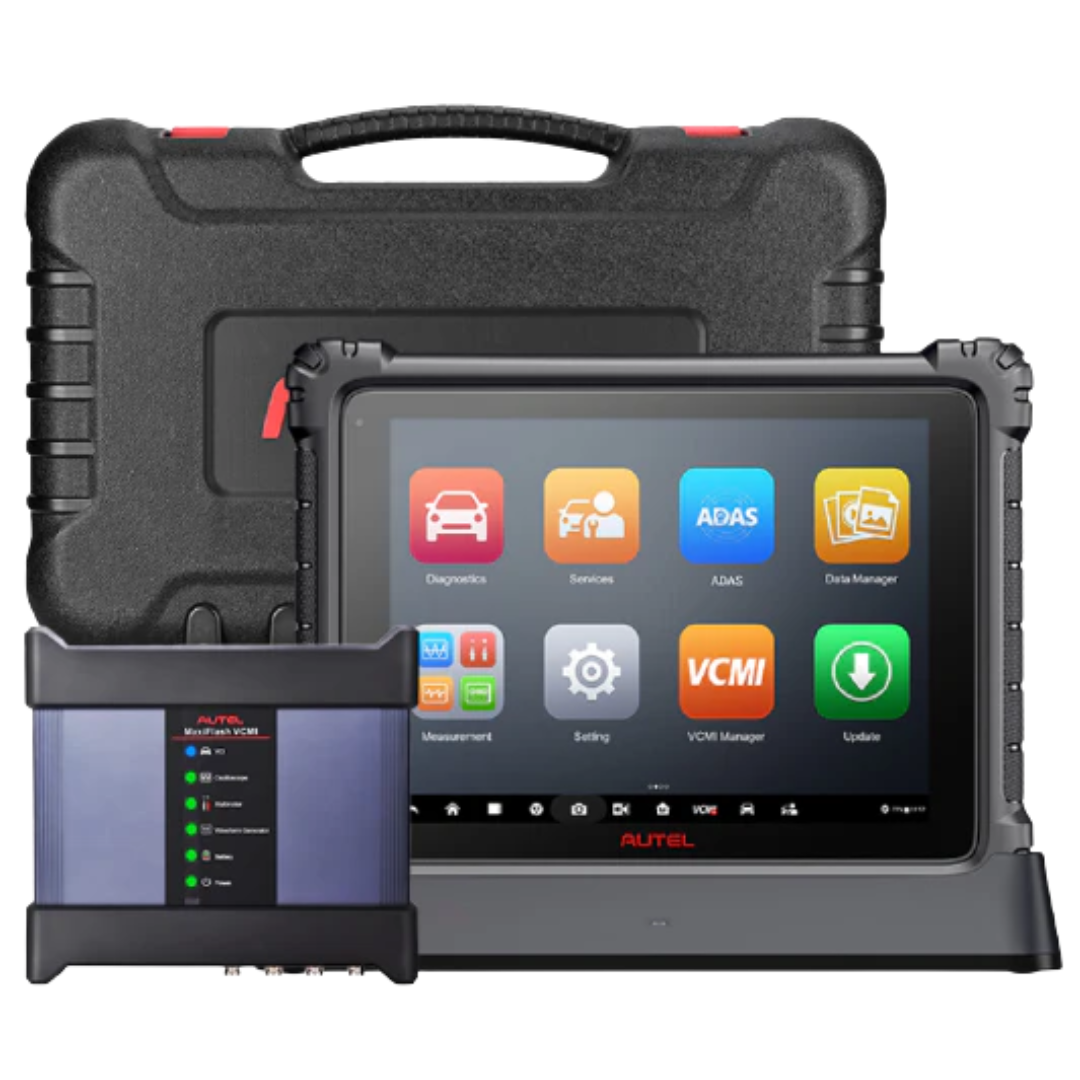

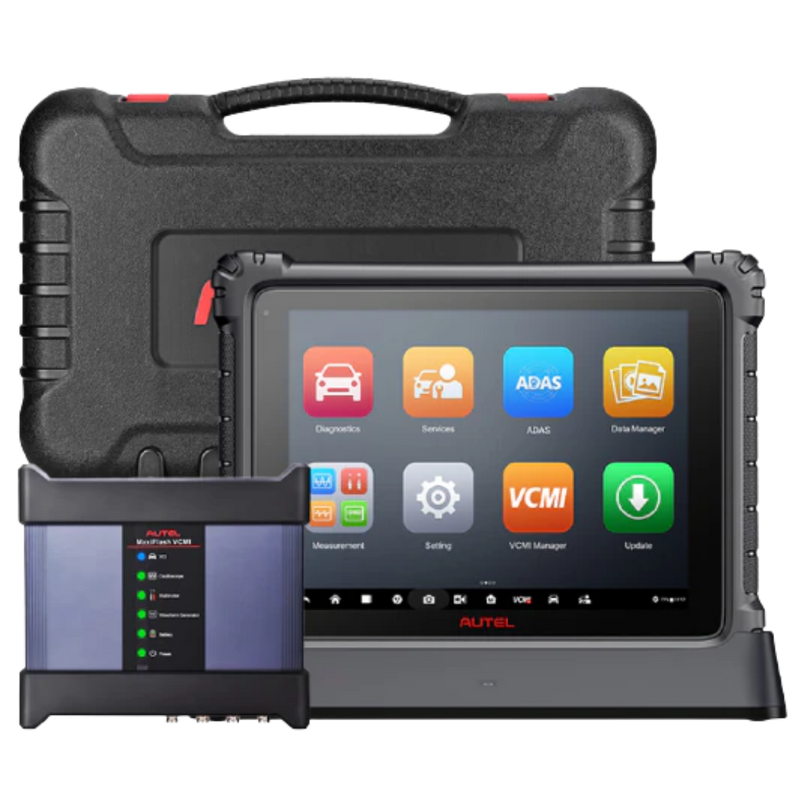

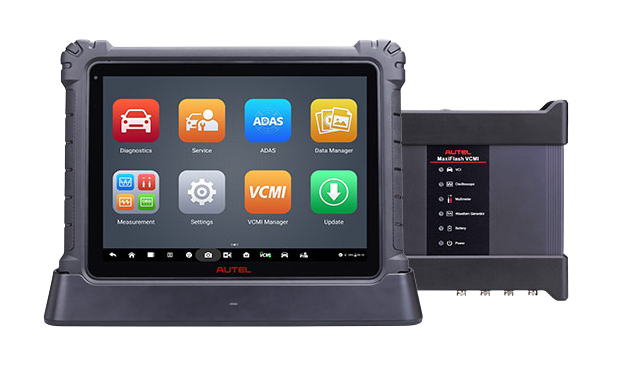

The Autel MaxiSys Ultra is Autel's flagship diagnostic tablet, covering 80+ vehicle brands with OE-level diagnostics, ECU programming, and full bi-directional control. It runs on a 12.9" 2732 x 2048 touchscreen with a Samsung Exynos 8895V octa-core processor, 4GB RAM, and 256GB storage.
It includes the MaxiFlash VCMI — a 5-in-1 device combining a VCI, 4-channel oscilloscope, multimeter, waveform generator, and CAN BUS tester. Two years of free software updates are included.

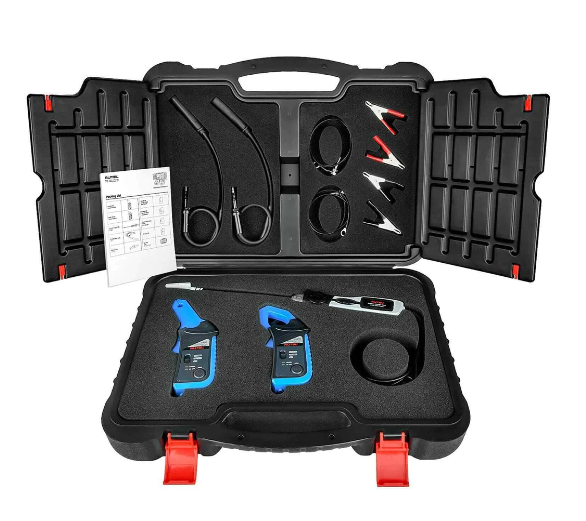

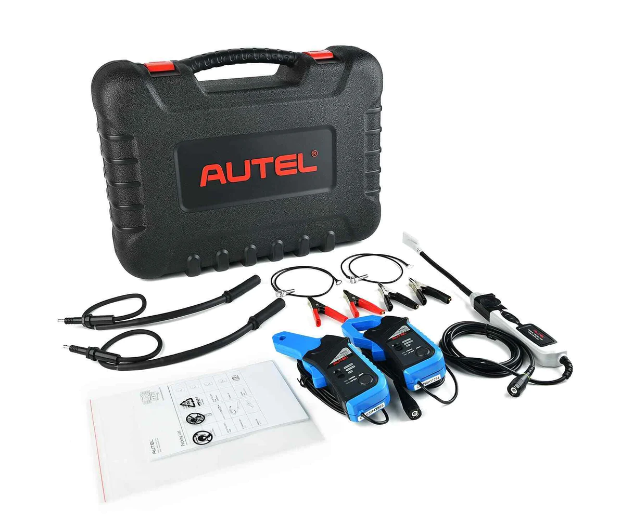

Bonus: Comes with a free MSOAK Oscilloscope Accessory Kit (valued at $850). Everything needed for high-level electrical and sensor testing out of the box.

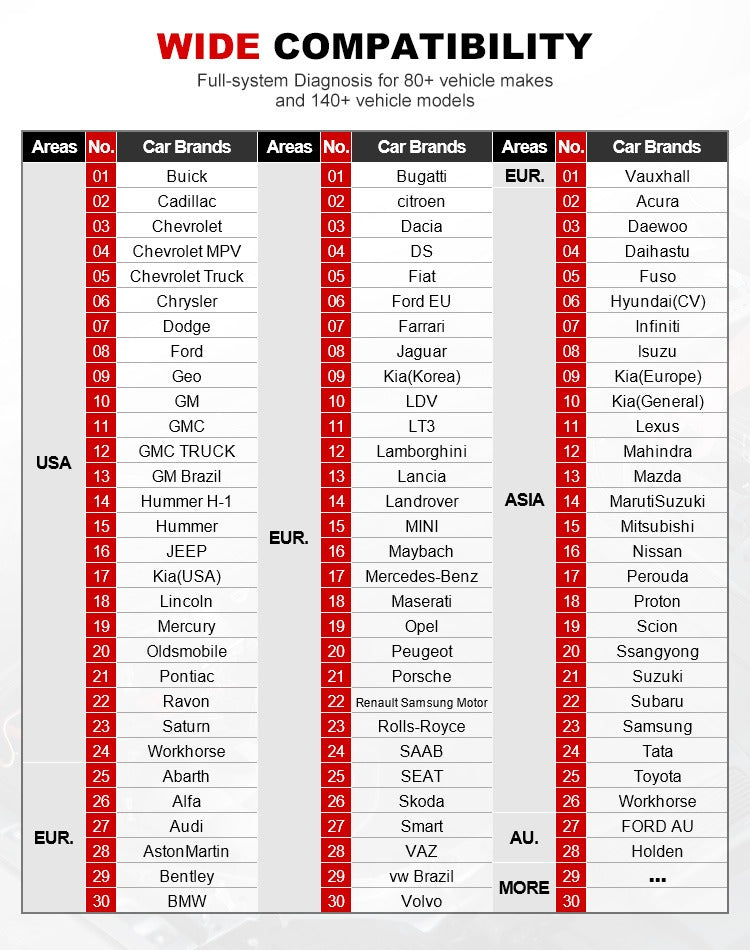

Check vehicle and function compatibility on the Autel website
Key Features

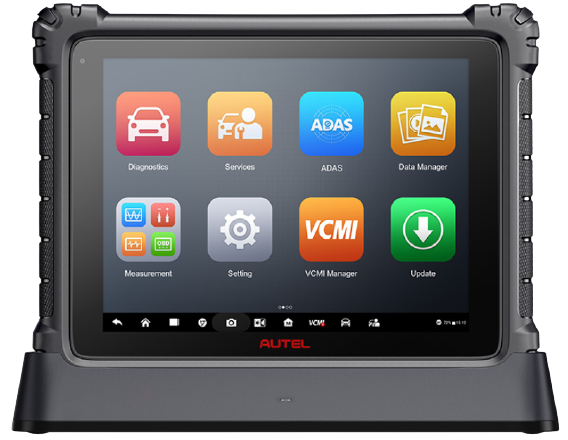

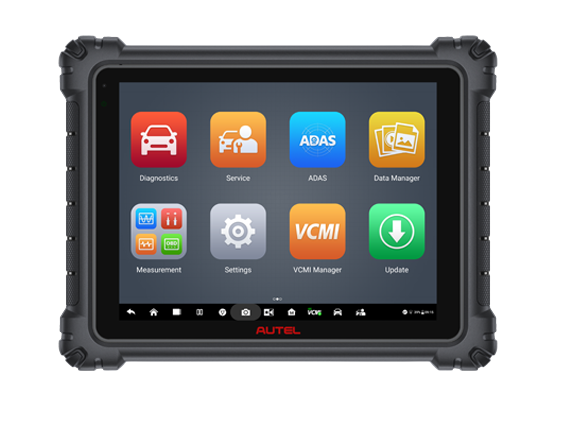

- 12.9" TFT-LCD touchscreen, 2,732 x 2,048 resolution
- Samsung Exynos 8895V octa-core processor (2.3GHz Quad + 1.7GHz Quad)
- 4GB RAM / 256GB storage
- Android 7.0
- MaxiFlash VCMI 5-in-1 — VCI, 4-channel oscilloscope, multimeter, waveform generator, CAN BUS tester
- Advanced protocols: D-PDU, DoIP, CAN FD, Mega CAN
- Full bi-directional / active test control
- ECU programming and coding for BMW and Mercedes-Benz

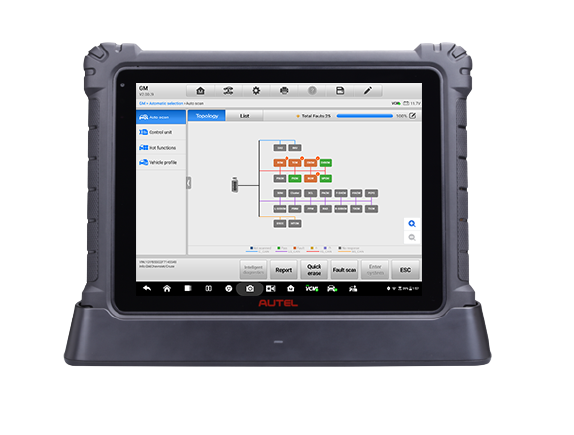

- Dynamic topology mapping — colour-coded module overview on supported vehicles
- Split-screen multi-app functionality
- AutoVIN and ScanVIN — vehicle identification via barcode or camera
- PreSCAN and PostSCAN diagnostic reporting
- FCA Secure Gateway access — requires AutoAuth account
- Dual Wi-Fi for fast downloads and connectivity

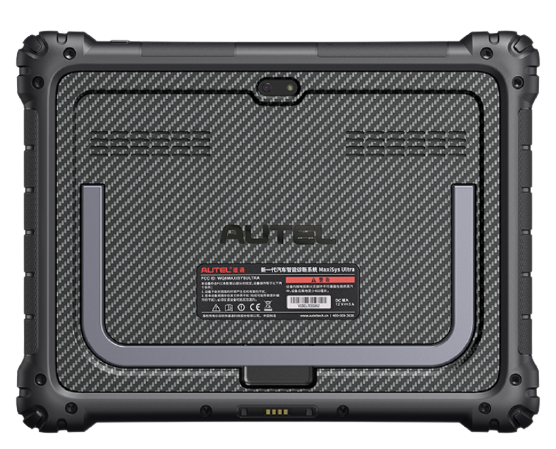

- Docking station included
- 18,000 mAh battery — up to 8 hours continuous use
- 16 MP rear camera with flash, 5 MP front camera
- Two years free software updates included

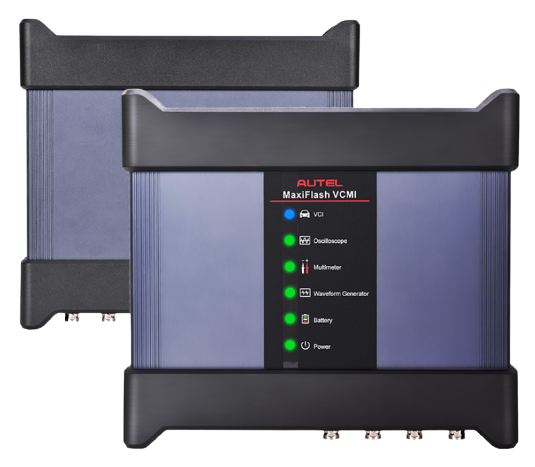

MaxiFlash VCMI — 5-in-1 Diagnostic Interface
The MaxiFlash VCMI is a 5-in-1 unit combining:
- VCI — Vehicle communication interface supporting DoIP, CAN FD, Mega CAN, J2534, and more
- 4-Channel Oscilloscope — with guided tests, waveform library, and test leads included
- Multimeter — for voltage, resistance, and current measurements
- Waveform Generator — for component simulation and testing
- CAN BUS Tester — for network diagnostics
Intelligent Diagnostics
- Step-by-step repair guidance
- Code-related technical service bulletins (TSBs)
- Troubleshooting videos
- Relevant case studies and repair solutions

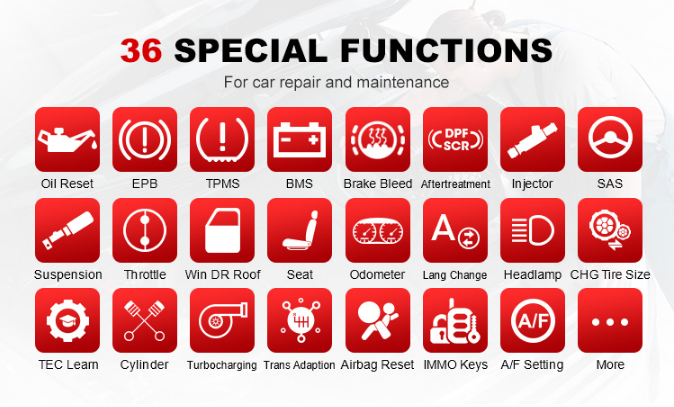

36 Service and Maintenance Functions
- Oil reset
- Battery Management System (BMS) reset
- TPMS reset
- Electronic Parking Brake (EPB) service
- DPF regeneration
- Steering Angle Sensor (SAS) calibration
- ABS brake bleeding
- IMMO functions
- Powertrain and transmission adaptation
- Injector coding
- Hybrid battery reset
- Oxygen sensor calibration
- Airbag (SRS) system reset
- Exhaust gas recirculation (EGR) adaptation
- And additional functions depending on vehicle make, model, and year
Specifications
| OS | Android 7.0 |
| Processor | Samsung Exynos 8895V octa-core (2.3GHz Quad + 1.7GHz Quad) |
| RAM / Storage | 4 GB / 256 GB |
| Display | 12.9" TFT-LCD, 2,732 x 2,048 |
| Connectivity | Dual Wi-Fi, Bluetooth v2.1 + EDR, GPS, USB 2.0, HDMI, SD Card (up to 256 GB) |
| Rear Camera | 16 MP autofocus with flash |
| Front Camera | 5 MP |
| Battery | 18,000 mAh lithium-polymer, ~8 hours |
| Working Temp | 0°C to 50°C |
| Storage Temp | -20°C to 60°C |
| Dimensions | 366.5 x 280.9 x 34 mm |
| Weight | 2.18 kg |
| Protocols | DoIP, PLC J2497, ISO-15765, SAE-J1939, UDS, CAN FD, J1708, J1850 PWM/VPW, and more |

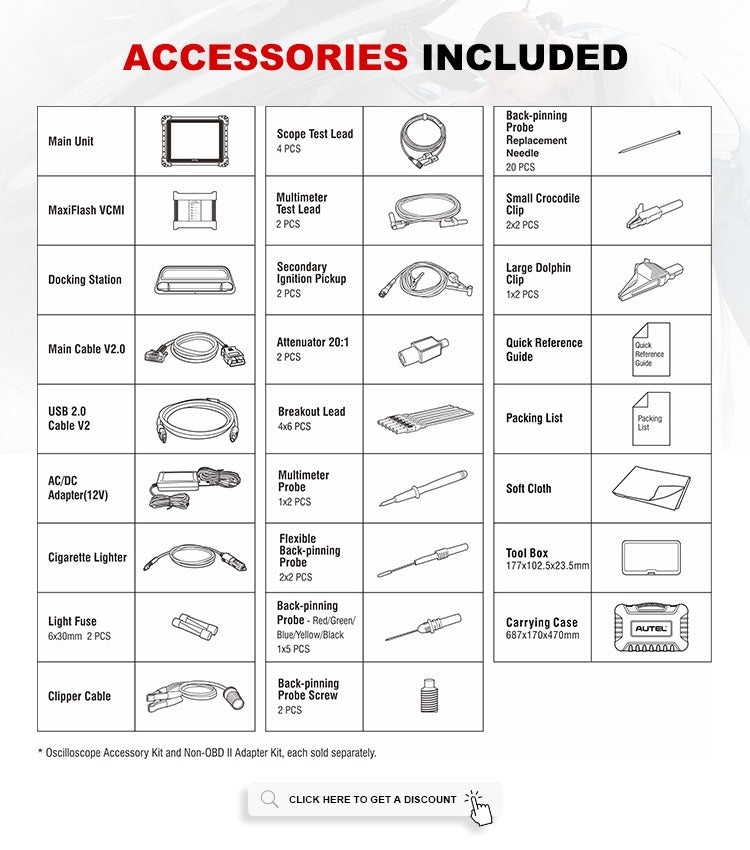

Kit Includes
- MaxiSys Ultra tablet
- MaxiFlash VCMI (5-in-1 device)
- Free MSOAK Oscilloscope Accessory Kit
- Docking station
- Main cable V2.0
- USB 2.0 cable V2
- AC/DC cable V2
- Cigarette lighter adapter
- Light fuses x2
- Clipper cable
- Scope test leads x4
- Multimeter test leads x2
- Secondary ignition pickups x2
- Attenuators 20:1 x2
- Breakout leads (4 sets of 6 pieces)
- Multimeter probe x2
- Flexible back-pinning probes (2 sets of 2 pieces)
- Back-pinning probes x5 (Red, Green, Blue, Yellow, Black)
- Back-pinning probe screws x2
- Replacement needles x20
- Small crocodile clips (2 sets of 2 pieces)
- Large dolphin clips x2
- Soft cloth
- Tool box and carry case
- User manual
Optional Add-Ons
- Autel MaxiBAS BT506 Battery and Electrical System Tester
- Autel MaxiVideo MV105S Digital Inspection Camera
Have questions about vehicle coverage or compatibility? Call our team directly to speak with an experienced technician.
Why Buy From Premium Diagnostic Equipment?
- Free shipping Australia-wide
- 12-month warranty included
- 30-day money back guarantee
- Australian support team — call us direct for pre-sale advice on specs and compatibility
