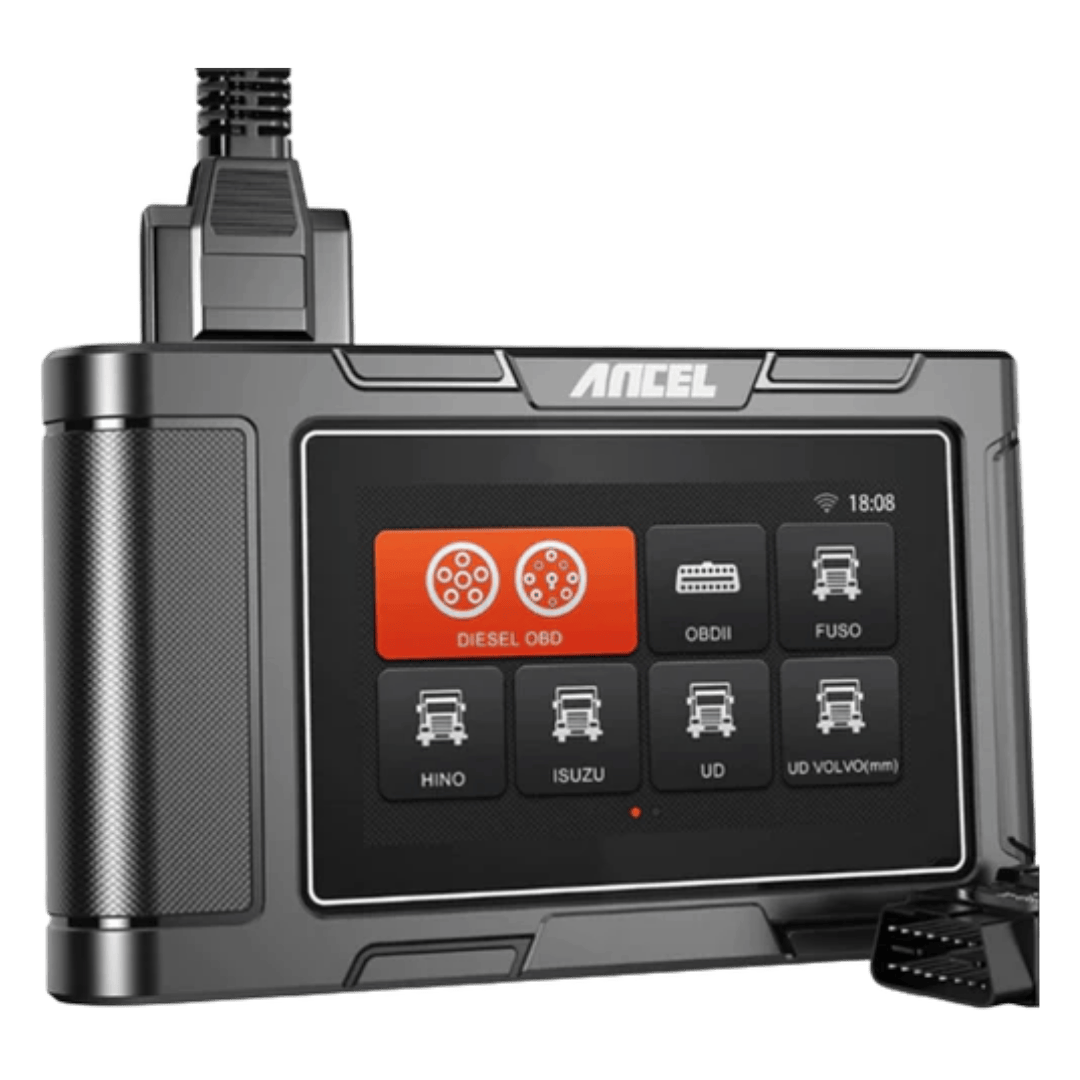

Ancel HD3200 HD 12/24V Diagnostic Scan Tool

The Ancel HD3200 offers full system diagnostics on most HD 24V trucks and also basic diagnostics on 12V light vehicles



Trucks- Full System Access to:

1, Engine drive system check
2, Automatic Transmission Diagnostic
3, ABS EPB Anti-lock Brake System
4, SRS Airbag Crash Data Reset
5, SAS Steering Angle Sensor Reset
6, Oil Light Serive Reset
7, Suspension System Adjustment
8, Audio System
9, IMMO Immobilizer System
10, ESP ASC Brake System
11, SAS Steering Angle System
12, Air Conditioning System
13, DPF System
14, Air Condition System
15, Auto Headlamp System
16, ACC System
17, Car Radio Audio System
18, Car Door Windows System
19, Battery Manager System
20, TPMS Tire Pressure Monitor System and more, Support Most of Car Drive, Power-train, Chassis and Body System Diagnose, Error Scan, Reset, Activate,



General Functions (Including Global OBD II coverage)

1) Read ECU Information

2)Read and Erase Fault codes

3)Read Live Data

4)Read Freeze Frame

5)Graph Live Data

6)Screenshot Function

7)Graph live data such as:

- Engine speed

- Engine ECU temperature

- Percent acceleration pedal position

- Engine intercooler temperature

- Engine coolant temperature

- Battery voltage

- Alternator voltage

- Ambient air temperature

- Air inlet temperature

-Set measurement units in SAE English/Metric.

-Free lifetime Internet upgrades



Wide Compatibility:
This HD3200 scan tool integrates commercial vehicle OBD standard diagnostic protocols, including SAE J1939, SAE J1708, SAE J1850 PWM, SAE J1850 VPW, ISO 14230-4, ISO 9141-2, ISO 15765-4, and ISO 27145-4.
Please check the protocol of your vehicle to ensure its covered

➤ This truck scanner is capable of reading and clearing trouble codes of all major systems of truck, including engine, airbag, transmission, ECU/BCU, VCS, ABS, SRS, EBS, DCU, AT, clutch system/brake system/meter system/battery system/inverter system/hybrid system/immobilizer system, etc. Special Functions perform various component adaptations of the control module under test, allowing you to calibrate or configure certain components after making repairs or replacements.

Graph live data : Engine speed, Engine ECU temperature, Percent acceleration pedal position, Engine intercooler temperature, Engine coolant temperature, Battery voltage, Alternator voltage, Ambient air temperature, Air inlet temperature, Set measurement units in SAE English/Metric., Internet upgrade, General Functions : Read ECU Information, Read and Erase Fault codes, Read Live Data, Read Freeze Frame, Graph Live Data, Screenshot Function.



ANCEL HD3200 supports DPF Regeneration  & Oil Reset Service

DPF Regeneration:for Hino,Isuzu, Fuso, UD, Hyundai, Kia

Oil Reset Service:for Hino,Isuzu,Fuso,Kia,Hyundai


➤ The HD3200 scanner comes with a new UI, new processor, and new software, which aims at providing you with the best diagnostic experience. One-key update, 5” TFT color screen and multi-language. The response and operating speed increased by 60% at the same time. This durable tool is ruggedly built, and perfect for both shop and road tests. It can be used directly out of the box.



HD3200 Product High Configuration Hardware

CPU: Quad-Core ARM Cortex-A7
RAM: 1GB
Flash: 8GB
Display: 5 inches LCD, resolution ratio 800*480
WIFI: 802.11b/g/n 2.4GHz
USB Interface: Type C interface
Diagnose interface: DB15 interface
Operating voltage: DC 10V~36V/3A
Printer: Optional



Package List

1 x HD3200 Diagnostic Scan Tool

1 x Main Test Line

1 x 6 Pin & 9 Pin Connector

1 x OBDII-16 Pin connector

1 x Hyundai-Diesel OBD-16 Pin Connector

1 x HD3200 Scanner User Manual



Free Shipping

After-sales support

Lifetime free updates

Product will come with a one year warranty

30 day money-back guarantee - we guarantee you'll love it or you'll get your money back
