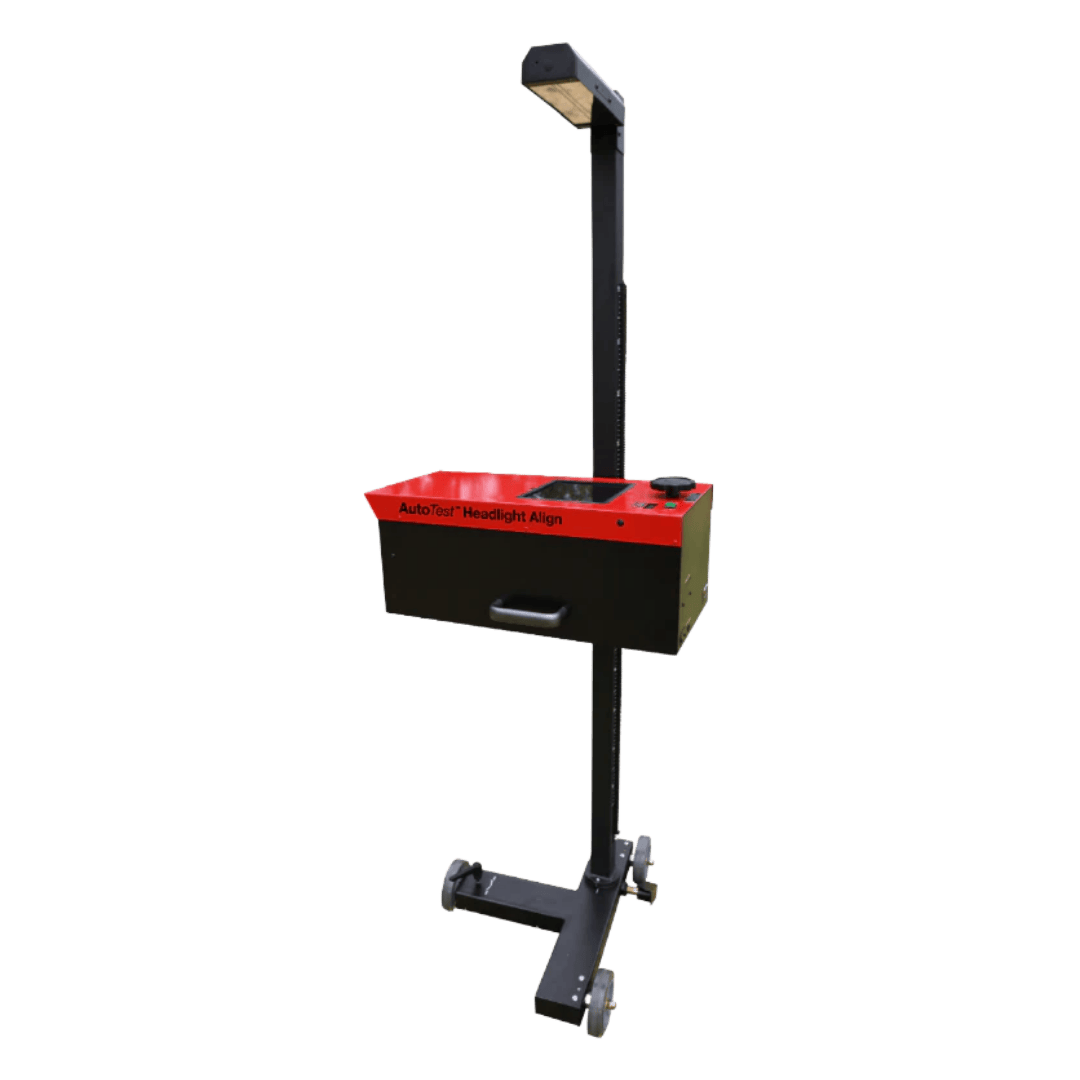

AutoTest Headlight Aligner | Headlight Aimer

Name: AutoTest Headlight Aligner | Headlight Aimer
Brand: Premium Diagnostic Equipment
SKU: ATP-MT-HDALGN
Price: 1399.00 AUD
Availability: InStock

$1,399.00

Pickup available at Gold Coast

Usually ready in 24 hours

Delivery and Shipping

Shipping Information

Orders placed before 12pm AEST Mon-Fri will be dispatched same day

Standard Shipping in Australia 2-9 business days - FREE

Express Shipping in Australia 1-3 business days - Shipped via Australia Post Express. In most cases you will get your order the next day if it was placed before 12pm but we can not guarantee this overnight service.

TNT Overnight Express - 1 business day if order is placed before 12pm.

To check freight costs enter your details and address at check out

Local Pick Up - Same day from Gold Coast warehouse providing we have stock on hand, please call us to confirm 07 3180 6771

Couriers we use - Most orders are shipped via Australia post. We may use TNT/FEDEX or Aramex depending on your location or preference.

Description

Headlight Aimers On Backorder Until 30th July 2026

STANDARD HEADLIGHT AIMER

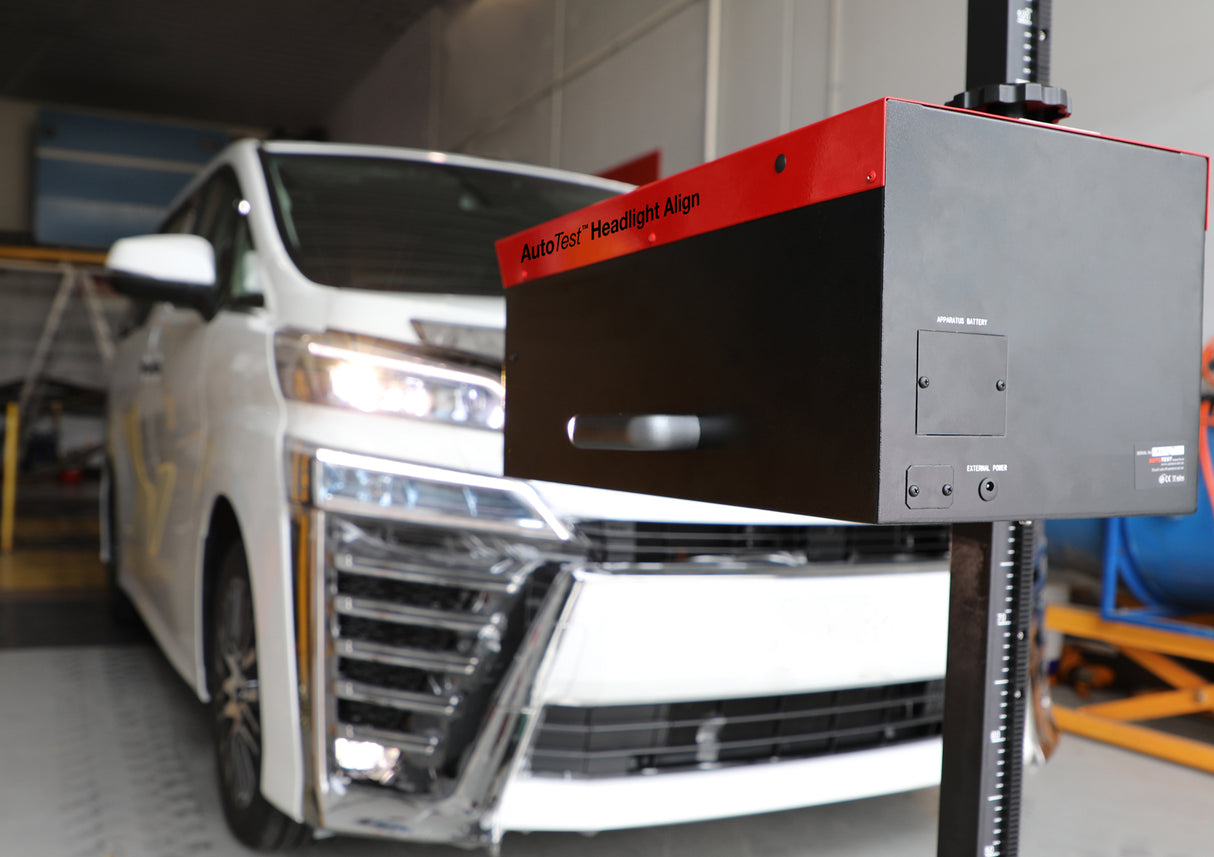

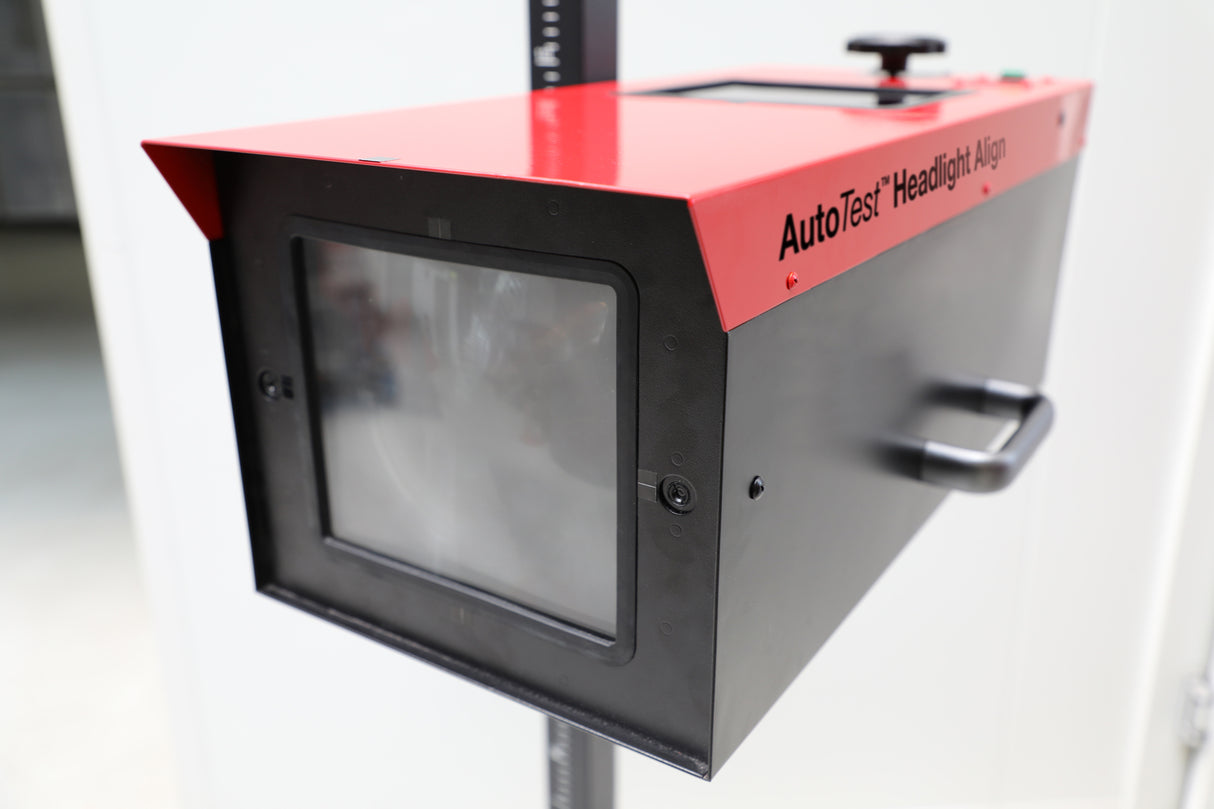

The AutoTest Headlight Align is a professional quality beam aligner suitable for all kinds of headlamps (high, low, fog including XENON and LED lamps). It is supplied with assembly, operation and calibration manuals and a declaration of conformity.

THE MOST COMPREHENSIVE HEADLIGHT AIMER IN AUSTRALIA

Features

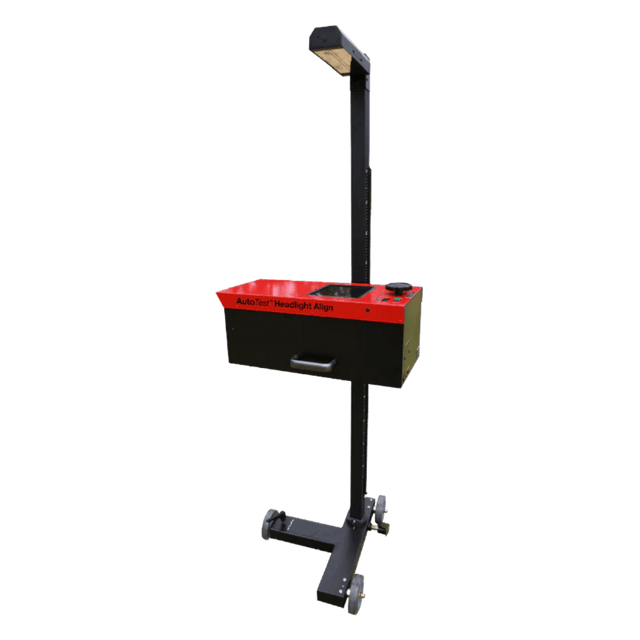

Robust anti-tip base fitted with large castors for easy maneuvering.
Laser pointer for easy positioning of the unit.

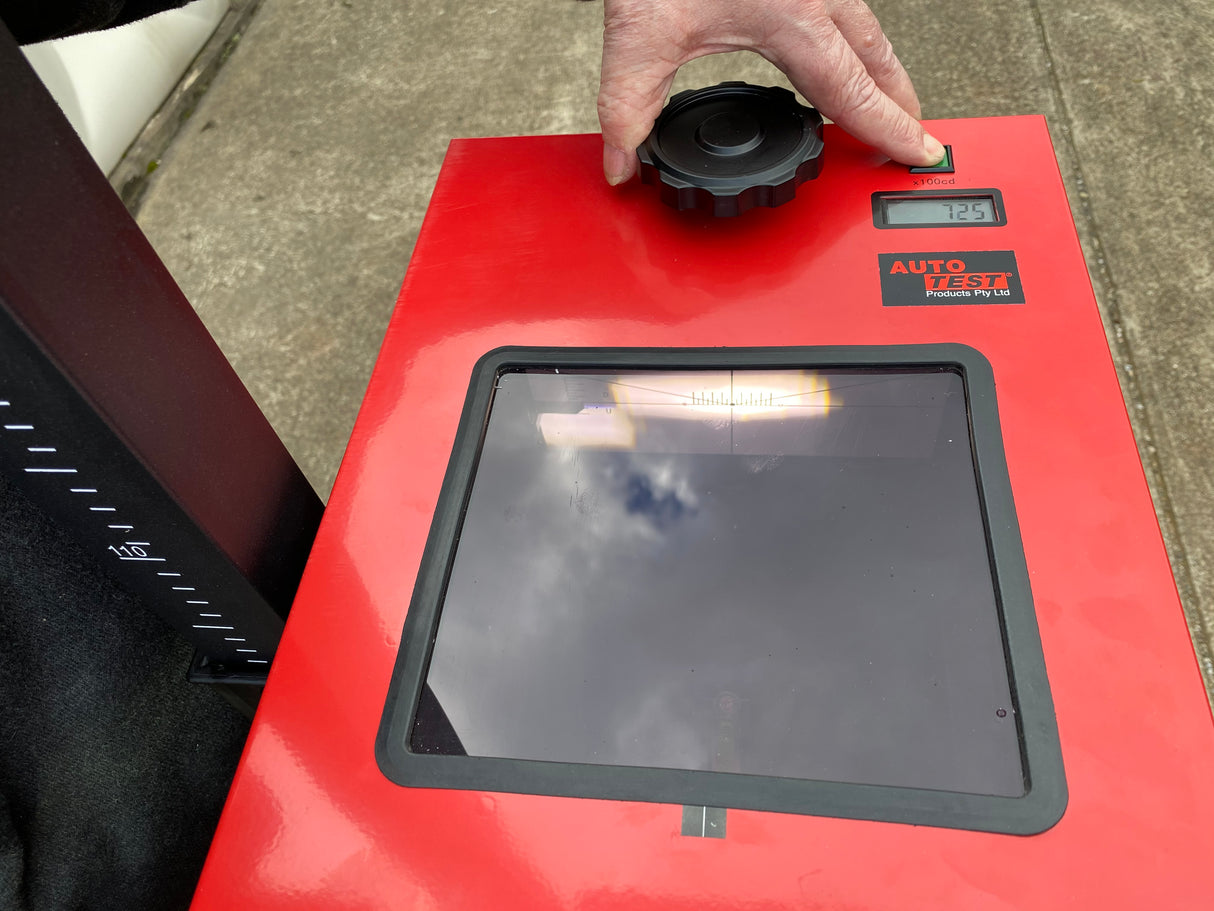

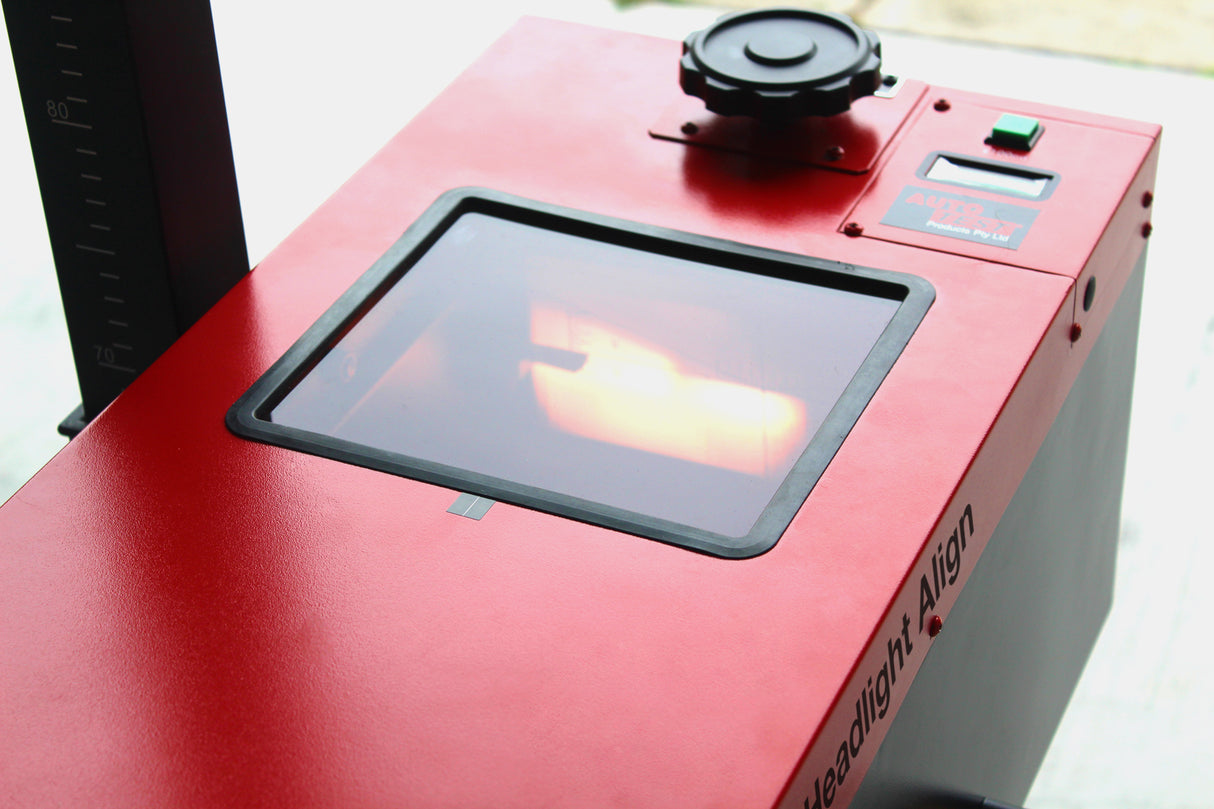

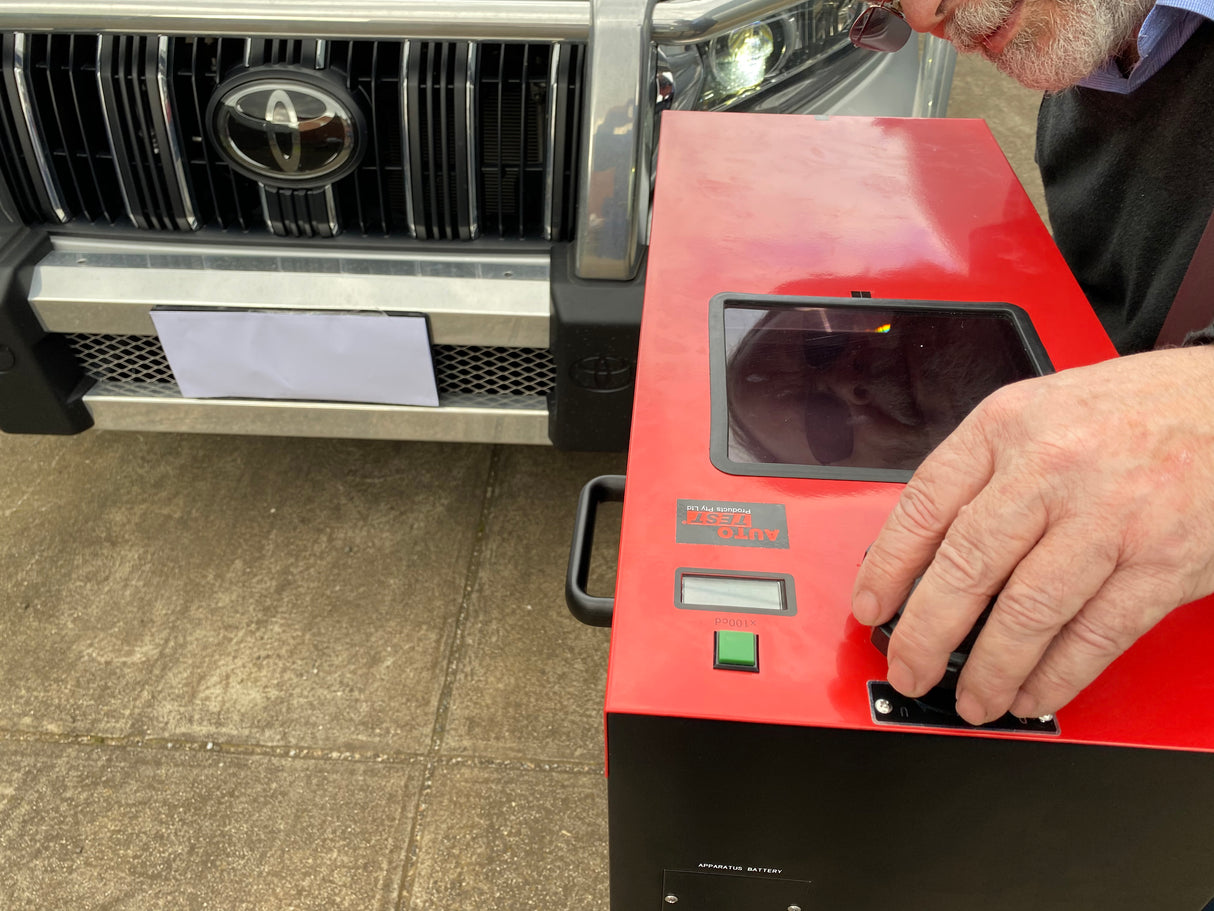

Digital lux meter and wide measuring window.
Manual optic alignment visor for easy parallel alignment.
Easy-to-use height adjustment lock mechanism.
Compliant with ADR 46 (Vehicle Standard – Australian Design Rule 46/00 – Headlamps)
Compliant with ECE R48 – Rule 48

IMPORTANT: When testing European and many new cars, the headlights lower if the car is not running. You may require to have the engine running to test accurately.

Specifications

Operating conditions

Ambient Temperature: -10°C to 40°C
Relative Humidity: Less than 95%
Atmospheric Pressure: 70.0KPa – 106.0KPa
Power supply: DC9V battery or 12v car battery or cigarette lighter (maximum input voltage 25V)
Floor: The instrument and the vehicle must be placed on the same surface, Gradient and out of level shall not exceed 3%.

Measuring range

Central elevation of the headlight: 30cm – 1,400cm
Luminous intensity: 0 – 100,000cd
Optic axis deviation of high beam and low beam
- Left – Right: L 4%/10m – R 4%/10m (L 40cm/10m – R 40cm/10m)
- Up – Down: U 2%/10/m- D 4%/10m (U 20cm/10m – D 40cm/10m)

Other

Measuring distance: 500mm
Power consumption: <0.5W
Net Weight: 26kg

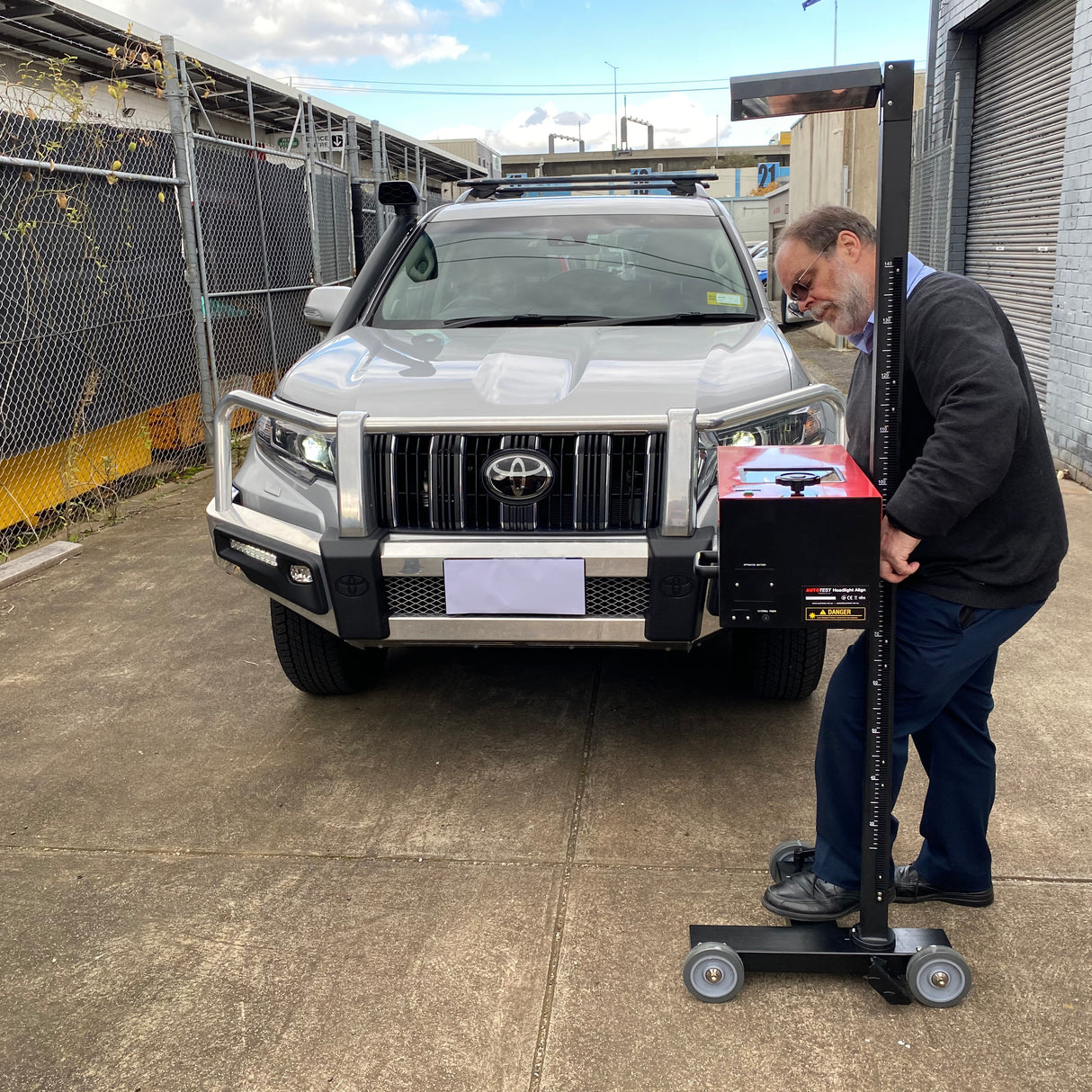

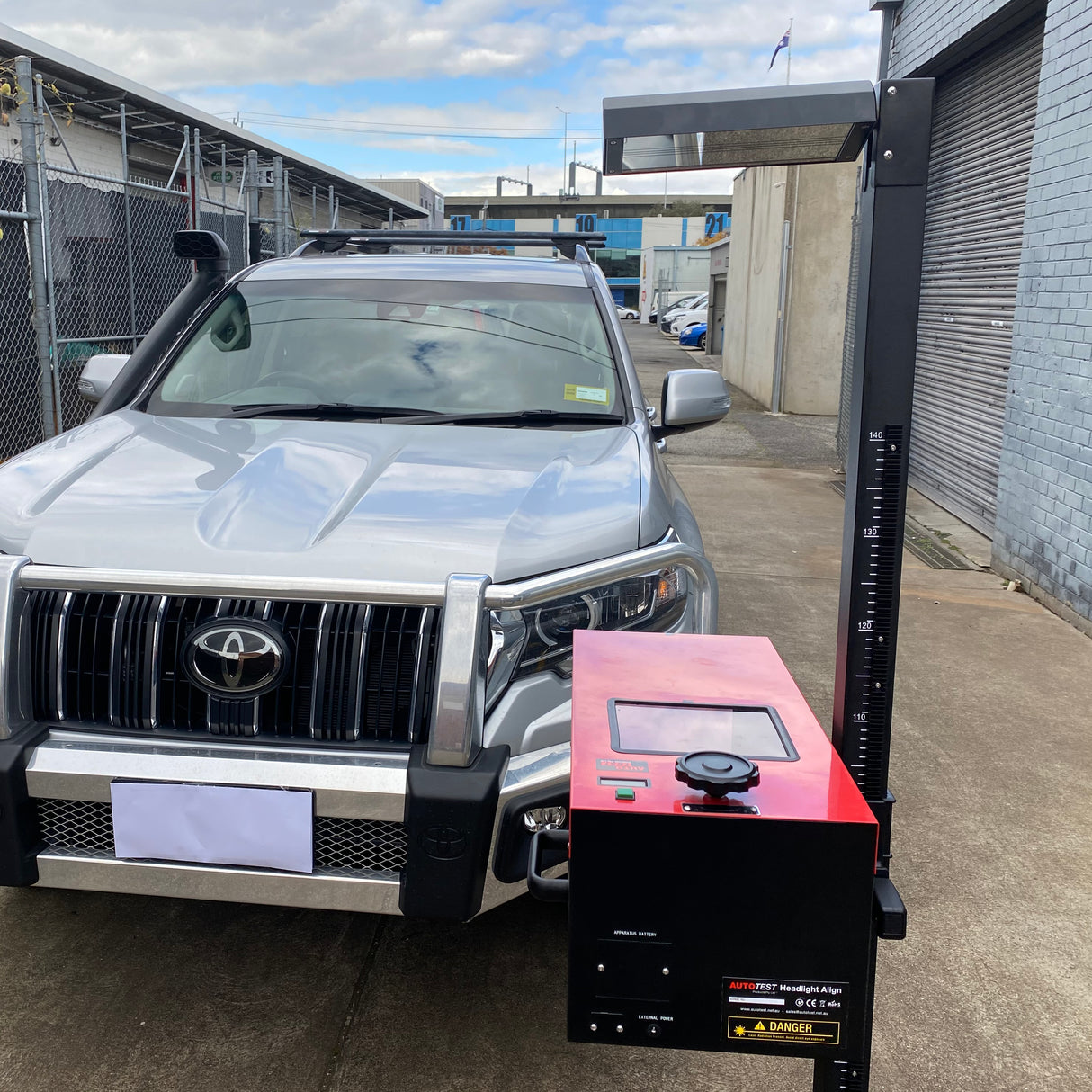

Testing headlight beams using the Headlamp Screen and Testing Bay method requires 12m x 2.5m on a level/flat ground. Using the AutoTest Headlight Align, you only require 5m x 2.5m for accurate and compliant testing. Making it an effective use of your testing/garage space.
