Quicklynks BA106 12V Battery Tester for Lithium and Lead Acid + Lif...
Description
Description

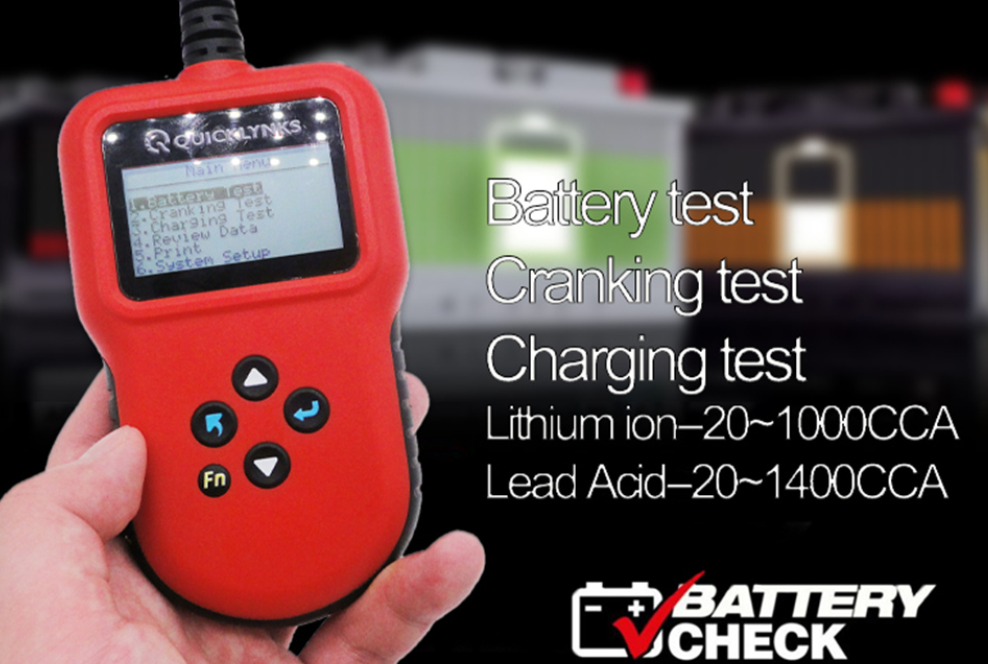

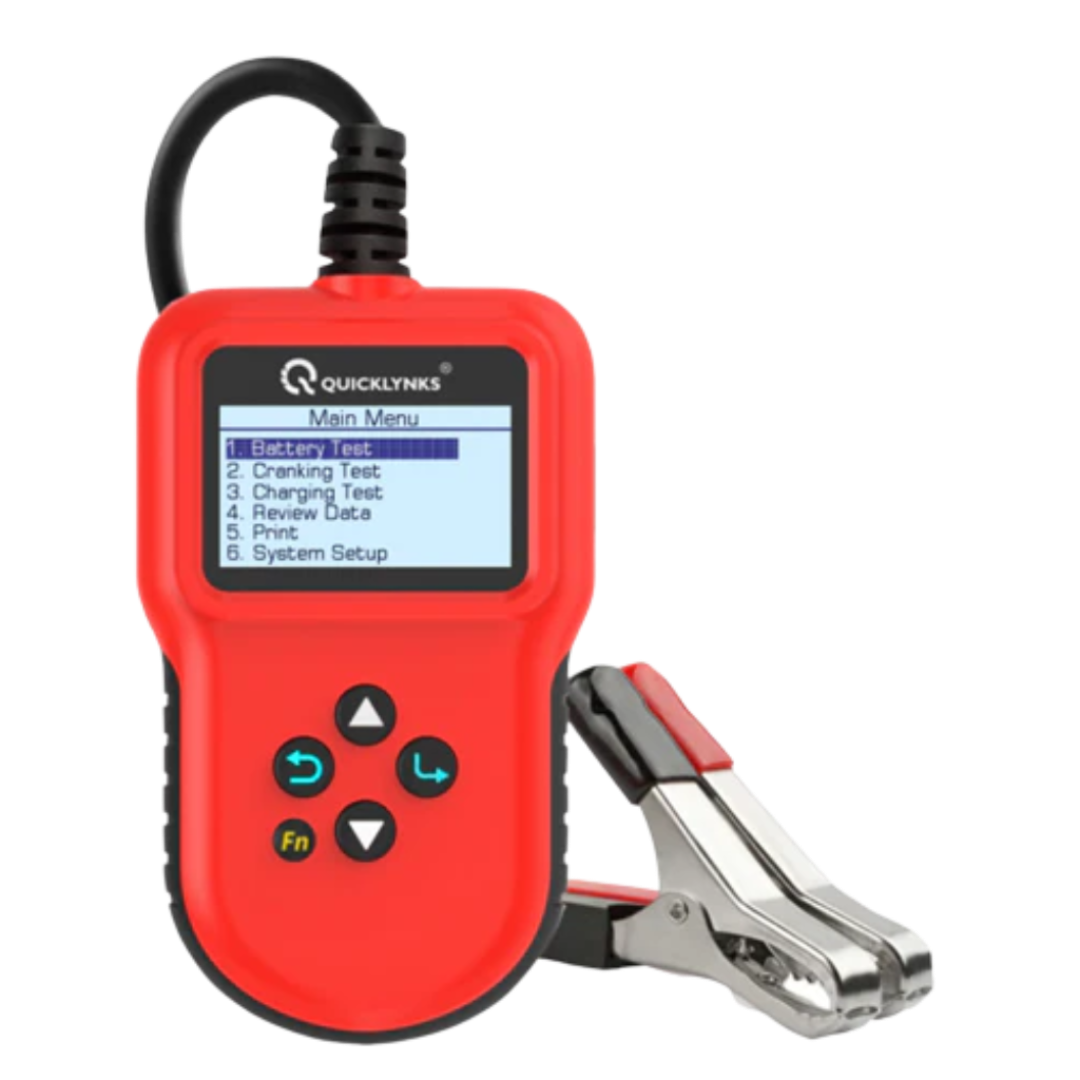

Quicklynks BA106 12V Battery Tester for all batteries including Lithium batteries (LifePo4)

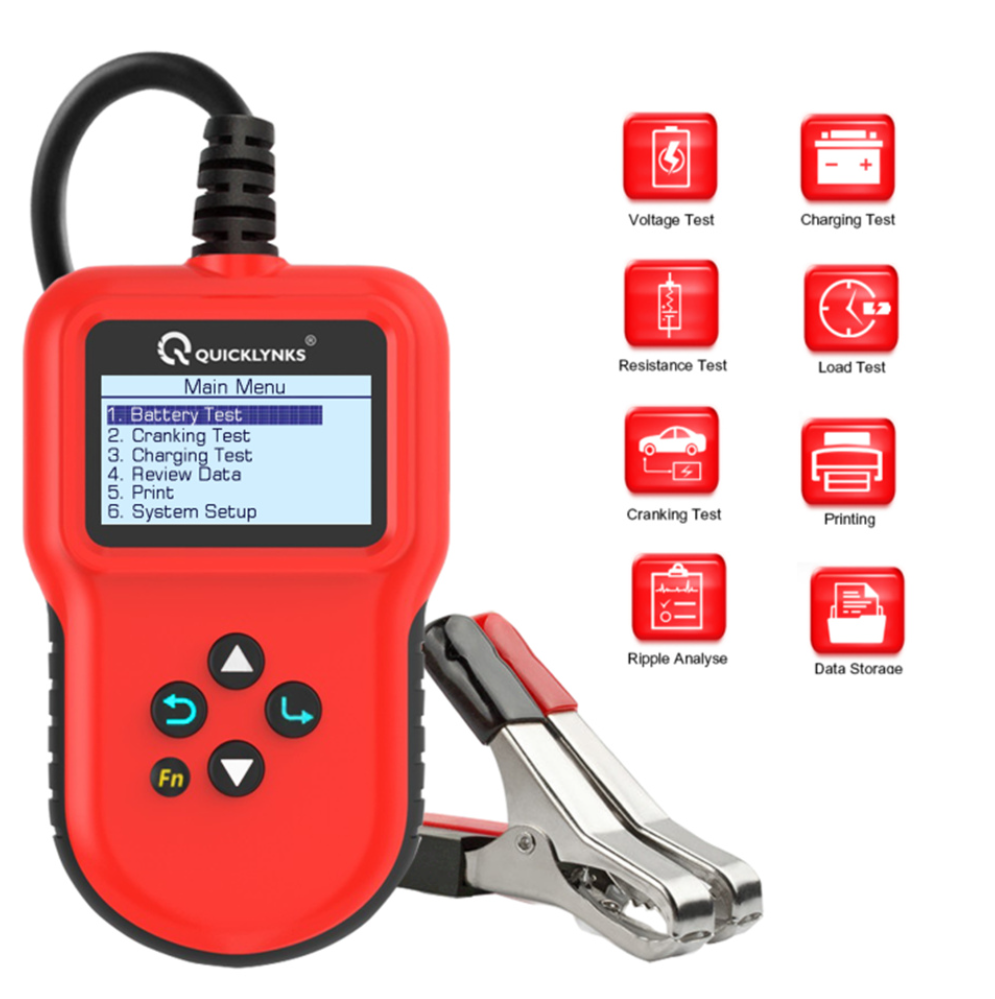

Features
1. Print data by PC via USB cable
2. Test cranking and charging (alternator) systems
3.Test 12V lead-acid and lithium batteries (LifePo4)
4. Test battery voltage, CCA, internal resistance, health and charge
5. Analysis result: Good, Recharge, Charge Retest, Replace, Bad Cell & Replace
6. One-click quick function for real-time voltage test and same parameter batch batteries testing
7. Protection of short-circuit and reverse connection
8. Review latest test result
9. Language: English, German, French, Spanish, Italian and Dutch
Test Range: JIS: 26A17-245H52 DIN/IEC: 20-1400 CCA/BCI/CA/MCA/EN/SAE: 20-2000 GB: 20-220Ah
Used to test a wide range of 12V batteries:
Starting[SLI],
Deep Cycled and Marine of Wet(Flood),
VRLA or Maintenance Free(MF),
Sealed Maintenance Free(SMF),
Absorption Glass Mat(AGM),
GEL battery,
EFB battery,
Lithium battery.
To test lithium batteries on the menu please select scooter
Support Battery Standards
CCA:
BCI:
SAE:
CA:
MCA:
DIN:
IEC:
JIS:
EN:
GB:
|
Language |
English, French, German, Spanish, Italian, Dutch |
|
Support |
12V car battery& charging/starting systems |
|
Test range |
Lead acid:100~2000 CCA Lithium:10~1000 CCA |
|
Rating system |
SAE, CCA, BCI, DIN, EN, IEC, GB, CA/MCA, JIS (battery type No.) |
|
Input range |
8~30V |
|
Display |
Large ，128*64 easy to read LCD ,Backlit |
|
Test lead |
100cm/4 inch |
|
Working Temperature |
0 to 50°C (32 to 140 F°) |
|
Storage Temperature |
-20 to 70°C (-4 to 158 F°) |
|
Certificate |
CE ROHS PAHS REACH |
|
Warranty |
One Year |
|
Size |
120*75*20mm(L*W*H) |
|
Weight |
200g |
Package Including:
1pcs x BA106 Vehicle Battery Analyser
1x CD Disc for PC application
1x USB cable for data transfer
