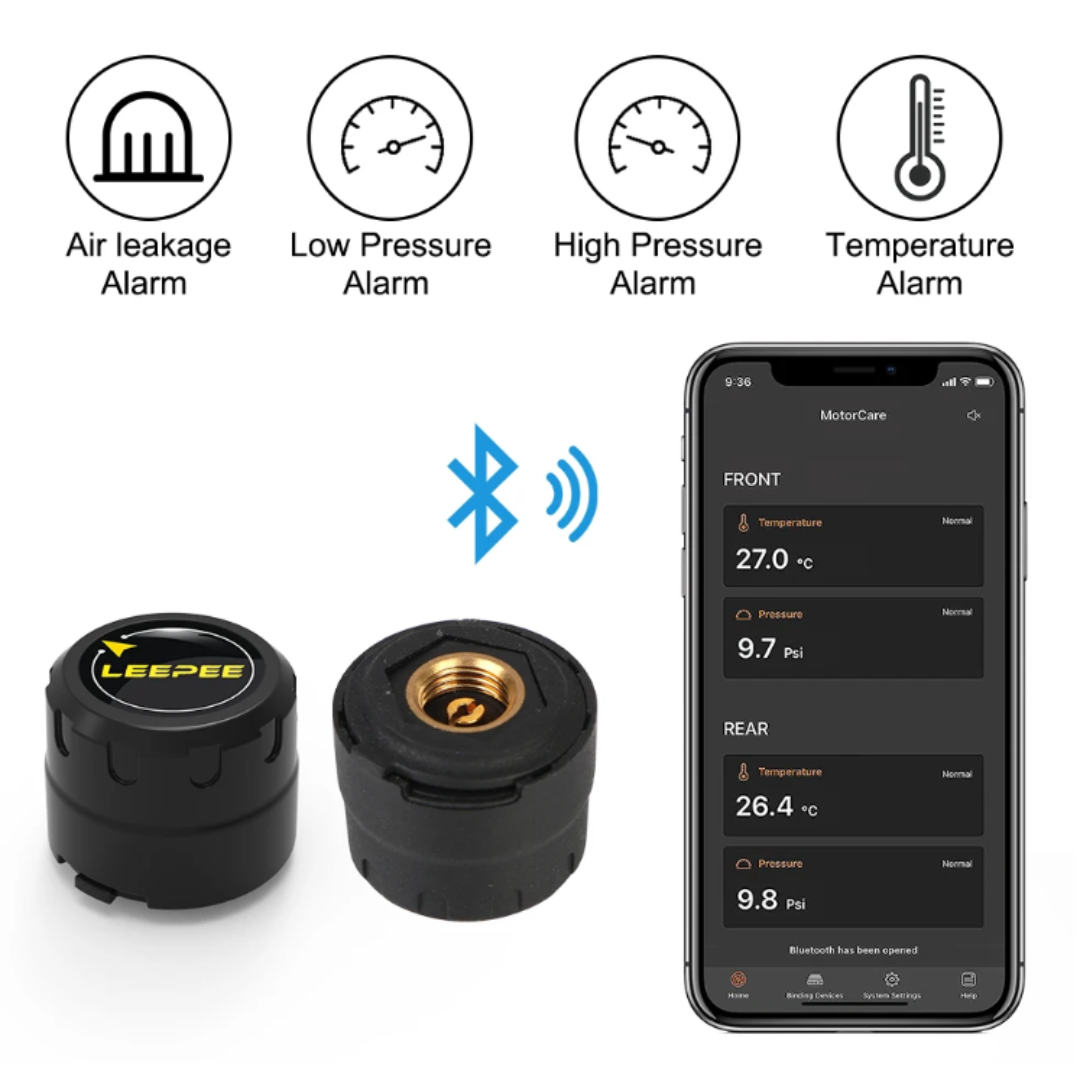

Motorcycle TPMS System With Bluetooth Sensors Tyre Pressure Monitoring for Motorbikes

Product Features

• High Quality: This motorcycle Tyre Pressure Monitoring System (TPMS) ensures top performance under harsh the Australian conditions.
• Dynamic Monitoring: Continuously monitors tyre pressure and temperature to improve fuel efficiency, extend tyre life, and enhance driver safety.
• Long Battery Life: Bluetooth-compatible external sensors boast a long-lasting battery life of approximately 3-5 years.
• Easy Operation via App: Compatible with Bluetooth 4.0 or higher, the TPMS can be managed through an app available for both iOS and Android. Ensure to grant location permissions during Bluetooth scanning for optimal functionality.
• High Accuracy: Equipped with two waterproof, anti-corrosion, and anti-theft sensors that offer precise real-time monitoring of pressure and temperature.

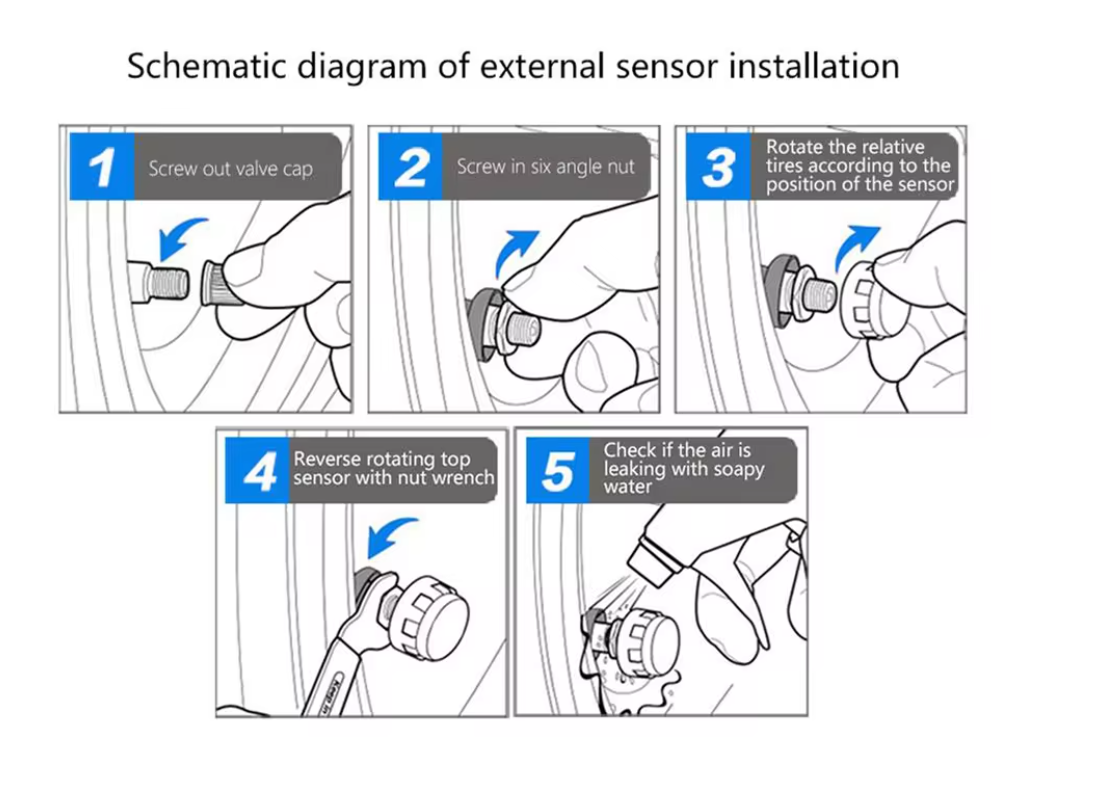

• Simple Setup: Install in just 10 minutes:
  1. Remove tyre valve caps and place anti-theft screws.
  2. Install the outer sensor on the tyre valve.
  3. Hold the sensor and tighten the anti-theft screw.

Warnings

• Supports mobile phones with Bluetooth 4.0 or above. Lower versions are not compatible. Some Android phones may experience slight data transmission delays due to hardware variations.
• Always prioritise safety and avoid distractions from the app while driving.
• If tyre pressure changes rapidly, stop immediately and inspect the tyre.
• While the TPMS can read pressure and temperature, it cannot prevent sudden tyre issues like blowouts. Always use high-quality tyres.
• Very minor tyre pressure loss over time is normal and unrelated to the product installation.

Outer Sensor Installation

• Each sensor has a unique ID code. Ensure each sensor is installed on the correct tyre valve.
• When tightening the sensor, open the app, select "Auto Pair," and press the "Search" button to bind the sensor.

Attention

• Follow the installation marks and use corresponding tools (screws and wrench) for sensor installation or removal.
• After installation, check for any tyre leakage.

Sensor Specifications

• Processor: ARM M0
• Working Voltage: 3V
• Working Current: 100μA
• Standby Current: ≤ 2.2μA
• Wireless Frequency: 2.4GHz
• Transmitting Power: 0dBm MAX
• Wait Time: ≤ 5s
• Display: App

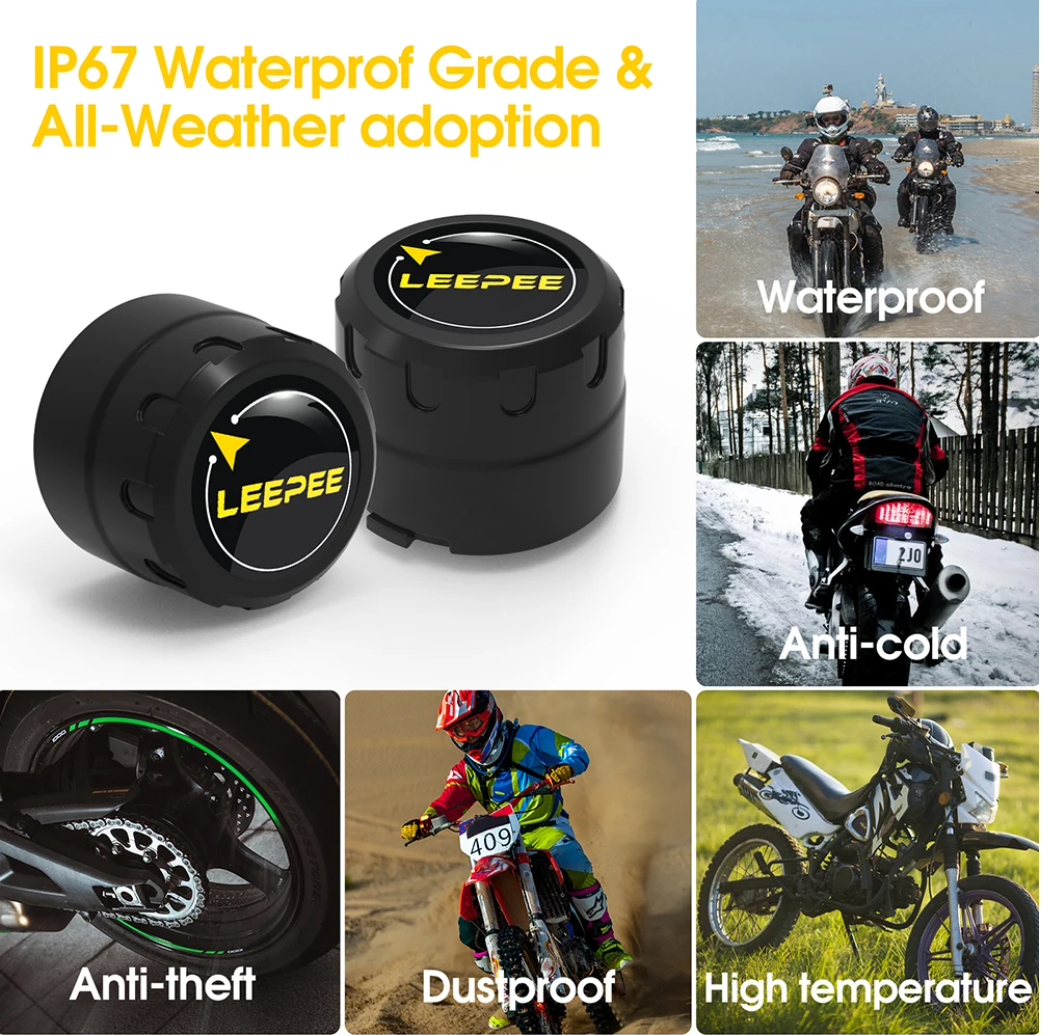

• Waterproof Standard: IP67
• Working Humidity: 95% MAX
• Pressure Detection Range: 100-1300kPa
• Pressure Accuracy: ±10kPa
• Temperature Accuracy: ±3℃
• Working Temperature: -30℃ to +80℃
• Storage Temperature: -30℃ to +85℃
• Battery Capacity: 140mAh

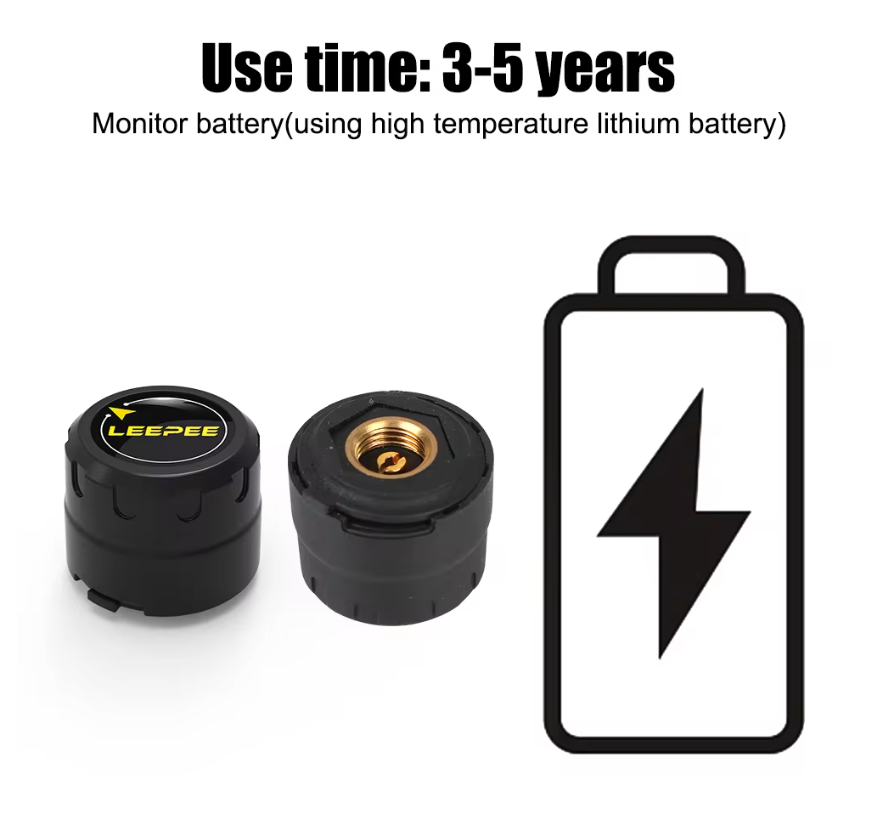

• Battery Life: 3-5 years
• Sensor Weight: 8g±1g

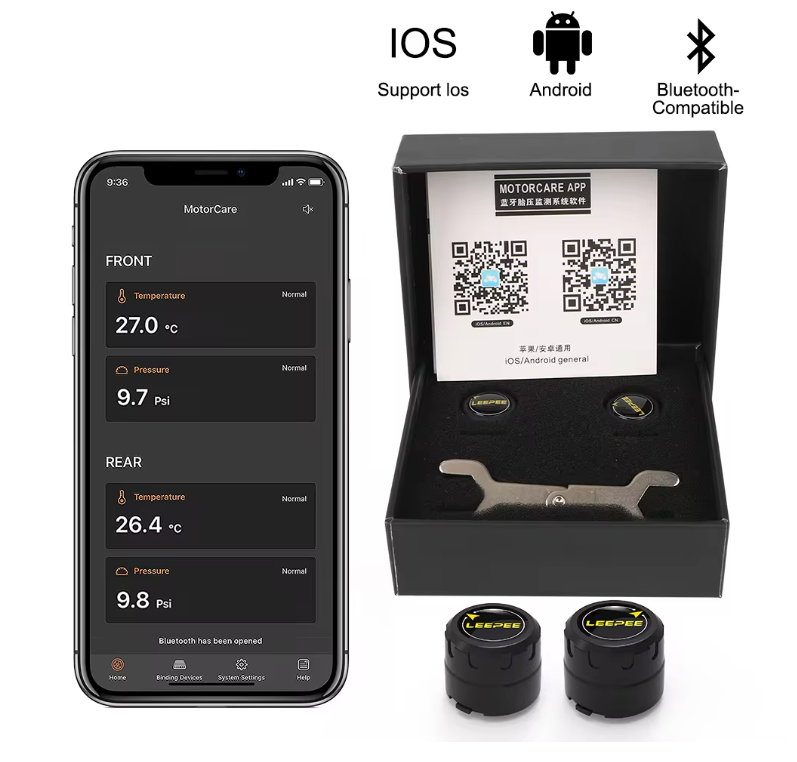

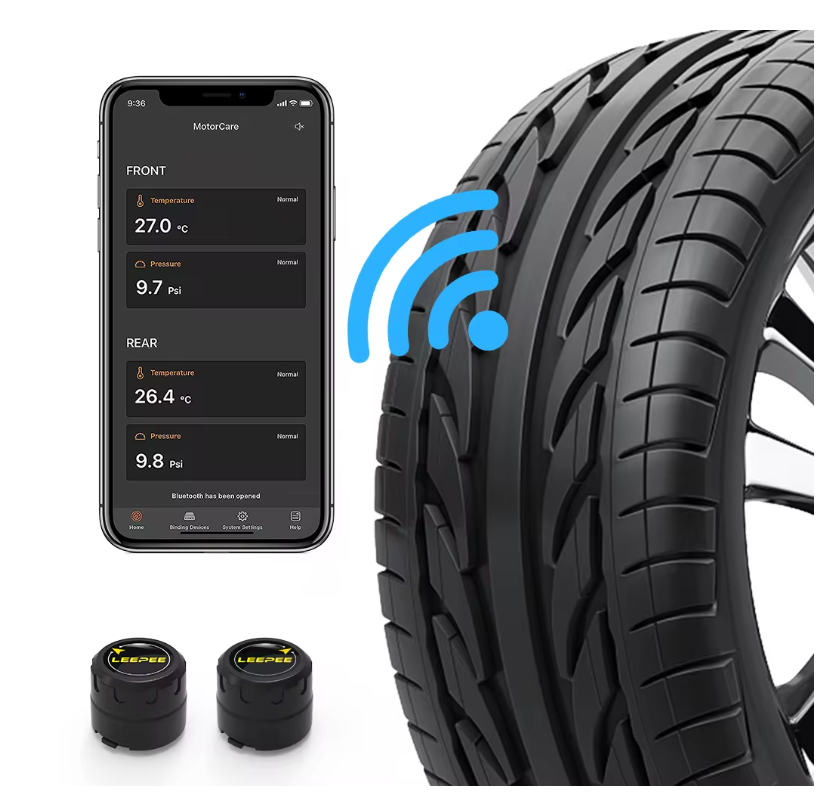

App Description

• Compatible Systems: Supports both Android and iOS with Bluetooth 4.0 or higher.

App Installation

• Option 1: Scan the QR code on the card to download and install.
• Option 2: Search for "motorcare" in the App Store or Google Play Store to download and install.

Pairing Instructions

• Recommended Pairing: Open the app, scan the code to pair with the corresponding sensor ID. Install the sensor and wait for data readings.
• Note: If data is not read immediately after installation, drive the vehicle at speeds above 20 KM/H for 2-3 KM to initiate data transmission.

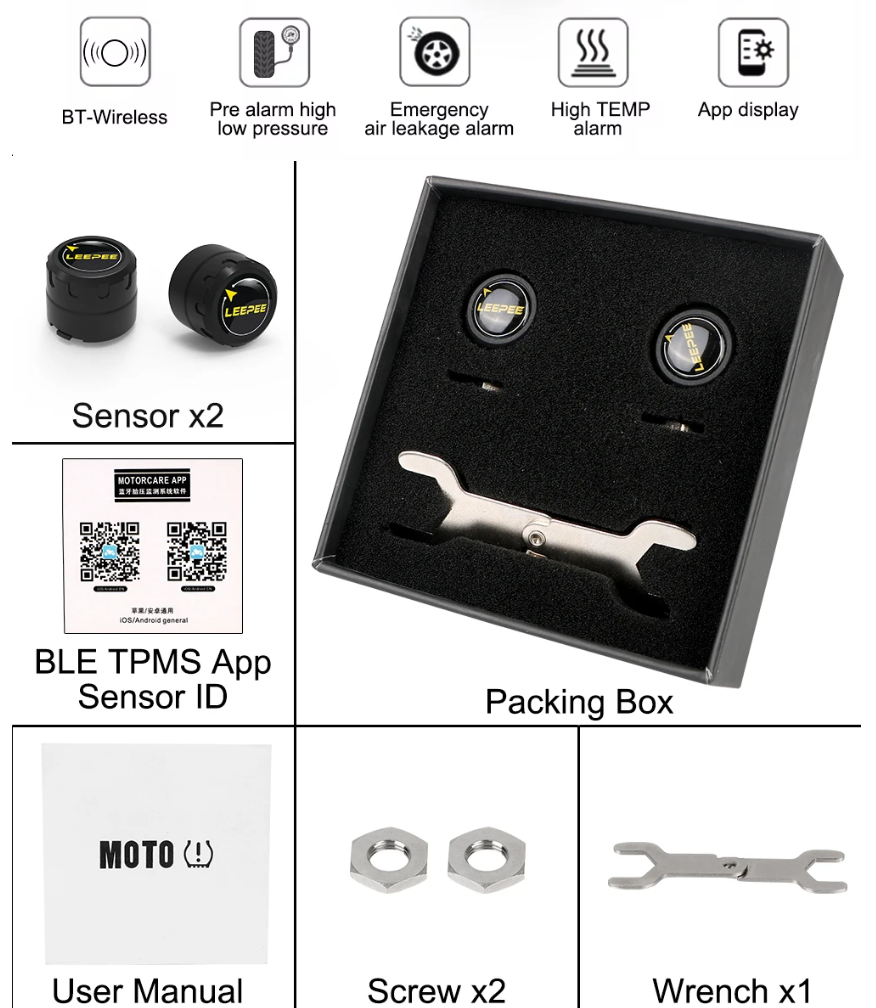

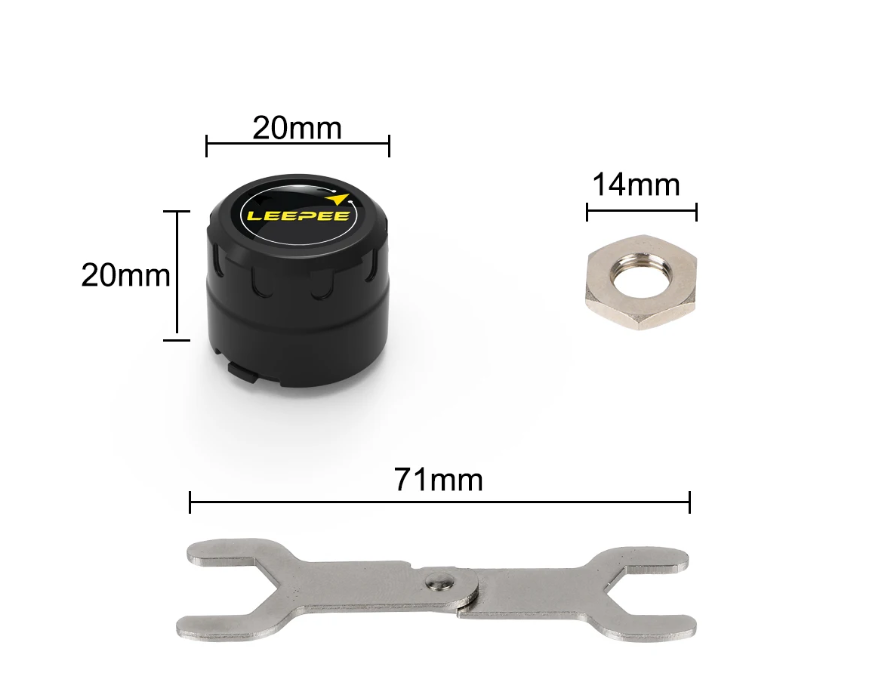

Package Includes

• 2 x External Sensors
• 2 x Screws
• 1 x Wrench
• 1 x User Manual
• 1 x Sensor ID
