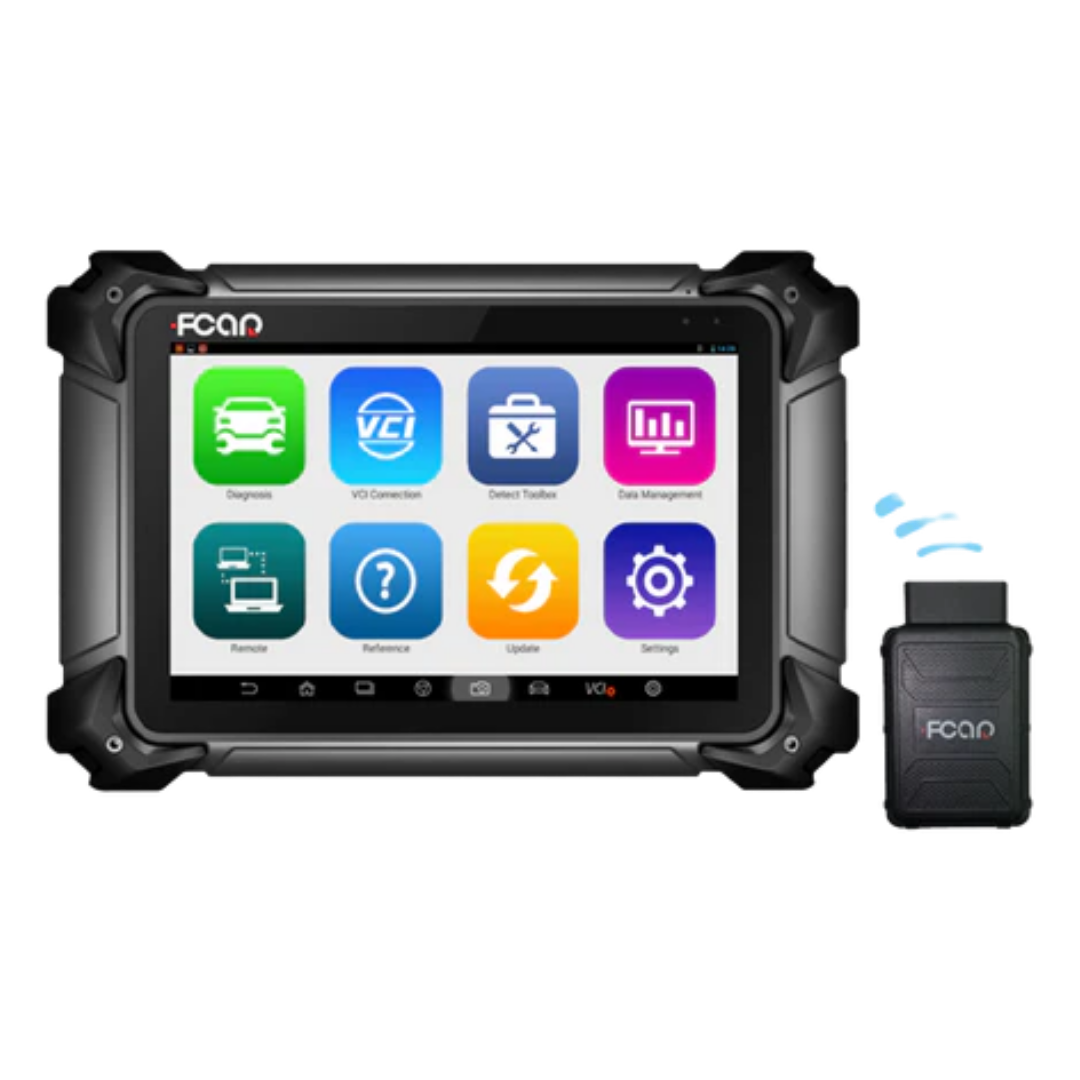

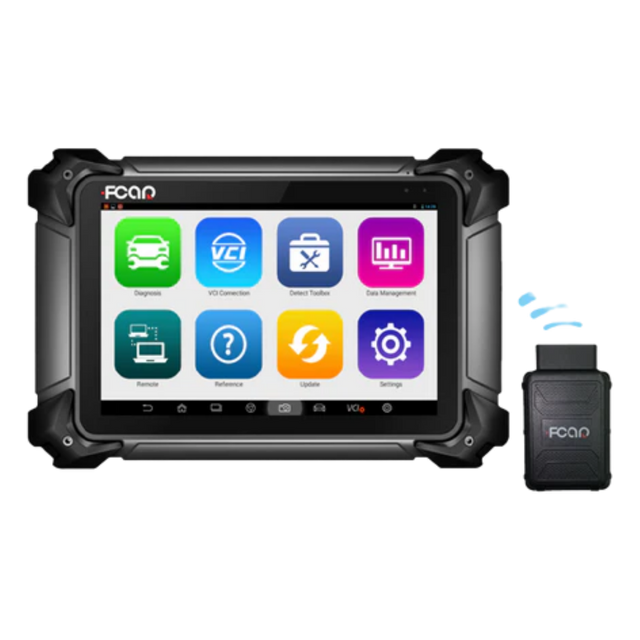

The F7S-W Passenger Vehicle Diagnostic Scan Tool is an android based all-in-one smart diagnostic solution with WiFi and Bluetooth. It features a waterproof construction, anti-scratch coating and shock/liquid ingress resistance. The software provided with an F7S-W tablet covers over 80 car manufacturers from America, Asia and Europe.
This scan tool supports powerful diagnostics, reset and bi-directional special functions, diagram writing, unlimited remote support and an online update feature.
Our F7S-W Diagnostic Scan Tool provides the most coverage for all major passenger vehicle categories, including American, Asian and European passenger vehicle manufacturers.
Link - FCAR F7S-W Brochure
Special Functions
| Category | ||
|---|---|---|
| Service Reset | Throttle Reset | EPB |
| CKP Learning | SAS | Suspension |
| Odometer | ABS | Exhaust Aftertreatment |
| SRS Reset | DPF Forced Regeneration | Windows |
| Battery Match | Steering | Adaptive Headlight Reset |
| ECU Reset/Programming | Smart Key Programming | TPMS |
Product Features
| TeamViewer remote support | One-click feedback |
| One-click update | Online technical information and wiring diagrams |
| Multi-language support | Regional vehicle support, including TATA, Proton, Holden, etc. |
| 2 years warranty and 2 years of free software updates | Huge database including over 150 vehicle models and technical materials |
| VIN detection for passenger vehicles | All-in-one diagnostic solution for the auto professional |
Functions List
-
Actuations
-
Calibrations
-
Electronic Control System
-
Diagnostics
-
Read/Erase Fault Codes
-
Live Data
-
Clutch Adjustment
-
Technical Specifications
| Specification | Details |
|---|---|
| Tablet CPU | Freescale Semiconductor (quad-core), i.MX6Q, 1.2 GHz |
| Operating System | Android 5.1.1 |
| Screen Size | 10.1″, 16:10, 1280×800 IPS |
| Storage Capacity | RAM: 2 GB; Storage: 32 GB |
| Wi-Fi | 802.11 a/b/g/n, 2.4 GHz + 5.8 GHz dual-band |
| Bluetooth | BT 4.0 (BLE), Class 1, 10 m transmission distance |
| Battery | Lithium-polymer, 3.7 V / 10,000 mAh |
| Operating Temperature | −10 °C to 50 °C / 14 °F to 122 °F |
| Storage Temperature | −30 °C to 70 °C / −4 °F to 14 °F |
Two year free updates
