Autel MaxiIM IM508S Professional Immobiliser & Key Programmer Scan Tool

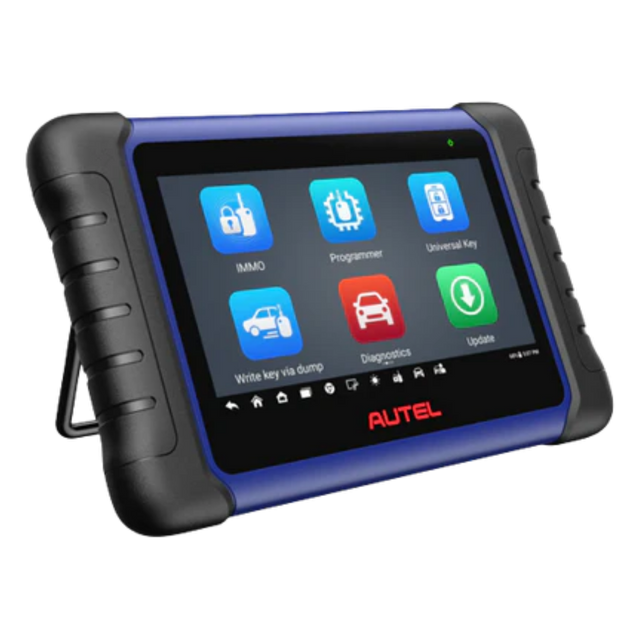

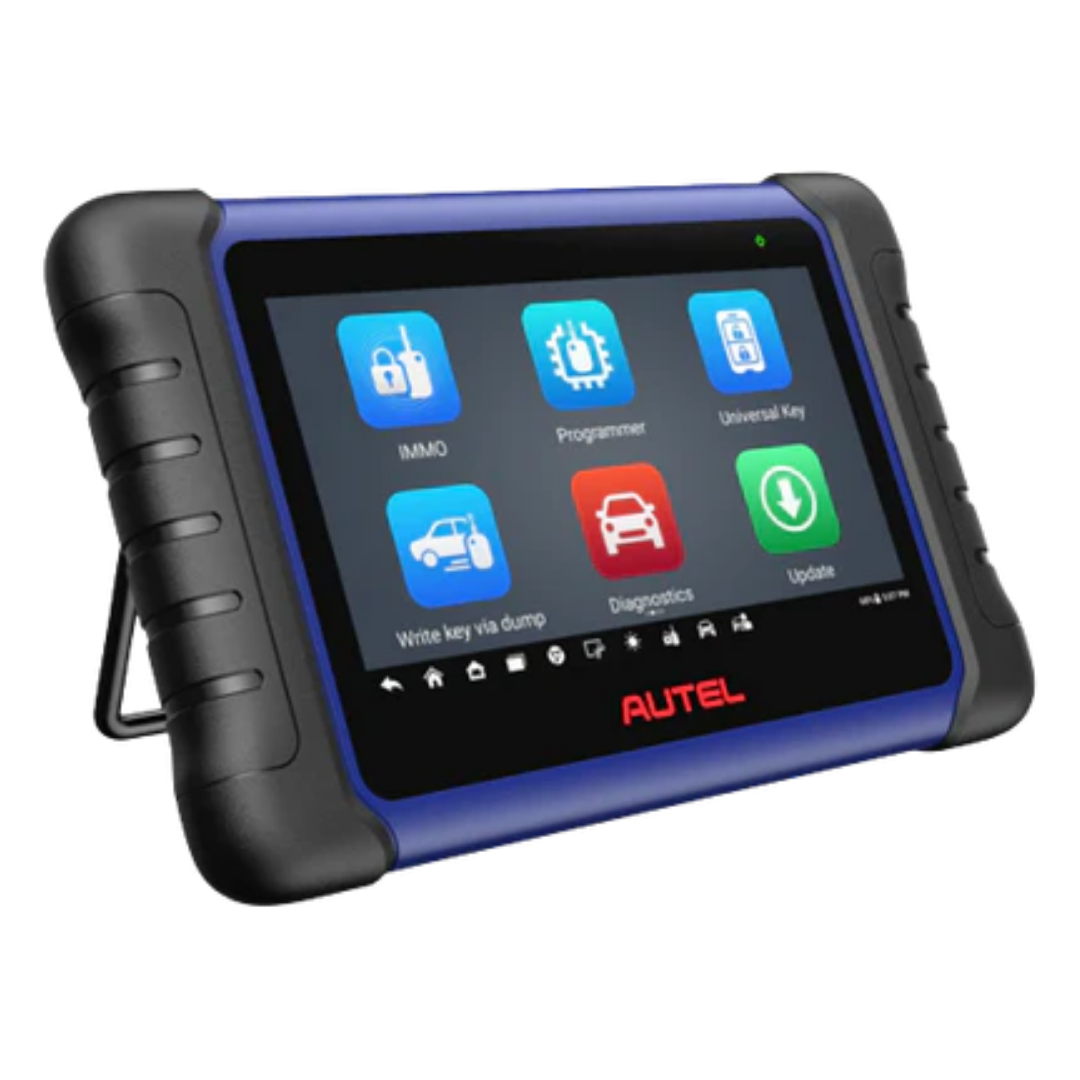

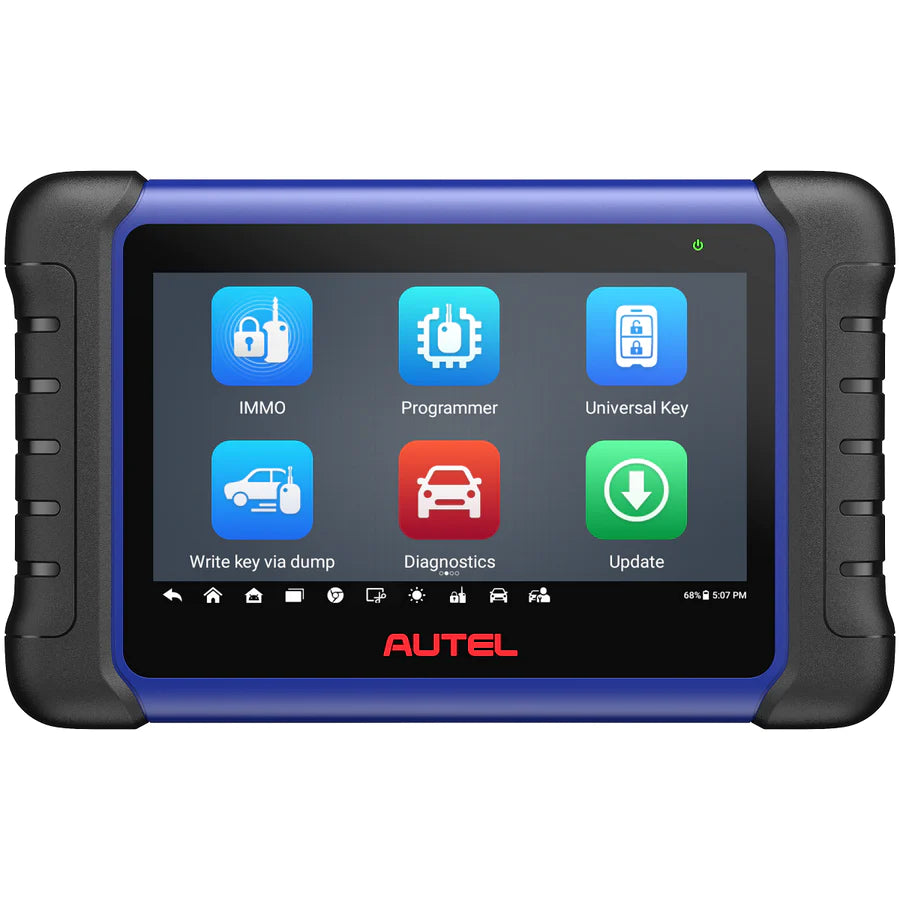

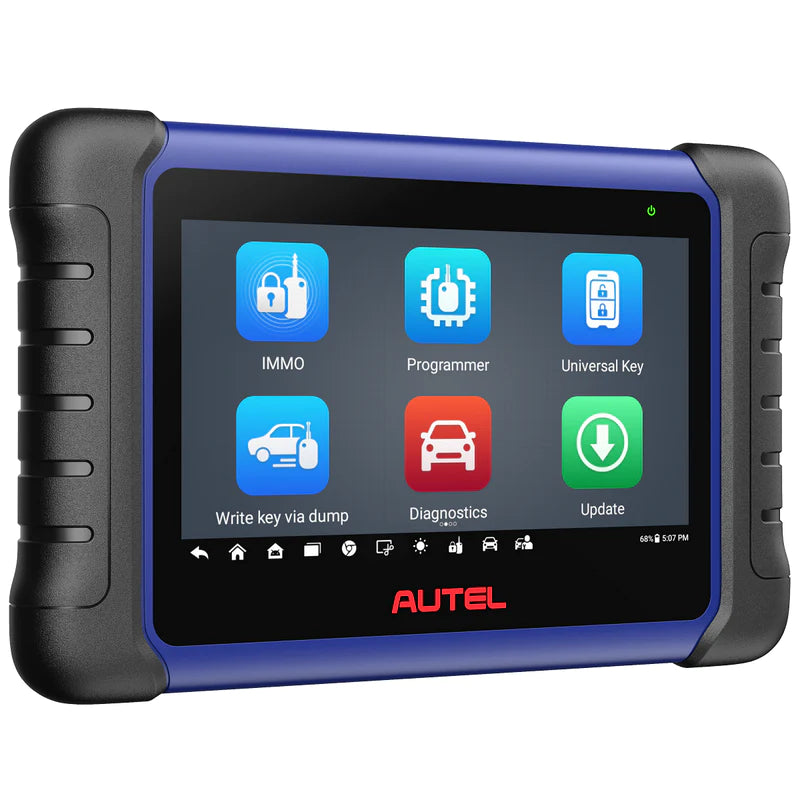

Autel MaxiIM IM508S is a 7-inch, Android-based touchscreen tablet with professional key and immobilizer programming functionality, all systems diagnostics, and an extensive service menu. The tablet, which features a quad-core processor and 64 G.B. onboard memory and runs on the powerful Android 11 operating system, offers faster bootup and operation speed. Equipped with the XP200 key programmer, the IM508S can perform key and immobilizer functions, including Key and Remote Control Learning and basic EEPROM and MCU Read and Write capabilities. The IM508S also enables technicians to complete an all-systems diagnostic scan and read and erase codes, view Freeze Frame and Live Data on U.S., Asian, and European vehicles, 1996 and newer. The tablet also features an extensive menu of the most often performed maintenance and service tasks, including oil light reset, brake bleed, battery registration, steering angle sensor reset, and occupancy seat calibration. The IM508S also offers report cloud management, making saving and sharing reports easy.

To check what functions are available for each vehicle click here

Main Features

• • Powerful combination of key and immobilizer programming, all system diagnostics, extensive service menu
  • Smart Mode for guided and automated key learning
  • Expert Mode for advanced key learning
  • Read PIN/CS (all keys lost) key generation, key learning, remote learning
  • IMMO ECU reset/adaptation, refresh/coding
  • Transpronder read/write, EEPROM/MCU read/write
  • All Systems diagnostics for U.S., Asian, and European vehicles, 1996 and newer
  • Extensive Service Menu, including EPB, DPF, SAS, Oil Light Reset, and BMS
  • Cloud-based report management, allowing you to view device and test records anytime, anywhere
  • Quad-Core processor
  • Internal reliable 64GB Memory
  • Android 11.0 Operating System for fast bootup and multitasking
  • 7-inch LCD touchscreen with 1024 x600 resolution

Covered Protocols

• 1.Operating System:Android 11.0

• 2. Processor: Cortex-A9 processor (1.6 GHz)

• 3.Memory:64GB internal

• 4.Display:7-inch LCD capacitive touchscreen with 1024x600 resolution

• 5.Connectivity:Mini USB 2.0,USB 2.0,Wi-Fi,Micro SD card (supports up to 32GB)

• 6.Sensors:Ambient light sensor for brightness auto changing

• 7.Audio Input / Output:Input: N/A,Output: buzzer

• 8.Power and Battery:3.7 V/5000 mAh lithium-polymer battery, Charges via 5 VDC power supply

• 9.Tested Battery Life:Around 4.5 hours of continuous use

• 10.Battery Charging Input:5 V/1.5 A

• 11.Power Consumption:500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V

• 12.Operating Temp:0 to 50°C (32 to 122°F)

• 13.Storage Temp:-20 to 60°C (-4 to 140°F)

• 14.Operating Humidity:5% - 95% non-condensing

• 15.Net Weight:788 g (2.42 lb)

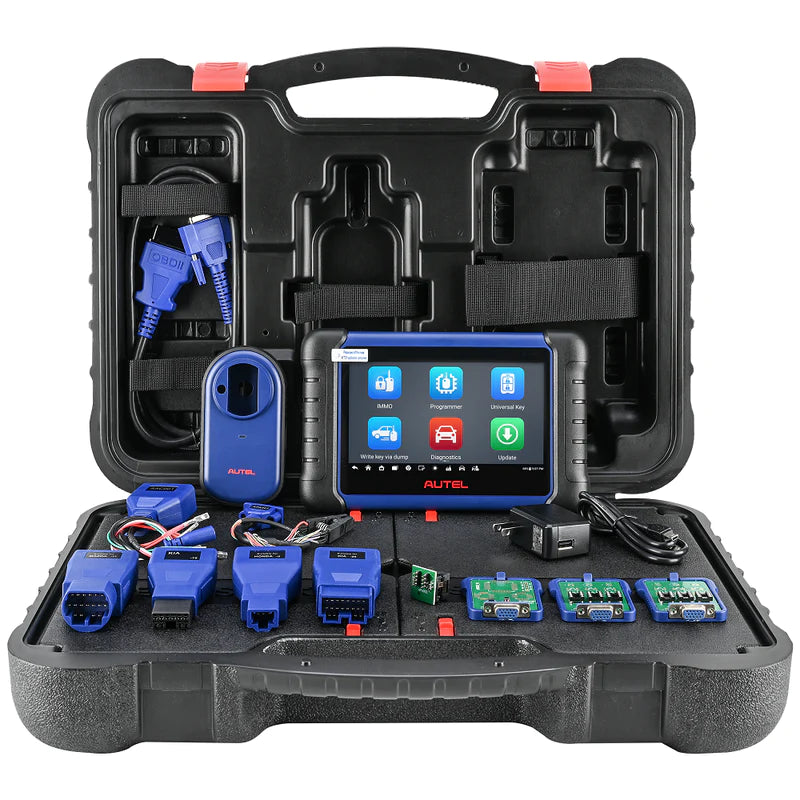

Package Includes

• 1 X MaxiIM IM508S Tablet
• 1 X XP200 Keys Programmer
• 1 X AAC001 – MED17 Cable
• 1 X KIA-20 Adaptor
• 1 X Mazda-17 Adaptor
• 1 X Quick guide
• 1 X Honda-3 Adaptor
• 1 X KIA-10 Adaptor
• 1 X USB External Power Adapter
• 1 X Main cable
• 1 X Mini USB Cable
• 1 X Carrying Case

One year free software updates
