Launch X431 PAD V ECU Programming High End Diagnostic Scan Tool

Launch X431 PAD V ECU Program High End Comprehensive Diagnostic Scan Tool

X-431 PAD V is a high-end comprehensive diagnostic tool newly developed on the basis of Android 7.1. It supports dual 2.4GHz & 5 GHz Wi-Fi communication,with features such as wide vehicle model coverage, powerful diagnostic functions, and accurate test data. Its protection level is IP65.

Features:

1. Android 7.1 customized system, Qualcomm 8-core processor, 10.1 inch capacitive touch screen, support QC3.0 fast charging.

2. 2.4GHz & 5GHz Dual-Frequency Wi-Fi, the transmission rate is faster than the previous generation.

3. Support commercial vehicle and passenger car diagnosis, Supports J2534, CAN FD, DoIP.

4. Wide mode coverage, powerful and a large number,of diagnostic functions, and accurate test data.

5. Brand new industrial design, with soft rubber sheath on the four corners of the product, to effectively prevent collision; damping shaft, free adjustment of nearly 180 degrees; support three modes of hanging, support and normal.



Functions:

1. Comprehensive diagnosis: Support full-make, full-system, full-function rapid diagnosis, read DTC, clear DTC, read data stream, actuation test, etc.

2. Intelligent diagnose: Support intelligent VIN identification and cloud-based diagnostic record query, making the diagnostics more intelligent and efficient.

3. Local diagnose: When the intelligent diagnosis is not available in an environment without network, choose traditional diagnosis. Select the vehicle make and model manually to perform the vehicle detection.

4. Remote diagnose: Support online real-time communication and remote diagnostic service through text, picture, and file between device and device, and between device and remote desktop, with low network bandwidth and system resources occupancy.

5. Special function: Support total 26 special functions, including service lamp reset, throttle adaptation, steering angle reset, brake pad reset, tire pressure reset, anti-theft matching, ABS bleeding, battery matching, gear learning, injector coding, DPF regeneration, sunroof initialization, headlamp matching, suspension matching and AT matching, EGR Adaption.

6. Software upgrade: Support one-click upgrade of operation system, client side, car model software and firmware.

7. Diagnostic feedback: For model software and function errors met during the use, please submit the feedback immediately. LAUNCH will response as soon as possible.

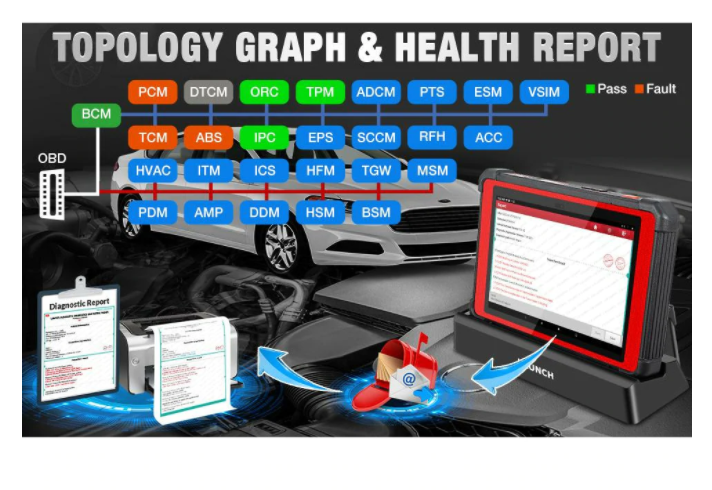

8.  My report: View comprehensive diagnostic report, remote diagnostic report, and data stream playback.

9.  Settings: Contains my connector, diagnostic connector connection management, connector activation, firmware repair, etc.

10.  Extended module: Support oscillograph, sensor, battery test, endoscope, Wi-Fi printer, etc




SPECIFICATIONS
Display Screen 10.1″ full-fitting, sunlight readable screen(gorilla glass), 1920×1200
CPU Eight-core Cortex-A53 2.0GHz
Operating system Android 7.1
RAM 4G
Storage capacity 64G, 128G extendable
WLAN WiFi (802.11 b/g/n)
USB 2.0
Bluetooth 2.0
Working temperature (ºC) -10~+55
Storage humidity 20-90%
Storage temperature (ºC) -20~+70
Camera Front 8M, rear 13.0M, AF with flashlight
Battery 9360mAh lithium-polymer battery
Audio Input/Output Microphone, Speakers, 3.5mm stereo headset jack
Video output HDMI



Supported Languages:

English, Chinese and other language depending the car makes. Fees apply for other languages other than English or Chinese.

Software Coverage:
  • Passenger vehicles:
  • Australian:  AUST Holden, AUST Ford
  • Asian: Toyota/Lexus, Honda/Acura, Mazda, Subaru, Nissan/Infiniti, Mitsubishi, Hyundai, Isuzu, Daihatsu, KIA, Daewoo, Suzuki, Proton, Tata, Mahindra, Ssangyong, Perodua, Maruti
  • European: Audi, Mercedes/Maybach, BMW/MINI/Rolls Royce, VW/Bentley/Bugatti, Opel/Vauxhall, Peugeot, Citroen, Volvo, Sprinter, Renault/Dacia, Fiat/Romeo/Abarth/Lancia, Rover, Landrover, Saab, Seat, Skoda, Smart, Maserati, Ferrari, Arston Martin, Porsche, Jaguar
  • USA: USA Ford/Lincoln, GM/Buick/Cadillac/Chevrolet, Chrysler/Dodge/Jeep
  • Chinese: Changcheng(Great Wall), Geely, Qirui_TY(Cherry), Futian, Changan, Changhe, Haifei ….etc.
  • Special: Immobilizer/Key, Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS
  • Others: EOBD, Demo
  • * Standard 2-year free update.
  • Heavy Duty Vehicles:
  • Nissan (Diesel)
  • Mitsubishi (Diesel)
  • USA Ford Diesel, Kenworth
  • Astra, Benz Heavy Duty,  Bosch Diesel, China Heavy Duty, Cummins Heavy Duty, DAF, Delphi Diesel
  • Denso Diesel, FAW Liberation, Foton Auman, FUSO, Hino, Hyundai Heavy Duty, Isuzu Heavy Duty
  • Iveco Heavy Duty, JAC Heavy Duty, Mack , MAN , OBD Heavy Duty, Scania, Shangchai Diesel, Volvo Heavy Duty
  • WP Diesel, Airbus, Allison Transmission Box, Ashok Rejlander, Bendix ABS, Caterpillar Heavy Duty
  • Chai Heavy Vehicle, Chaoyang Diesel, Construction Machinery, CREDO Heavy Vechicle, Detroit Engine
  • Dongfeng Commercial Vehicle, Dongfeng Yufeng, Doosan Engine, Freightliner Heavy Duty Truck
  • Full Diesel Diagnosis Software, Haldex ABS Heavy Duty, HD_ABS System, HD_GoldenDragon, HD_International
  • HD_Kinglong, HD_Maxxforce, HD_Tata, HD_Western_Star, Heavy Truck Presentation Software
  • IRISBUS HD, IRIZAR HD, NEOPLAN HD, Peter HD, Renault HD, SETRA HD, Stannic Bavin, Sterling HD
  • Sunlong Bus, Sunwin Bus, UD Trucks 2F Nissan Diesel, WABCO ABS, Yang Chai Engine



Powerful special functions:
  • Component Replacement, Cylinder Compression Test, Injector Cut Out Test, DPF Regeneration
  • Communicates with ABS & Transmissions from Bendix, Wabco and Allison
  • Tech to Tech remote communication function

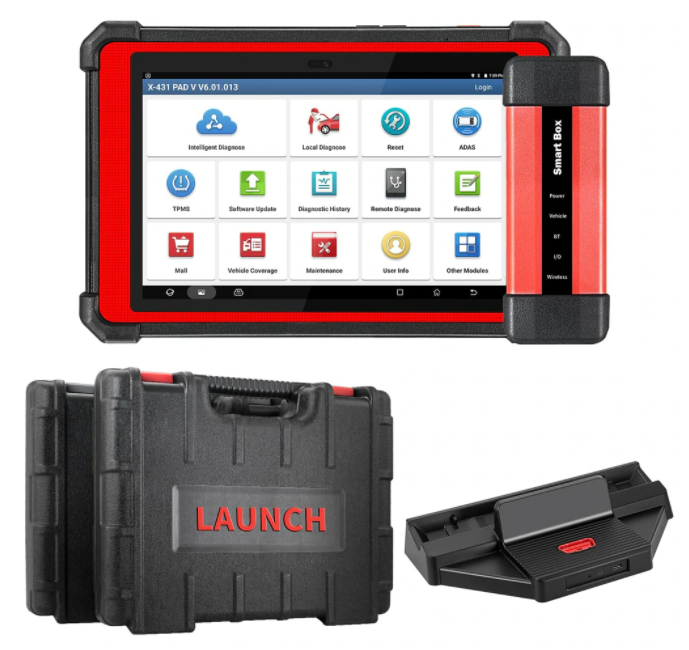

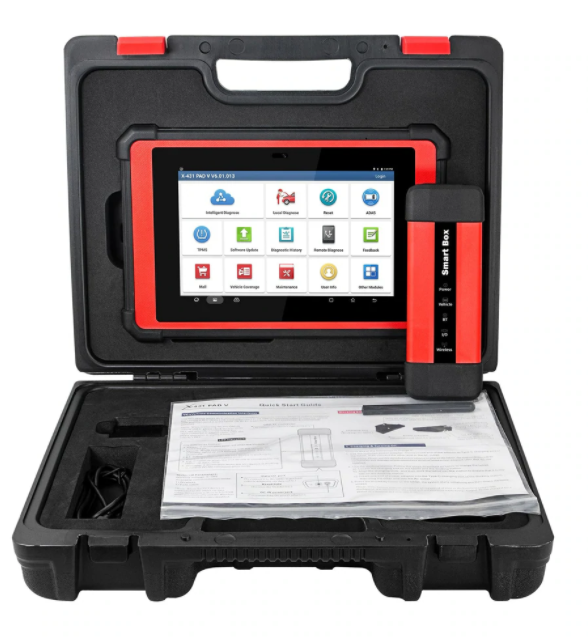

1x X-431 PAD V main unit

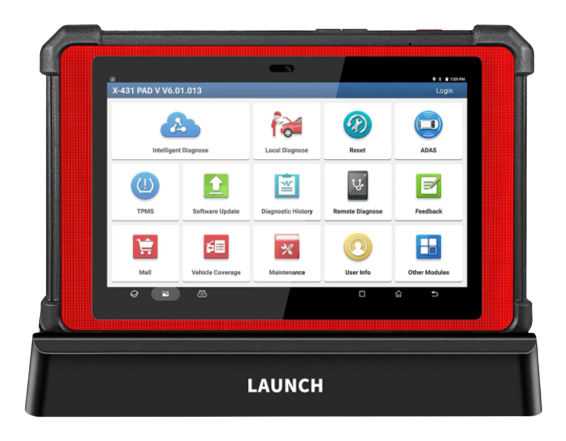

1x X-431 PAD V charging dock

1x Smartbox 3.0 diagnostic connector

1x Micro USB cable

1x Cigarette lighter cable

1x 5V DC out power adaptor

1x Battery clamps cable

1x OBD II extension cable

1x Non-16pin connector converting cable

1x Password envelope

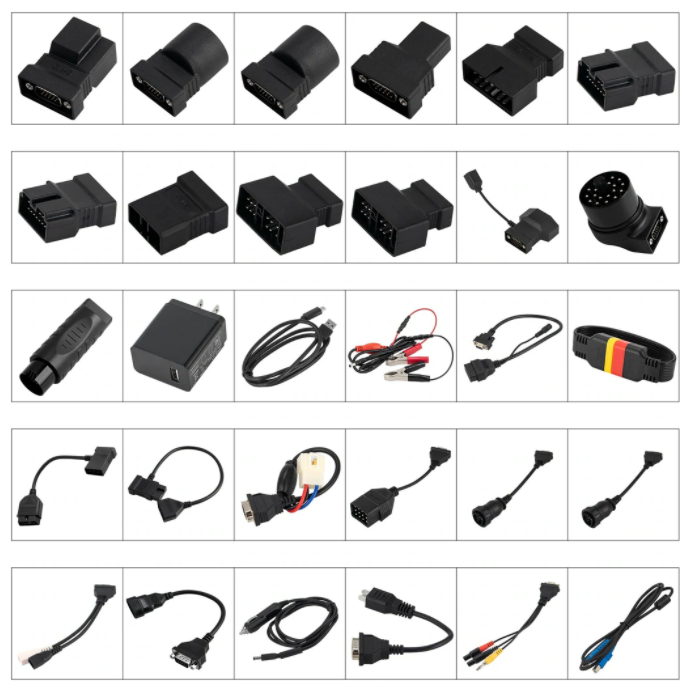

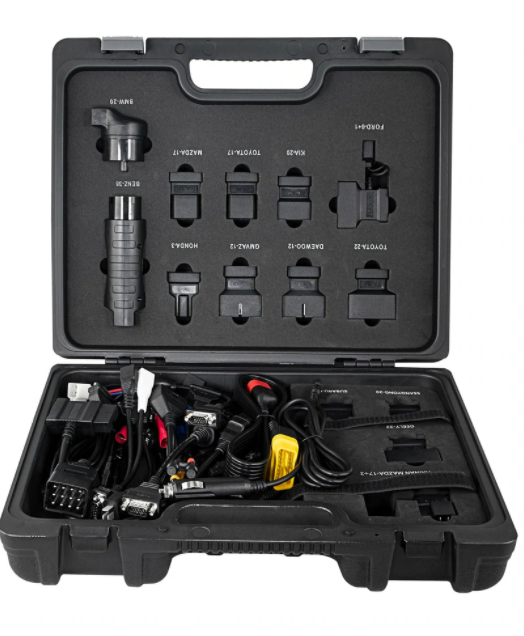

1x Non-16pin connectors set



View product brochure
